Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

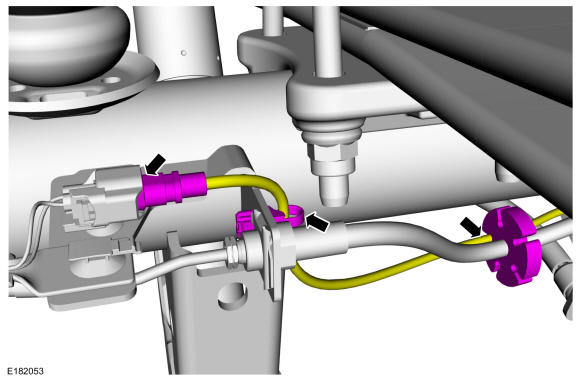

Disconnect the rear wheel speed sensor electrical connector and detach the 2 sensor harness retainers.

Courtesy of FORD MOTOR COMPANY

3.

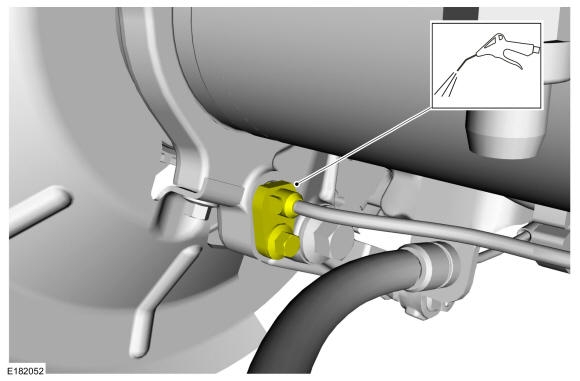

Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

4.

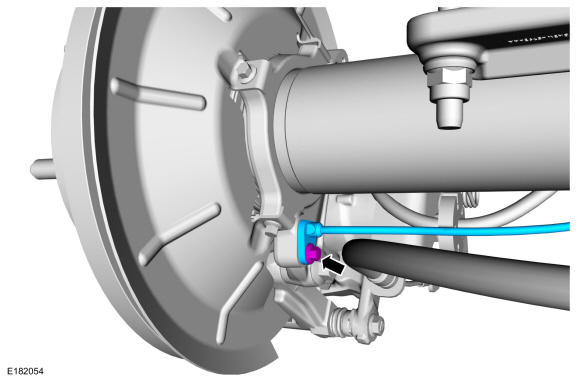

Remove the bolt and the rear wheel speed sensor.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
