Differential Fluid Level Check
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
Check
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.

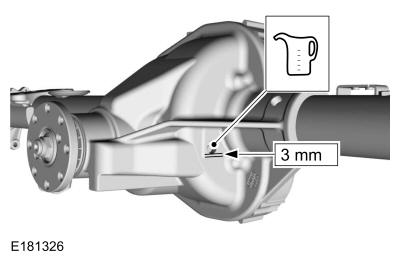

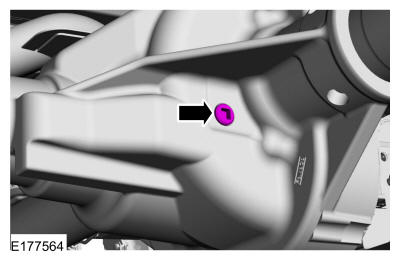

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3mm (1/8 in.) from the fluid level fill plug opening. Refer to: Specifications .Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
