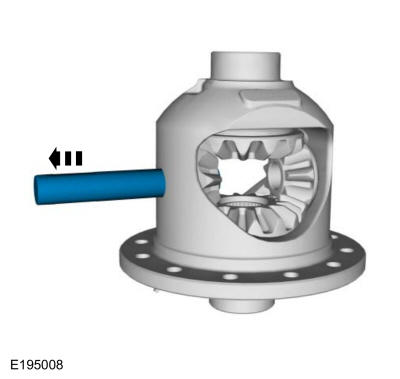

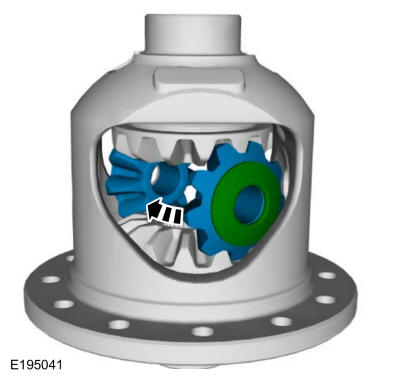

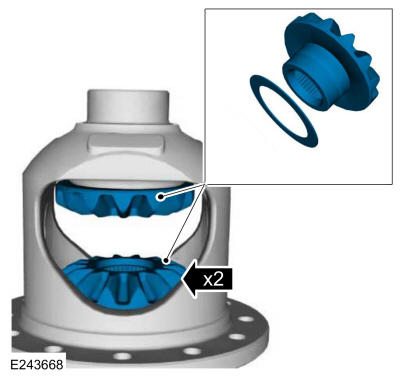

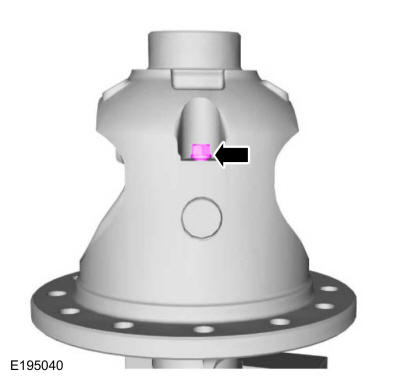

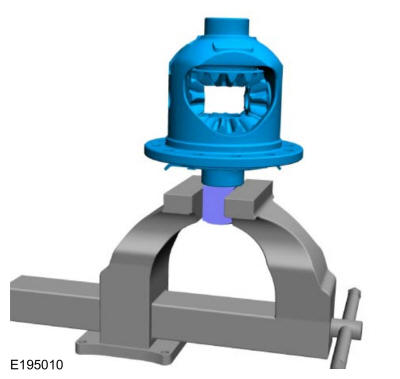

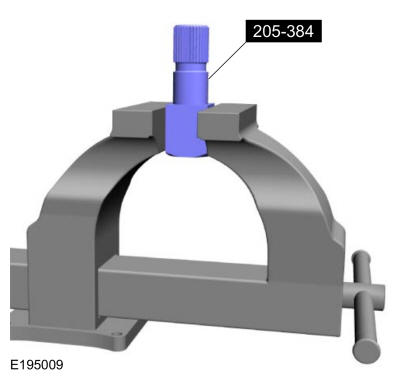

Differential Carrier: Disassembly

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the differential carrier. Refer to: Differential Carrier .

2.

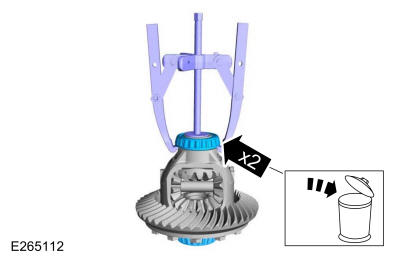

Using the general equipment, remove and discard the differential bearings. Use Special Service Tool: 205-D072 (D97L-4221-A) 2 Jaw Puller., 205-D061 (D83T-4205-C2) Step Plate.

Courtesy of FORD MOTOR COMPANY

3.

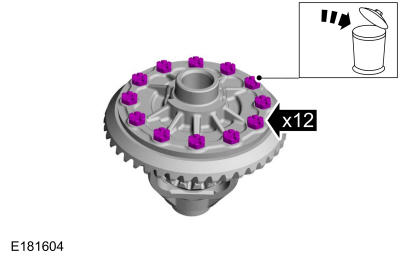

Remove and discard the ring gear bolts.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Care should be taken not to damage the differential ring gear bolt hole threads.

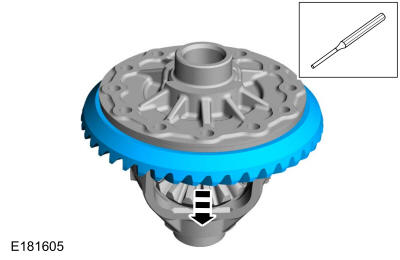

Using the brass punch and a soft face hammer, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

5.

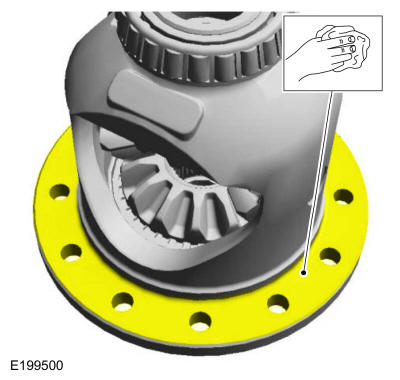

NOTE: The differential flange and ring gear flange must be free of any old retaining compound material. Make sure both surfaces are clean and free of oil, dust and debris. Failure to clean the surfaces can result in ring gear runout concerns.

NOTE: Use solvent and Scotch-Brite ® pads to remove.

Clean all traces of the old retaining compound material from the differential flange.
