Instrument Panel: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .

2.

NOTE: Make sure all openings are sealed.

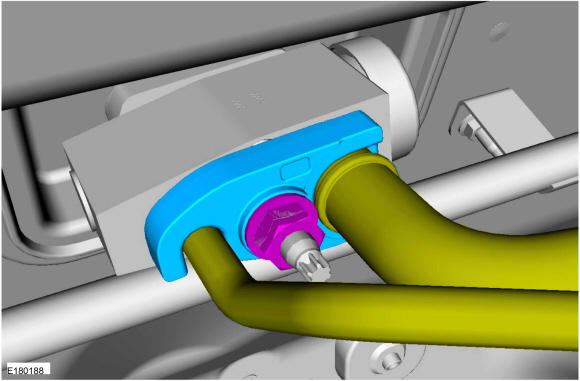

Remove the evaporator pipe nut and flange, position the pipe aside.

Torque: 133 lb.in (15 Nm)

GFD147049

Courtesy of FORD MOTOR COMPANY

3.

NOTE: 3.5L Ecoboost powertrain shown, other powertrains similar.

NOTE: Make sure all openings are sealed.

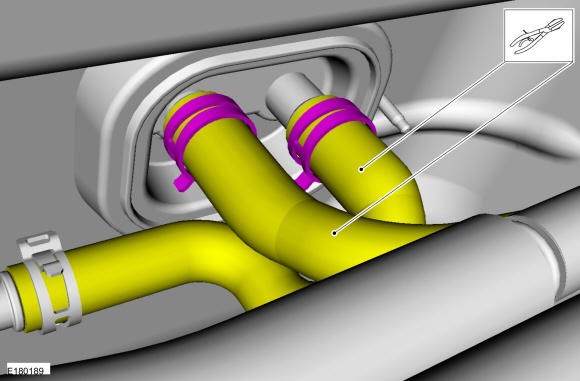

Clamp and disconnect the heater hoses.

GFD147050

Courtesy of FORD MOTOR COMPANY

4.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

5.

Remove both front doors. Refer to: Front Door .

6.

Remove the RH and LH A-Pillar trim panels. Refer to: A-Pillar Trim Panel .

7.

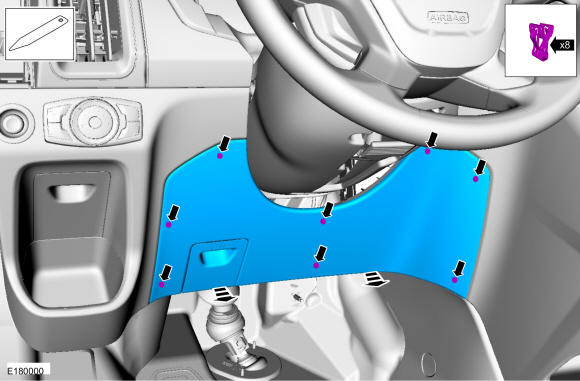

Release the 8 clips and remove the lower steering column opening trim panel.

GFD147051

Courtesy of FORD MOTOR COMPANY

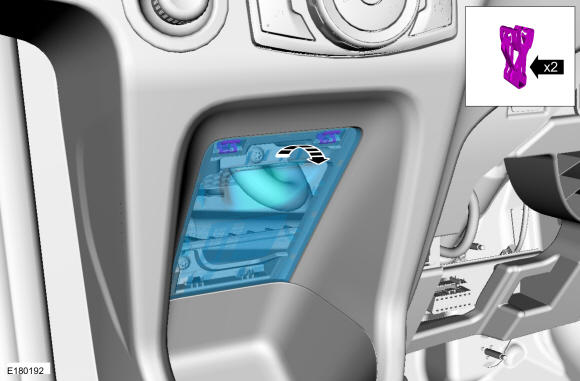

8.

Release the 2 clips and remove the LH side access panel.

GFD147052

Courtesy of FORD MOTOR COMPANY

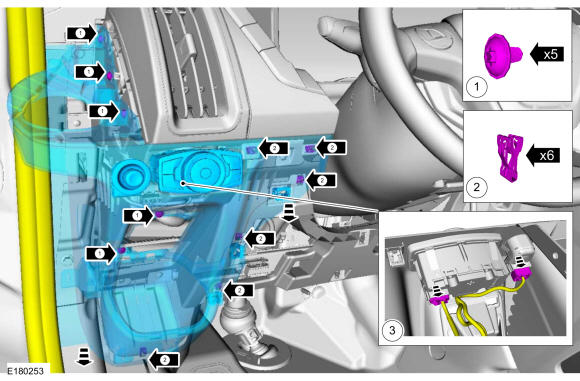

9.
- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 6 clips and position the LH instrument panel finish panel.
- 3.

  Disconnect the 2 electrical connectors and remove the RH instrument panel finish panel.

GFD147053

Courtesy of FORD MOTOR COMPANY

10.

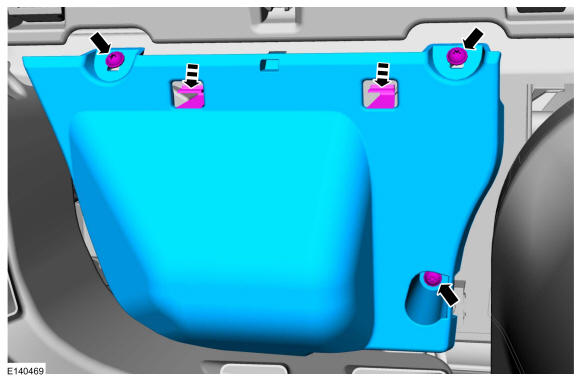

Remove the 3 screws, release the retainers and remove the lower LH instrument panel insulator panel.

GFD147046

Courtesy of FORD MOTOR COMPANY

11.

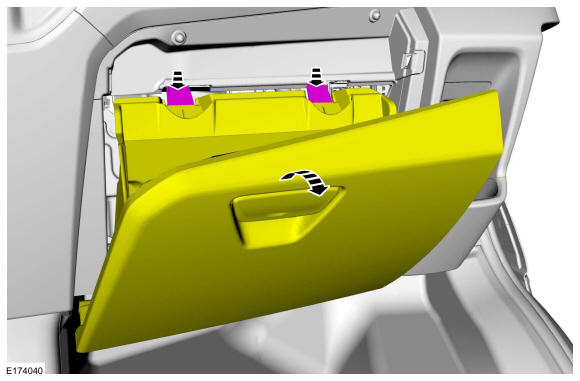

Press the stop tabs downward and fully lower the glove compartment.

GFD147047

Courtesy of FORD MOTOR COMPANY

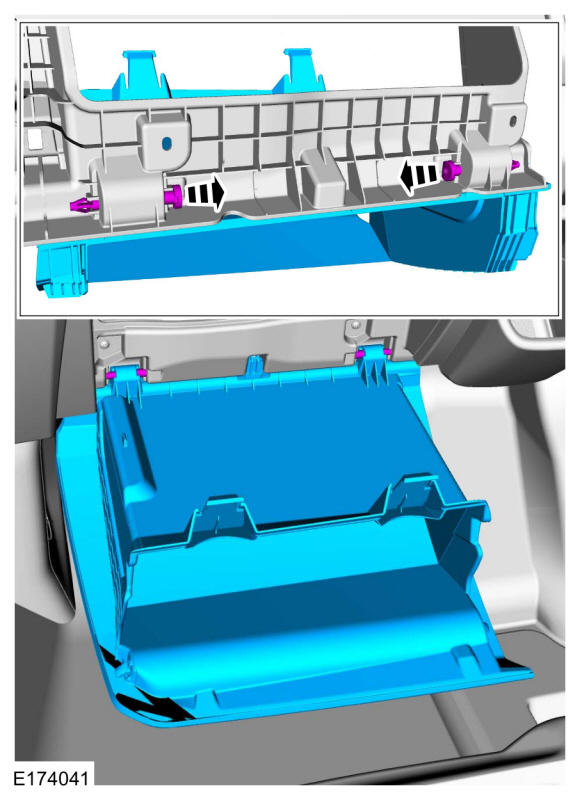

12.

Remove the 2 hinge pins and remove the glove compartment.

GFD147054

Courtesy of FORD MOTOR COMPANY

13.

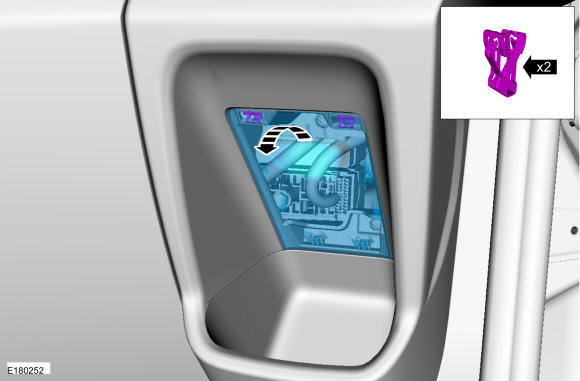

Release the 2 clips and remove the RH side access panel.

GFD147055

Courtesy of FORD MOTOR COMPANY

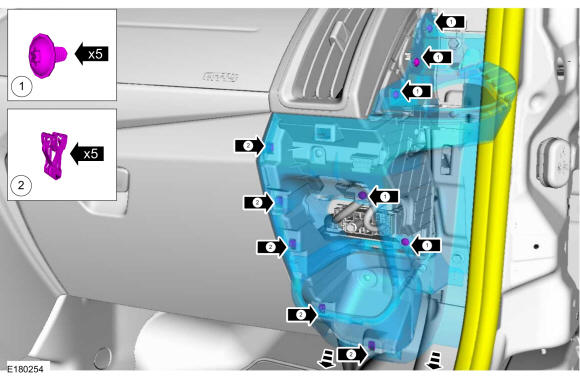

14.
- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 5 clips and remove the RH instrument panel finish panel.

GFD147056

Courtesy of FORD MOTOR COMPANY

15.

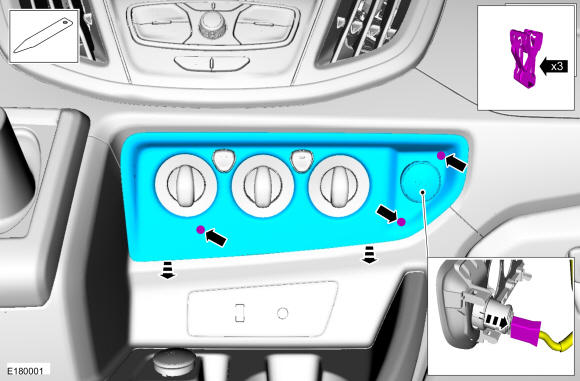

Release the 3 clips, disconnect the electrical connector and remove the HVAC (heating, ventilation and air conditioning) control bezel.

GFD147057

Courtesy of FORD MOTOR COMPANY

16.

NOTE: If equipped.

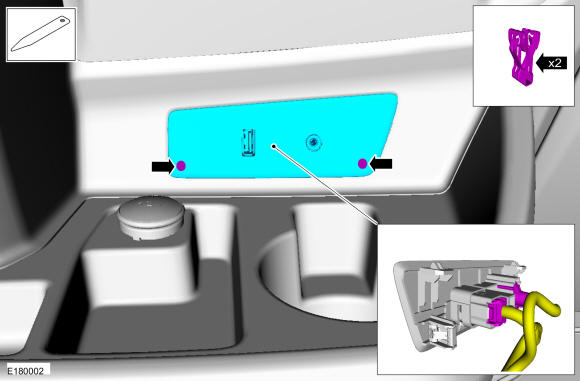

Release the 2 clips, disconnect the 2 electrical connectors and remove the media bezel.

GFD147058

Courtesy of FORD MOTOR COMPANY

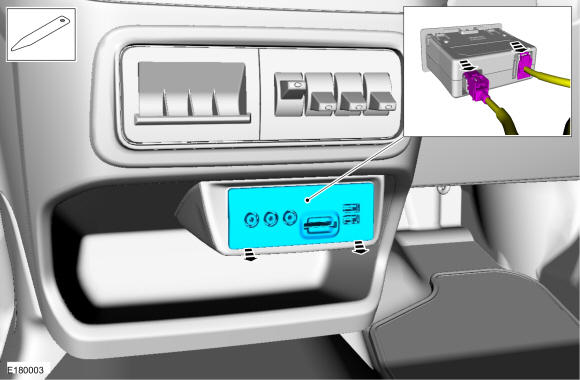

17.

NOTE: If equipped.

Remove the media hub and disconnect the 2 electrical connectors.

GFD147059

Courtesy of FORD MOTOR COMPANY

18.

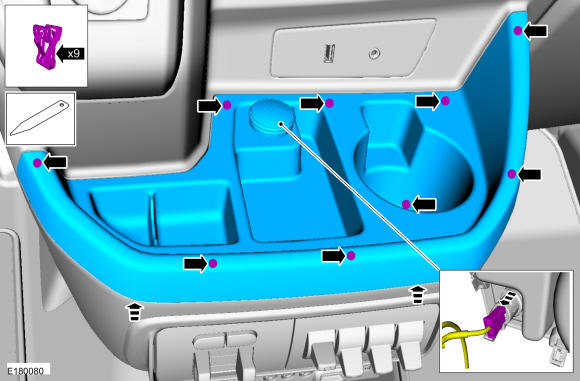

Release the 9 clips, disconnect the electrical connector and remove the instrument panel console cup holder.

GFD147060

Courtesy of FORD MOTOR COMPANY

19.

NOTE: If equipped.

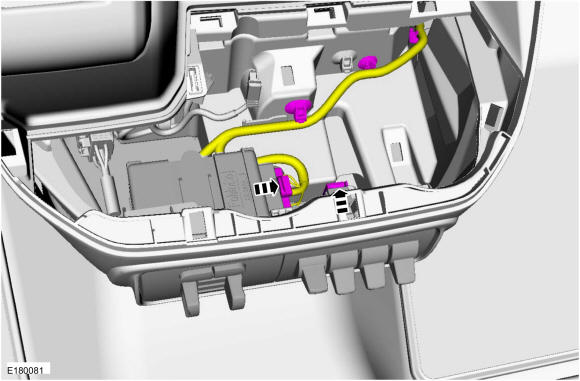

Disconnect the 2 electrical connectors release the 4 harness retainers and position the harness aside.

GFD147061

Courtesy of FORD MOTOR COMPANY

20.

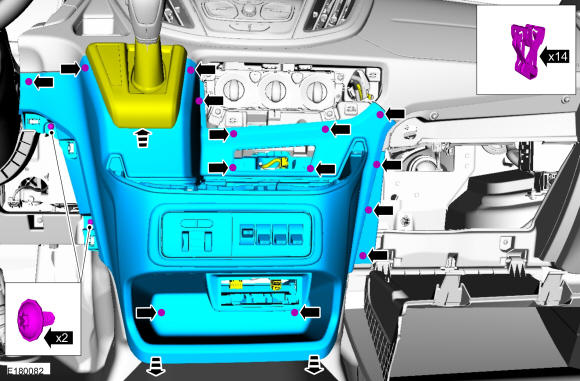

Position the transmission selector lever bezel upward, remove the 2 screws, release the 14 clips and remove the instrument panel console.
Torque: 18 lb.in (2 Nm)

GFD147062

Courtesy of FORD MOTOR COMPANY

21.

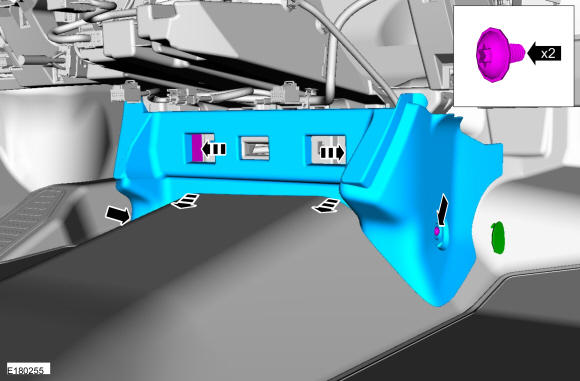

Remove the 2 screws, release the 2 retaining tabs and remove the center lower instrument panel finish panel.

GFD147063

Courtesy of FORD MOTOR COMPANY

22.

NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

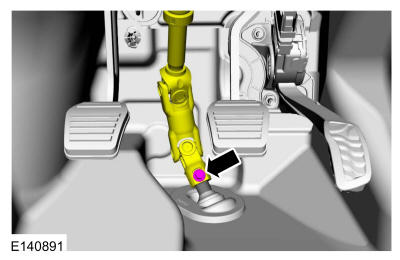

Remove and discard the steering shaft pinch bolt and position aside the lower steering column shaft.

Torque: 21 lb.ft (28 Nm)

GFD147064

Courtesy of FORD MOTOR COMPANY

23.

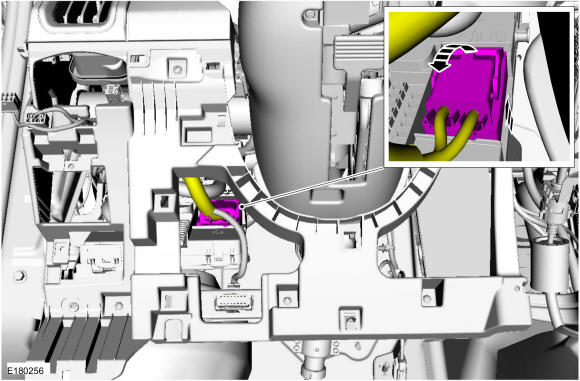

Disconnect the electrical connector.

GFD147065

Courtesy of FORD MOTOR COMPANY

24.

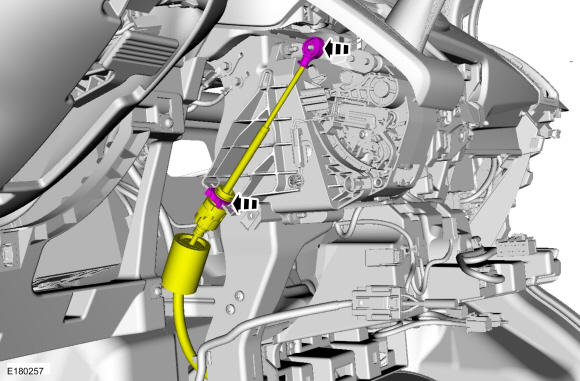

Disconnect and position aside the selector lever cable.

GFD147066

Courtesy of FORD MOTOR COMPANY

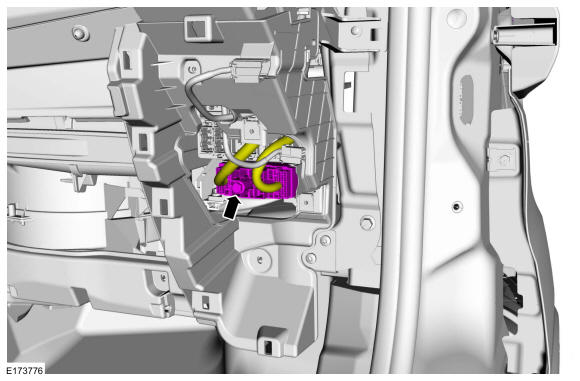

25.

Remove the bolt and disconnect the electrical connector.

GFD147067

Courtesy of FORD MOTOR COMPANY

26.

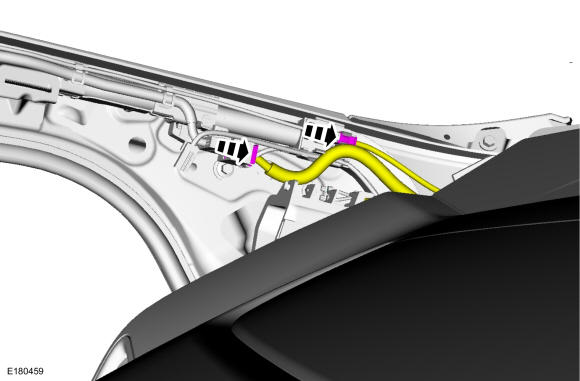

Disconnect the 2 electrical connectors at the LH A-pillar.

GFD147068

Courtesy of FORD MOTOR COMPANY

27.

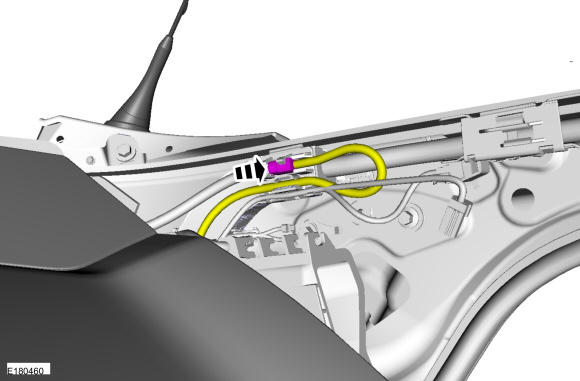

Disconnect the electrical connector at the RH A-pillar.

GFD147069

Courtesy of FORD MOTOR COMPANY

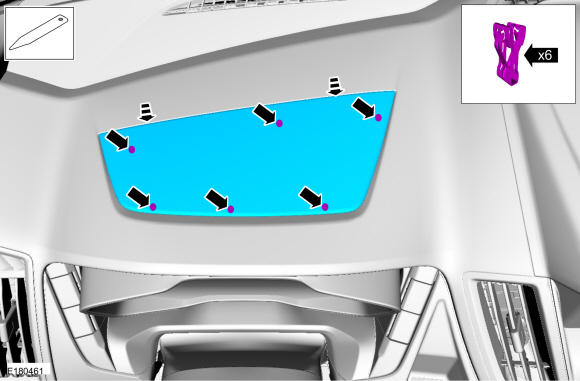

28.

Release the 6 clips and remove the LH upper instrument panel finish panel.

GFD147070

Courtesy of FORD MOTOR COMPANY

29.

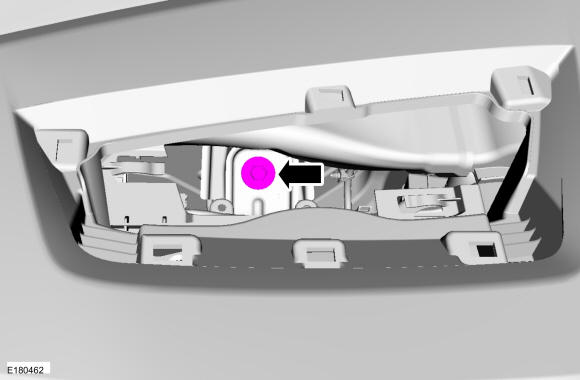

Remove the LH center instrument panel support bolt.
Torque: 119 lb.in (13.5 Nm)

GFD147071

Courtesy of FORD MOTOR COMPANY

30.

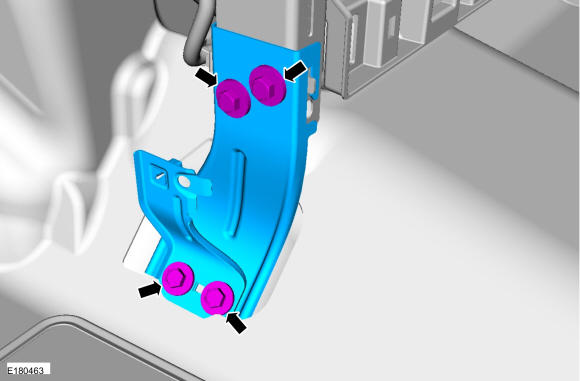

Remove the 4 bolts and the LH instrument panel lower support bracket.
Torque: 119 lb.in (13.5 Nm)

GFD147072

Courtesy of FORD MOTOR COMPANY

31.

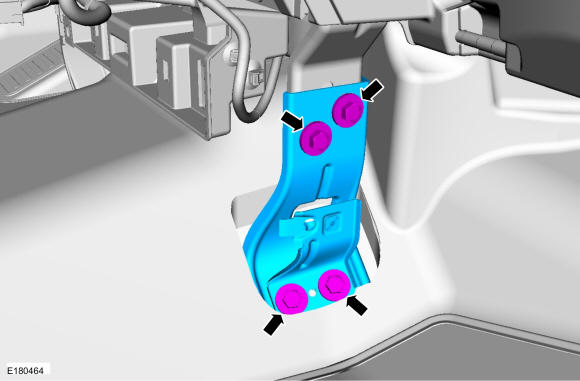

Remove the 4 bolts and the RH instrument panel lower support bracket.
Torque: 119 lb.in (13.5 Nm)

GFD147073

Courtesy of FORD MOTOR COMPANY

32.

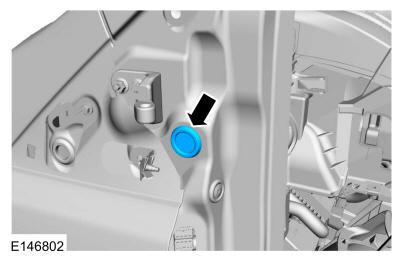

Remove the LH and RH A-piller bolt cover.

GFD147074

Courtesy of FORD MOTOR COMPANY

33.

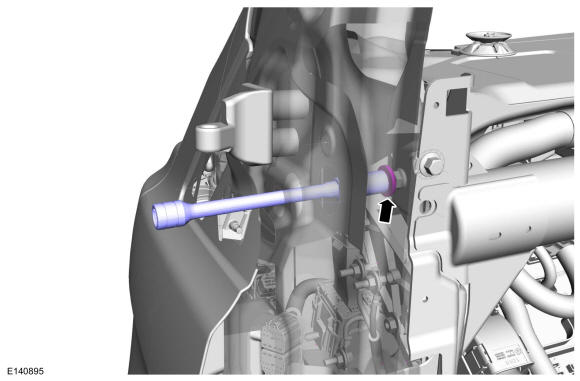

Using a socket extension remove the LH and RH A-pillar bolts.
Torque: 119 lb.in (13.5 Nm)

GFD147075

Courtesy of FORD MOTOR COMPANY

34.

NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.

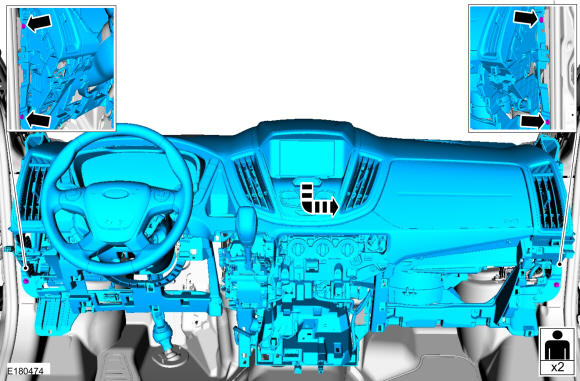

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

Remove the 2 LH and the 2 RH instrument panel bolts, rotate the instrument panel face down and remove through the RH door.

Torque: 22 lb.ft (30 Nm)

GFD147076
