Instrument Panel Console: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

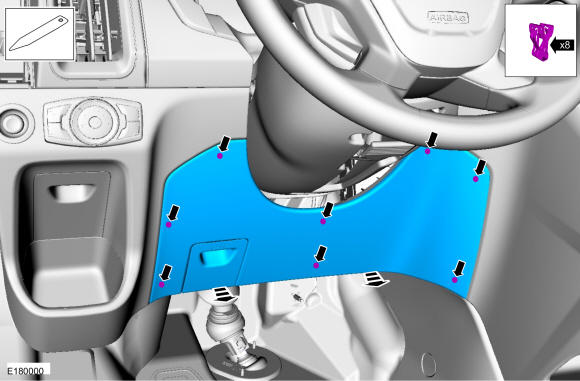

Release the 8 clips and remove the lower steering column opening trim panel.

GFD147077

Courtesy of FORD MOTOR COMPANY

2.

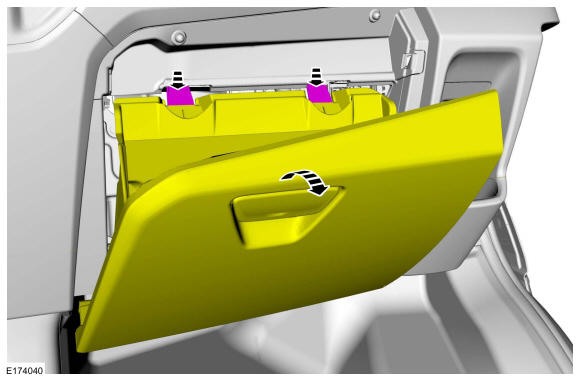

Press the stop tabs downward and fully lower the glove compartment.

GFD146301

Courtesy of FORD MOTOR COMPANY

3.

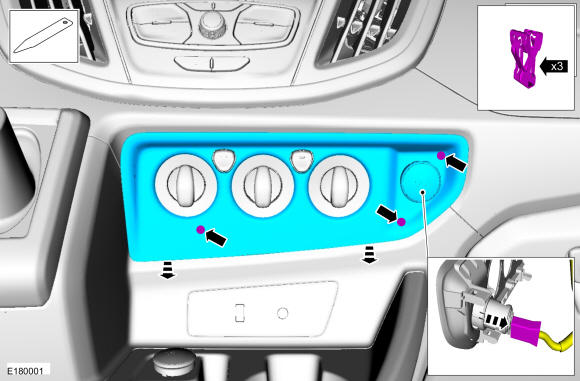

Release the 3 clips, disconnect the electrical connector and remove the HVAC control bezel.

GFD147078

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If equipped.

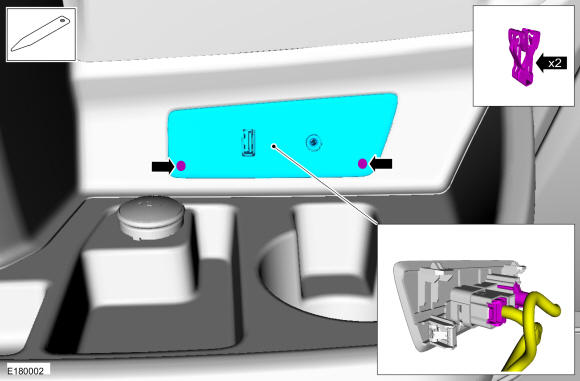

Release the 2 clips, disconnect the 2 electrical connectors and remove the media bezel.

GFD147079

Courtesy of FORD MOTOR COMPANY

5.

NOTE: If equipped.

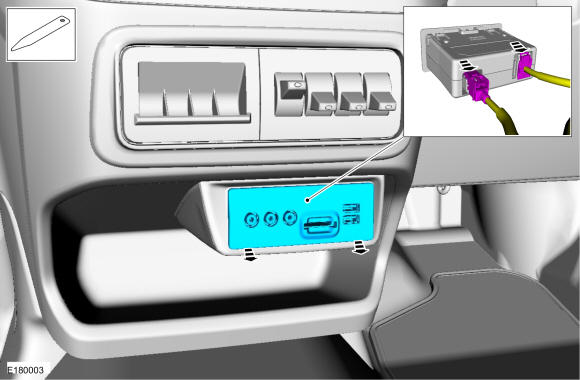

Remove the media hub and disconnect the 2 electrical connectors.

GFD147080

Courtesy of FORD MOTOR COMPANY

6.

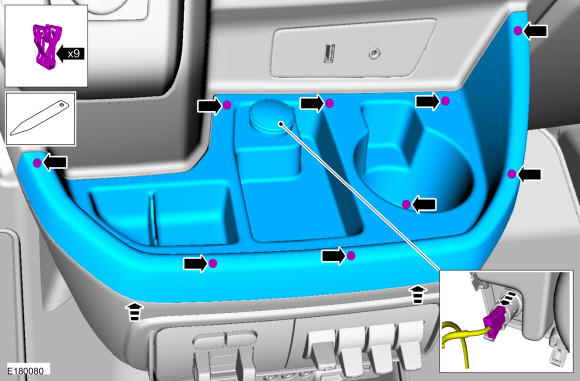

Release the 9 clips, disconnect the electrical connector and remove the instrument panel console cup holder.

GFD147081

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If equipped.

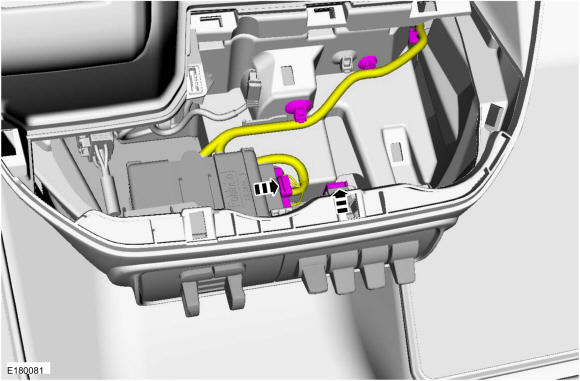

Disconnect the 2 electrical connectors and position the harness aside.

GFD147082

Courtesy of FORD MOTOR COMPANY

8.

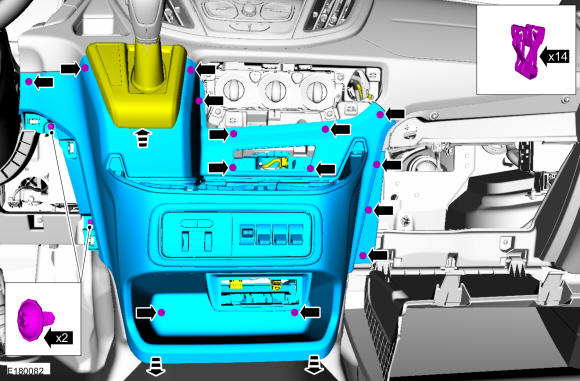

Position the transmission selector lever bezel upward, remove the 2 screws, release the 14 clips and remove the instrument panel console.
Torque: 18 lb.in (2 Nm)

GFD147083

Courtesy of FORD MOTOR COMPANY
