Heating, Ventilation and Air Conditioning (HVAC) Control Module: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

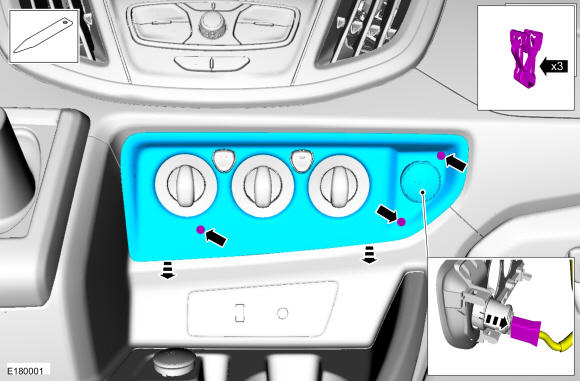

    Release the clips, disconnect the electrical connector and remove the HVAC control bezel. Use the General Equipment: Interior Trim Remover
GFD146106Courtesy of FORD MOTOR COMPANY

  1. 2.

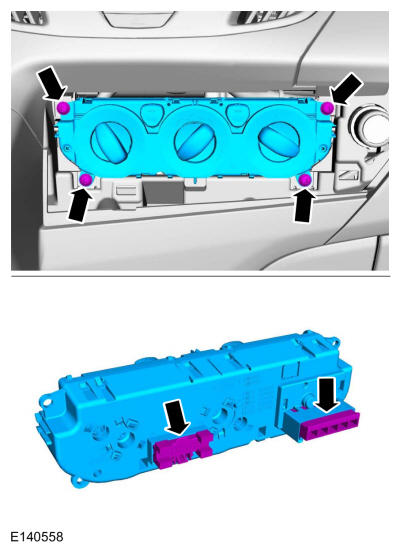

    Remove the retainers, disconnect the electrical connectors and remove the HVAC control module.
GFD146107Courtesy of FORD MOTOR COMPANY
