Driver Side Register: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section
.
- 2.

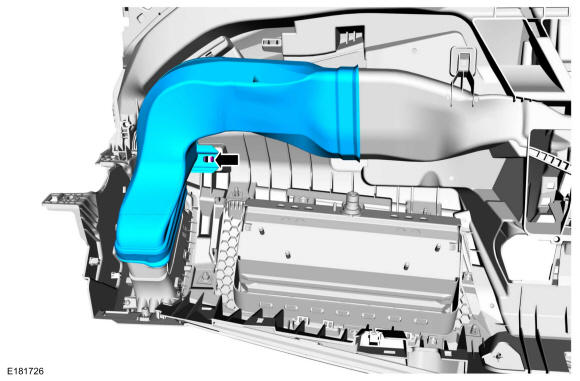

Release the tabs and remove the passenger side register duct.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

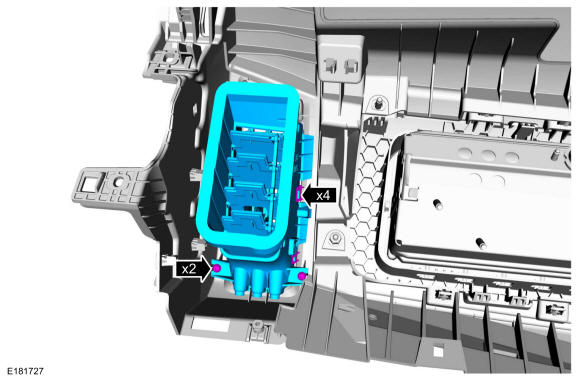

Remove the retainers, release the tabs and remove the passenger side register.
 Courtesy of FORD MOTOR COMPANY
|
