Center Registers: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles equipped with

1.

Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles With: AM/FM/CD . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: AM/FM/CD/SYNC . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: AM/FM/SYNC/Touchscreen Display .

Vehicles equipped with AM/FM

2.

NOTE: AM/FM ACM shown, all others are similar.

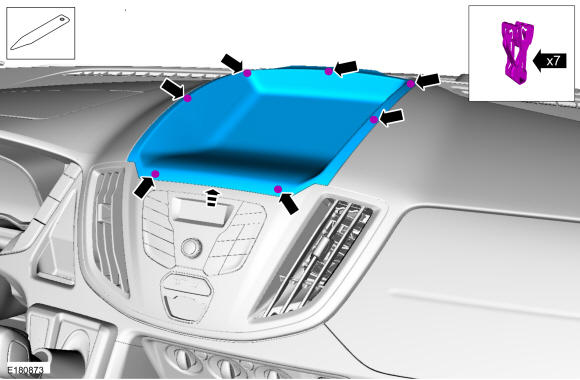

Release the clips and remove the upper storage tray. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

3.

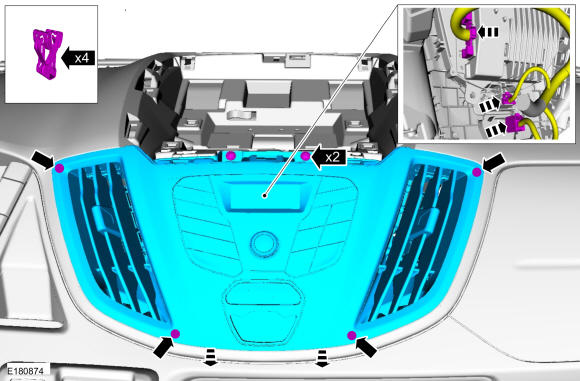

Remove the retainers, release the clips and disconnect the electrical connectors. Remove the center instrument panel finish panel.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

NOTE: AM/FM ACM shown, all others are similar.

4.

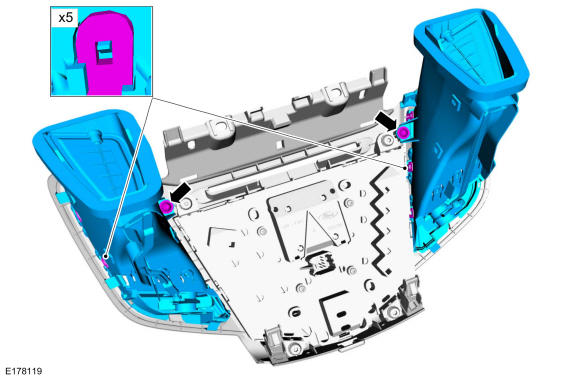

Remove the retainers, release the clips and remove the registers.

Courtesy of FORD MOTOR COMPANY
