Component Bleeding
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| Master Cylinder Bleeding Set |
|---|
Bleeding
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Master Cylinder
NOTE:
When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.
- 1.NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

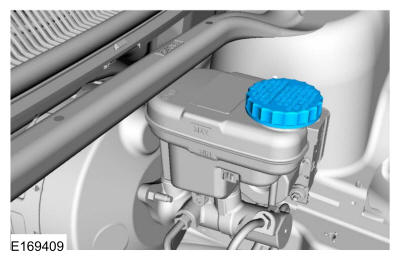

Remove the brake fluid reservoir cap.
- 2.

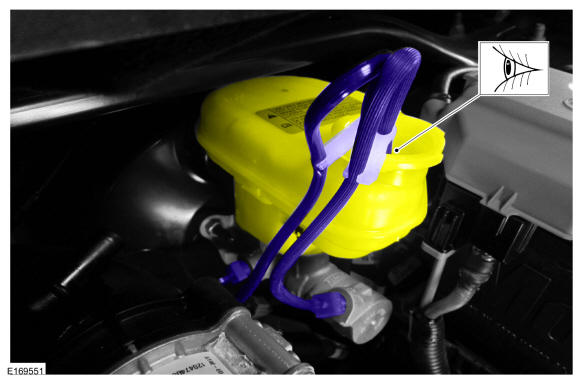

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
- 5.

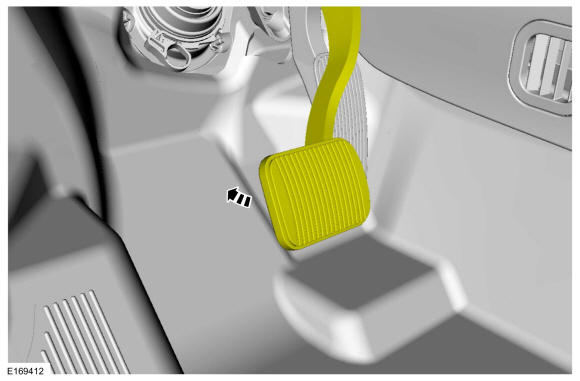

Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.
- 6.
Remove the master cylinder bleeding set. Remove the General Equipment: Master Cylinder Bleeding Set
- 7.

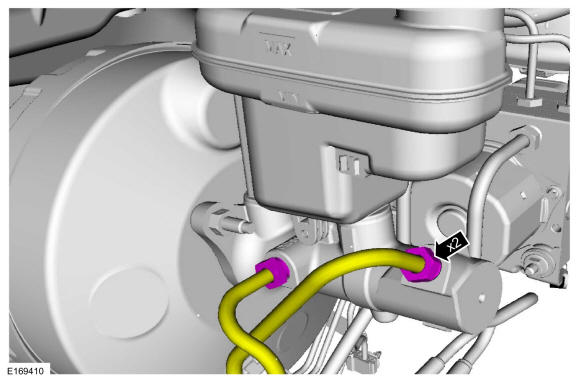

Tighten the brake tube fittings. Refer to: Specifications .
- 8.

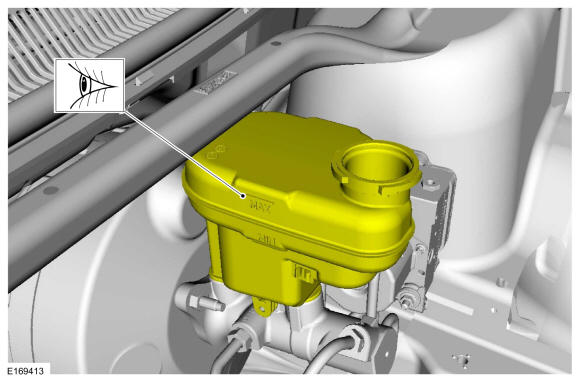

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
- 9.
Refer to: Brake System Pressure Bleeding .
Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube
- 10.NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.
Refer to: Brake System Pressure Bleeding .
