Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

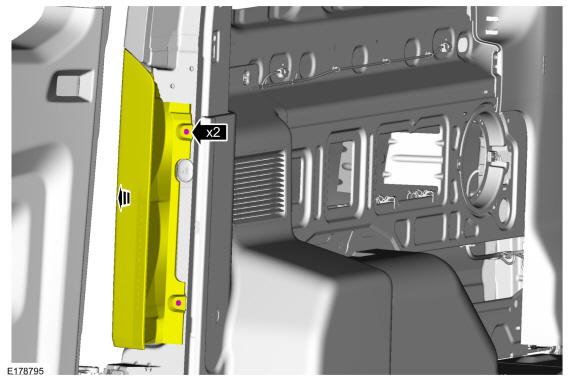

    Remove 2 screws and position the rear lamp assembly.
GFD146418Courtesy of FORD MOTOR COMPANY

  1. 2.

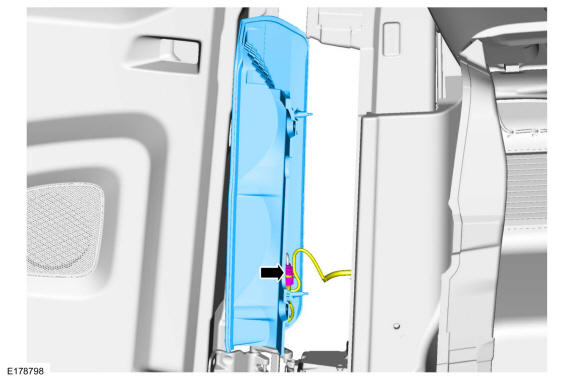

    Disconnect the rear lamp assembly electrical connector and remove the rear lamp assembly.
GFD146419Courtesy of FORD MOTOR COMPANY
