Headlamp Switch: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

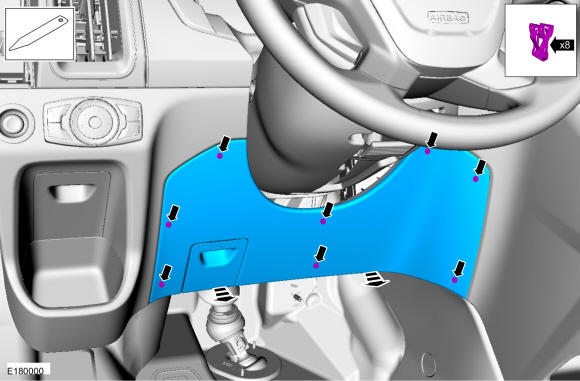

Release the 8 clips and remove the lower steering column opening trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
NOTE:

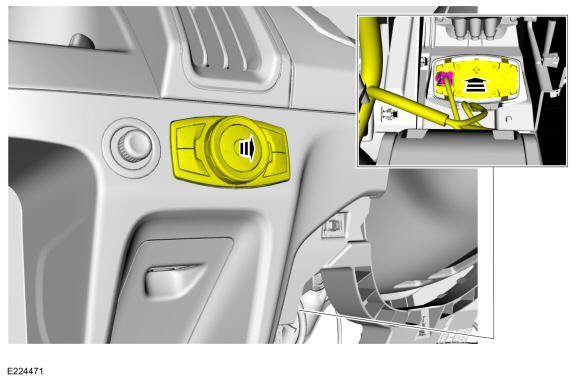

Access the rear of the headlamp switch through the lower steering column opening.
Working from the rear of the headlamp switch, push the headlamp switch through the instrument panel and position it aside.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

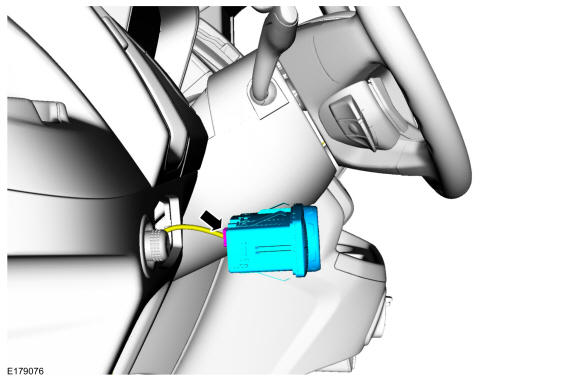

Disconnect the headlamp switch electrical connector and remove the headlamp switch.
 Courtesy of FORD MOTOR COMPANY
|
