Front Impact Severity Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .

2.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

3.

Remove the front bumper cover. Refer to: Front Bumper Cover .

4.

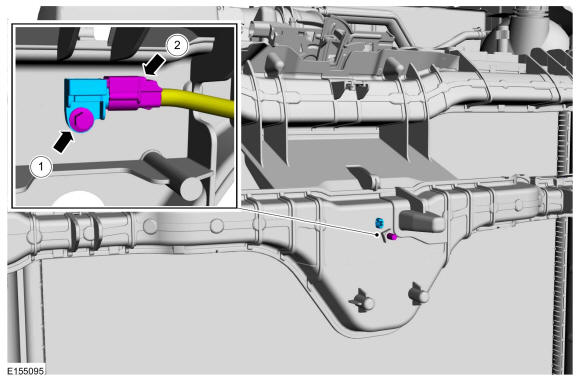

1. 1.

  Remove the front impact severity sensor bolt.
  Torque: 93 lb.in (10.5 Nm)
1. 2.

  Disconnect the electrical connector and remove the front impact severity sensor.
