Front Bumper: Removal

WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front wheels and tires. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels .
NOTE: On both sides.

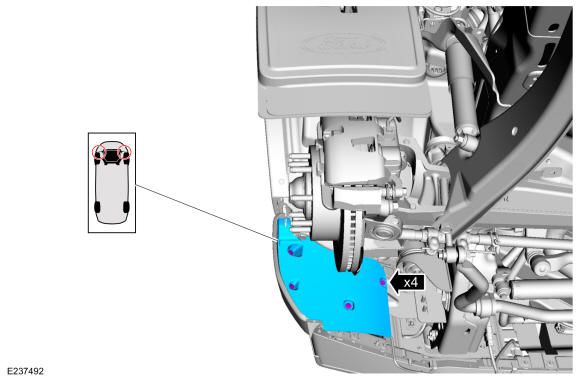

Remove the screws and the front fender filler panel.

Torque

: 15 lb.in (1.7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

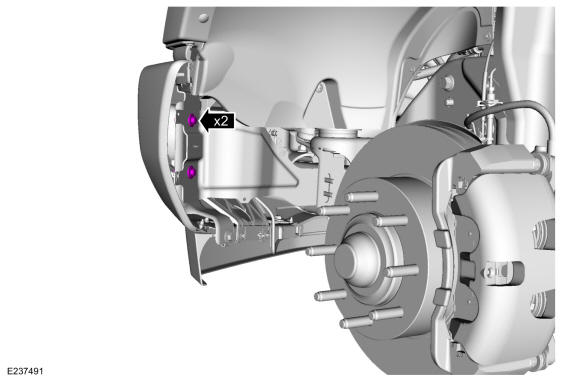

Remove the bumper extension bolts.

Torque

: 35 lb.ft (47.6 Nm)

Courtesy of FORD MOTOR COMPANY

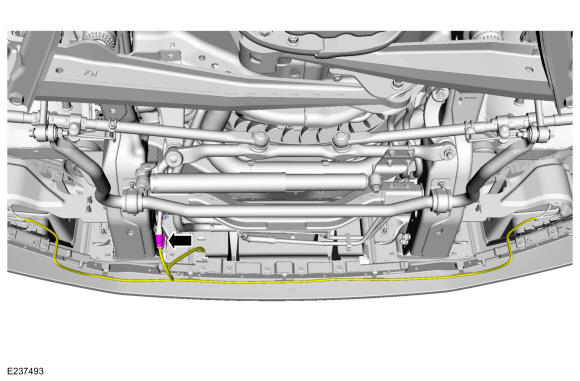

Disconnect the front bumper harness electrical connector.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the CCM. Refer to: Cruise Control Module (CCM) - Vehicles With: Adaptive Cruise Control.

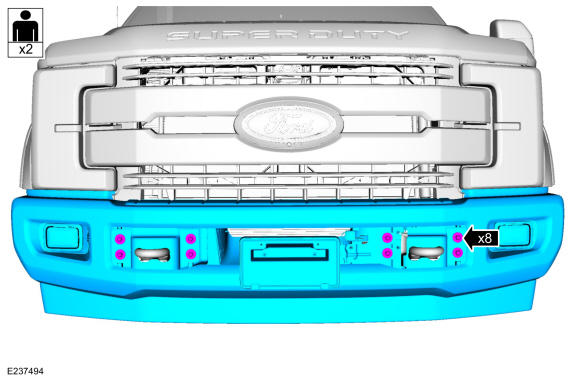

With the help of an assistant, remove the bolts and the front bumper assembly.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
