Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

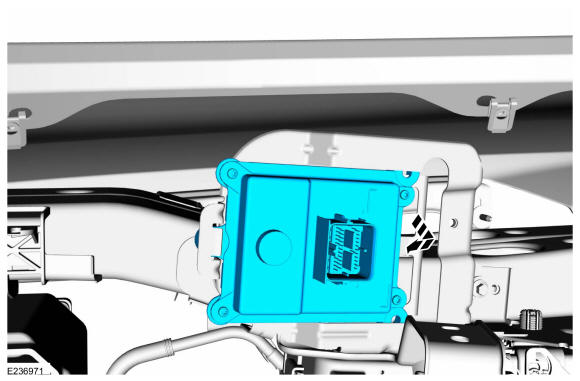

  1. Align and position the TCM upward in the bracket. Slide the TCM forward in vehicle until it stops in the bracket.
    GFD204645Courtesy of FORD MOTOR COMPANY

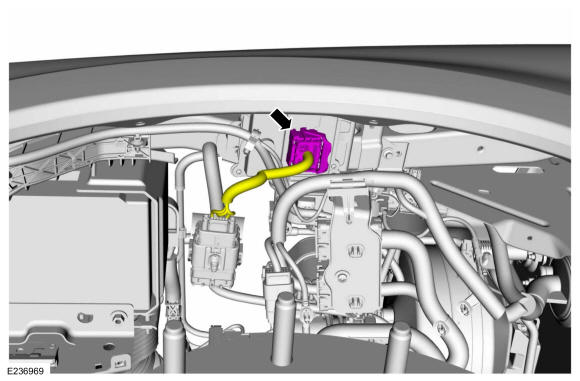

  2. NOTE: Keep the TCM electrical connector straight when connecting it or damage the connector terminals can occur.

    Connect the TCM electrical connector and slide the lock tab in to lock the connector.

    GFD204643Courtesy of FORD MOTOR COMPANY
  3. Install the front LHF fender splash shield. Refer to: Fender Splash Shield .
  4. Using the scan tool, download the solenoid body strategy. Refer to: Transmission Strategy Download .
