Center Support: Assembly
WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

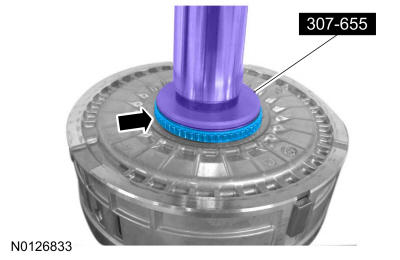

- Using the special tool, press a new bearing on the center support assembly. Use Special Service Tool: 307-655 Installer, Center Support Bearing.

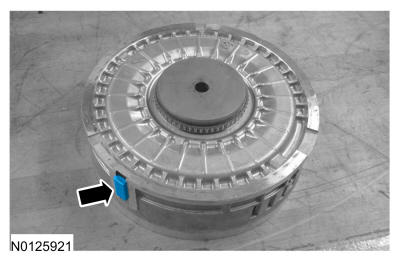

- Inspect the center support alignment lugs to be sure they are installed securely in the center support. If the center support alignment lugs are loose, use petroleum jelly to hold them in place.
