Wipers And Washers

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

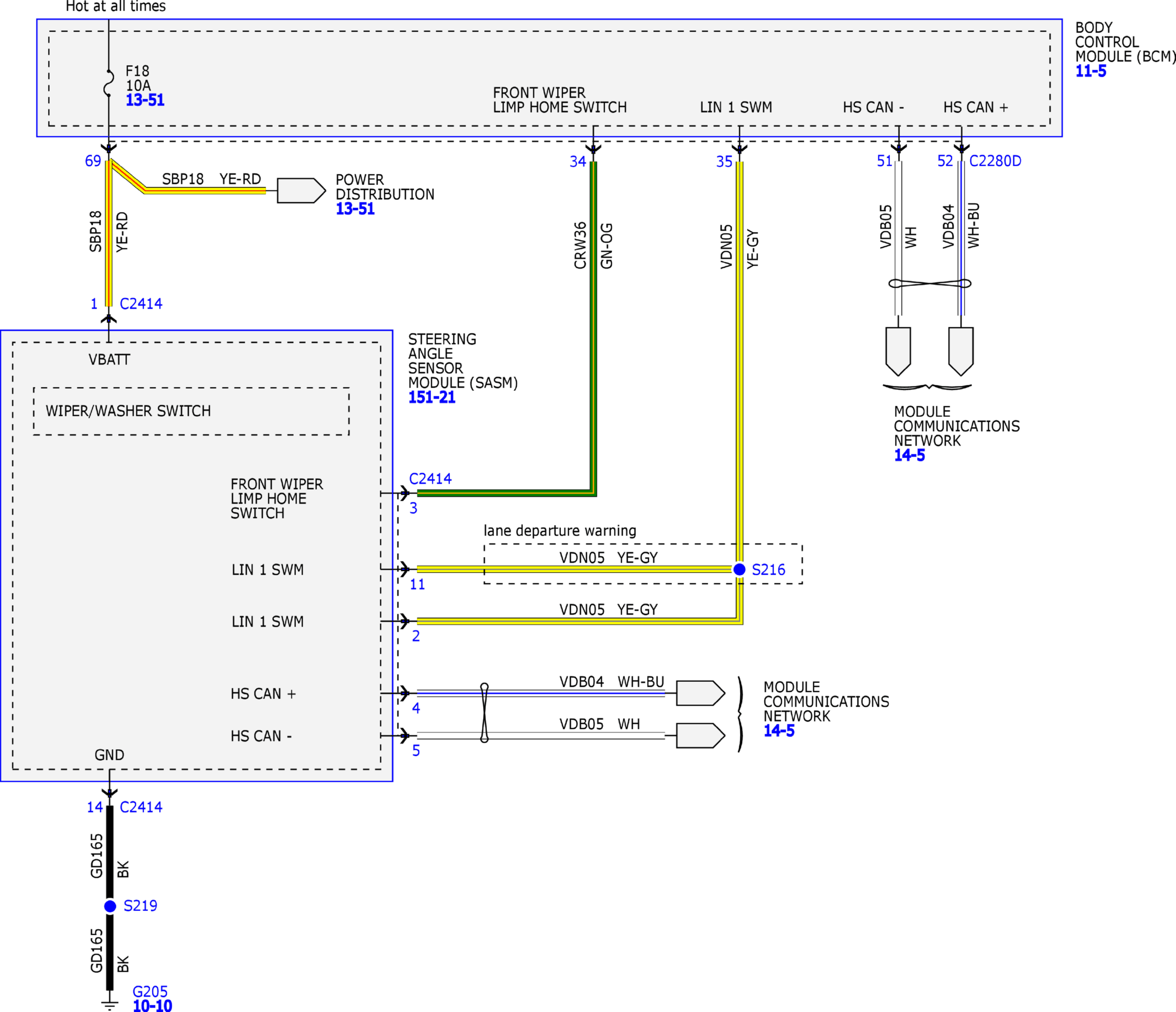

Fig 1: Wipers and Washers Wiring Diagram (1 of 6)
GFDW61760Courtesy of FORD MOTOR COMPANY

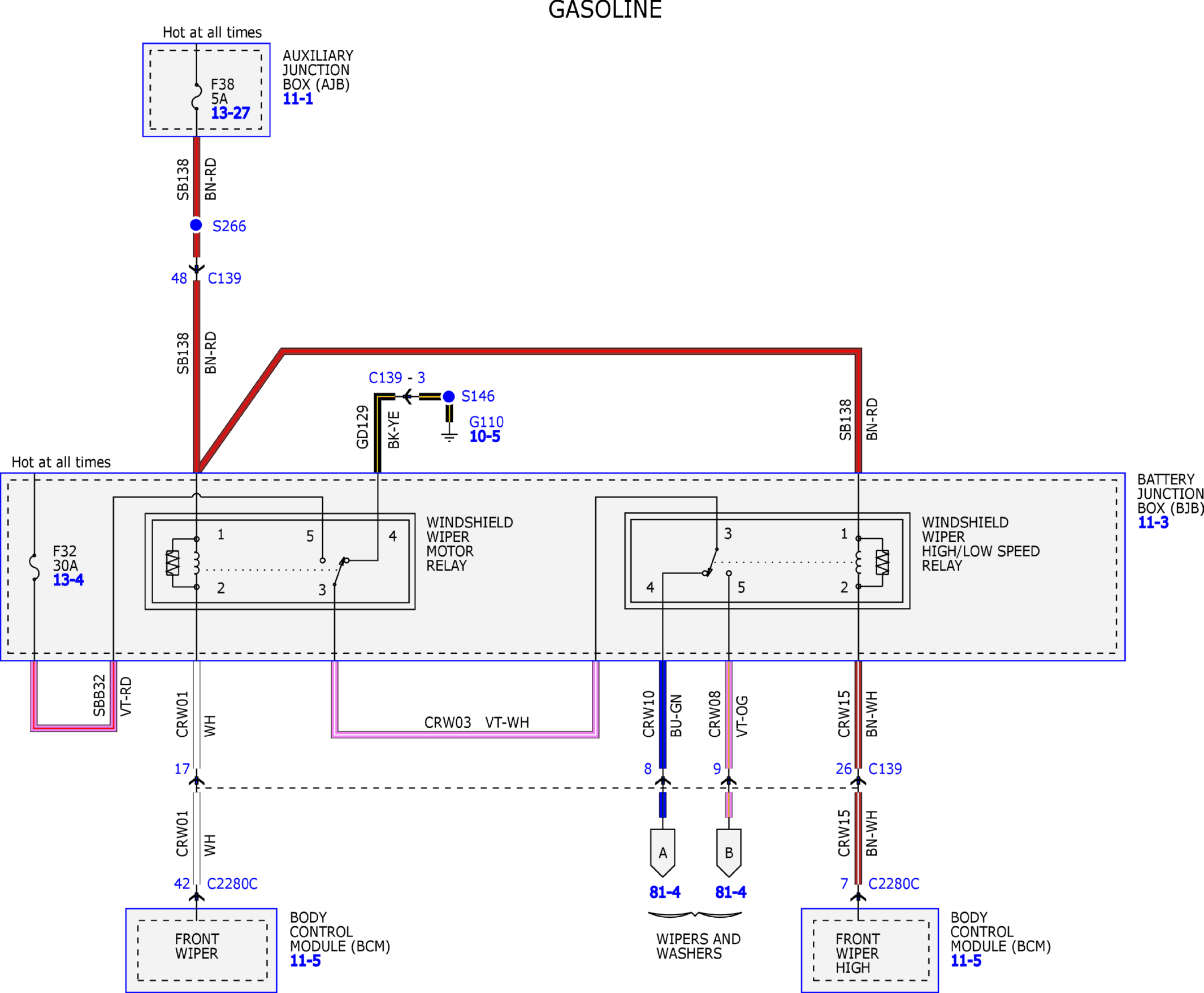

Fig 2: Wipers and Washers Wiring Diagram (2 of 6)
GFDW61761Courtesy of FORD MOTOR COMPANY

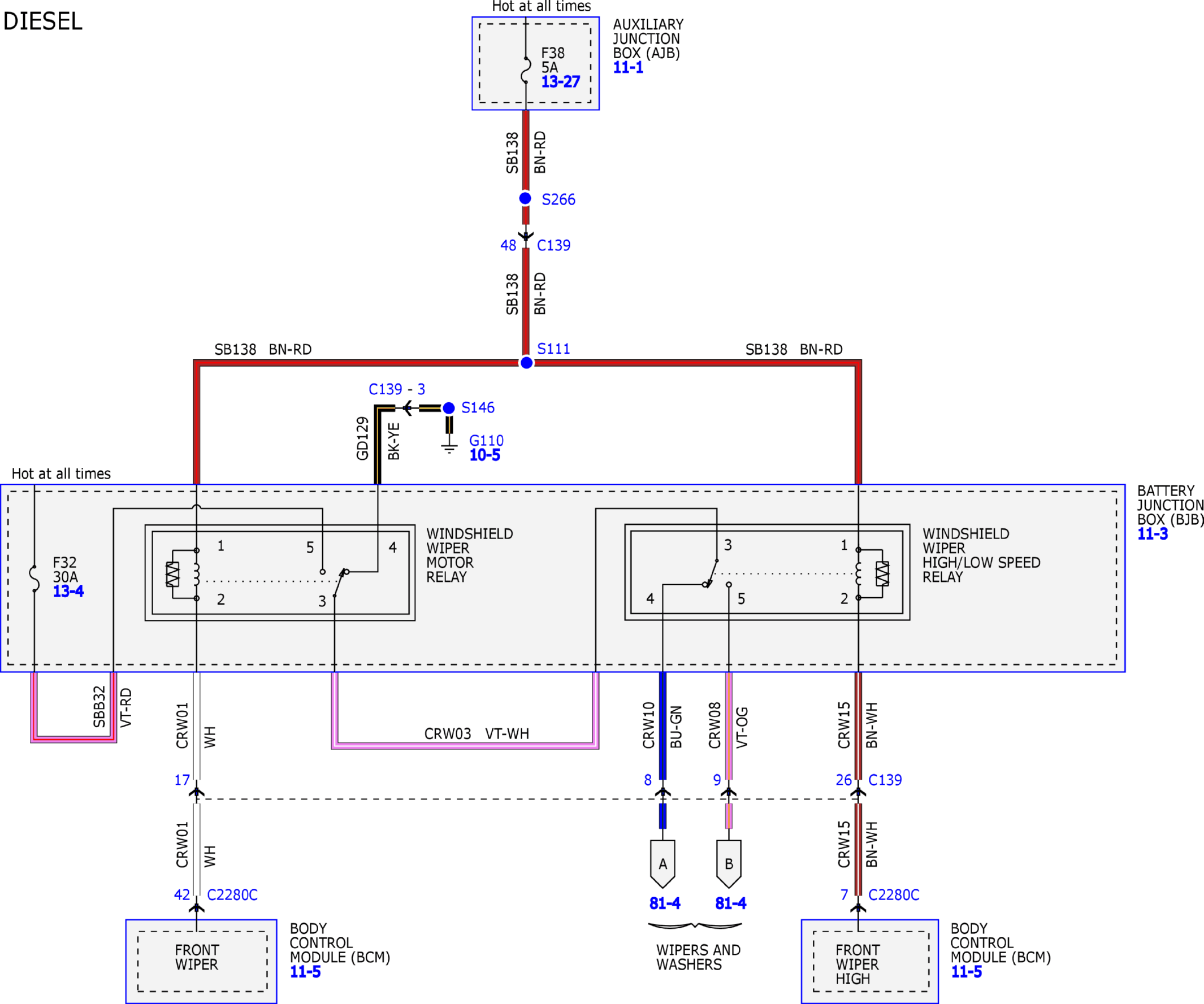

Fig 3: Wipers and Washers Wiring Diagram (3 of 6)
GFDW61762Courtesy of FORD MOTOR COMPANY

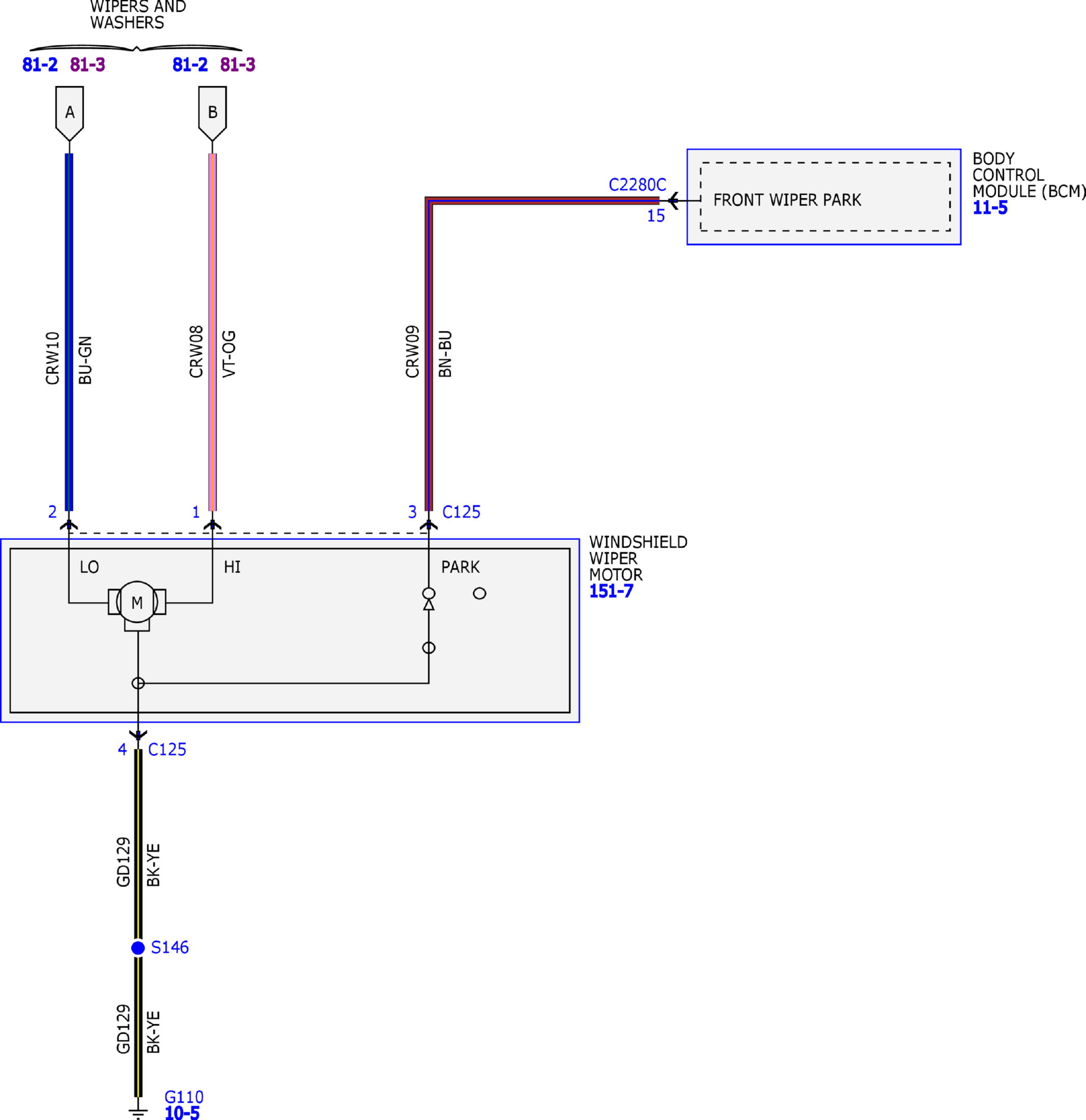

Fig 4: Wipers and Washers Wiring Diagram (4 of 6)
GFDW61763Courtesy of FORD MOTOR COMPANY

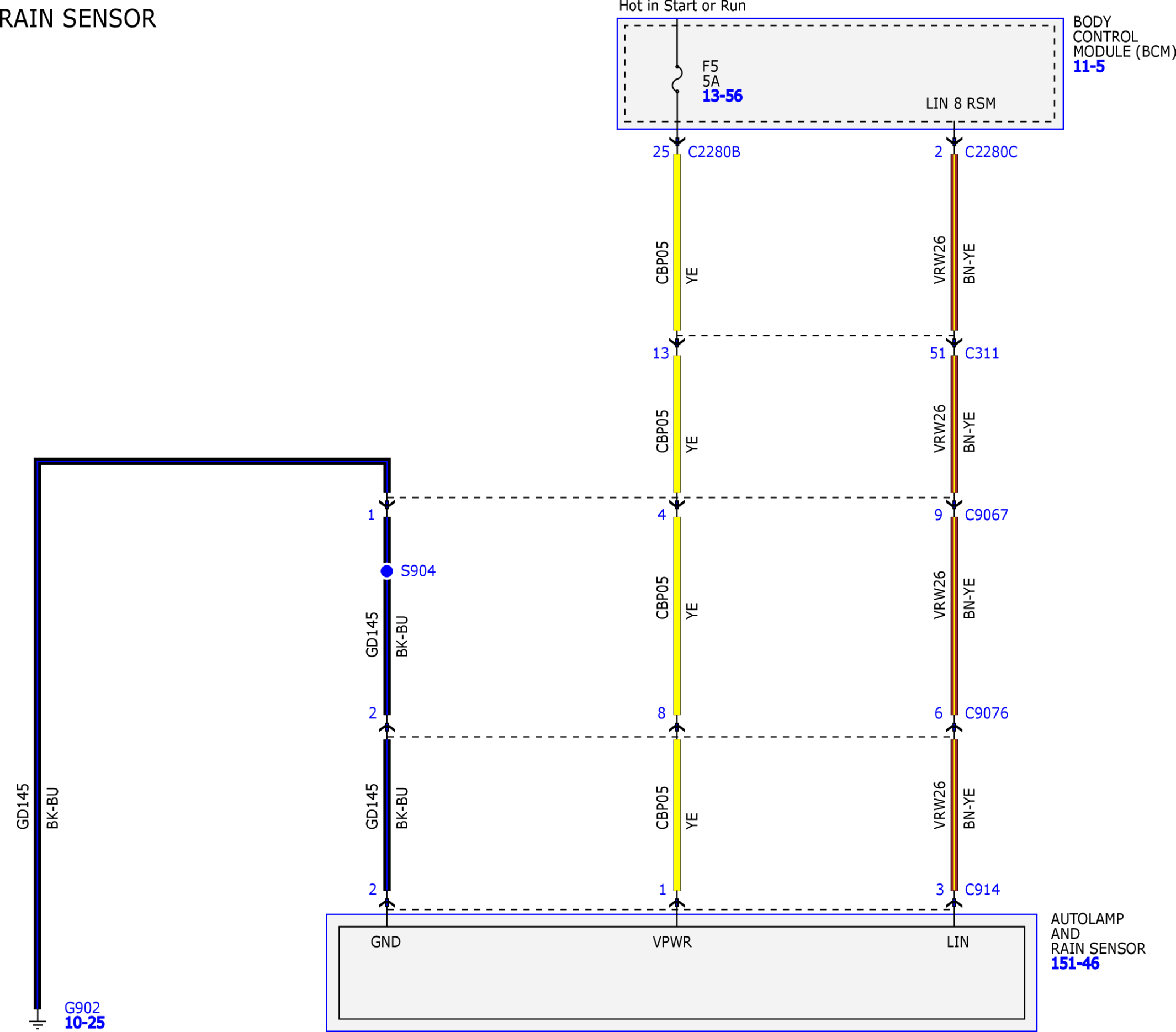

Fig 5: Wipers and Washers Wiring Diagram (5 of 6)
GFDW61764Courtesy of FORD MOTOR COMPANY

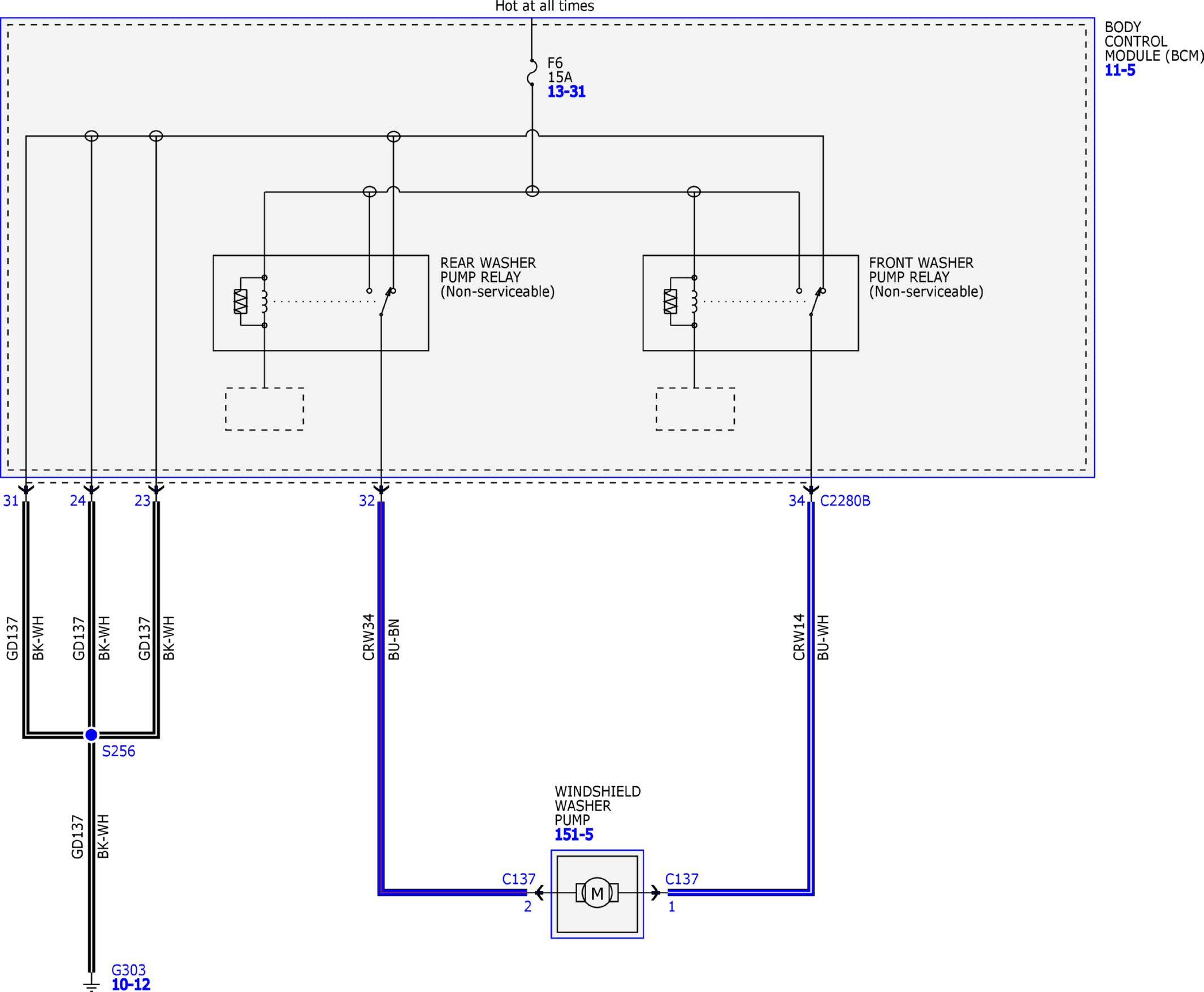

Fig 6: Wipers and Washers Wiring Diagram (6 of 6)
GFDW61765Courtesy of FORD MOTOR COMPANY
