Remote Keyless Entry And Alarm

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

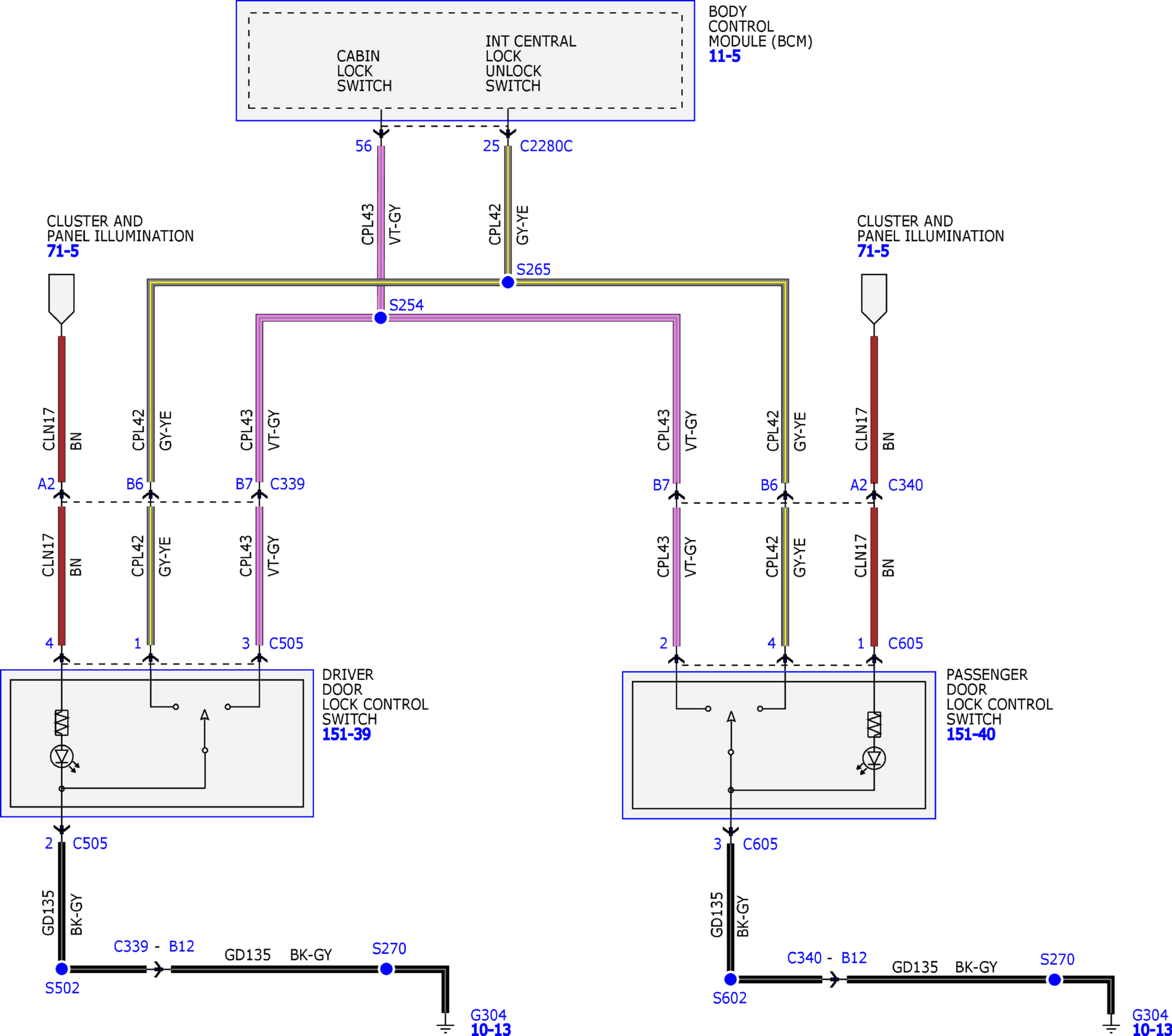

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 12)
GFDW61702Courtesy of FORD MOTOR COMPANY
Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 12)
GFDW61703Courtesy of FORD MOTOR COMPANY

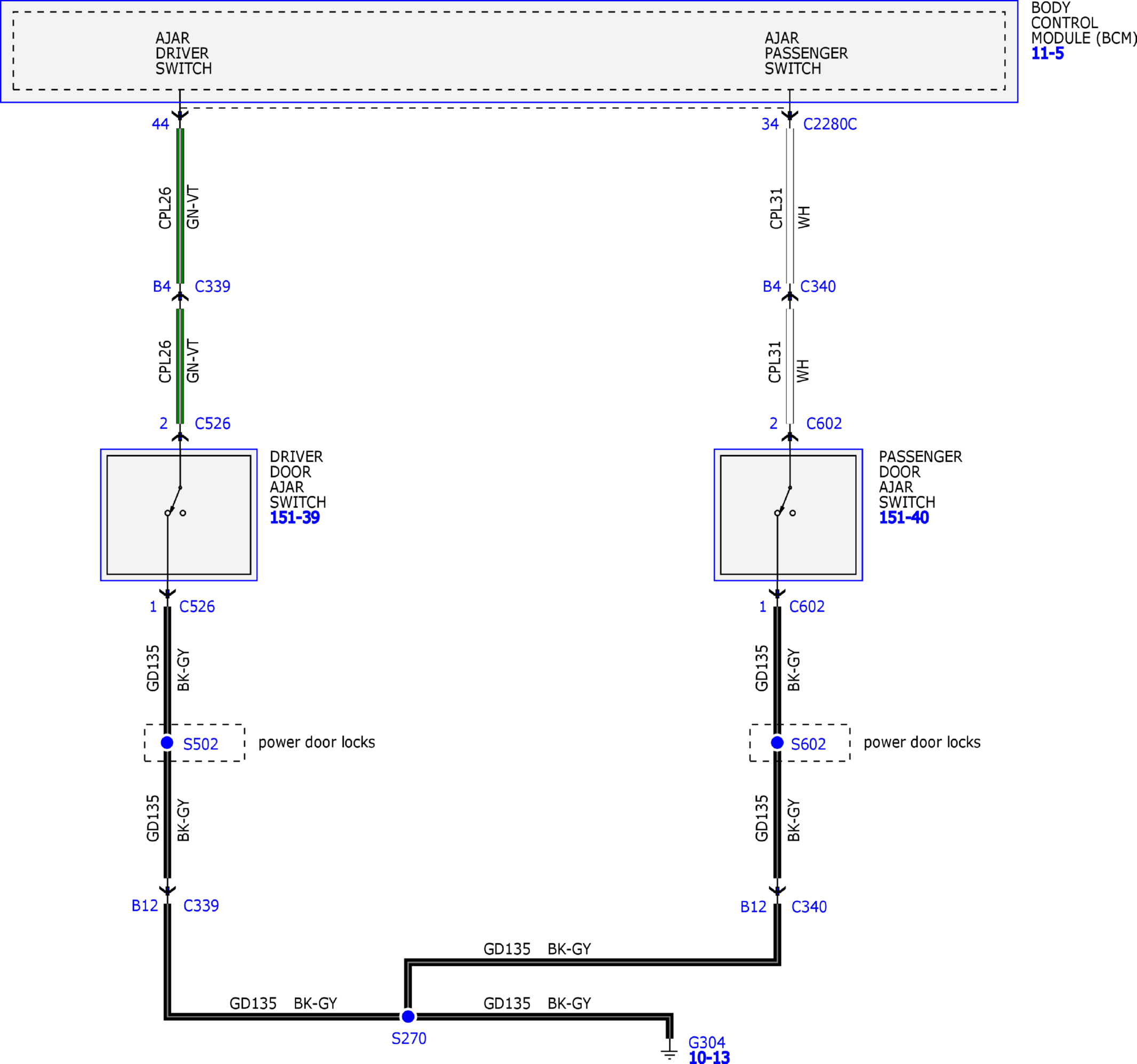

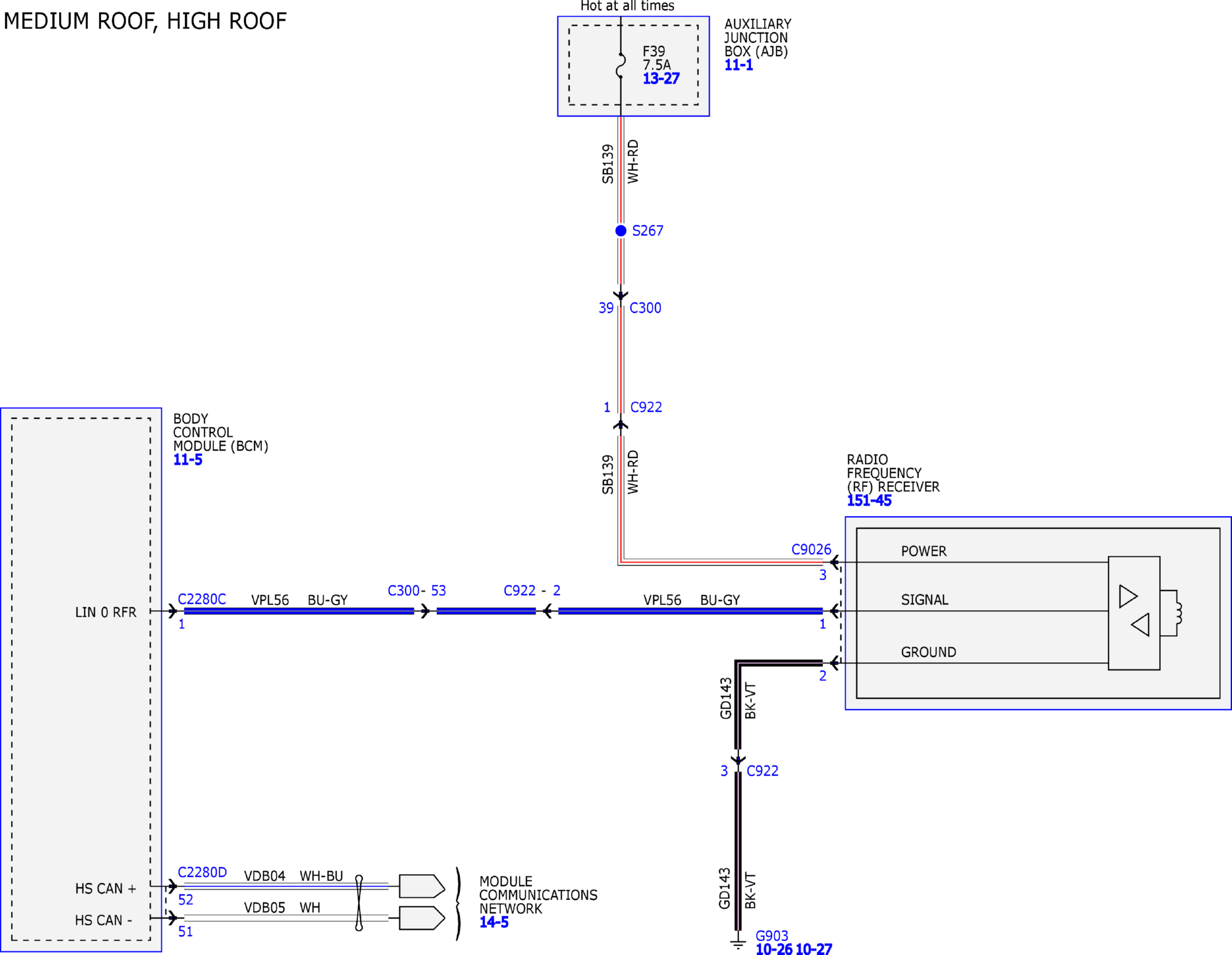

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 12)
GFDW61704Courtesy of FORD MOTOR COMPANY

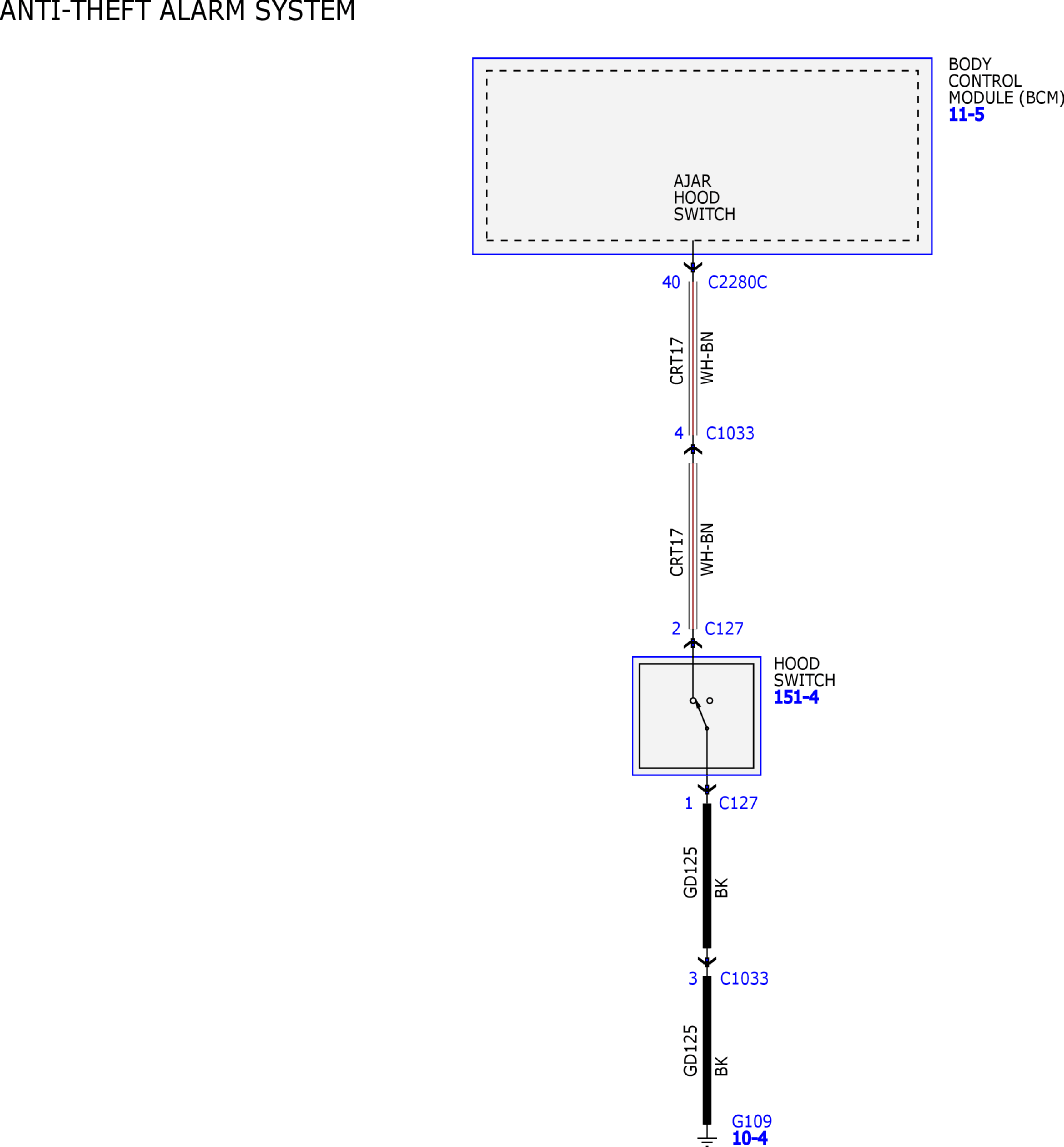

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 12)
GFDW61705Courtesy of FORD MOTOR COMPANY
Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 12)
GFDW61706Courtesy of FORD MOTOR COMPANY

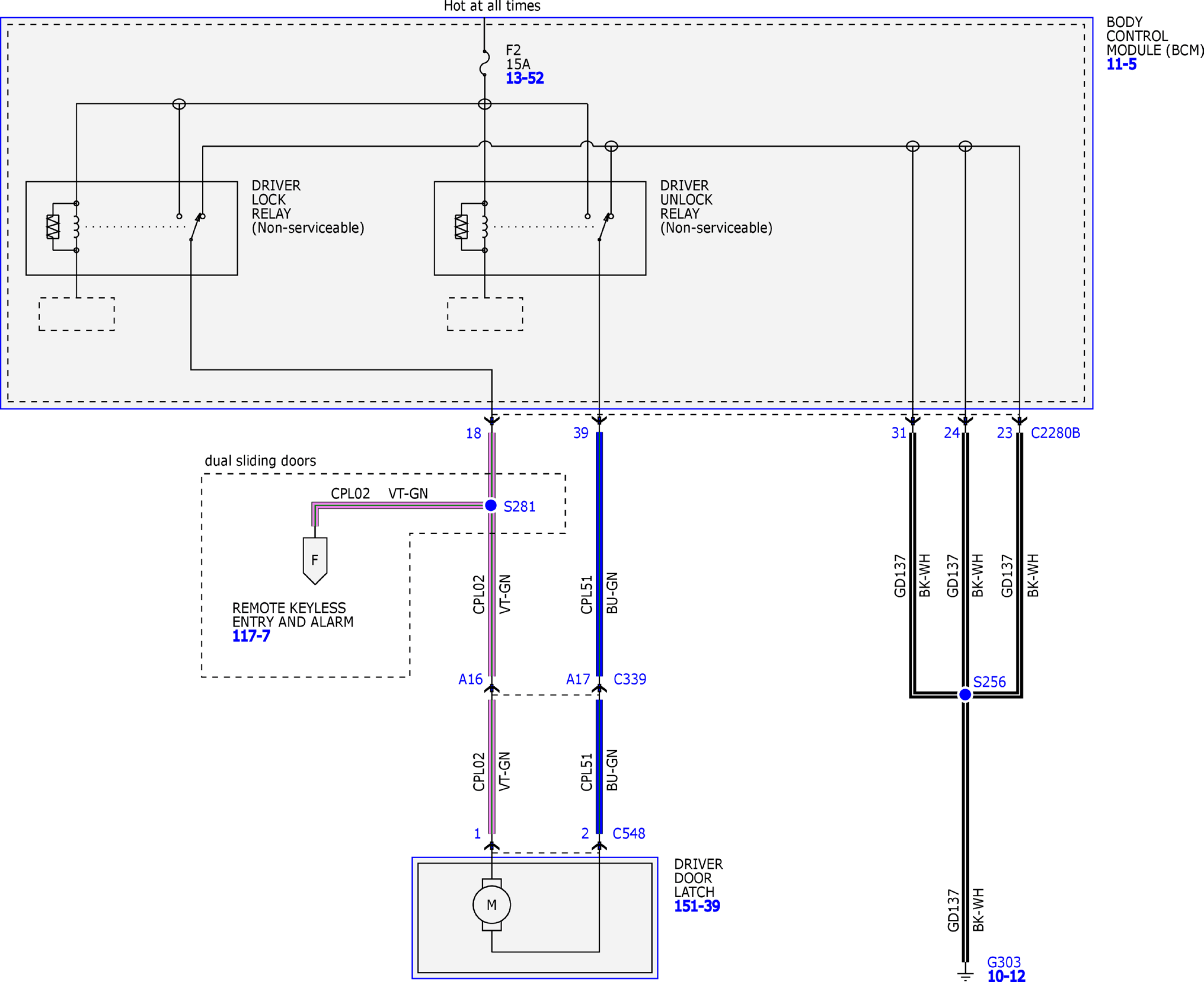

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 12)
GFDW61707Courtesy of FORD MOTOR COMPANY

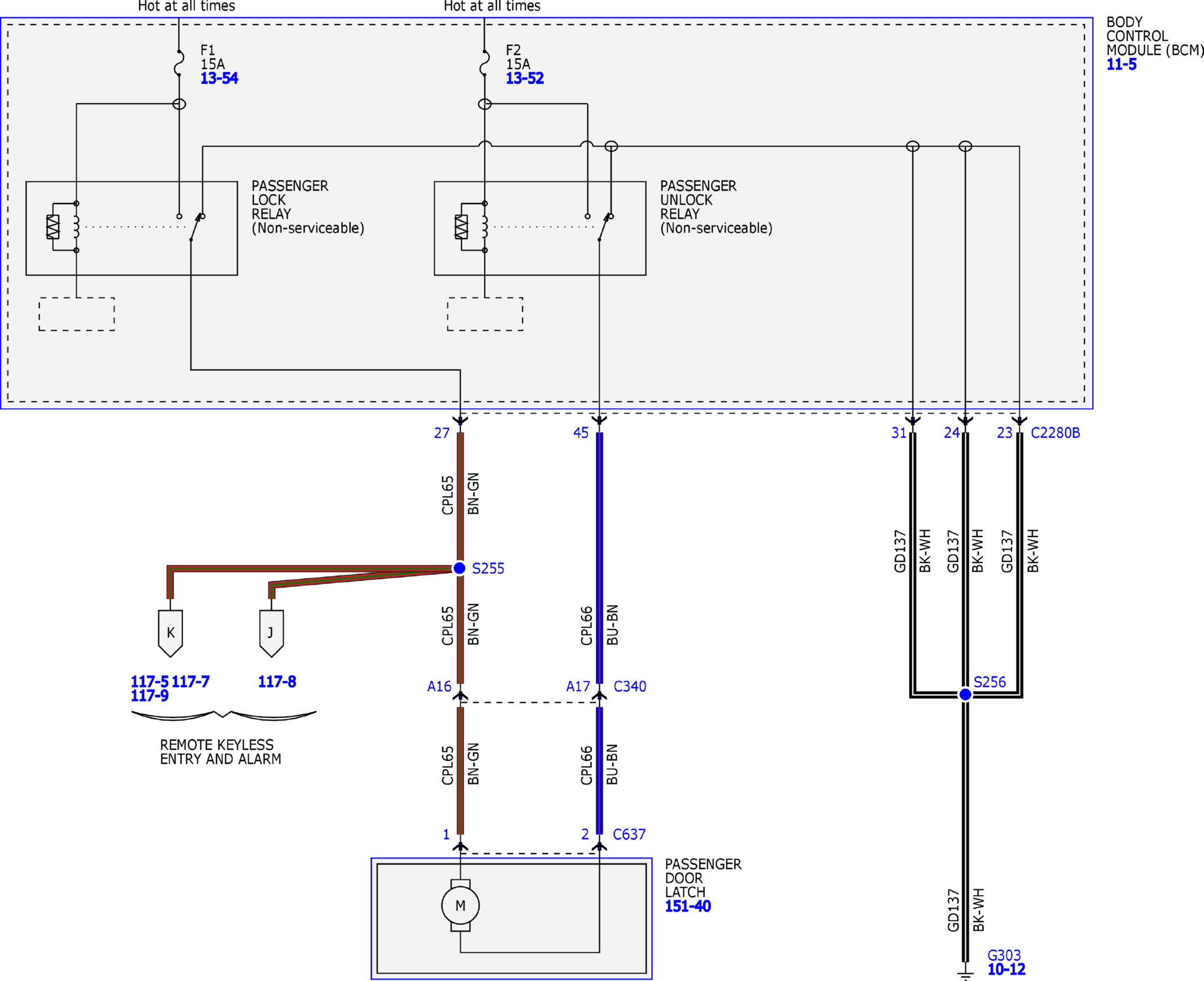

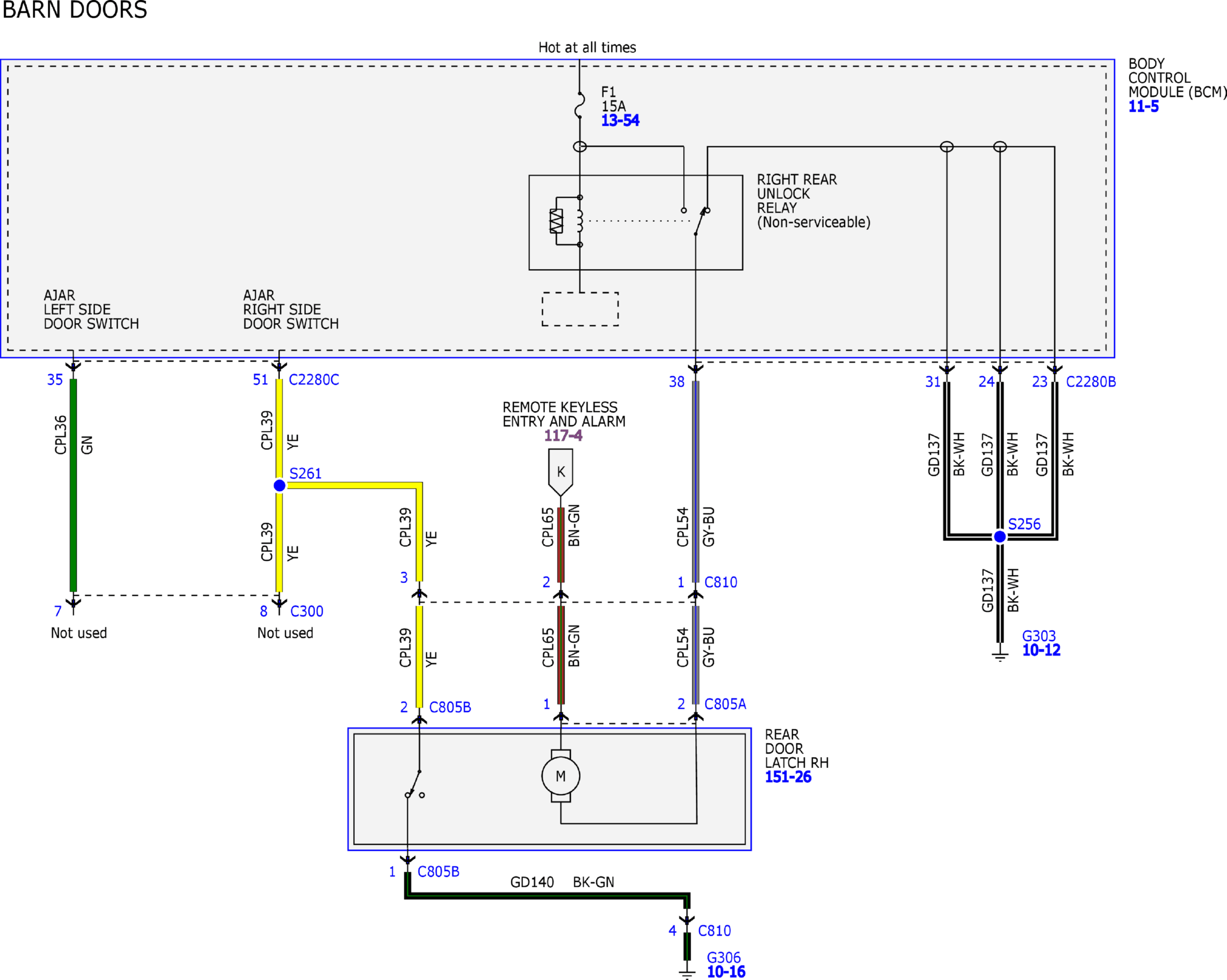

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 12)
GFDW61708Courtesy of FORD MOTOR COMPANY
Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 12)
GFDW61709Courtesy of FORD MOTOR COMPANY

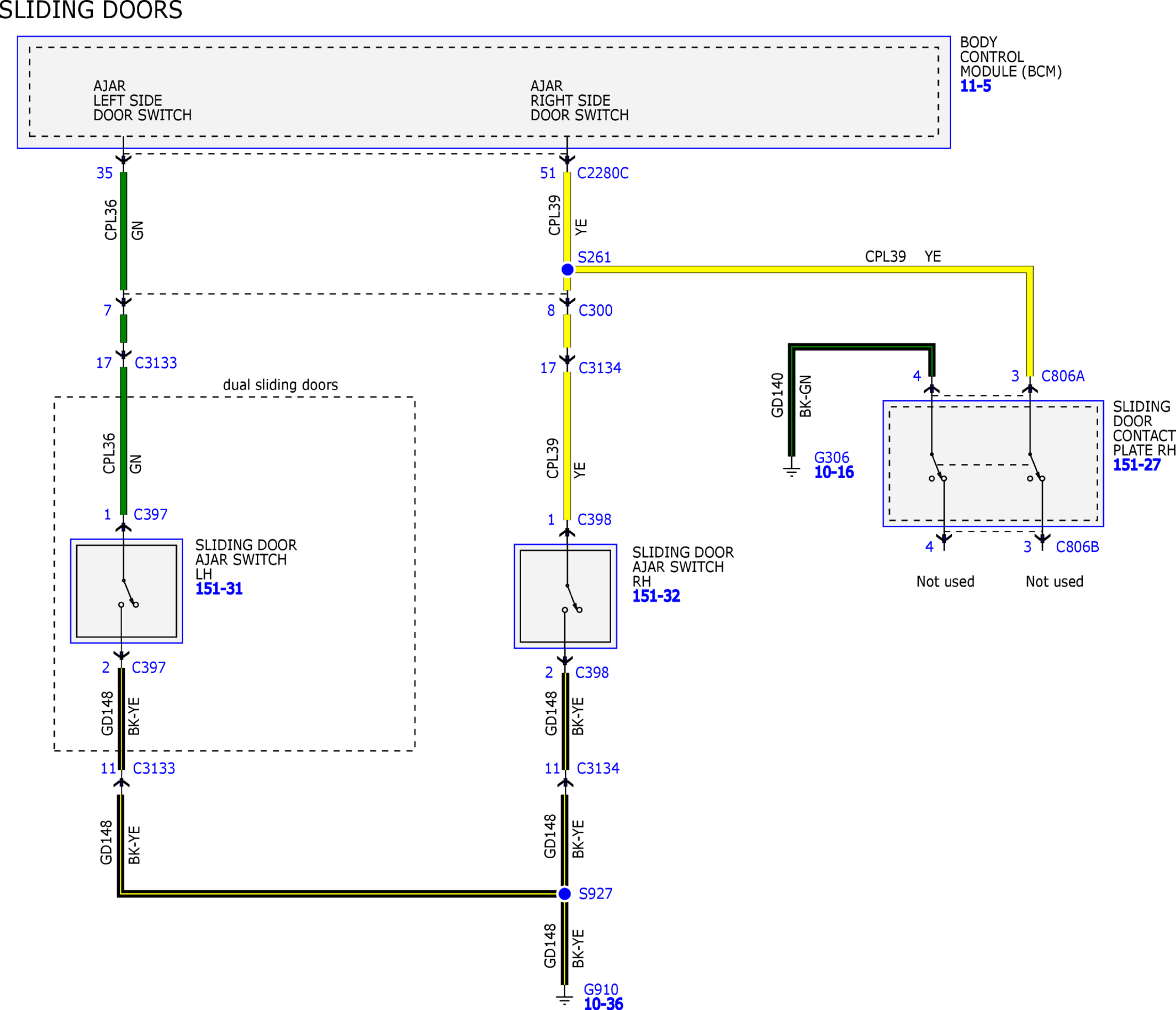

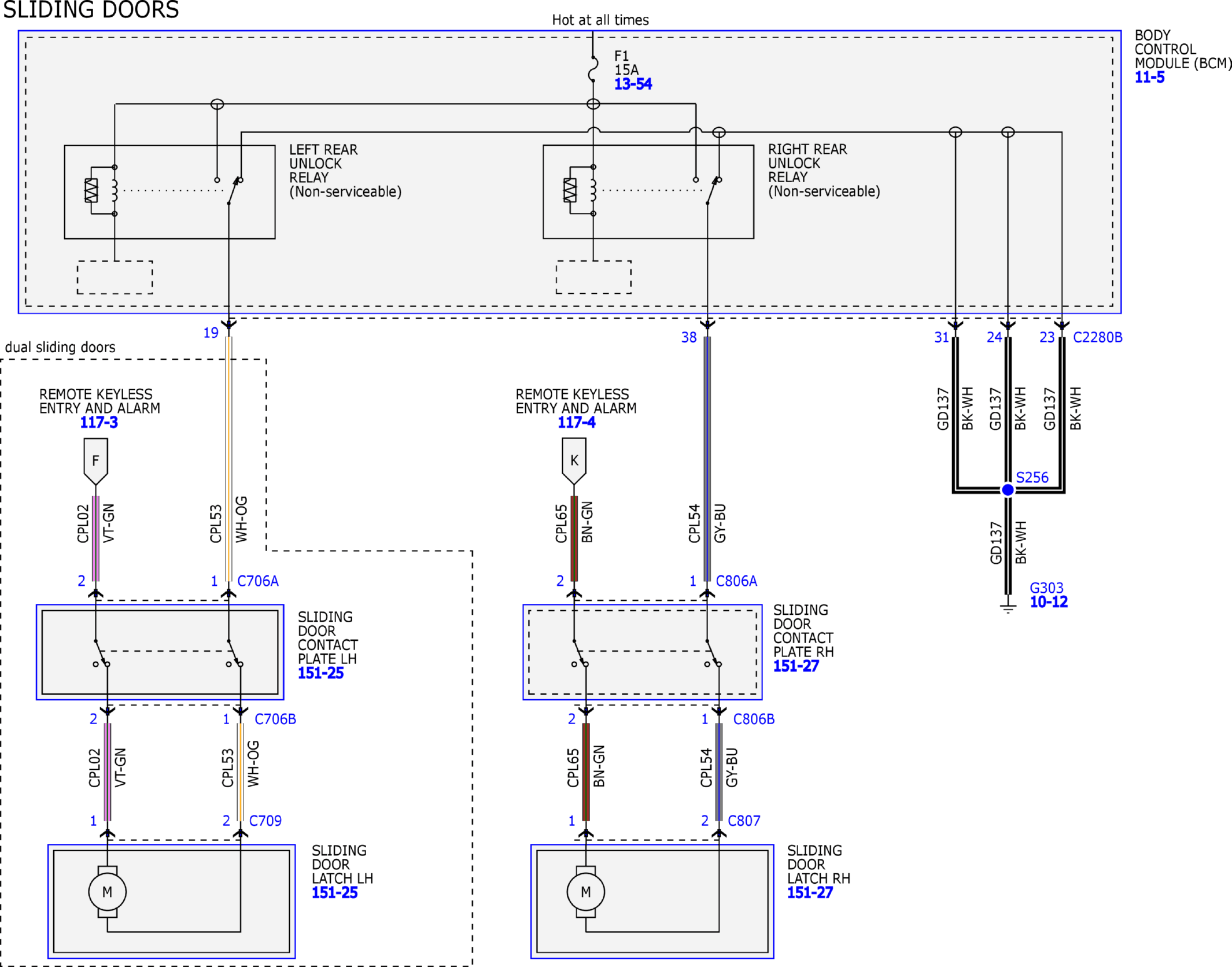

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 12)
GFDW61710Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 of 12)
GFDW61711Courtesy of FORD MOTOR COMPANY

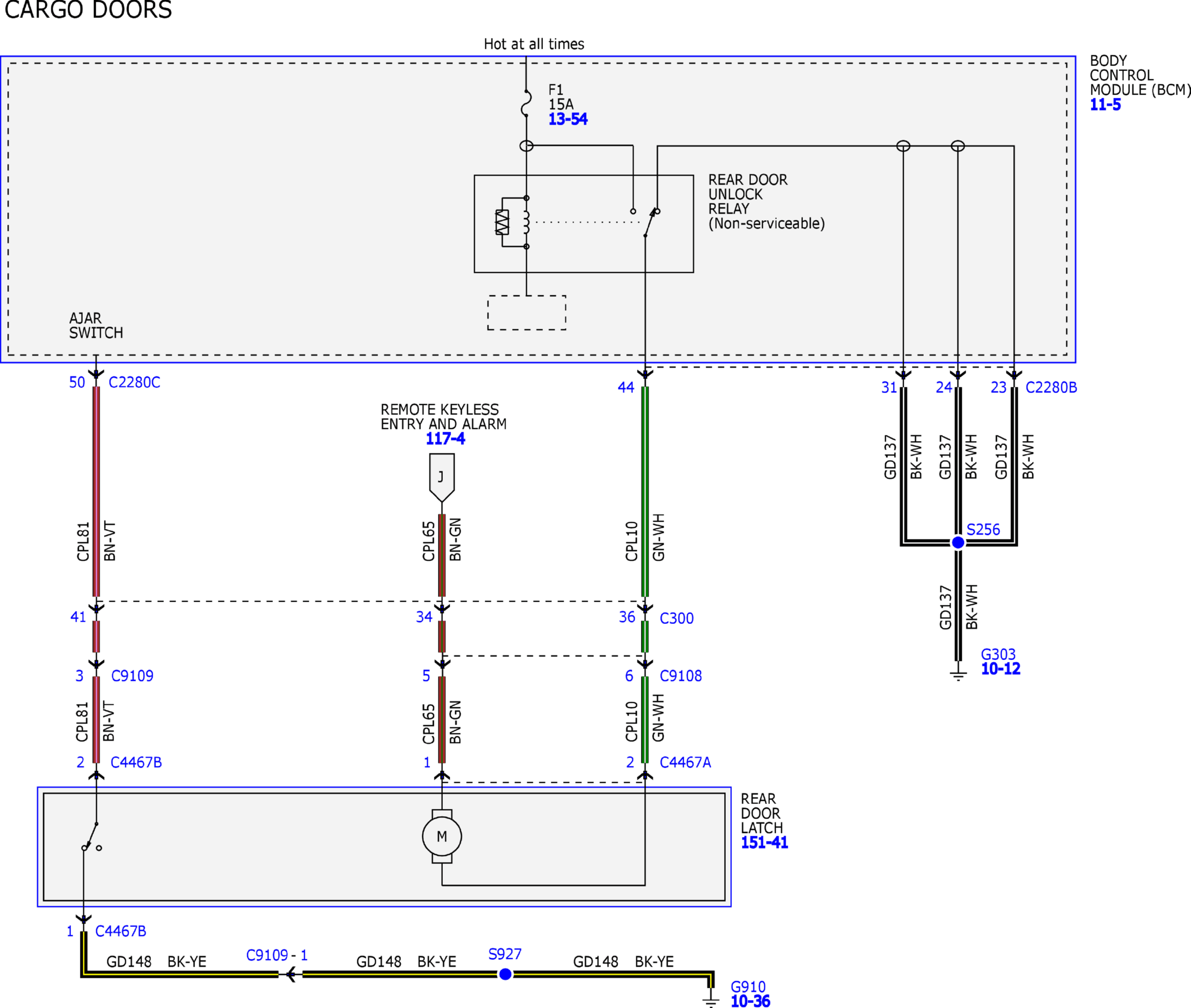

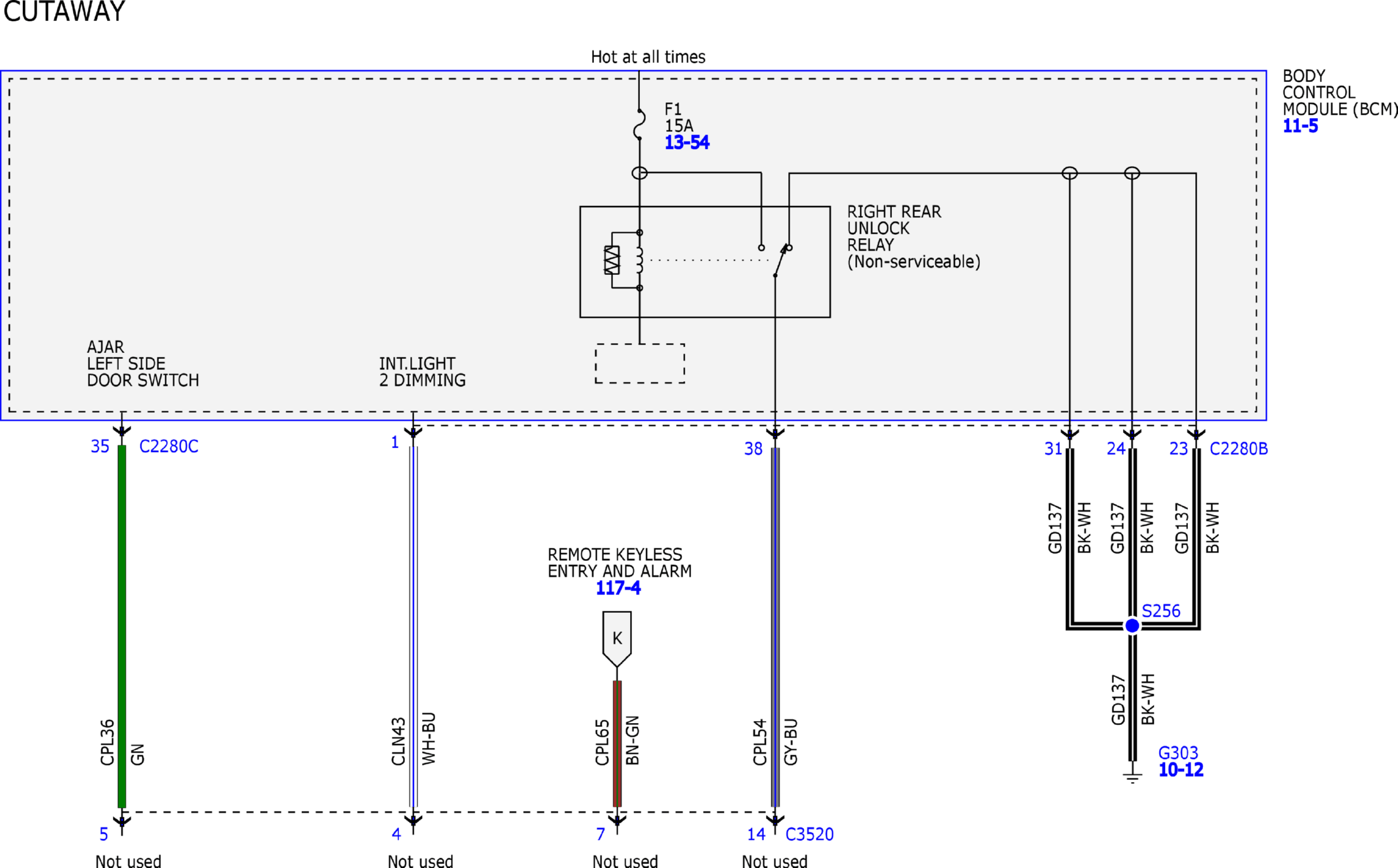

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 of 12)
GFDW61712Courtesy of FORD MOTOR COMPANY

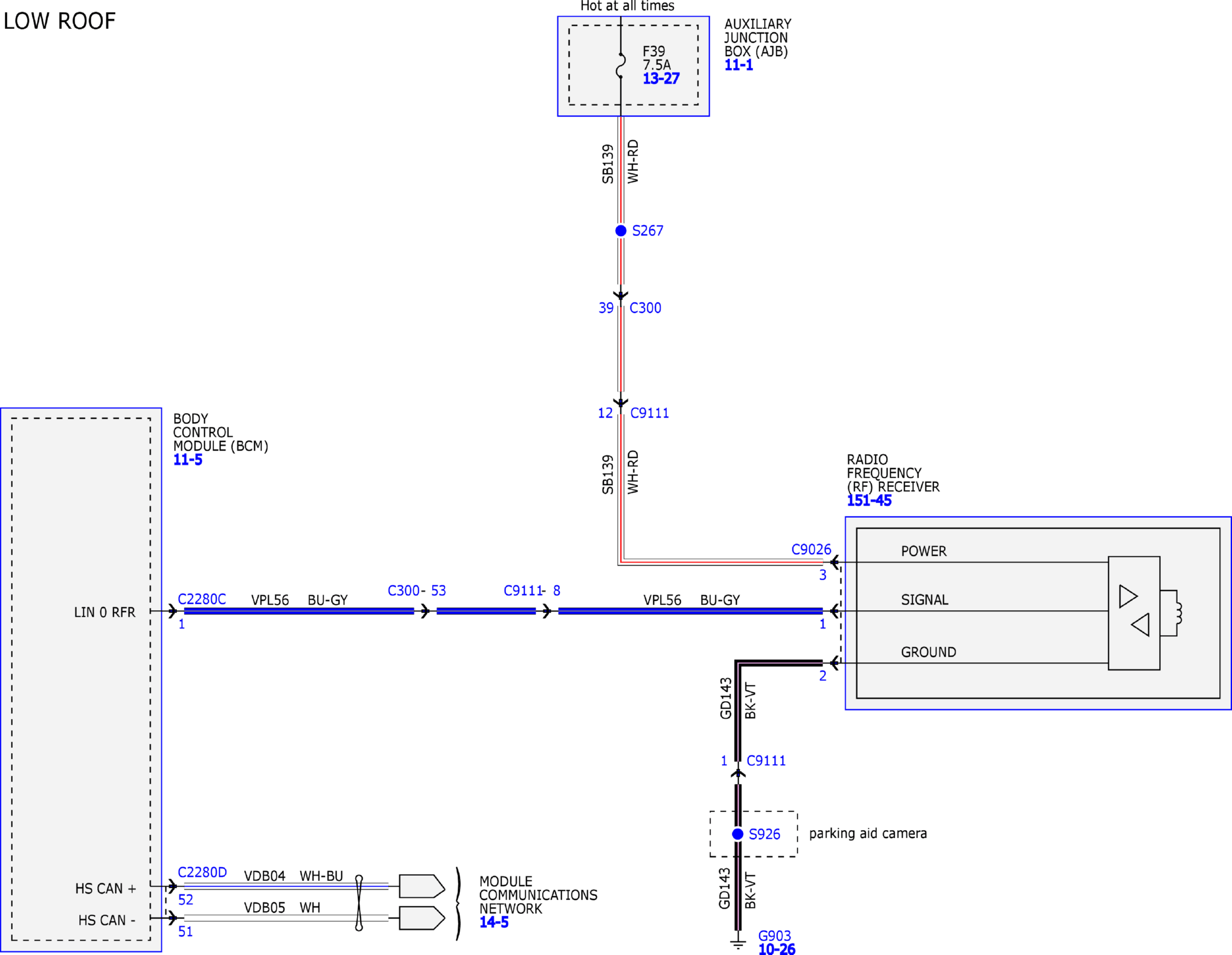

Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 of 12)
GFDW61713Courtesy of FORD MOTOR COMPANY
