Section 18 (OEM Wiring Diagrams)
>>
Power Seats
Power Seats
WARNING:
This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

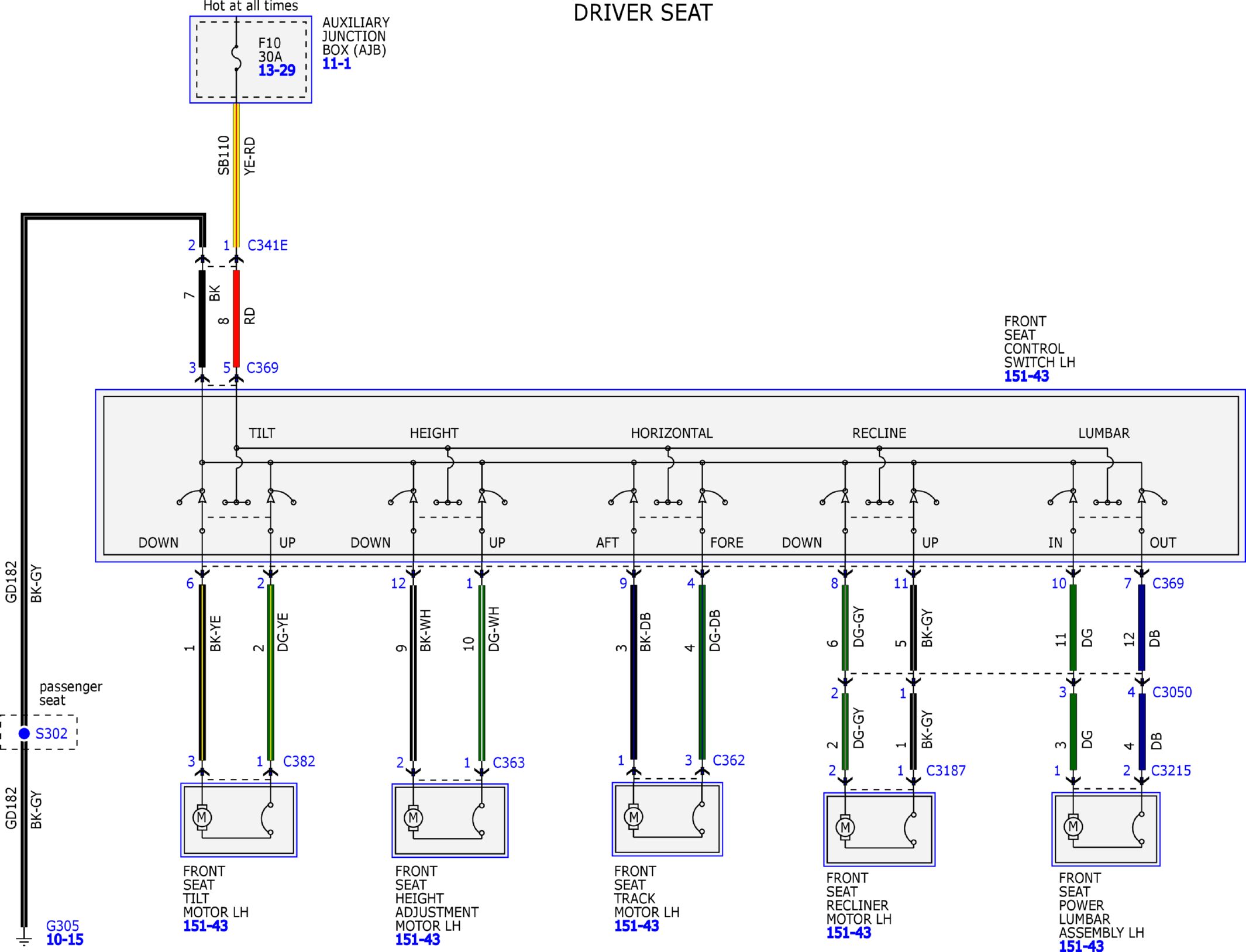

Fig 1: Power Seats Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

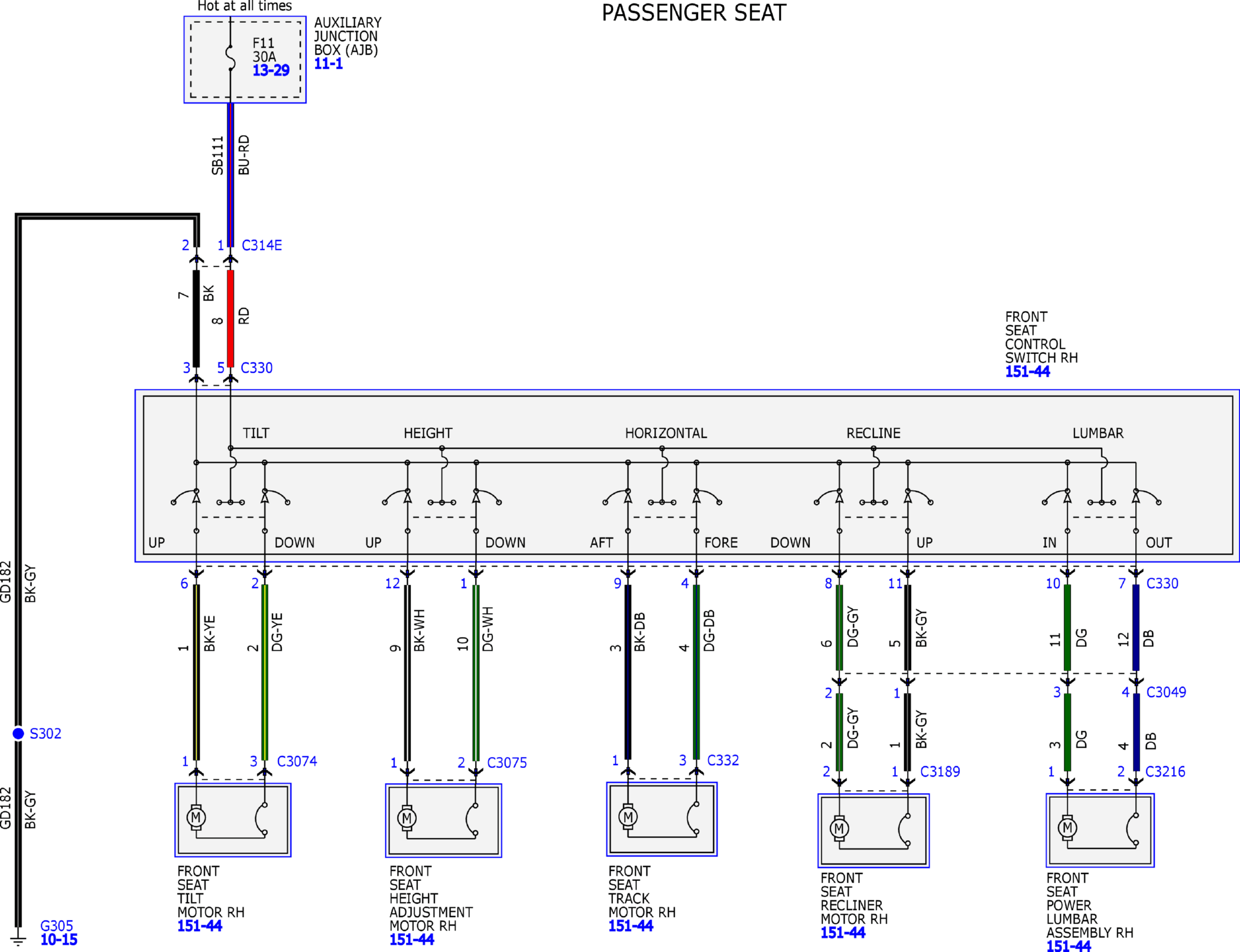

Fig 2: Power Seats Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
