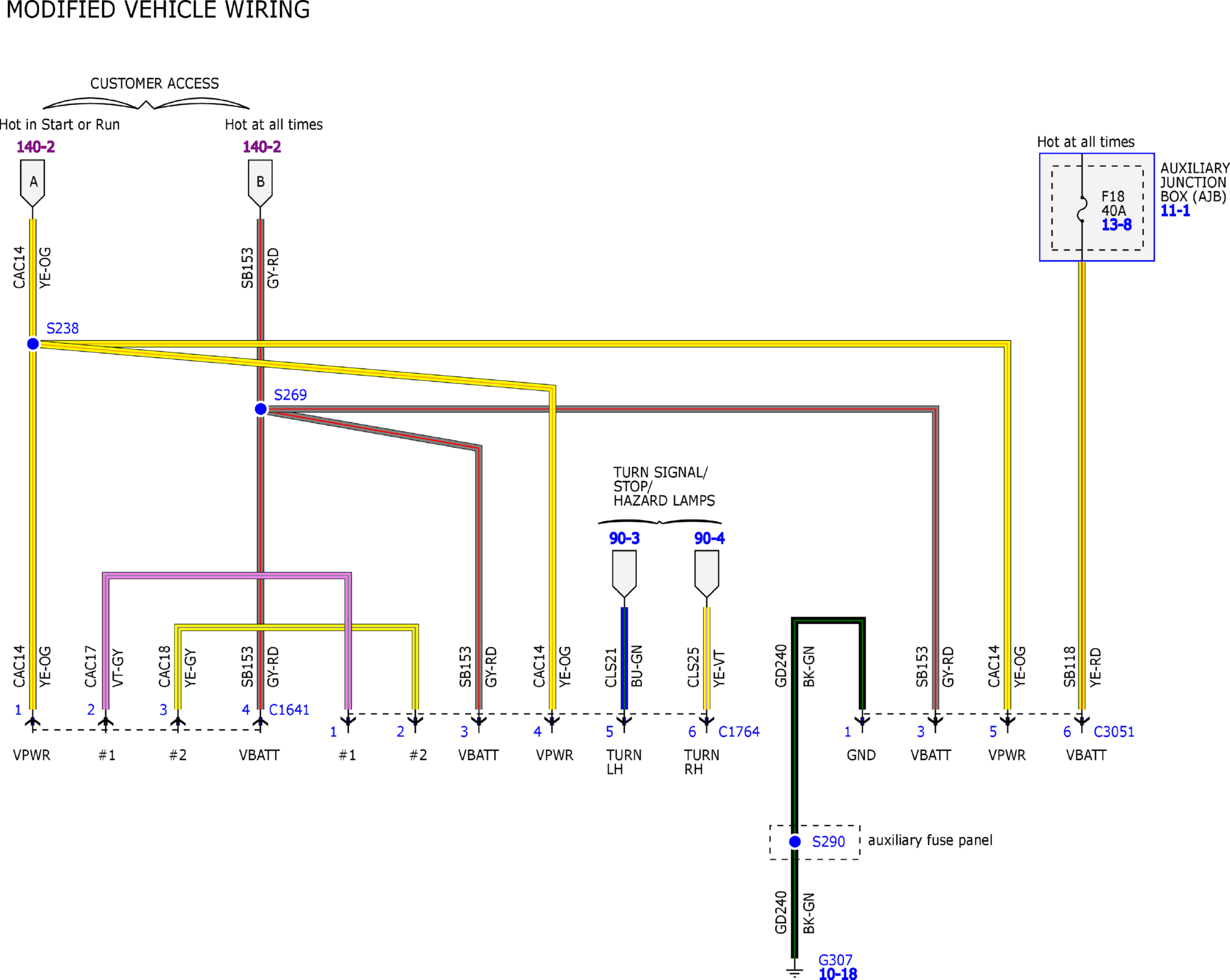

Fig 1: Customer Access Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

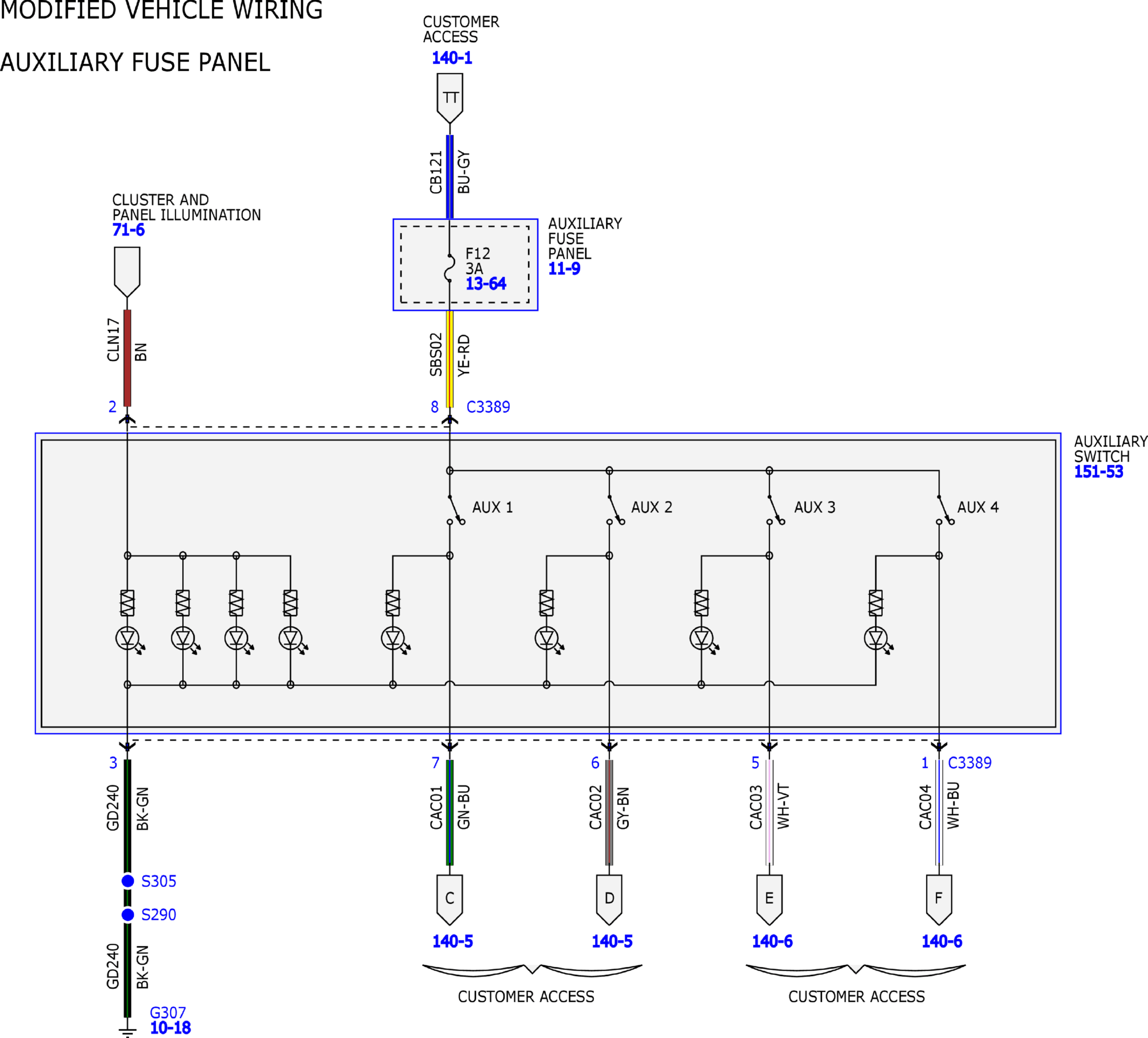

Fig 2: Customer Access Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

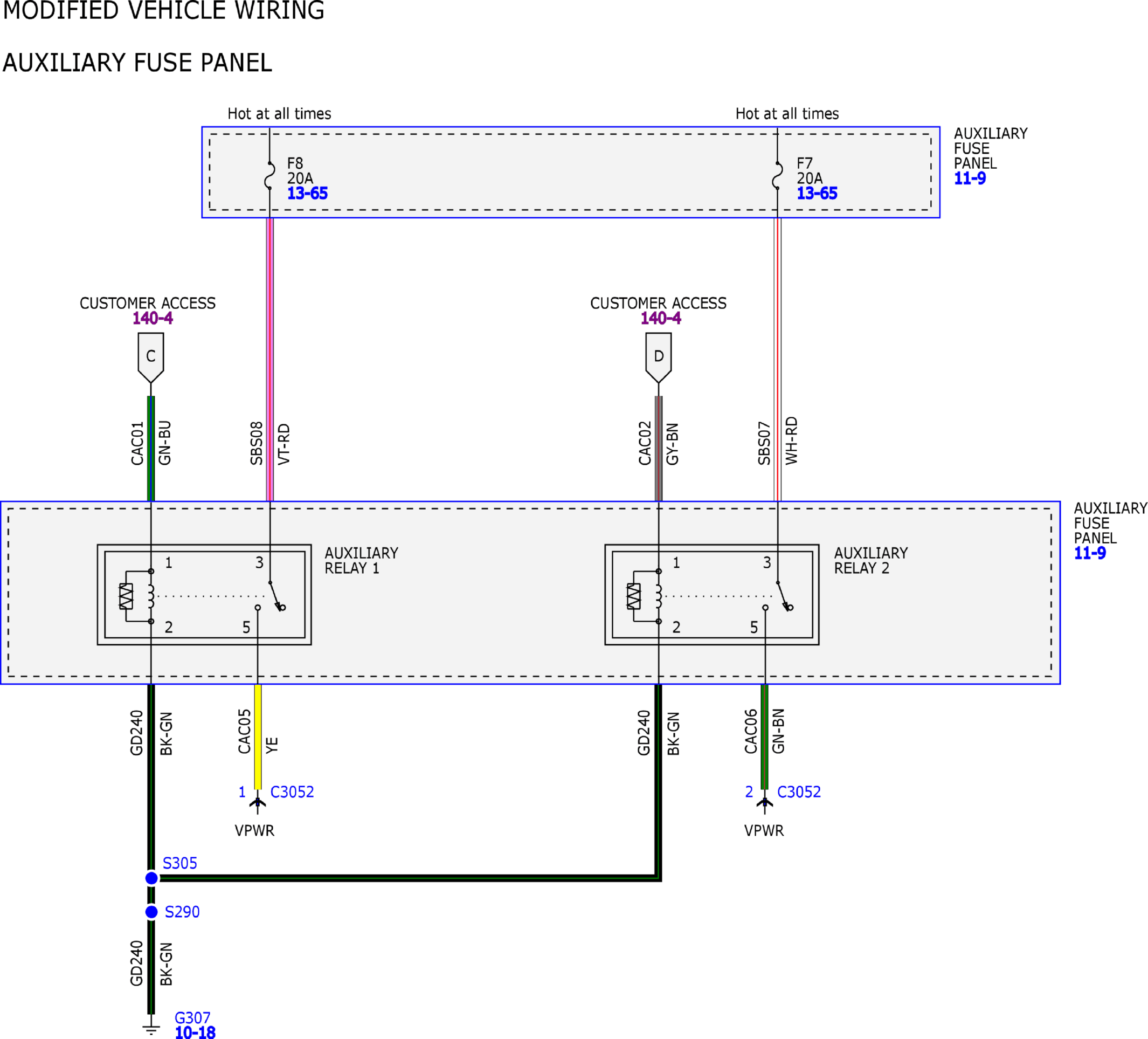

Fig 3: Customer Access Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

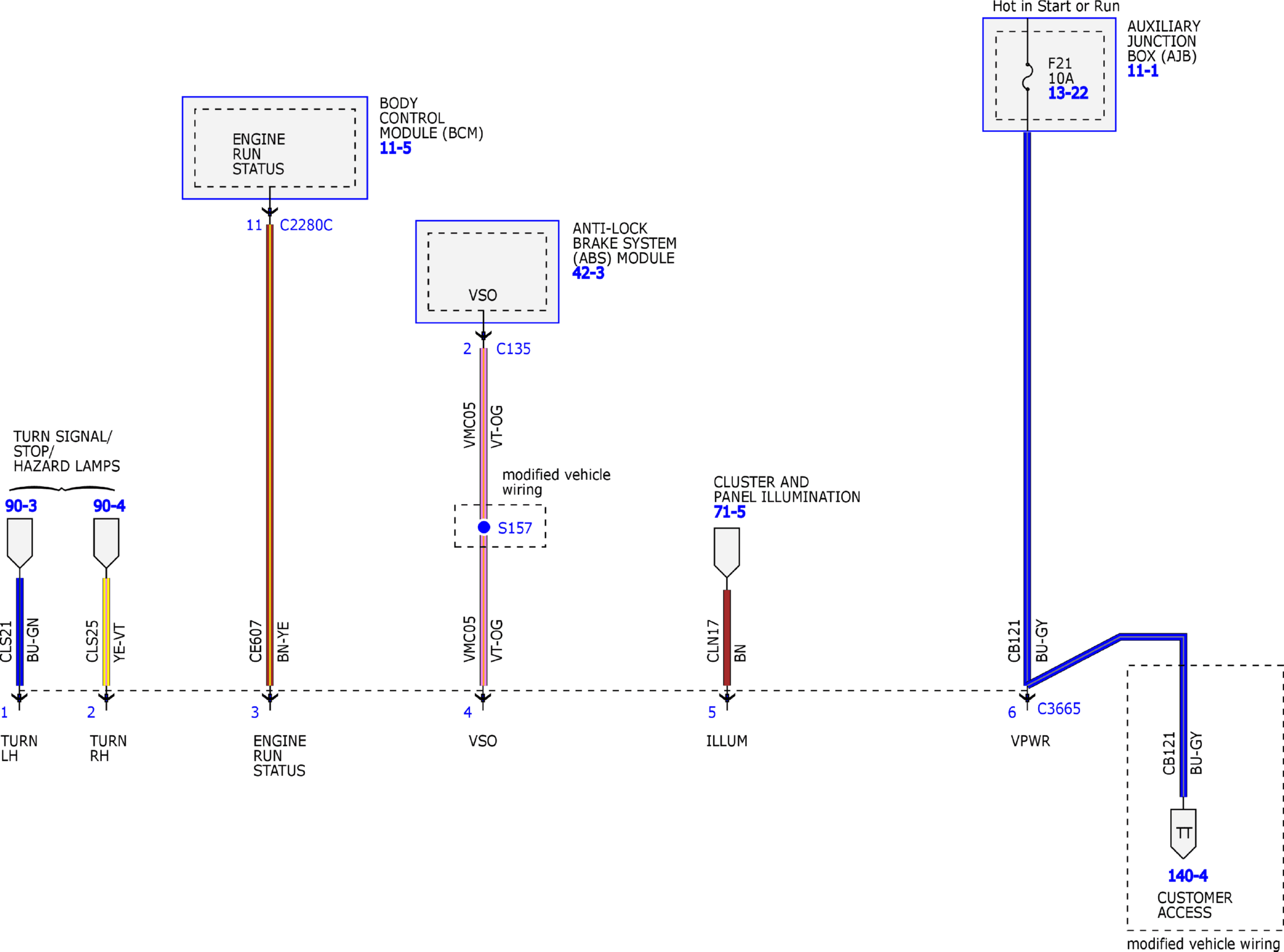

Fig 4: Customer Access Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

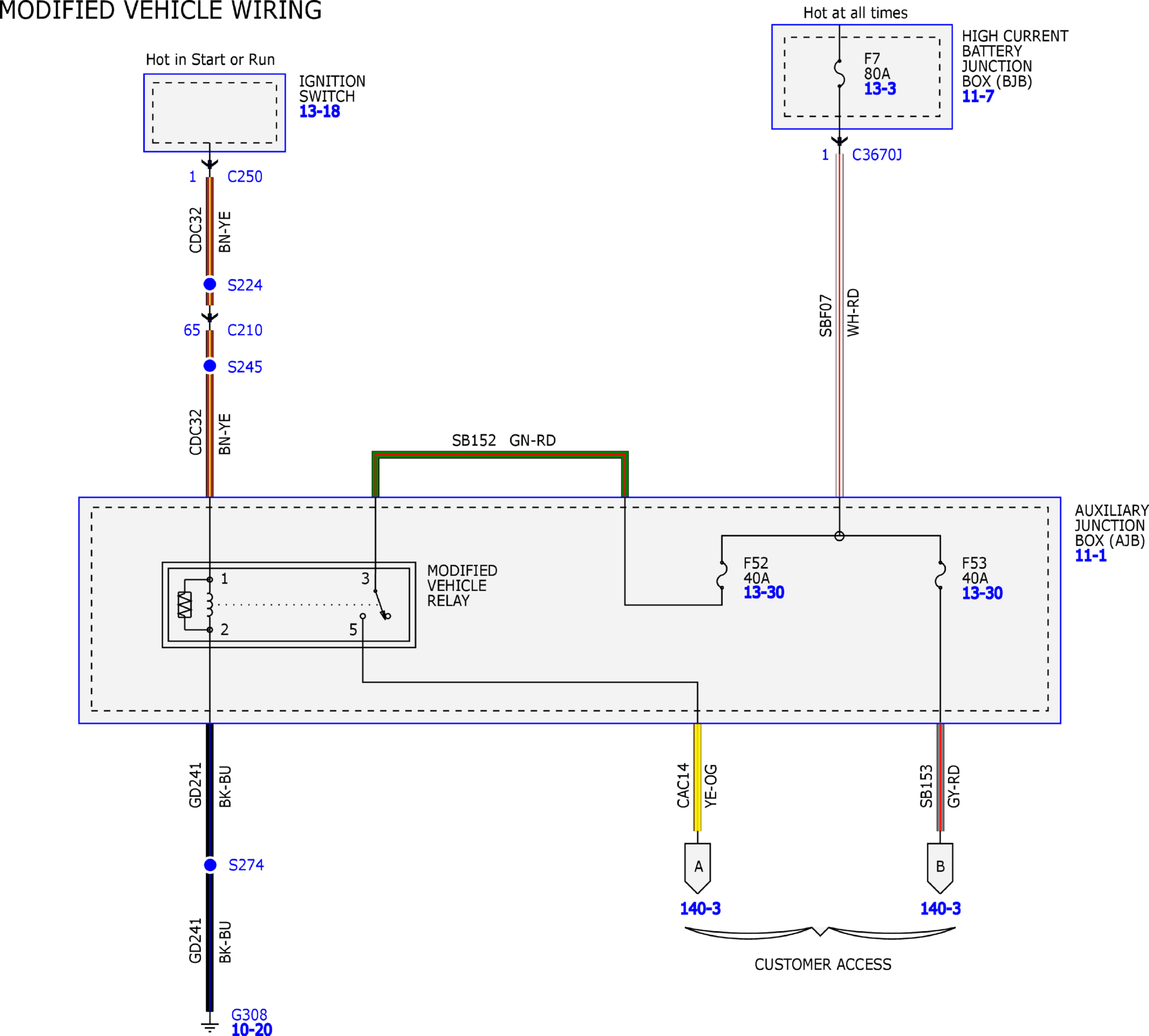

Fig 5: Customer Access Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

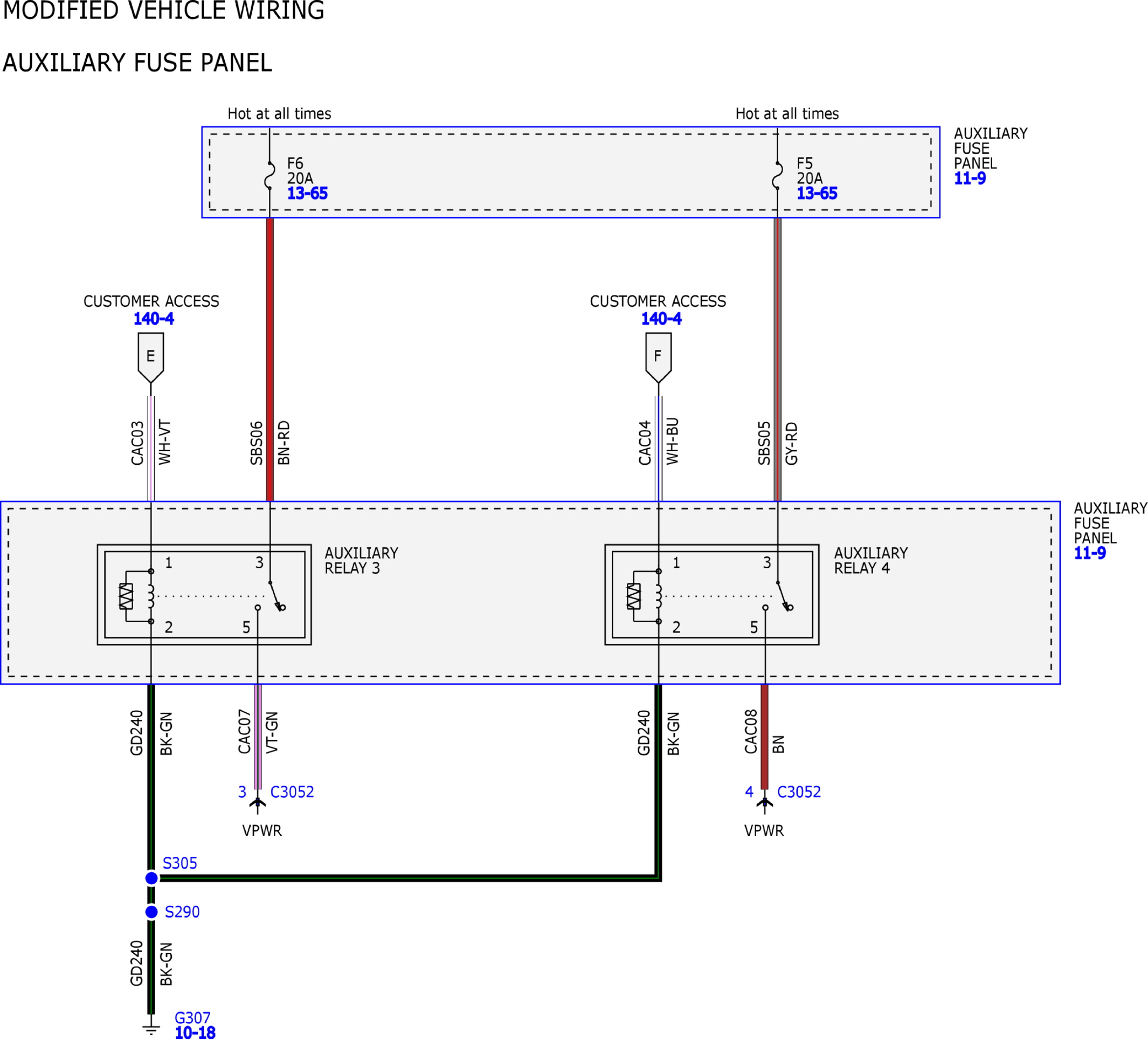

Fig 6: Customer Access Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
