Cruise Control

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

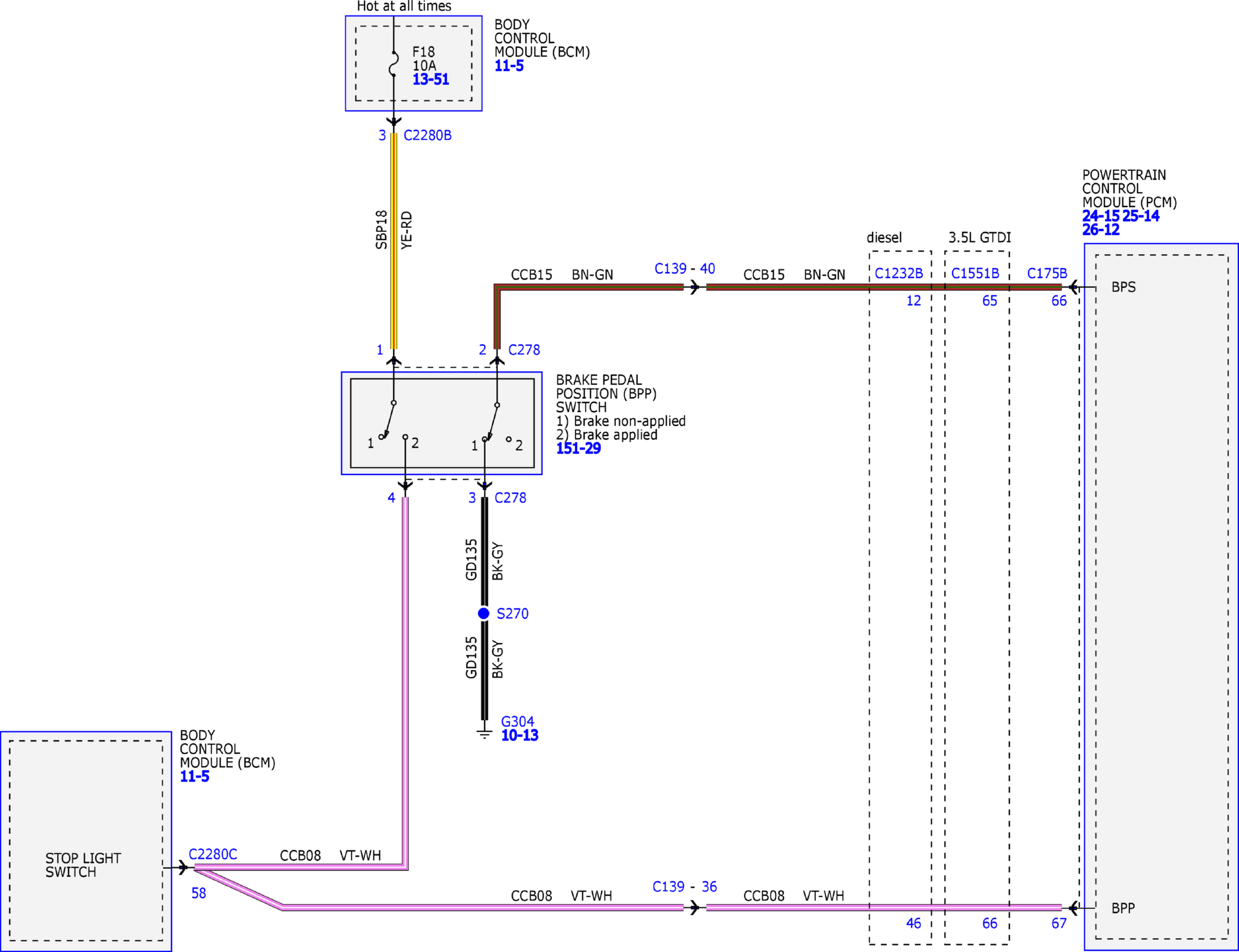

Fig 1: Cruise Control Wiring Diagram (1 of 5)

Courtesy of FORD MOTOR COMPANY

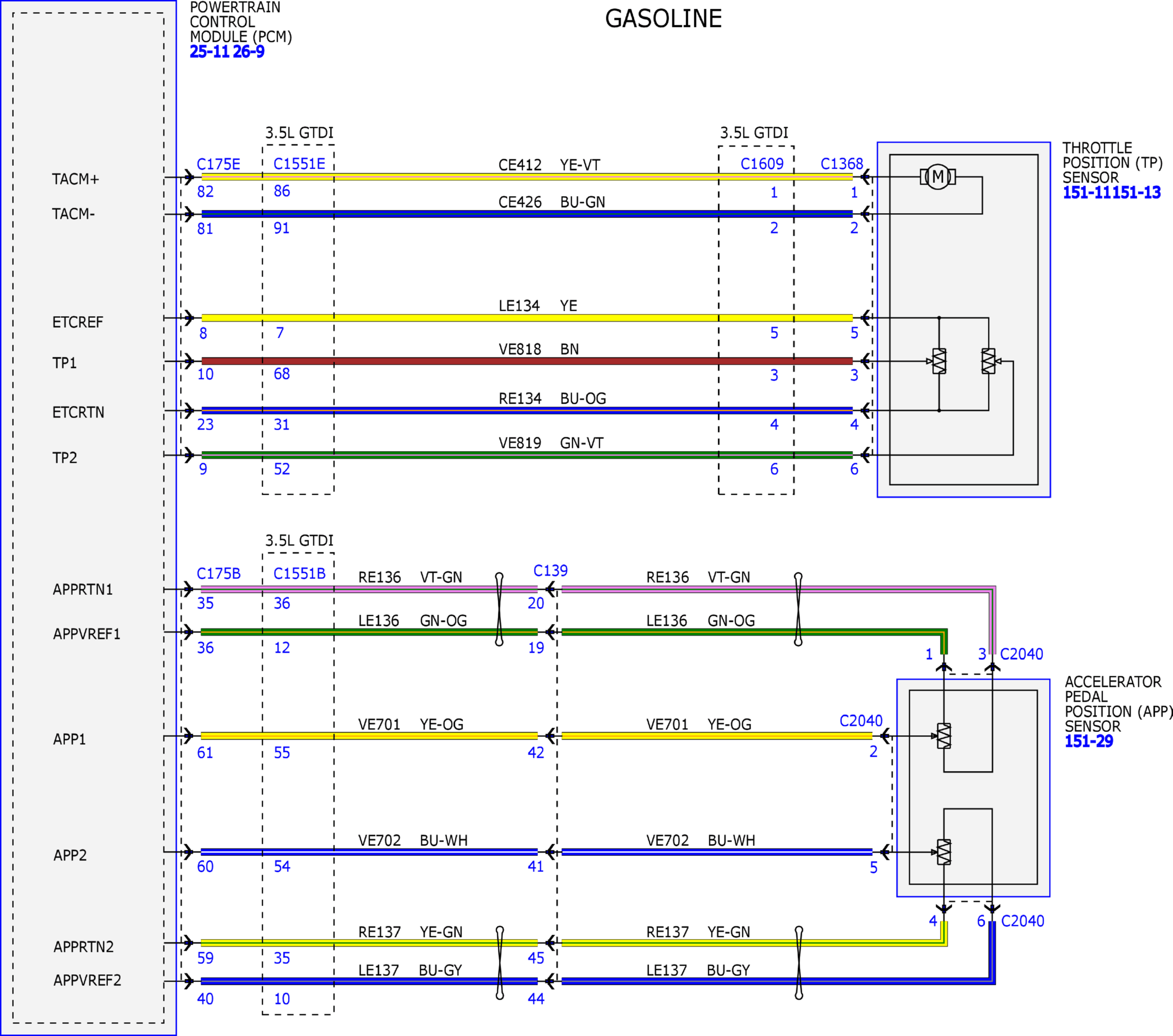

Fig 2: Cruise Control Wiring Diagram (2 of 5)

Courtesy of FORD MOTOR COMPANY

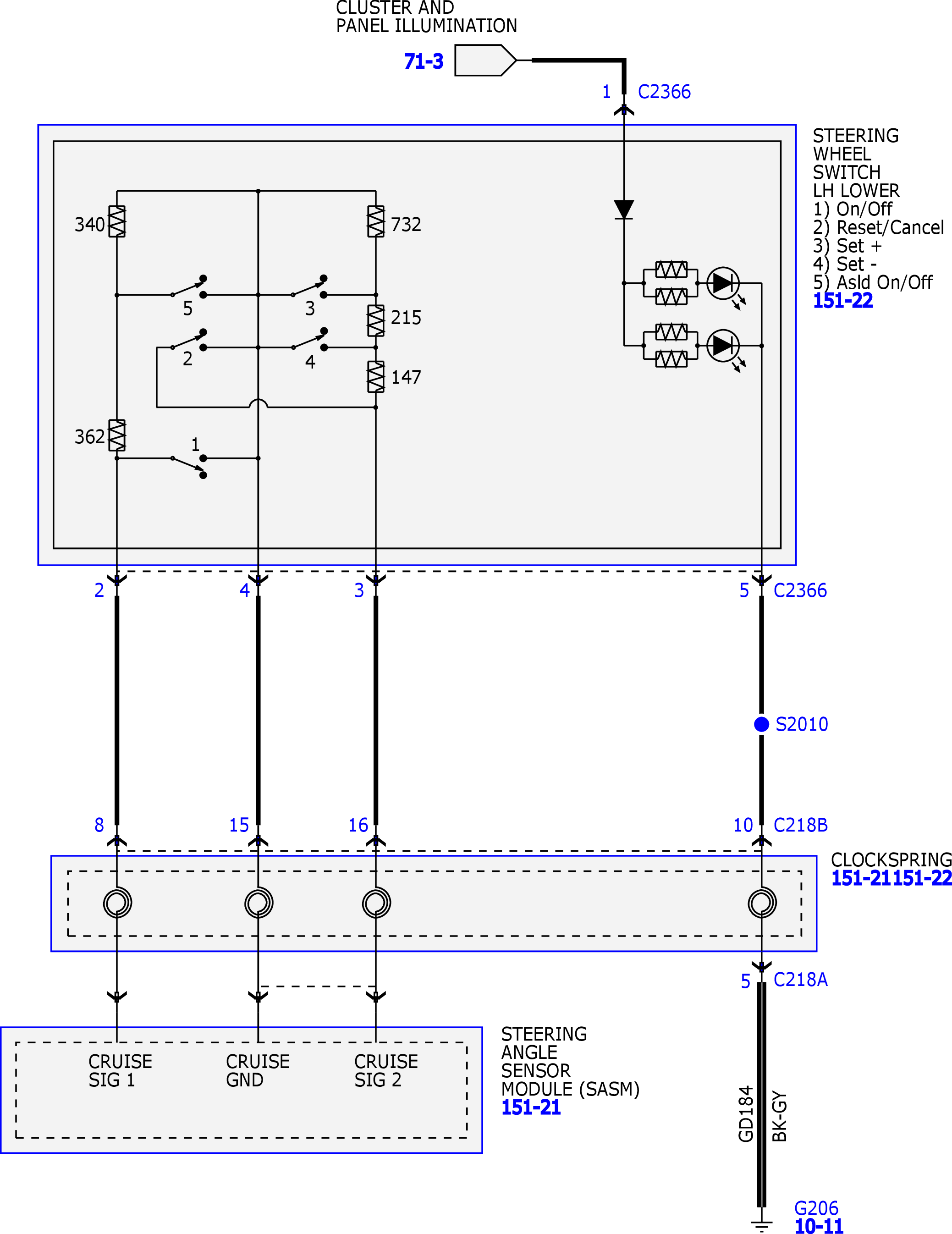

Fig 3: Cruise Control Wiring Diagram (3 of 5)

Courtesy of FORD MOTOR COMPANY

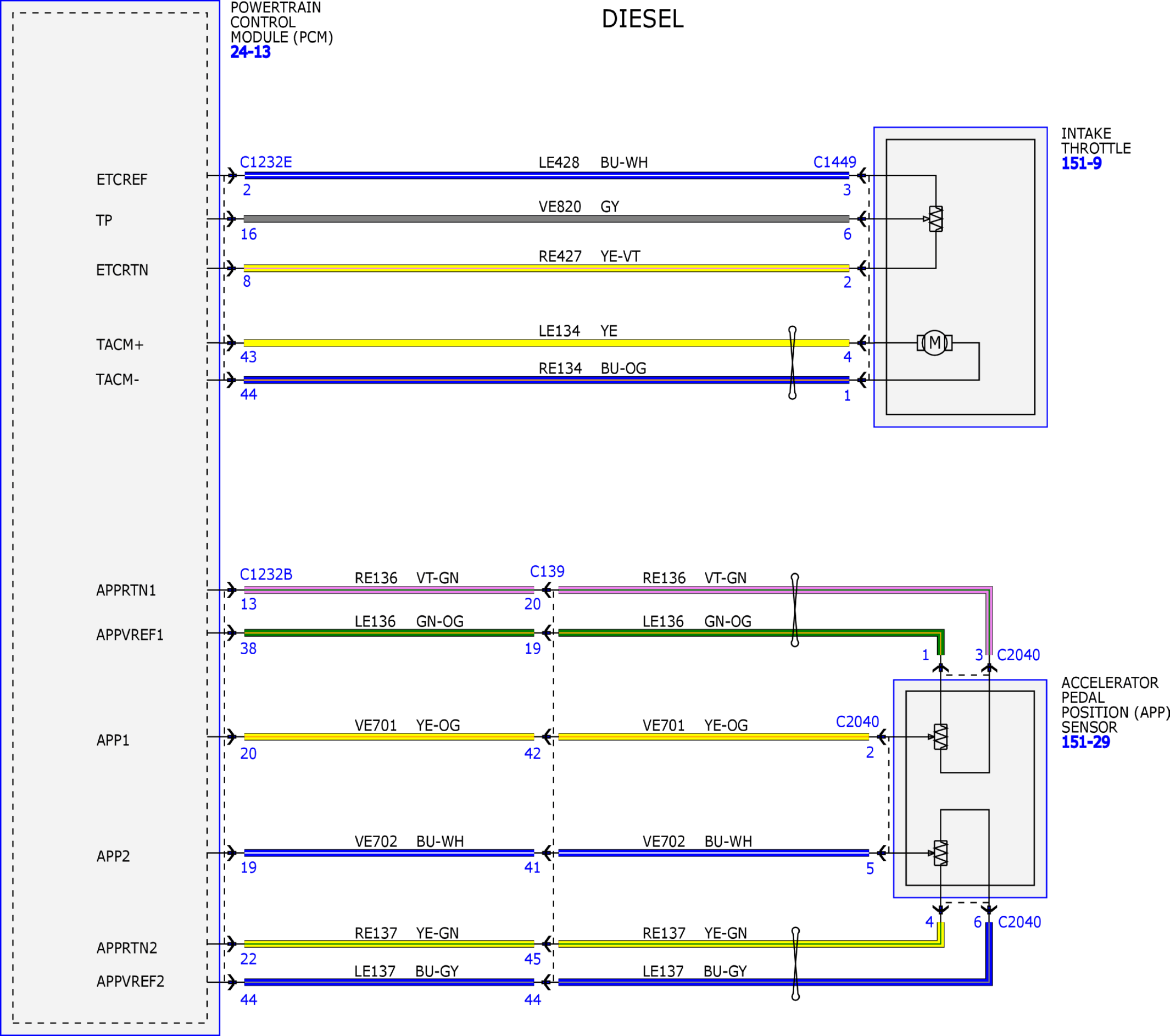

Fig 4: Cruise Control Wiring Diagram (4 of 5)

Courtesy of FORD MOTOR COMPANY

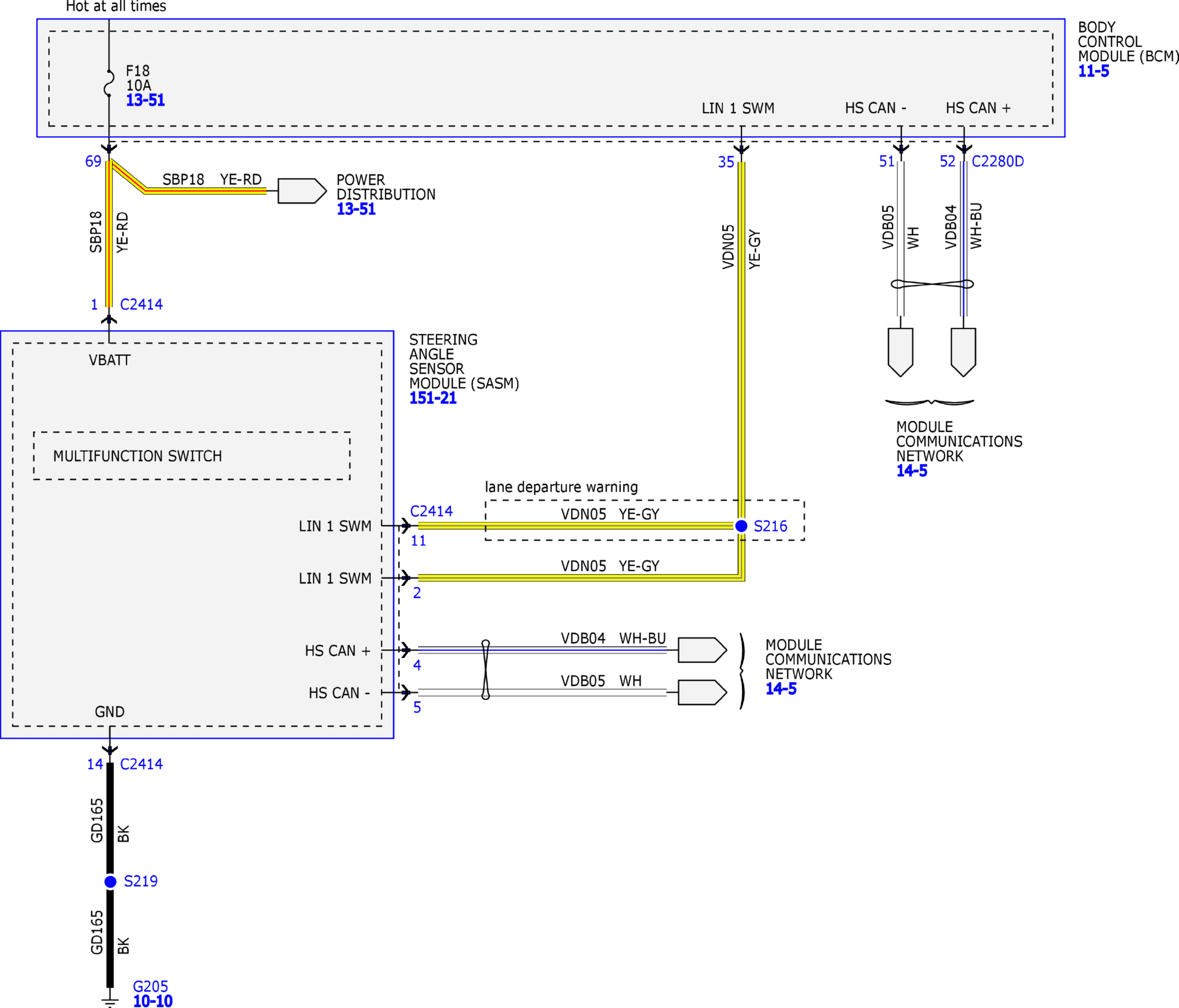

Fig 5: Cruise Control Wiring Diagram (5 of 5)

Courtesy of FORD MOTOR COMPANY
