Audio System/Navigation - Am/Fm/Sync/Touchscreen Display

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

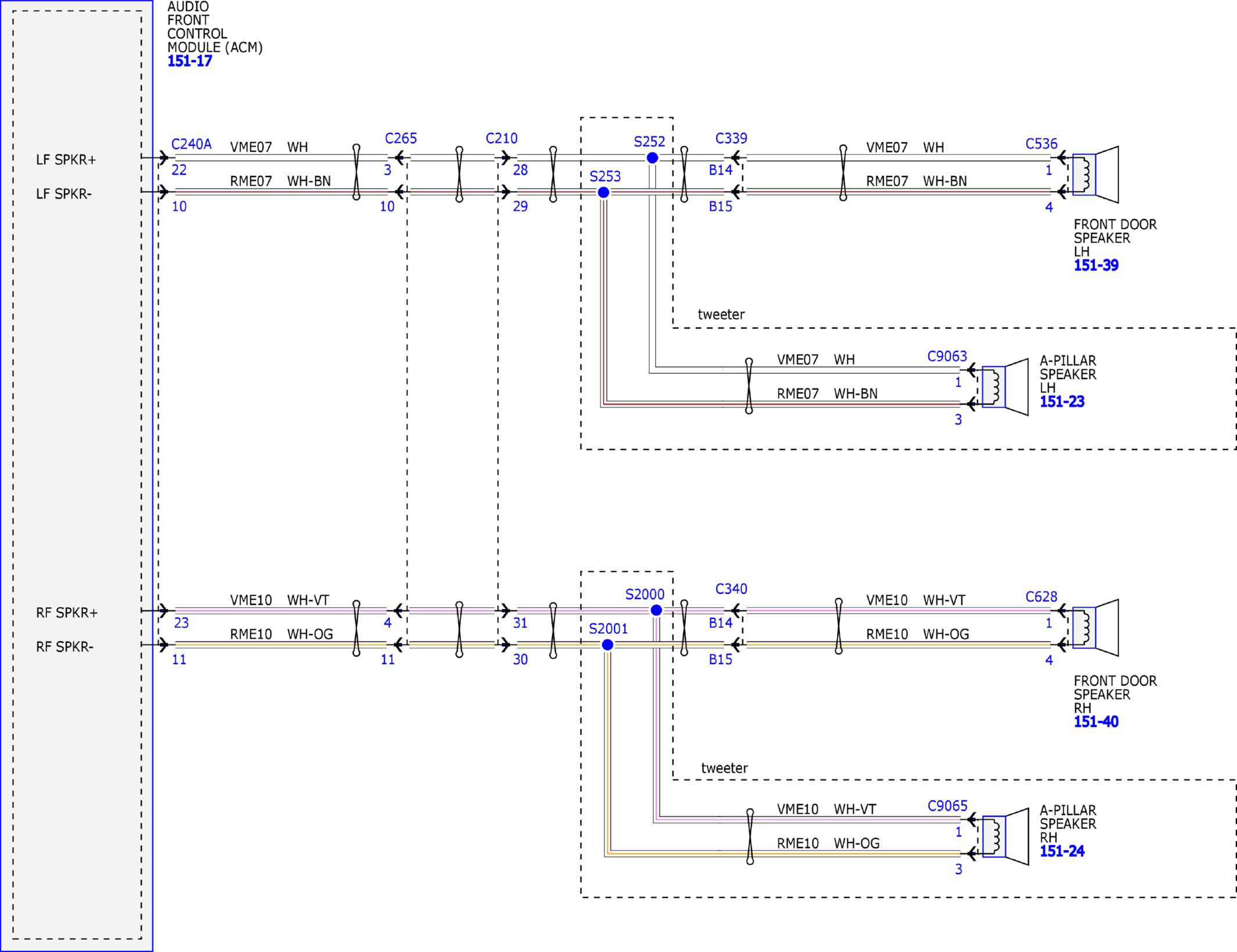

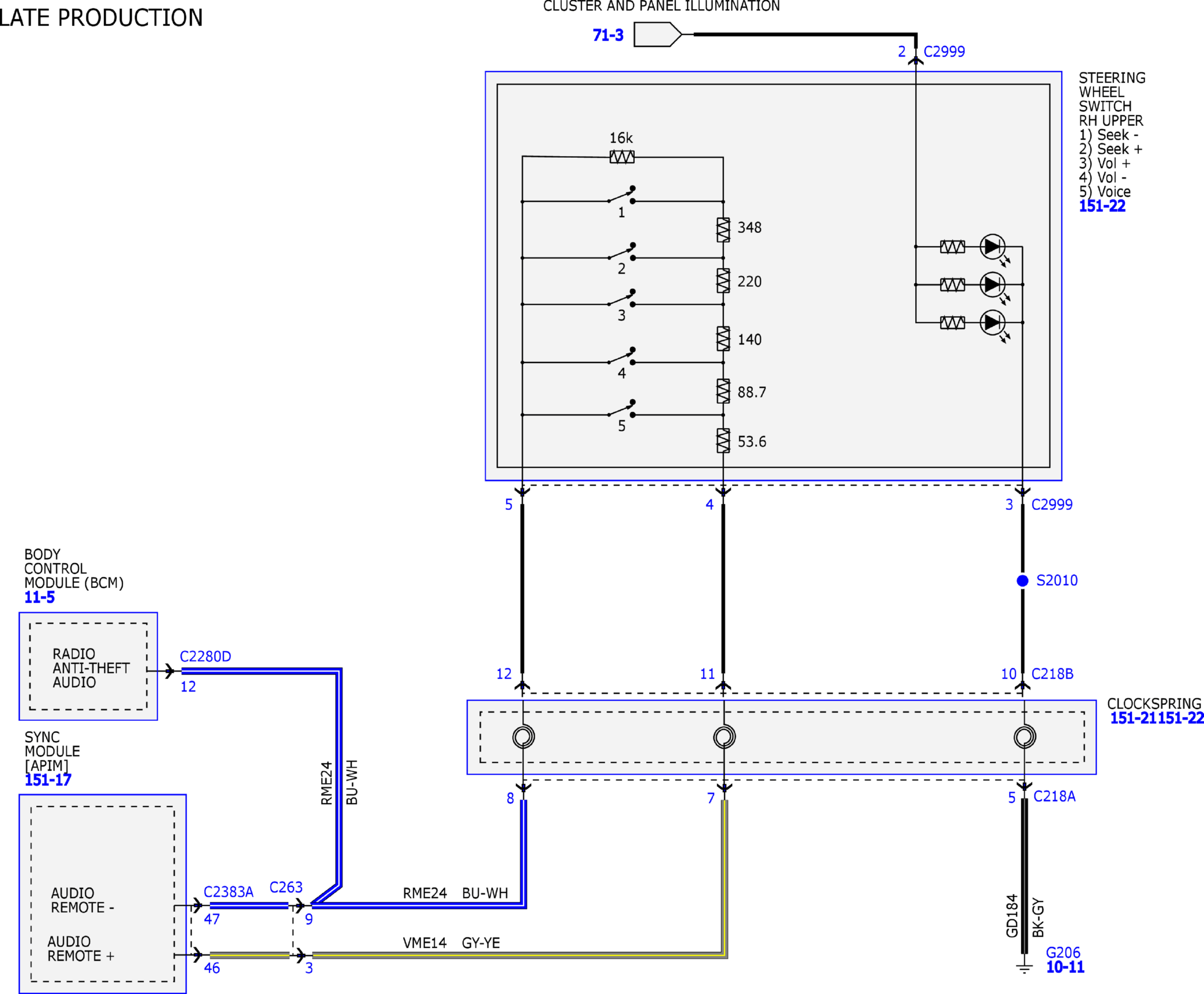

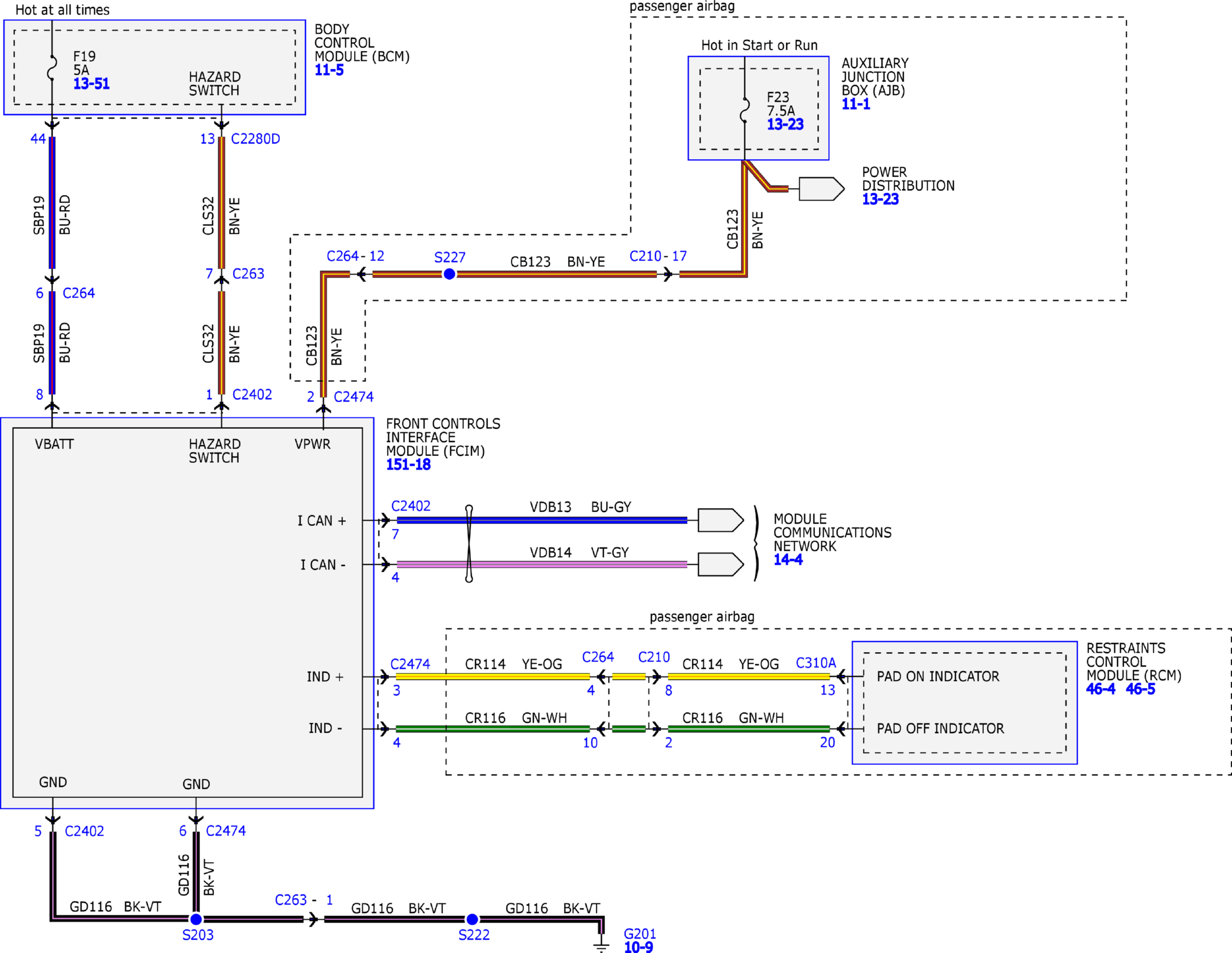

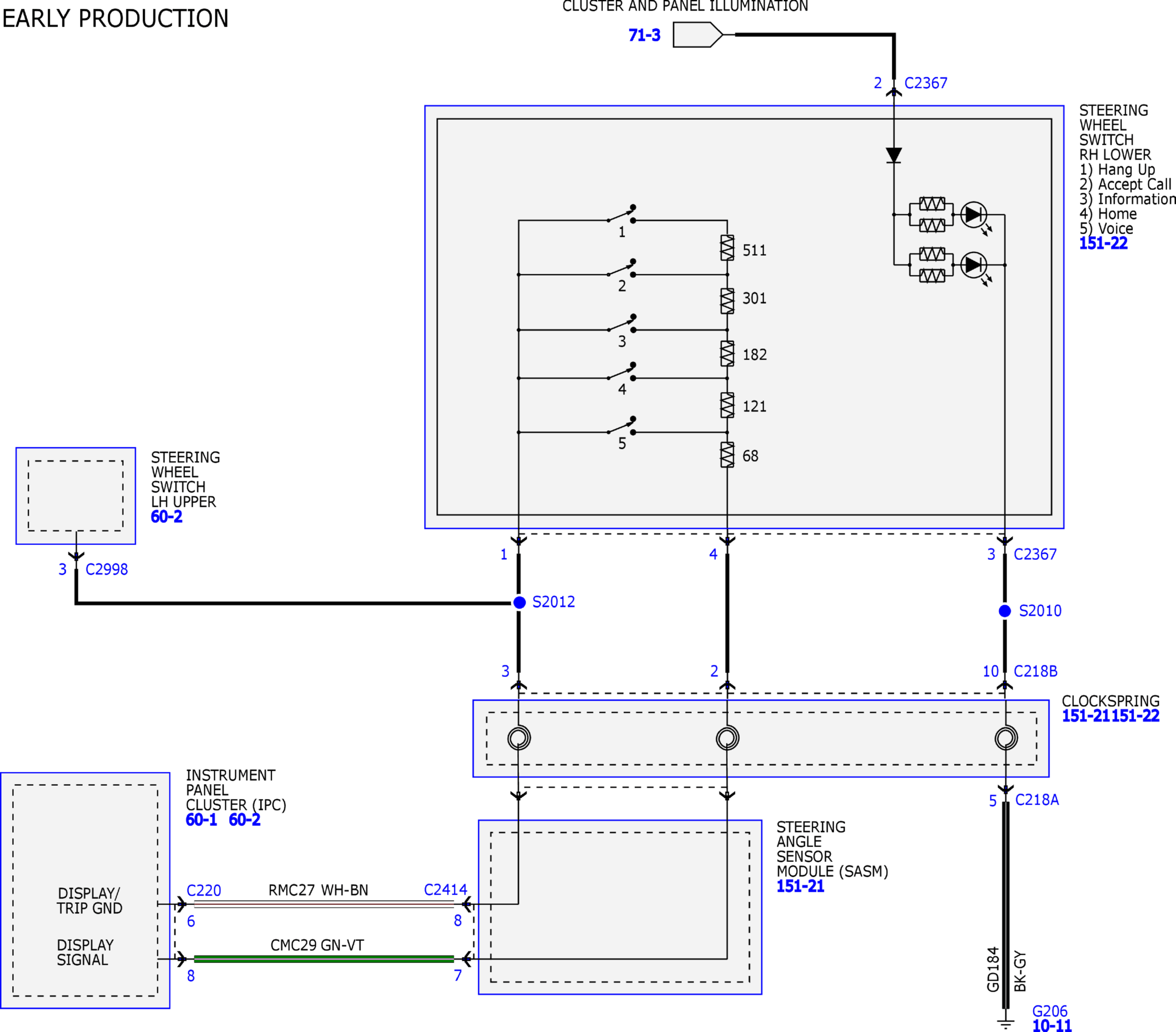

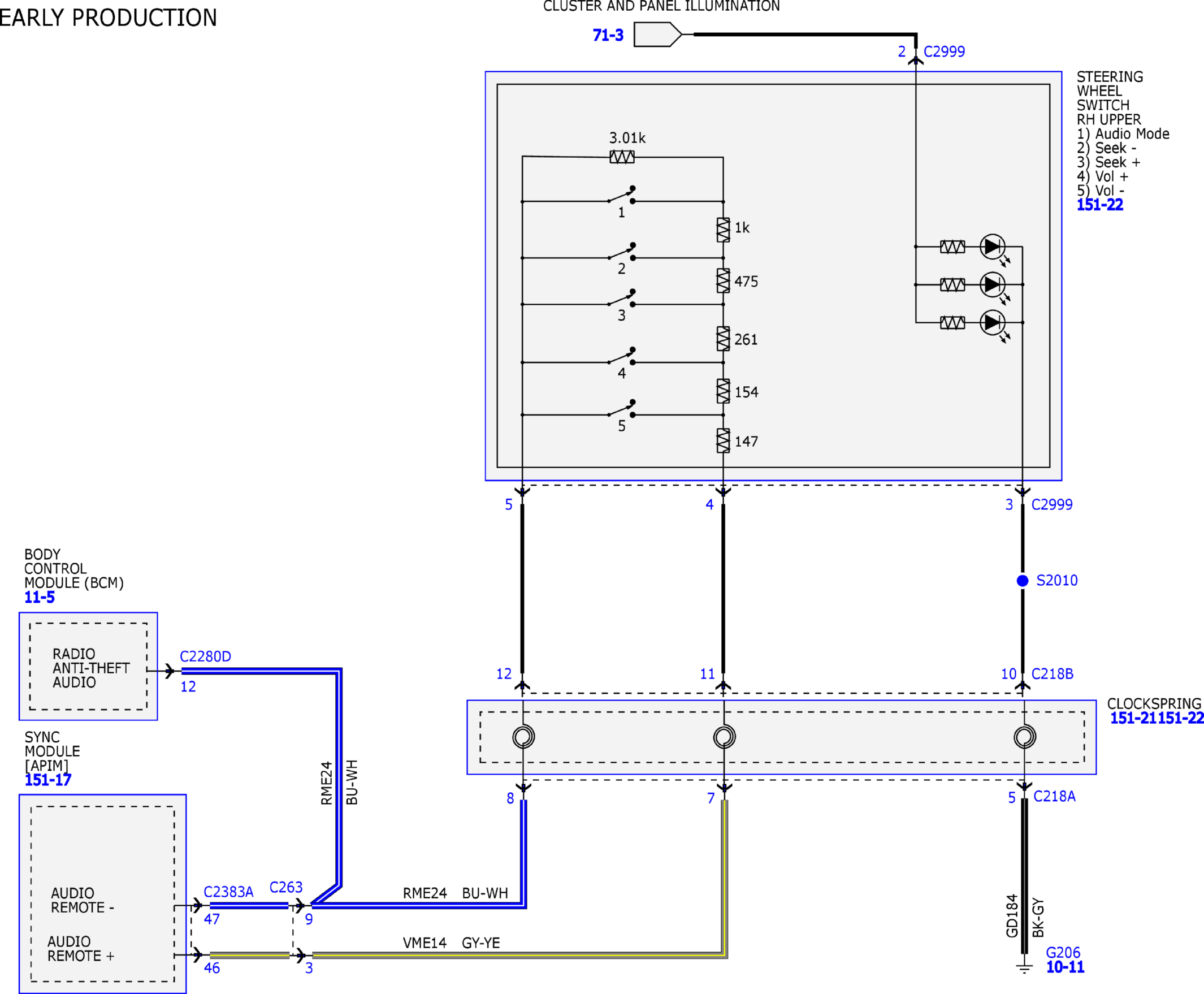

Fig 1: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (1 of 12)

Courtesy of FORD MOTOR COMPANY

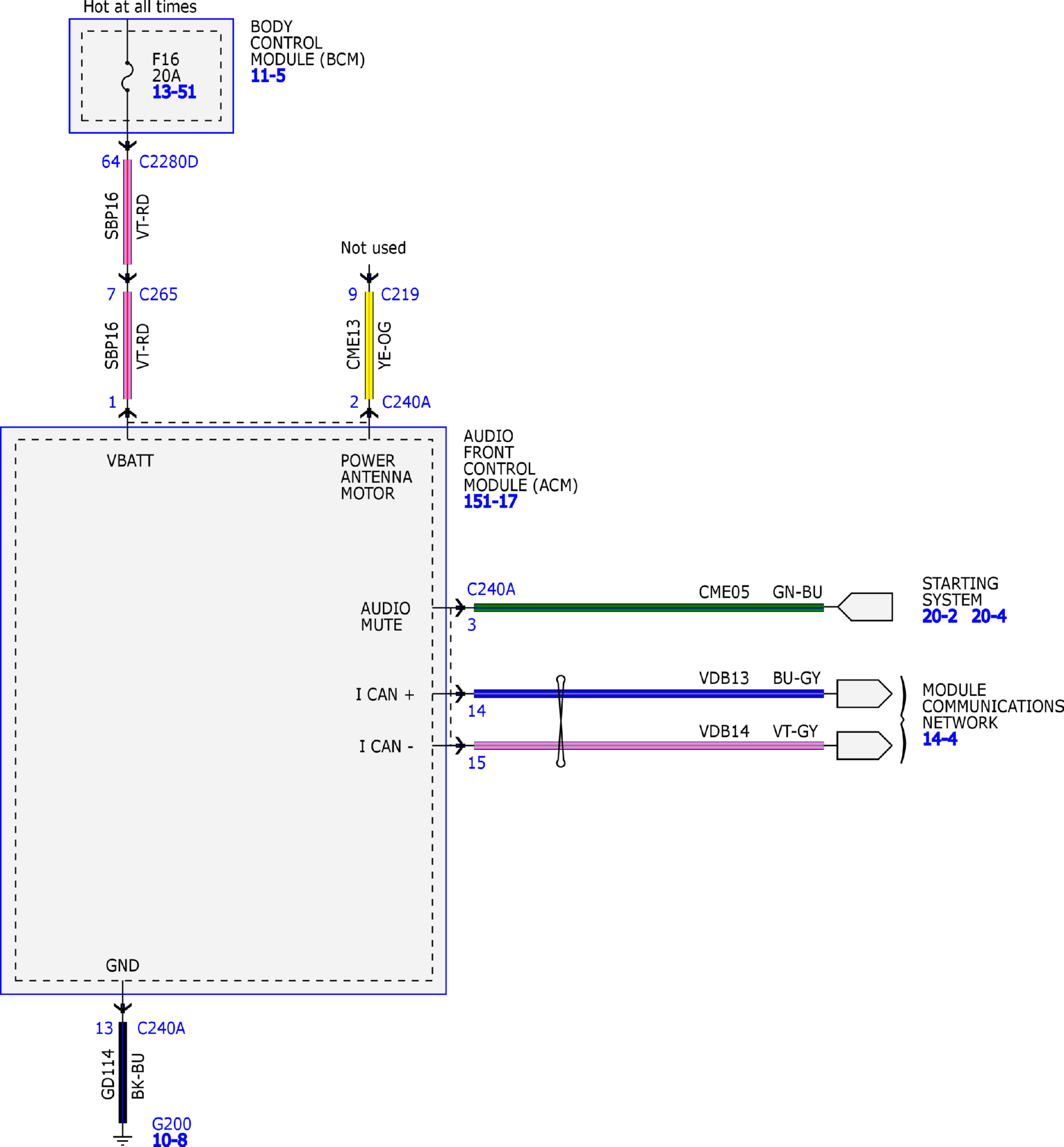

Fig 2: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (2 of 12)

Courtesy of FORD MOTOR COMPANY

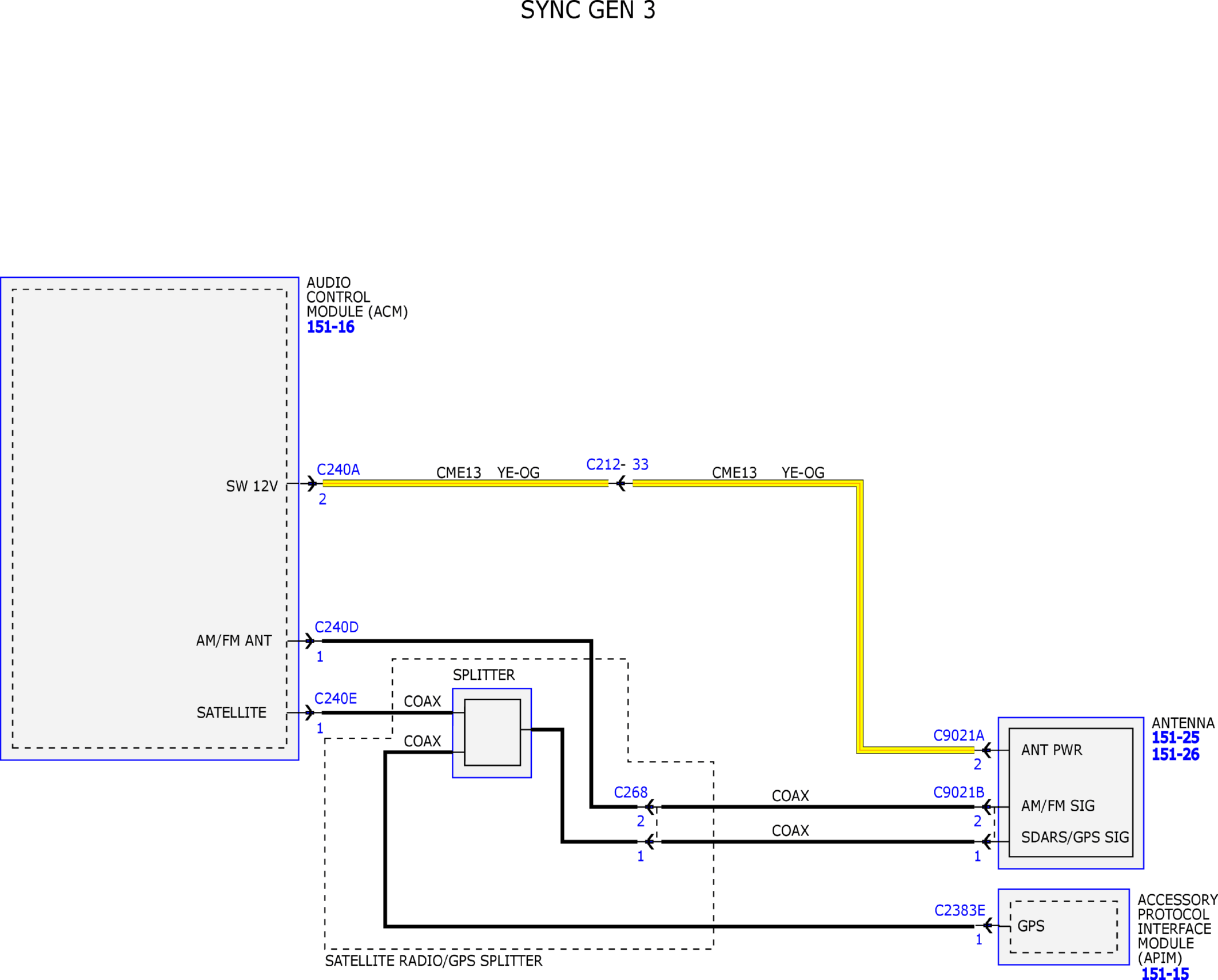

Fig 3: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (3 of 12)

Courtesy of FORD MOTOR COMPANY

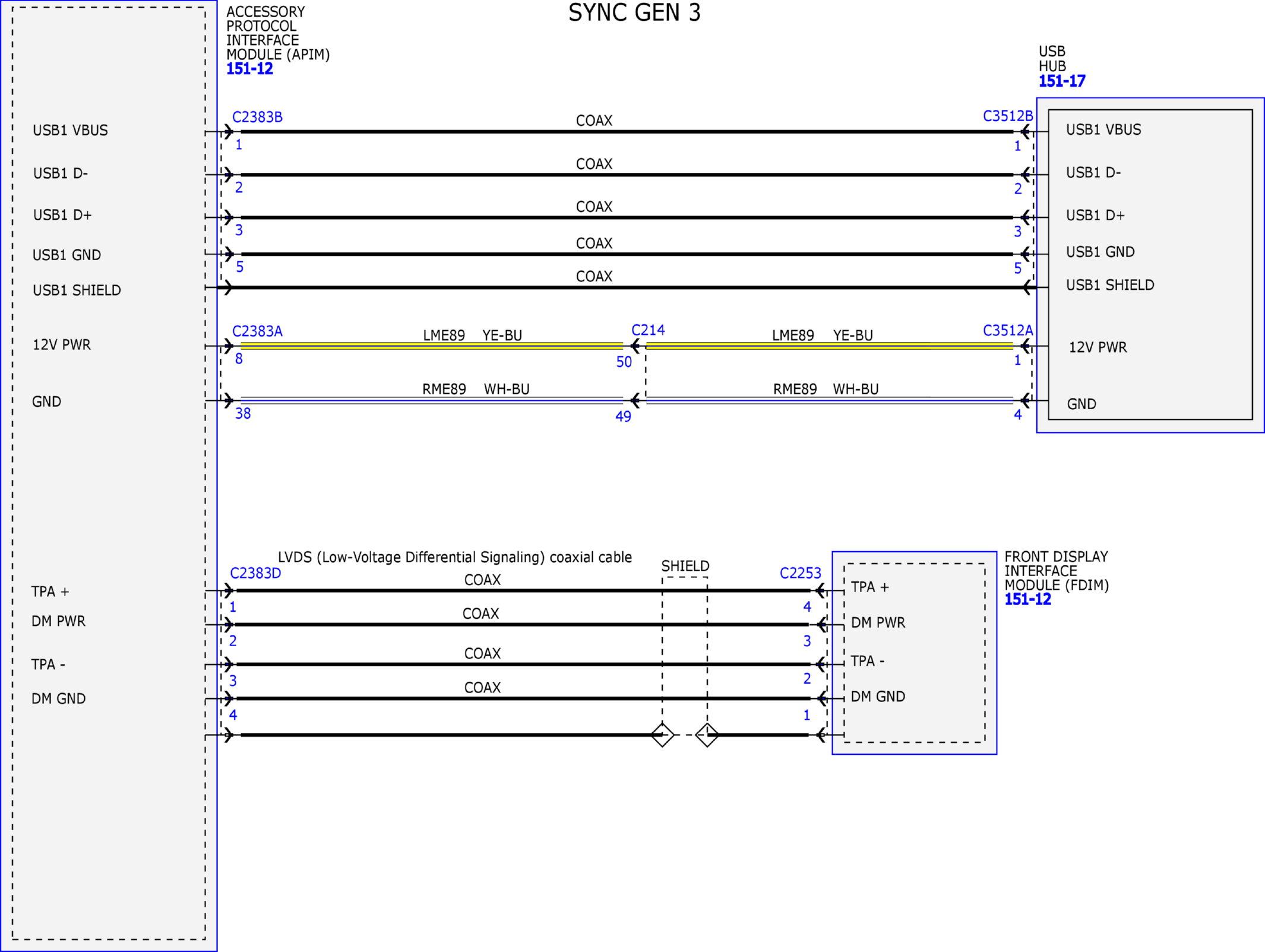

Fig 4: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (4 of 12)

Courtesy of FORD MOTOR COMPANY

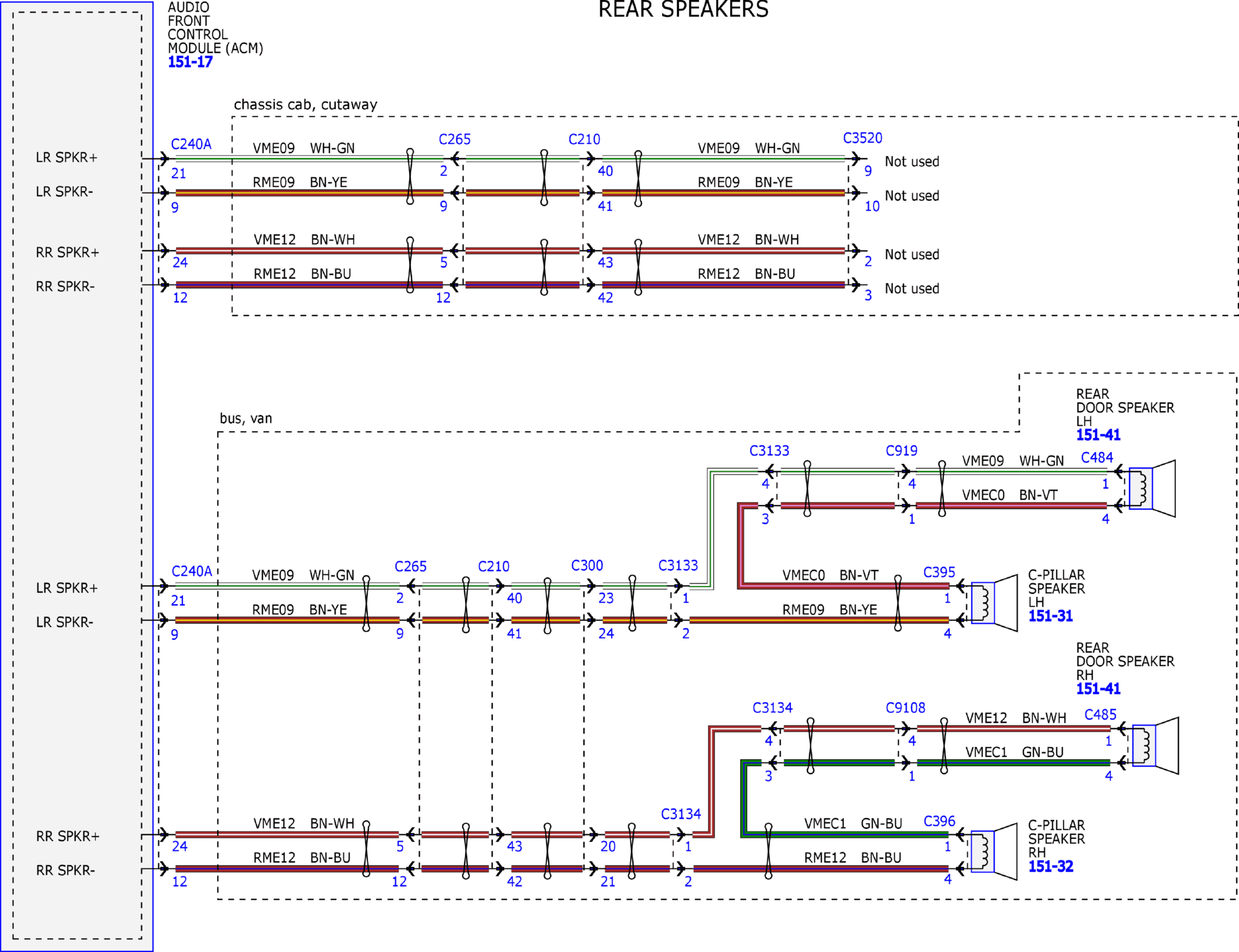

Fig 5: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (5 of 12)

Courtesy of FORD MOTOR COMPANY

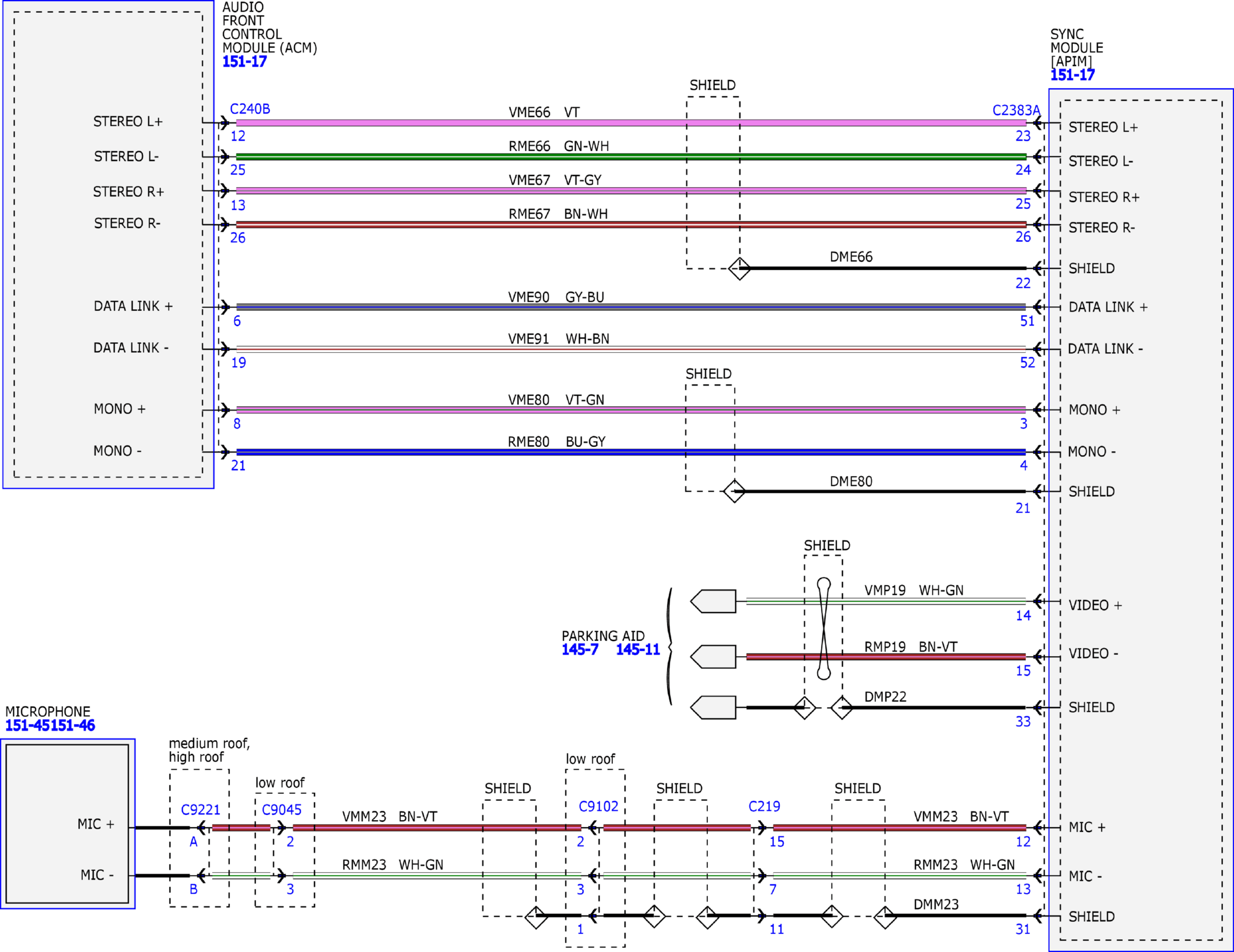

Fig 6: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (6 of 12)

Courtesy of FORD MOTOR COMPANY

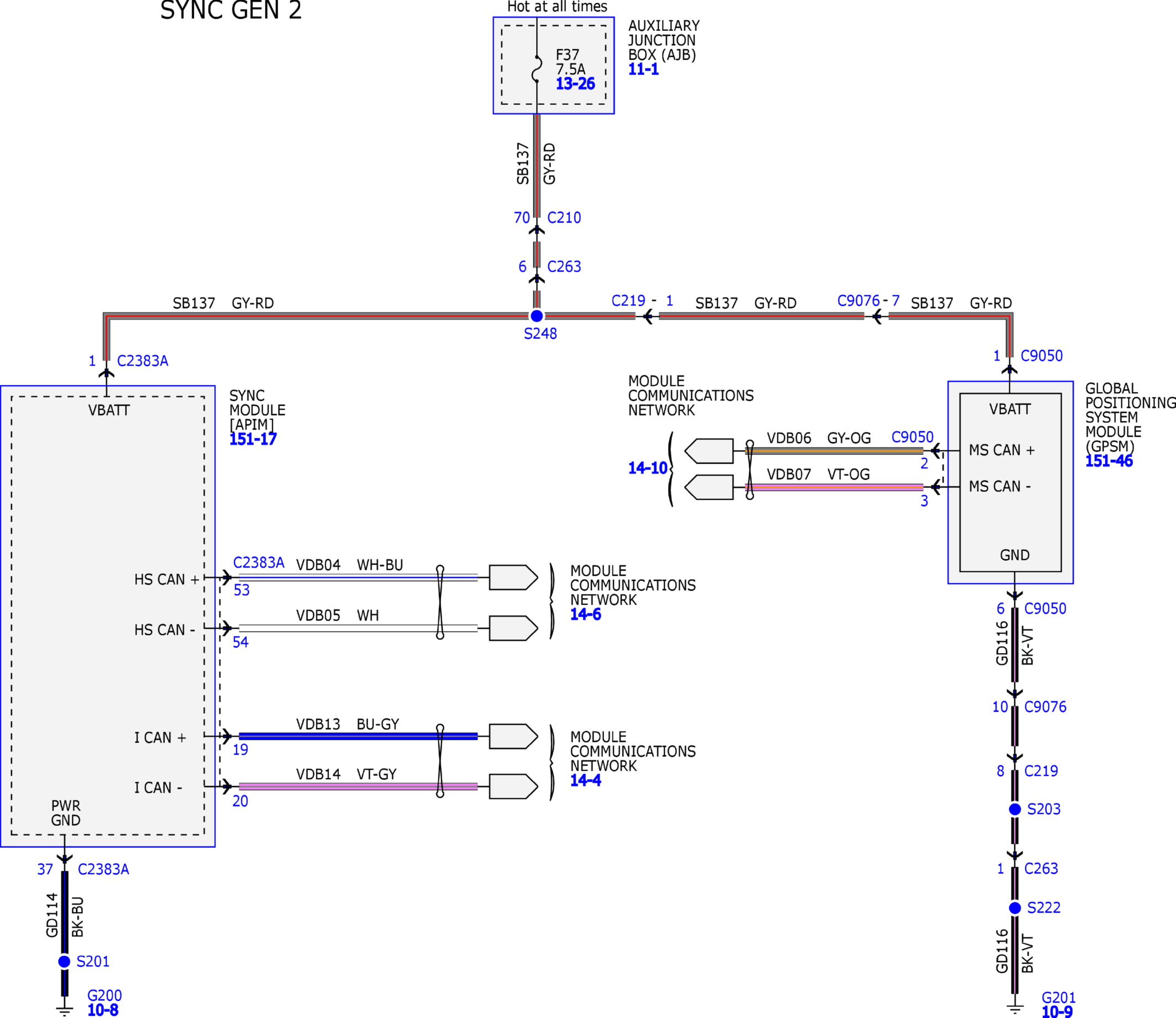

Fig 7: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (7 of 12)

Courtesy of FORD MOTOR COMPANY

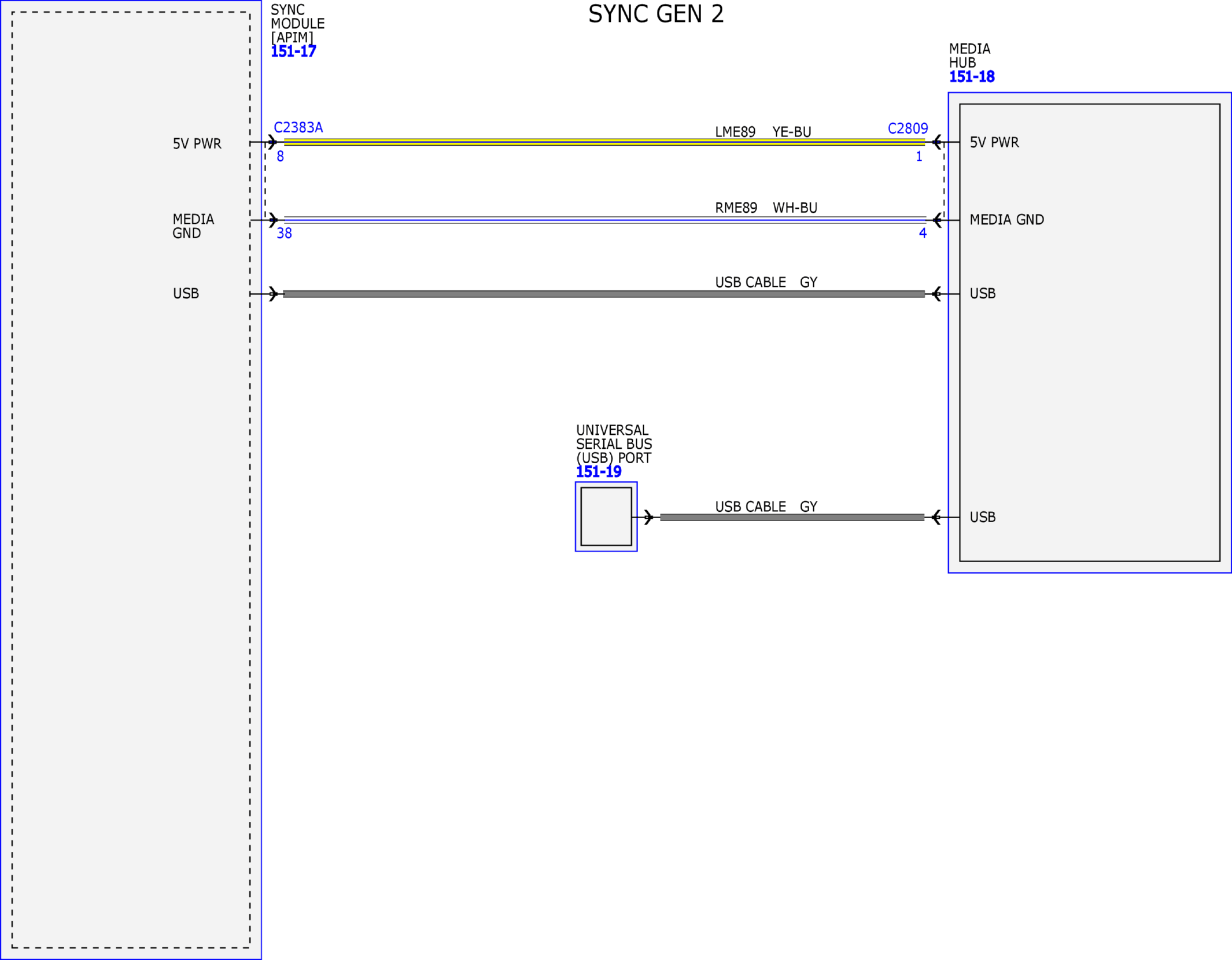

Fig 8: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (12 of 12)

Courtesy of FORD MOTOR COMPANY
