Audio System/Navigation - Am/Fm/Cd

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

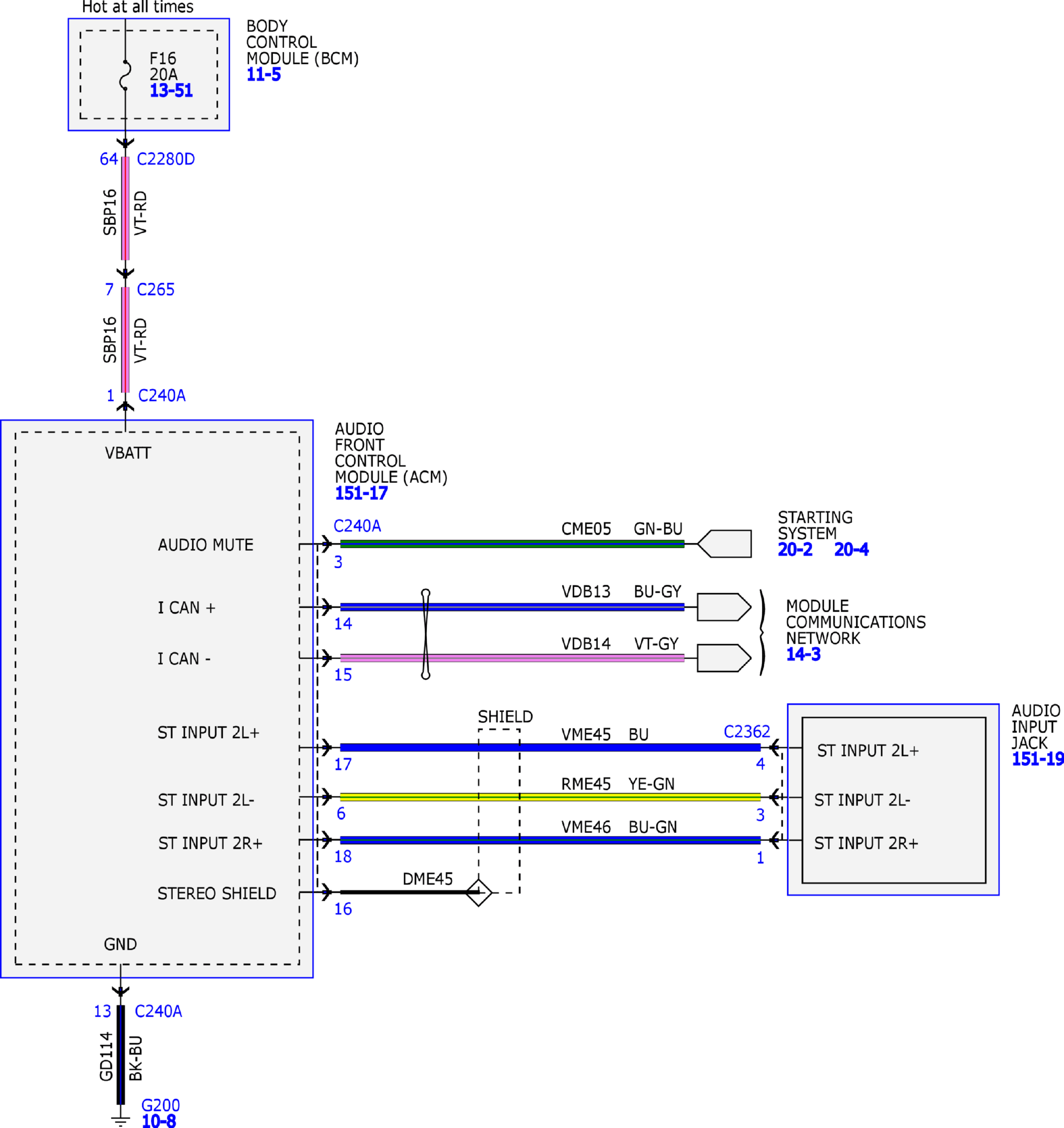

Fig 1: Audio System/Navigation - AM/FM/CD Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

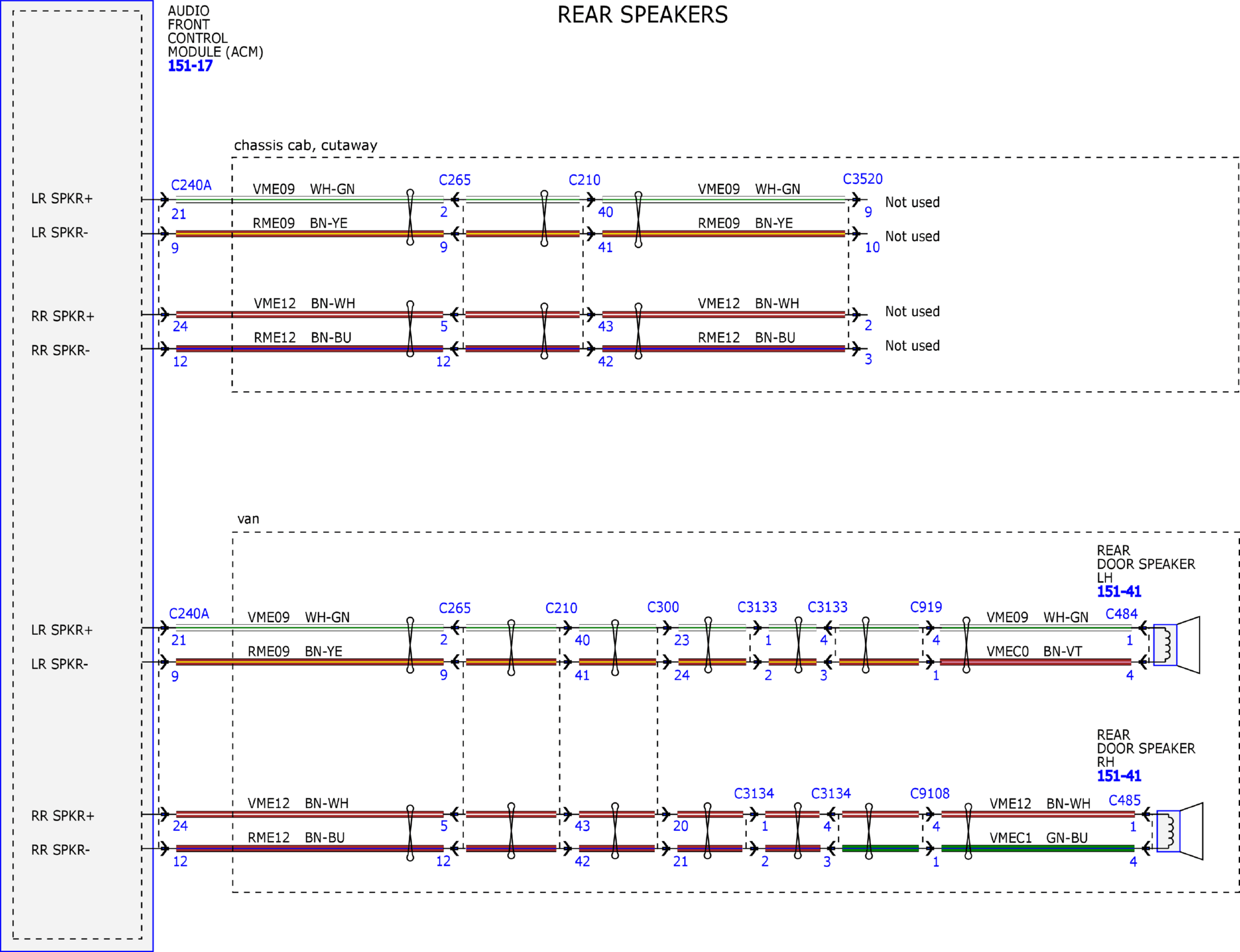

Fig 2: Audio System/Navigation - AM/FM/CD Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

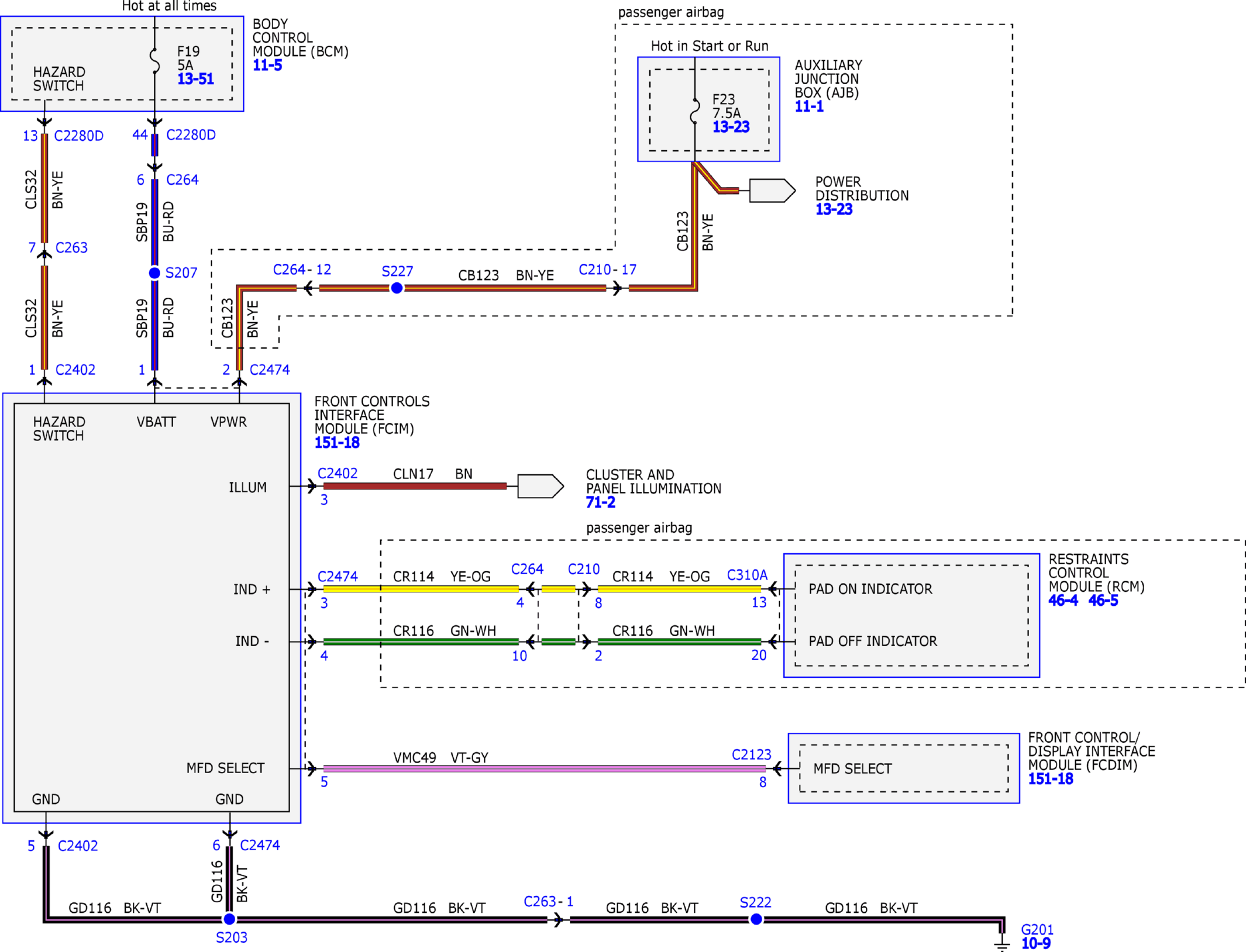

Fig 3: Audio System/Navigation - AM/FM/CD Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

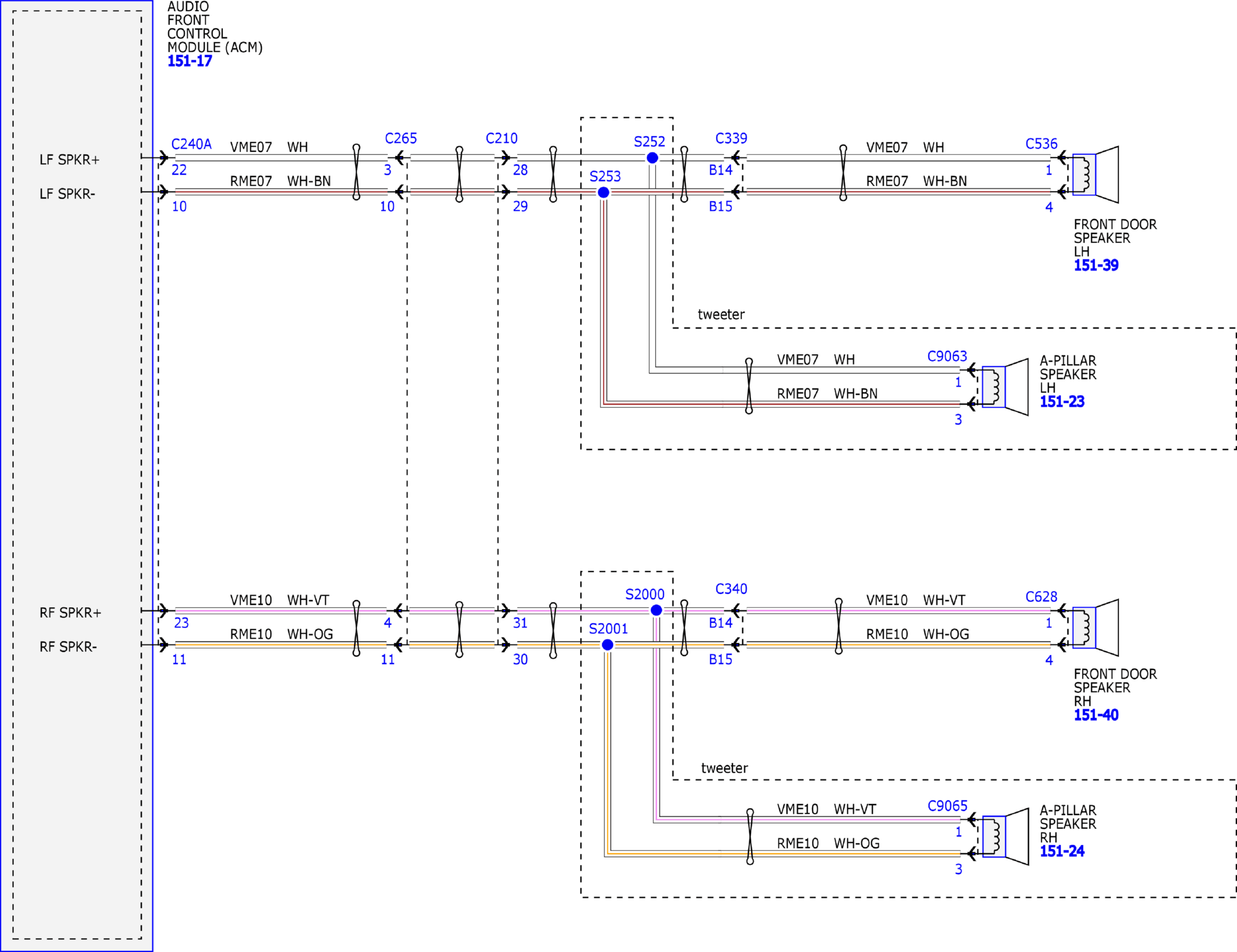

Fig 4: Audio System/Navigation - AM/FM/CD Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

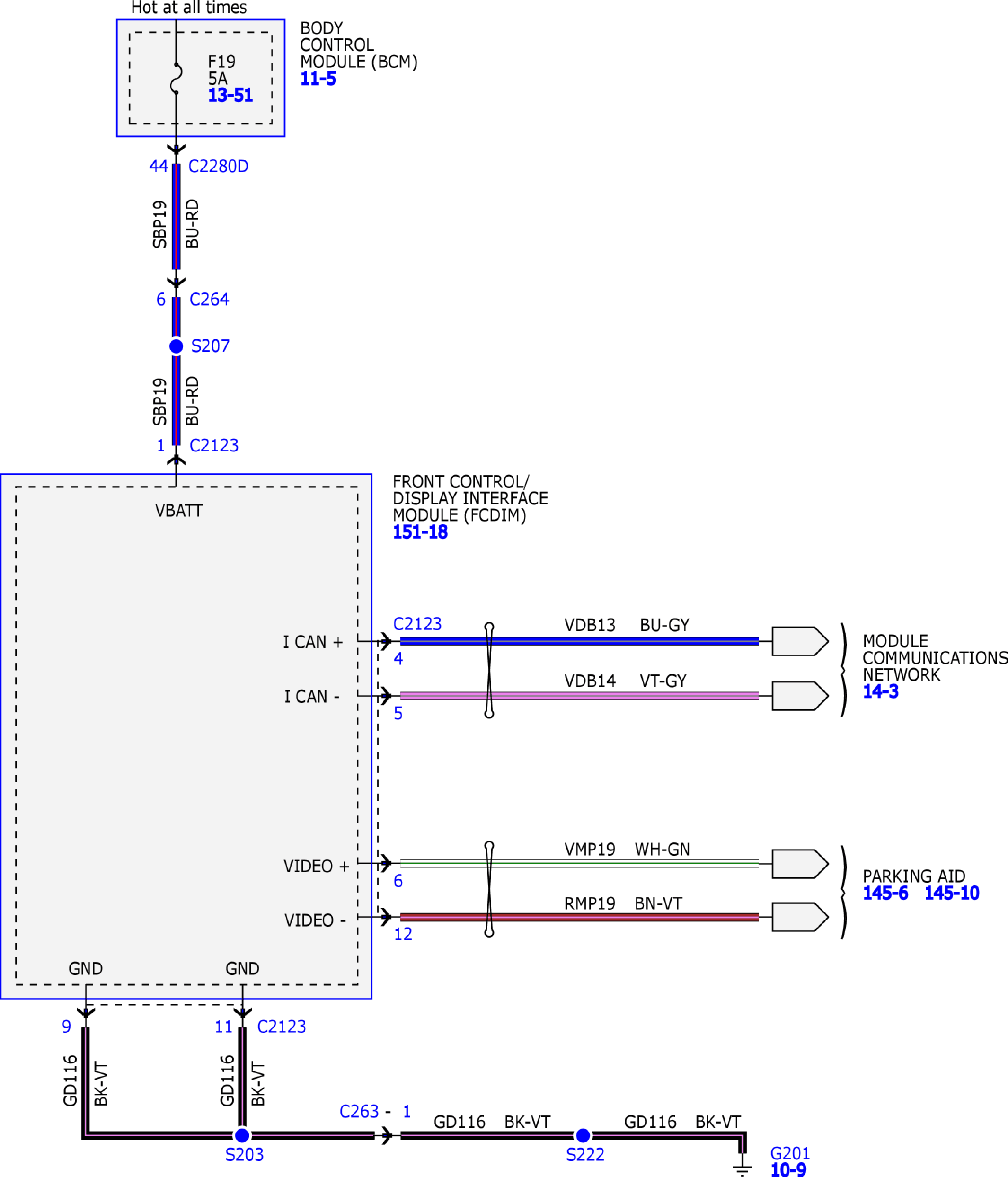

Fig 5: Audio System/Navigation - AM/FM/CD Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

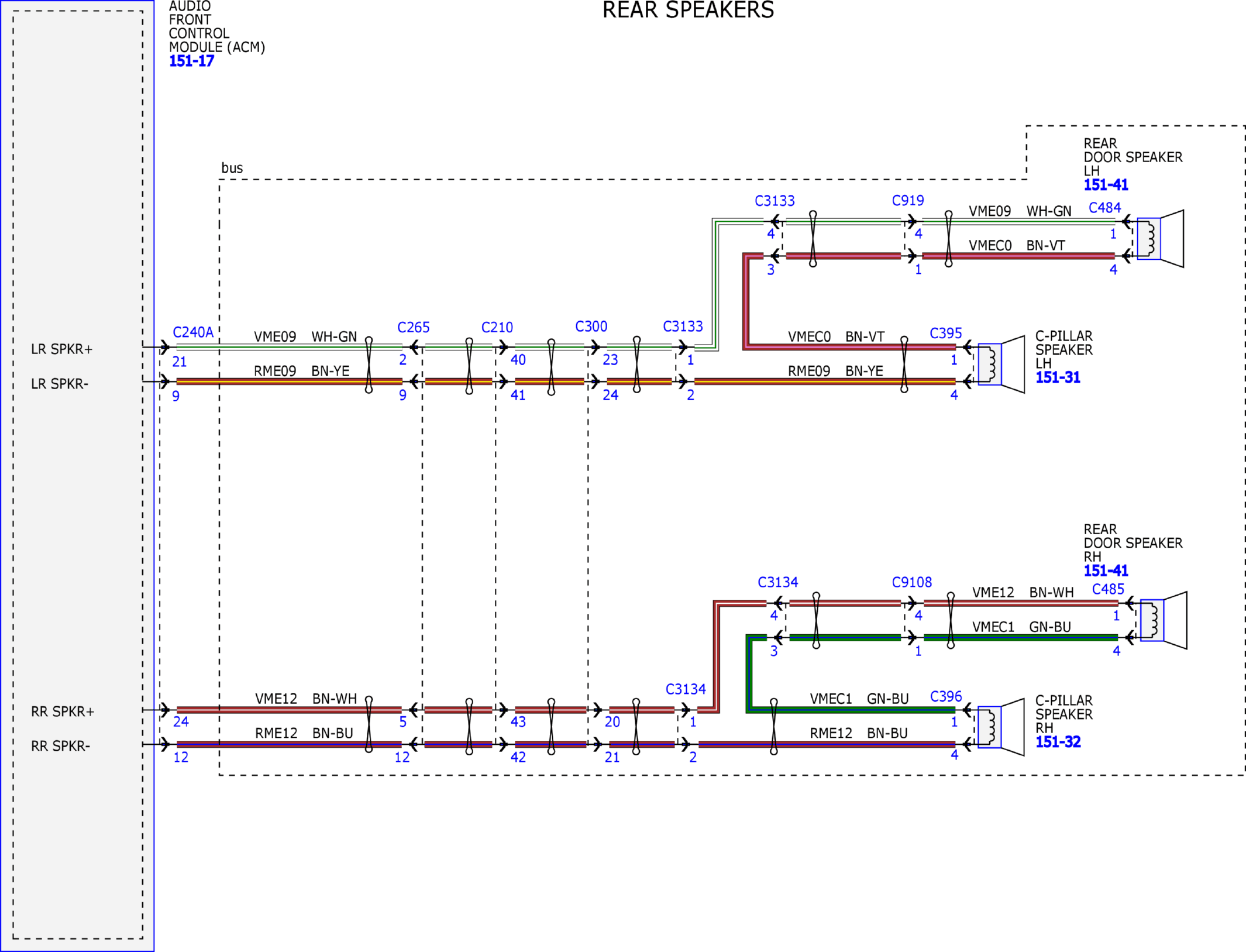

Fig 6: Audio System/Navigation - AM/FM/CD Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
