Last Row Single Seat Backrest: Installation
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- 2.NOTE: Be sure the shoulders of the bolts are correctly centered in the holes of the backrest frame.

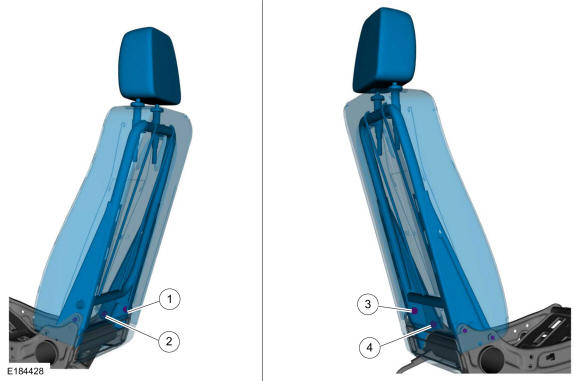

Install and hand tighten the bolts in the sequence shown.
- 3.
- 1.
Tighten the bolt.Torque: 47 lb.ft (64 Nm)
- 2.
Tighten the bolt.Torque: 47 lb.ft (64 Nm)
- 3.
Tighten the bolt.Torque: 47 lb.ft (64 Nm)
- 4.
Tighten the bolt.Torque: 47 lb.ft (64 Nm)
- 1.
