Rear Blower Motor Speed Control - Vehicles With: Air Conditioning: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Van
- 1.
Disconnect the blower motor speed control electrical connector, remove the retainer and the blower motor speed control.
Wagon or Medium wheel base
- 2.
Remove the fourth row double seat. Refer to: Fourth Row Double Seat .
- 3.
Remove the fourth row left safety belt retractor. Refer to: Last Row Single Seat Seatbelt Retractor .
Wagon or Long wheel base
- 4.
Remove the last row left side single seat. Refer to: Last Row Single Seat .
- 5.
Remove the last row left safety belt retractor. Refer to: Last Row Single Seat Seatbelt Retractor .
Wagon
- 8.

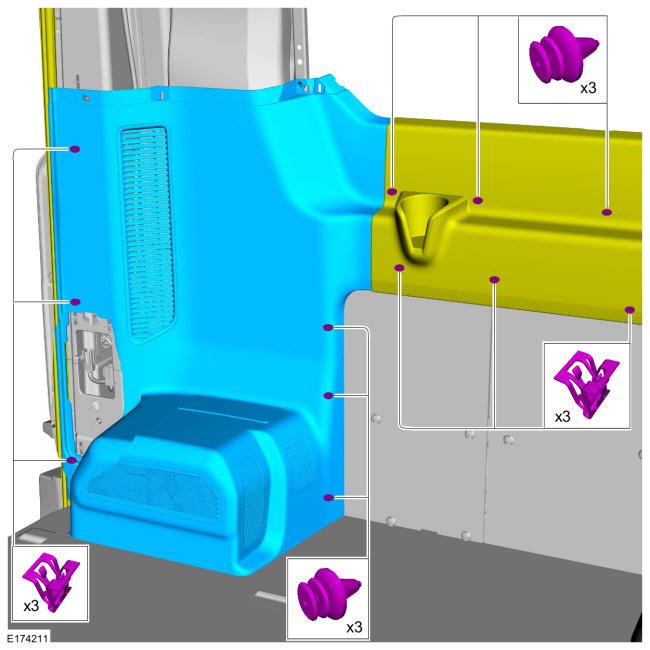

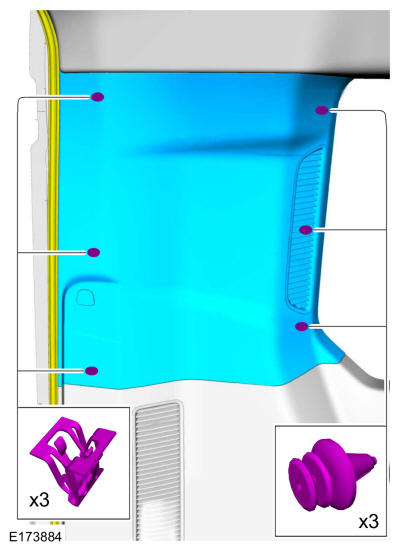

Position aside the seal, release the clips and position aside the left rear side trim panel. Release the clips and remove the lower left D-pillar trim panel.
- 9.

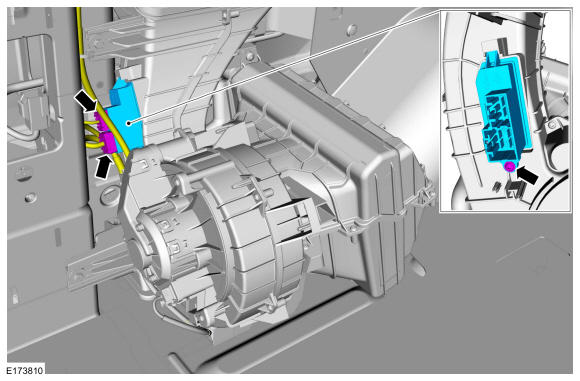

Disconnect the blower motor speed control electrical connector, remove the retainer and the blower motor speed control.
