Rear Climate Control - Component Location
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

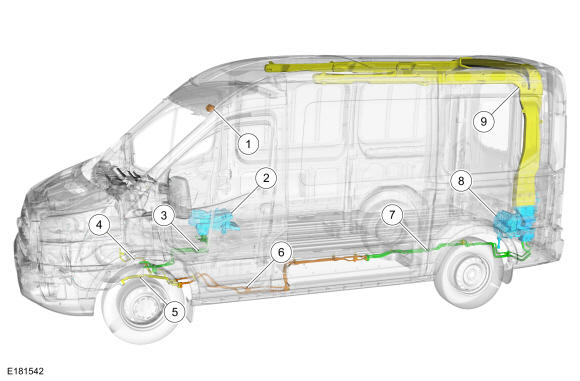

Rear Climate Control System
| Item | Description |
|---|---|
| 1 | Rear HVAC Control Module |
| 2 | Rear Heater Core Housing |
| 3 | Rear Heater Outlet and Inlet Line |
| 4 | Rear Evaporator Inlet Line |
| 5 | Rear Evaporator Outlet Line |
| 6 | Rear Evaporator Front Outlet and Inlet Line |
| 7 | Rear Evaporator Rear Outlet and Inlet Line |
| 8 | Rear Evaporator Housing |
| 9 | Rear Evaporator Housing Vent Duct |

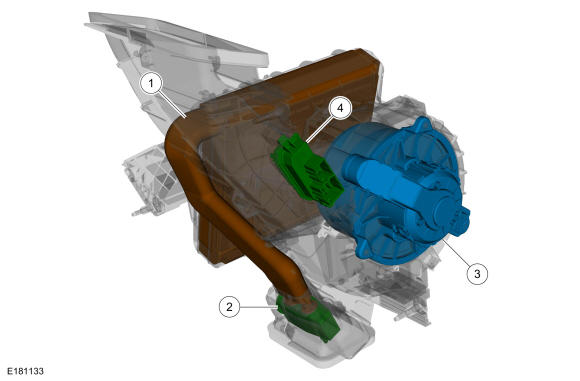

Rear Evaporator Housing
| Item | Description |
|---|---|
| 1 | Rear Evaporator |
| 2 | Rear Thermostatic Expansion Valve |
| 3 | Rear Blower Motor - Vehicles With: Air Conditioning |
| 4 | Rear Blower Motor Speed Control - Vehicles With: Air Conditioning |

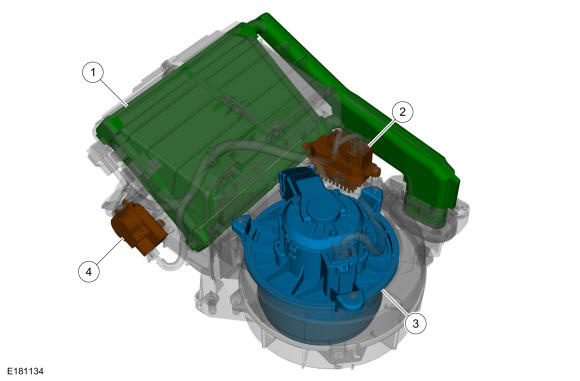

Rear Heater Core Housing
| Item | Description |
|---|---|
| 1 | Rear Heat Core |
| 2 | Blower Motor Speed Control - Vehicles With: Auxiliary Heater |
| 3 | Blower Motor - Vehicles With: Auxiliary Heater |
| 4 | Rear Temperature Door Actuator |
