Side Cargo Door Alignment

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

1.

Check side cargo door to body dimensions. Refer to: Body and Frame .

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

All alignments

1.

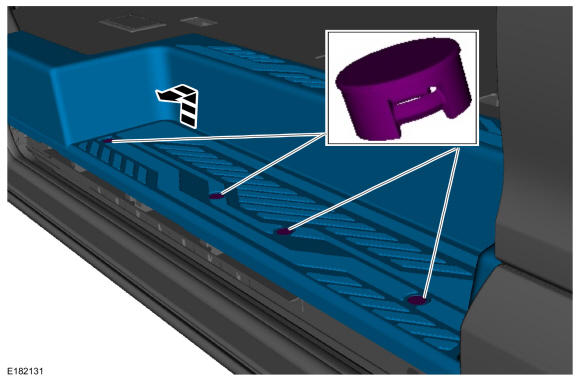

Remove the pin type retainers and the side step trim panel.

GFD146527

Courtesy of FORD MOTOR COMPANY

2.

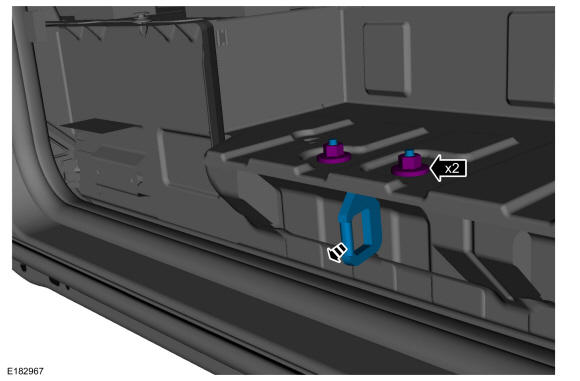

Remove the nuts and the side cargo door lower striker.
Torque: 18 lb.ft (25 Nm)

GFD146528

Courtesy of FORD MOTOR COMPANY

3.

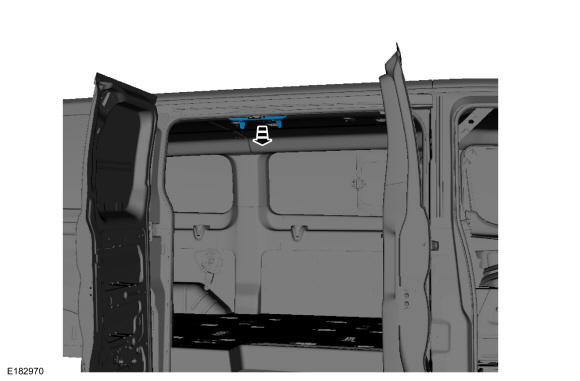

Remove the upper striker trim piece.

GFD146529

Courtesy of FORD MOTOR COMPANY

4.

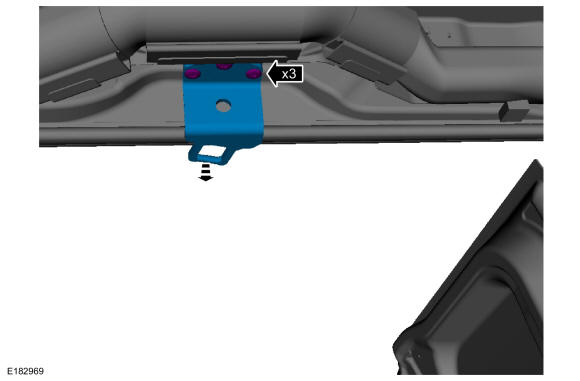

Remove the bolts and the upper cargo door striker.
Torque: 18 lb.ft (25 Nm)

GFD146530

Courtesy of FORD MOTOR COMPANY

Aft cargo door in and out, up and down alignment

5.

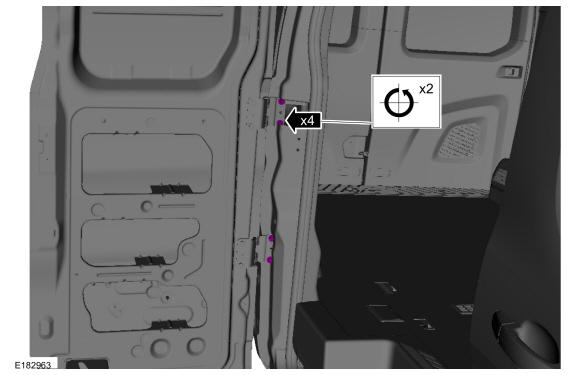

Loosen the bolts enough to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD146531

Courtesy of FORD MOTOR COMPANY

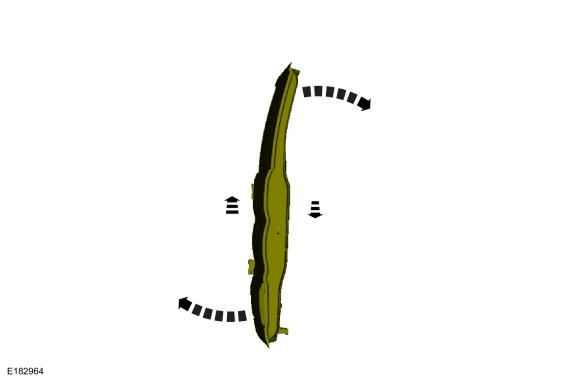

6.

Adjust the door to specification. Refer to: Body and Frame .

GFD146532

Courtesy of FORD MOTOR COMPANY

Aft cargo door fore, aft and tilt alignment

7.

Loosen the bolts enough to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD146531

Courtesy of FORD MOTOR COMPANY

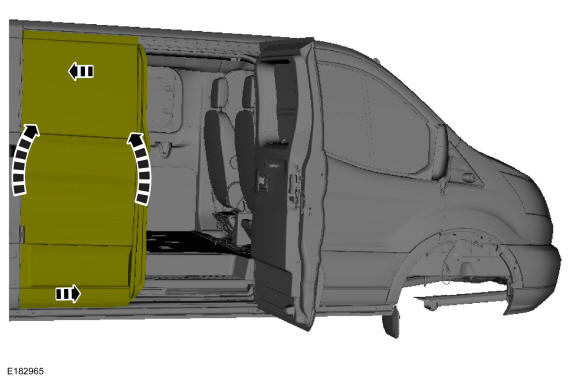

8.

Adjust the door to specification. Refer to: Body and Frame .

GFD146533

Courtesy of FORD MOTOR COMPANY

Fore cargo door in and out, up and down alignment

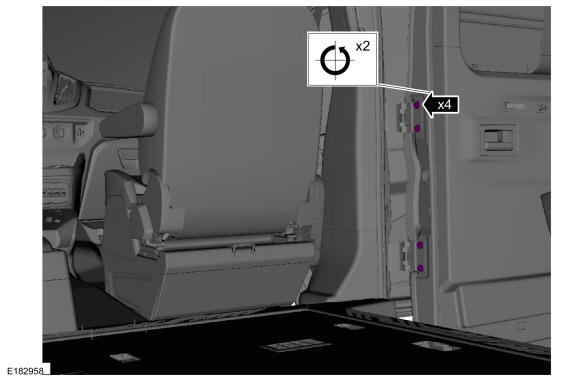

9.

Loosen the bolts enough to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD146534

Courtesy of FORD MOTOR COMPANY

10.

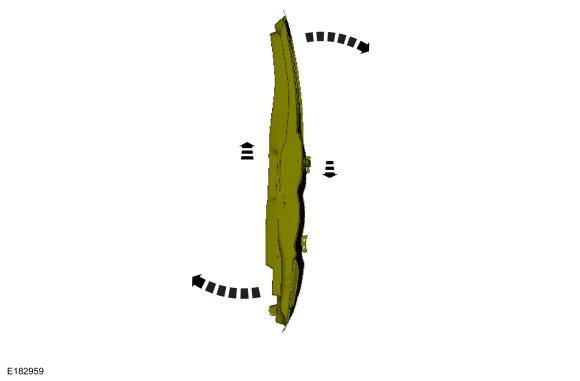

Adjust the door to specification. Refer to: Body and Frame .

GFD146535

Courtesy of FORD MOTOR COMPANY

Fore cargo door fore, aft and tilt alignment

11.

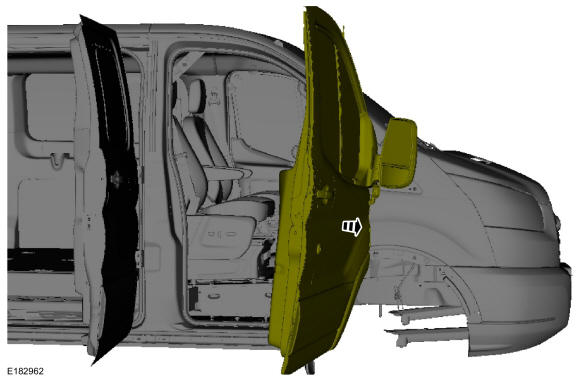

Open the front door.

GFD146536

Courtesy of FORD MOTOR COMPANY

12.

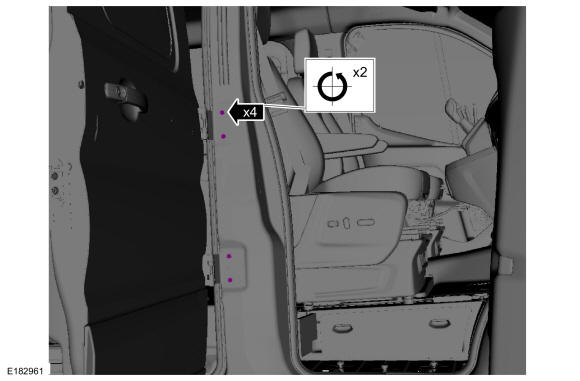

Loosen the bolts enough to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD146537

Courtesy of FORD MOTOR COMPANY

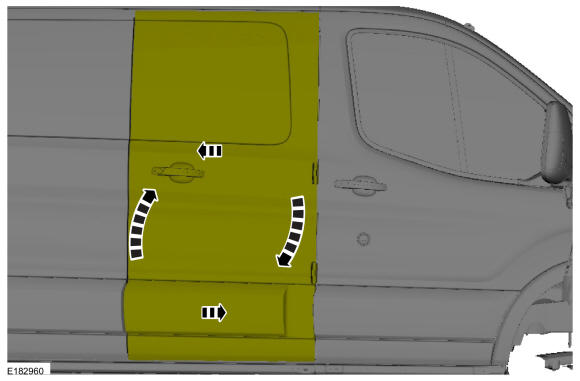

13.

Adjust the door to specification. Refer to: Body and Frame .

GFD146538

Courtesy of FORD MOTOR COMPANY

All alignments

14.

Check the body to side cargo door dimensions. Refer to: Body and Frame .

15.

Install the removed components.
