Rear Door Alignment
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
- 1.
Check rear door to body dimensions. Refer to: Body and Frame .
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments

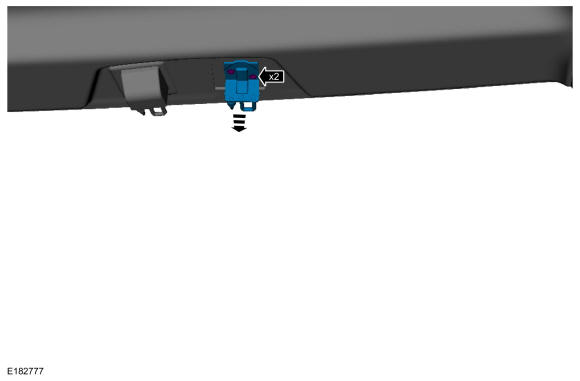

Left rear cargo door in and out, up and down alignment
- 4.

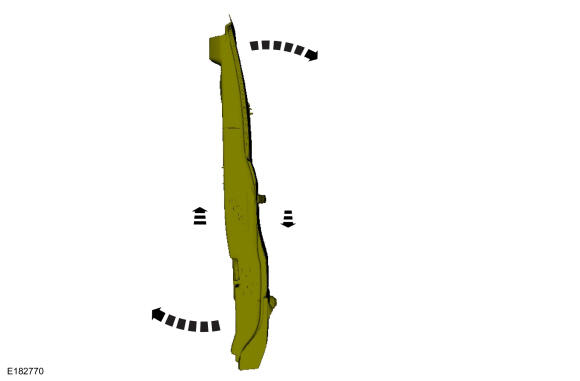

Adjust the door to specification. Refer to: Body and Frame .

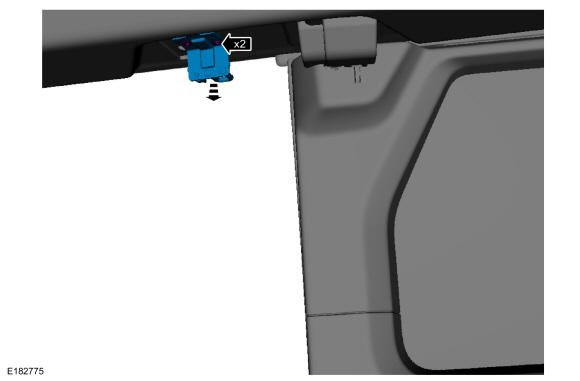

Left rear cargo door left, right and tilt alignment
- 7.

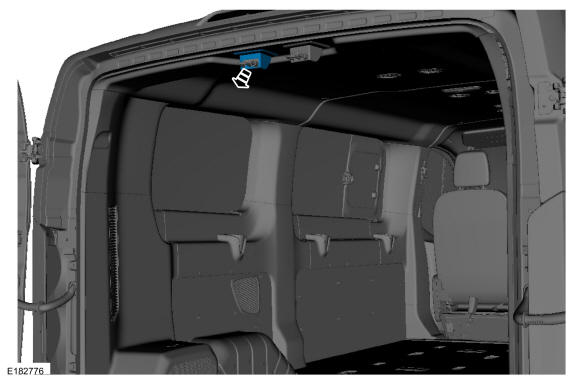

Remove the D pillar trim panel. Refer to: D-Pillar Trim Panel .

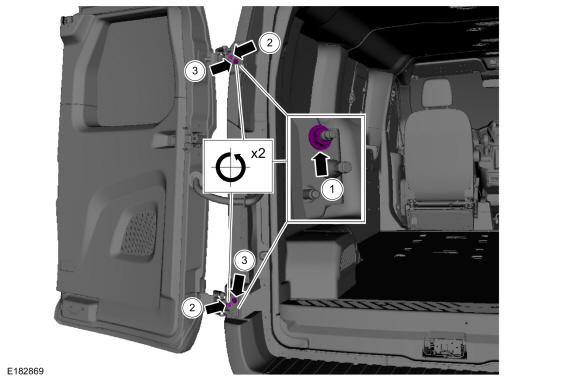

- 8.
- 1.

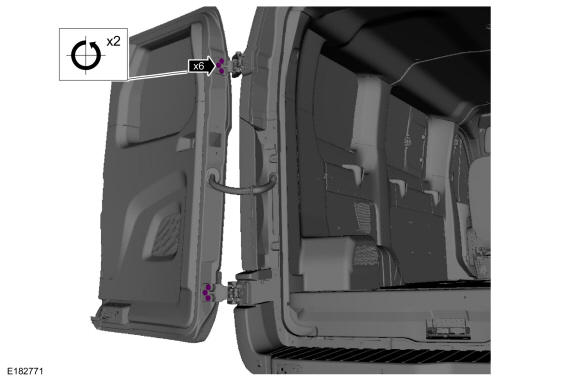

Loosen the inner nuts enough to permit movement of the door.Torque: 18 lb.ft (25 Nm)
- 2.
Loosen the nuts enough to permit movement of the door.Torque: 89 lb.in (10 Nm)
- 3.
Loosen the bolts enough to permit movement of the door.Torque: 18 lb.ft (25 Nm)
- 1.
- 9.

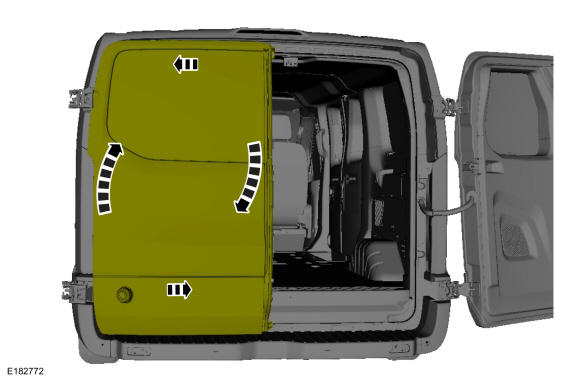

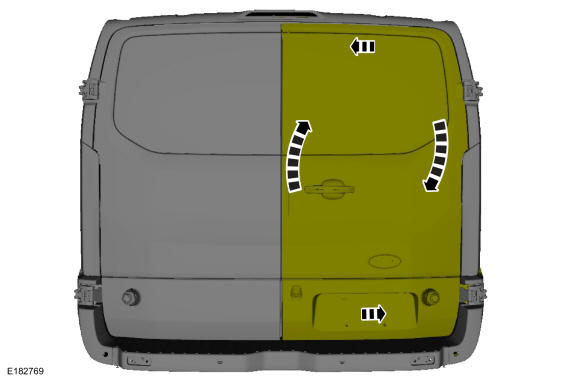

Adjust door to specification. Refer to: Body and Frame .
Right rear cargo door in and out, up and down alignment

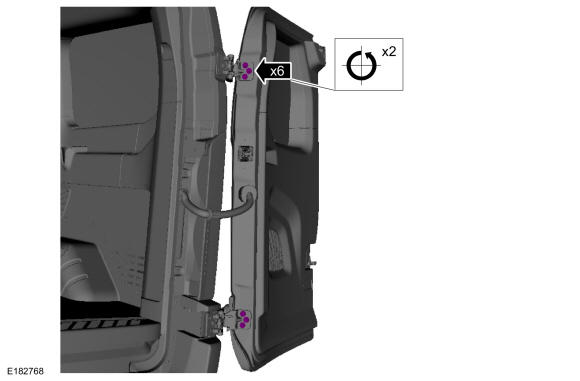

- 10.NOTE: The left cargo door must be aligned correctly to ensure the correct alignment of the right cargo door.
Loosen the bolts enough to permit movement of the door.
Torque: 18 lb.ft (25 Nm)
- 11.

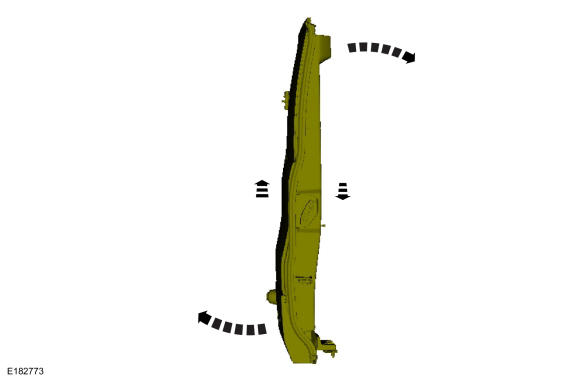

Adjust the door to specification. Refer to: Body and Frame .
Right rear cargo door left, right and tilt alignment
- 12.NOTE: The left cargo door must be aligned correctly to ensure the correct alignment of the right cargo door.

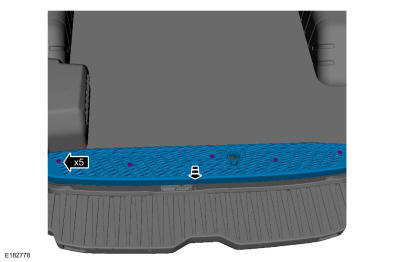

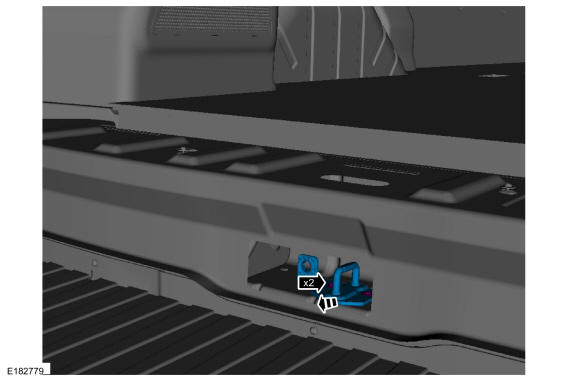

Remove the striker trim.
- 14.

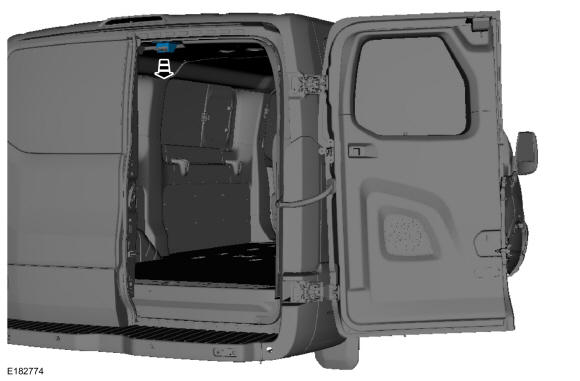

Remove the D pillar trim panel. Refer to: D-Pillar Trim Panel .
- 15.
- 1.
Loosen the nuts enough to permit movement of the door.Torque: 89 lb.in (10 Nm)
- 2.
Loosen the bolts enough to permit movement of the door.Torque: 18 lb.ft (25 Nm)
- 3.
Loosen the inner nuts enough to permit movement of the door.Torque: 18 lb.ft (25 Nm)
- 1.
- 16.
Adjust the door to specification. Refer to: Body and Frame .
All alignments
- 17.
Check the body to rear door dimensions. Refer to: Body and Frame .
