Fuse And Relay Location

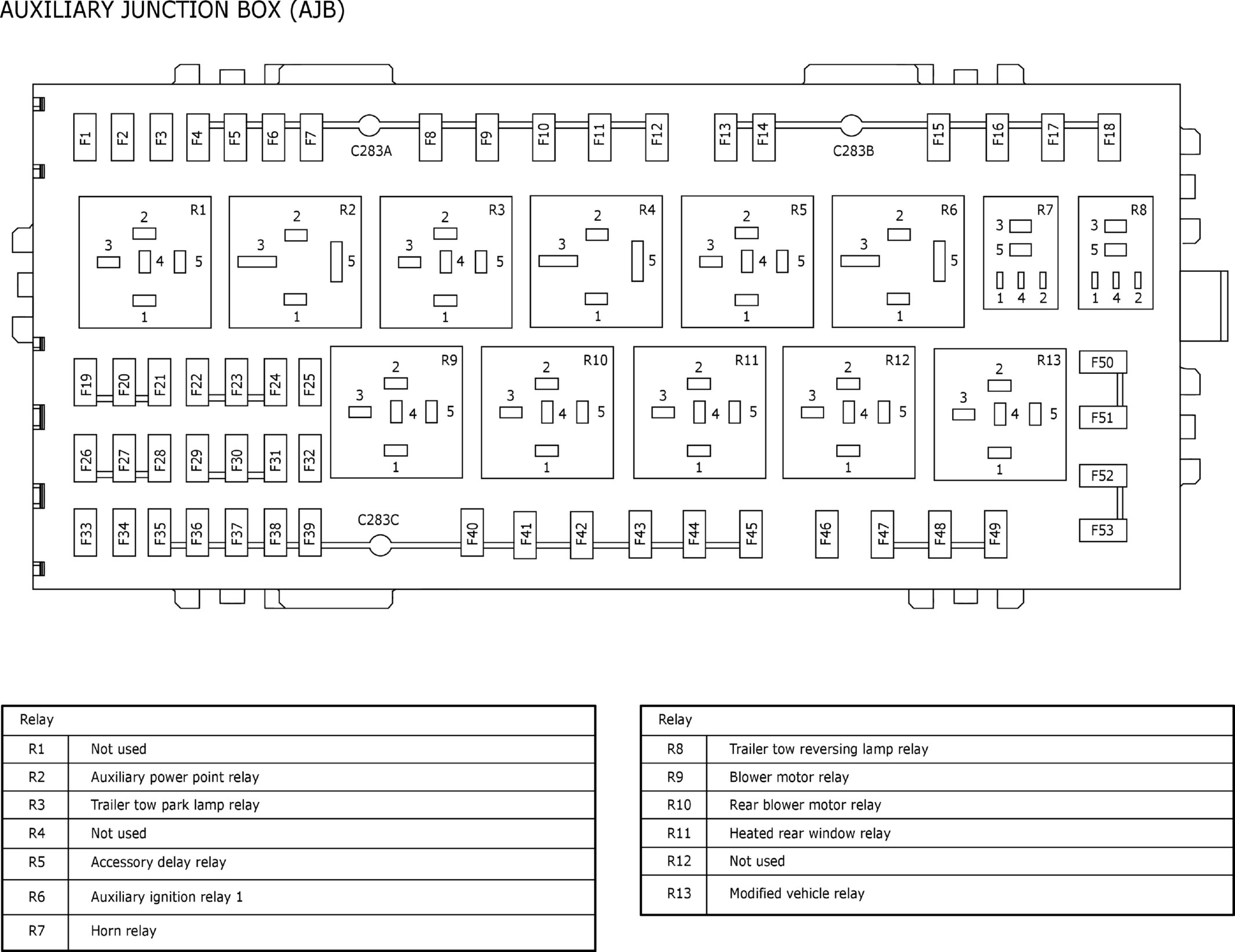

Fig 1: Auxiliary Junction Box (AJB) Component Location, Fuses And Relays
GFDW28880Courtesy of FORD MOTOR COMPANY
AUXILIARY JUNCTION BOX RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
R1 Not used
R2 Auxiliary power point relay
R3 Trailer tow park lamp relay
R4 Not used
R5 Accessory delay relay
R6 Auxiliary ignition relay 1
R7 Horn relay
R8 Trailer tow reversing lamp relay
R9 Blower motor relay
R10 Rear blower motor relay
R11 Heated rear window relay
R12 Not used
R13 Modified vehicle relay
AUXILIARY JUNCTION BOX (AJB) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuit protected
F1 10 Restraints Control Module (RCM)
F2 4 Anti-lock Brake System (ABS) Module Stability assist / traction control switch
F3 - Not used
F4 10 Trailer tow reversing lamp relay
F5 20 Cutaway
F6 - Not used
F7 - Not used
F8 40 Direct Current/ Alternating Current (DC/AC) inverter
F9 30 Trailer brake control (TBC) module
F10 30 Front seat control switch LH
F11 30 Front seat control switch RH
F12 30 Trailer tow park lamp relay
F13 25 Anti-lock Brake System (ABS) Module
F14 5 Powertrain Control Module (PCM) relay
Powertrain Control Module (PCM)
Evaporative emission canister vent valve
F15 40 Powertrain Control Module (PCM) relay
F16 40 Body Control Module (BCM) - Fl, F2, F3
F17 40 Anti-lock Brake System (ABS) Module
F18 40 Modified vehicle wiring
F19 - Not used
F20 5 Heated rear window relay
Direct Current/Alternating Current (DC/AC) inverter
F21 10 Customer access
F22 15 Body Control Module (BCM) - F4, F5
F23 7.5 RHVAC control module
Electric booster heater
HVAC control module
Front Controls Interface Module (FCIM)
Passenger Airbag Deactivation (PAD) indicator
F24 10 Cutaway
F25 7.5 Interior lamps
Auxiliary power point relay
F26 10 Exterior mirrors
F27 20 Heated rear window element RH
F28 20 Heated rear window element LH
F29 10 Image Processing Module B (IPMB)
Auto-dimming interior mirror
Steering Angle Sensor Module (SASM)
Image Processing Module A (IPMA)
F30 - Not used
F31 10 Selector lever assembly
Trailer brake control module
F32 10 Interior lamps
F33 - Not used
F34 - Not used
F35 5 Driver door window control switch Exterior mirror control switch
F36 20 Horn relay
F37 7.5 SYNC module [APIM]
Global Positioning System Module (GPSM)
F38 5 Windshield wiper motor relay
Windshield wiper high/low speed relay
Horn relay
Blower motor relay
F39 7.5 RHVAC control module
Radio Frequency (RF) receiver
Trailer tow park lamp relay
Trailer tow reversing lamp relay
F40 40 Blower motor relay
F41 40 Rear blower motor relay
F42 40 Heated rear window relay
F43 30 Trailer Module (TRM)
F44 60 Auxiliary power point relay
F45 40 Trailer Module (TRM)
F46 30 Accessory delay relay
F47 20 Auxiliary power point
F48 20 Rear passenger power outlet socket
F49 20 Front power outlet socket
F50 60 Auxiliary ignition relay 1
F51 - Not used
F52 40 Modified vehicle relay
F53 40 Modified vehicle wiring

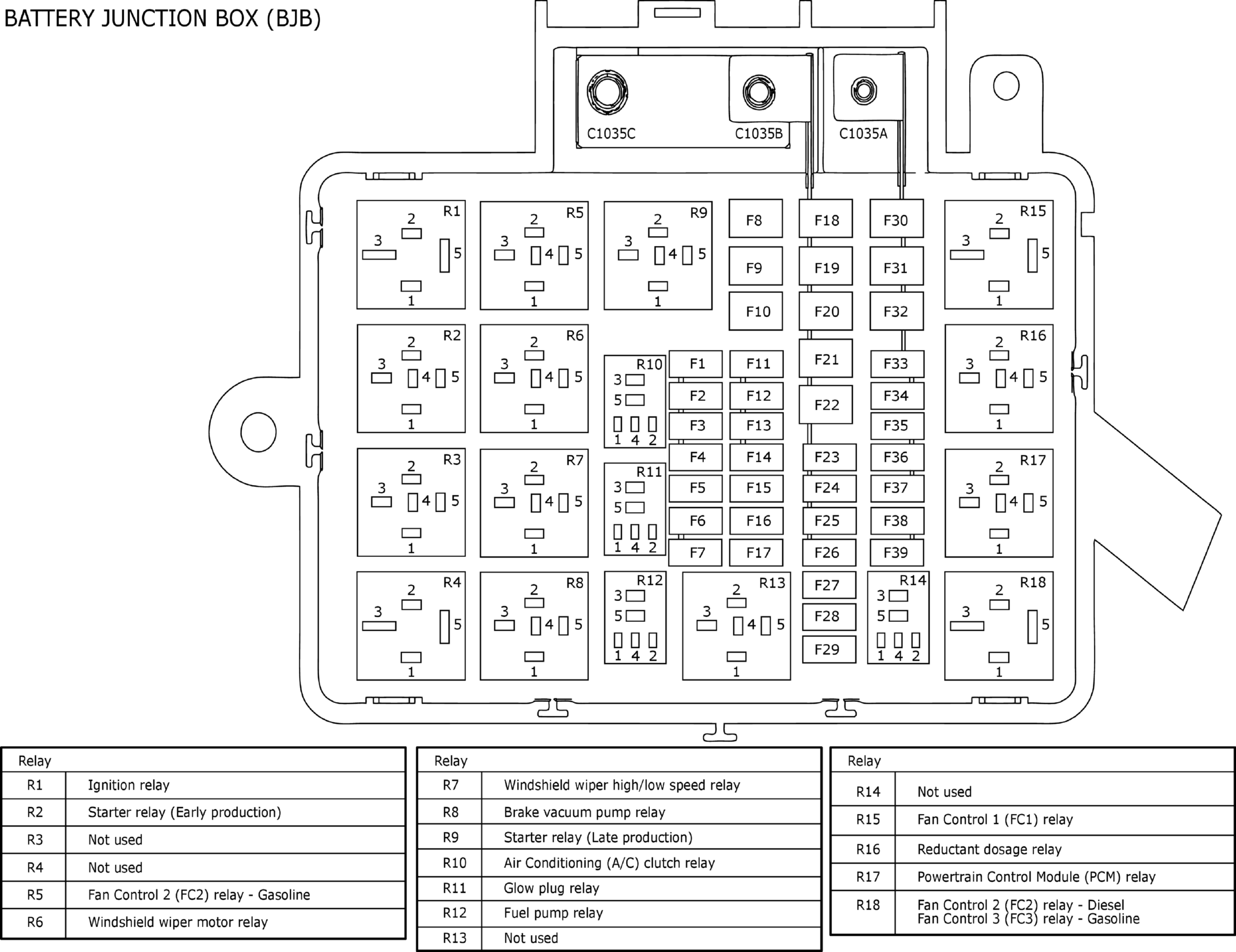

Fig 2: Battery Junction Box (BJB) Component Location, Fuses And Relays
GFDW28882Courtesy of FORD MOTOR COMPANY
BATTERY JUNCTION BOX RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
R1 Ignition relay
R2 Starter relay (Early production)
R3 Not used
R4 Not used
R5 Fan Control 2 (FC2) relay - Gasoline
R6 Windshield wiper motor relay
R7 Windshield wiper high/low speed relay
R8 Brake vacuum pump relay
R9 Starter relay (Late production)
R10 Air Conditioning (A/C) clutch relay
R11 Glow plug relay
R12 Fuel pump relay
R13 Not used
R14 Not used
R15 Fan Control 1 (FC1) relay
R16 Reductant dosage relay
R17 Powertrain Control Module (PCM) relay
R18 Fan Control 2 (FC2) relay - Diesel
Fan Control 3 (FC3) relay - Gasoline
BATTERY JUNCTION BOX (BJB) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F1 10 Reductant Dosage Control (RDC) module
F2 15 Reductant Dosage Control (RDC) module
F3 15 Reductant Dosage Control (RDC) module
F4 10 Reductant Dosage Control (RDC) module
F5 3 Powertrain Control Module (PCM)
F6 - Not used
F7 7.5 Powertrain Control Module (PCM)
Glow Plug Control Module (GPCM)
Transmission Control Module (TCM)
F8 20 Cooling fan relay
F9 - Not used
F10 - Not used
F11 10 Air Conditioning (A/C) clutch relay
F12 20 Glow plug relay
F13 - Not used
F14 3 Reductant Dosage Control (RDC) module
F15 - Not used
F16 - Not used
F17 - Not used
F18 - Not used
F19 30 Starter relay
F20 60 Glow Plug Control Module (GPCM)
F21 60 Ignition relay
F22 40 Reductant dosage relay Brake vacuum pump relay
F23 - Not used
F24 10 diesel Fuel pump relay
  20 gasoline Fuel pump relay
F25 15 Transmission Control Module (TCM)
F26 - Not used
F27 - Not used
F28 7.5 diesel Crankcase ventilation sensor
  10 gasoline Powertrain Control Module (PCM)
F29 7.5 diesel Crankcase ventilation valve heater element
  3 gasoline Audio front Control Module (ACM)
F30 60 diesel Fan Control 1 (FC1) relay
Fan Control 2 (FC2) relay
  40 gasoline Fan Control 1 (FC1) relay
F31 40 Fan Control 2 (FC2) relay
F32 30 Windshield wiper motor relay
F33 - Not used
F34 - Not used
F35 15 diesel Powertrain Control Module (PCM)
  20 gasoline Powertrain Control Module (PCM)
F36 15 diesel NOx #11 sensor module
NOx #12 sensor module
Mass Air Flow / Intake Air Temperature (MAF/IAT) sensor
  20 gasoline Evaporative Emission (EVAP) purge valve
Heated oxygen sensors
Variable camshaft timing solenoids
Mass Air Flow / Intake Air Temperature (MAF/IAT) sensor
F37 7.5 Fuel volume control valve
F38 7.5 diesel Air Conditioning (A/C) clutch relay
  20 gasoline Ignition coil-on-plugs
F39 15 diesel Fan Control 1 (FC1) relay
Fan Control 2 (FC2) relay
Glow plug relay
Fuel vaporizer system fuel pump
Exhaust Gas Recirculation (EGR) cooler bypass valve solenoid
  10 gasoline Air Conditioning (A/C) clutch relay
Fan Control 1 (FC1) relay
Fan Control 2 (FC2) relay
Fan Control 3 (FC3) relay
Turbocharger Wastegate Regulating Valve Solenoid (TCWRVS) Turbocharger Bypass valve (TCBY)

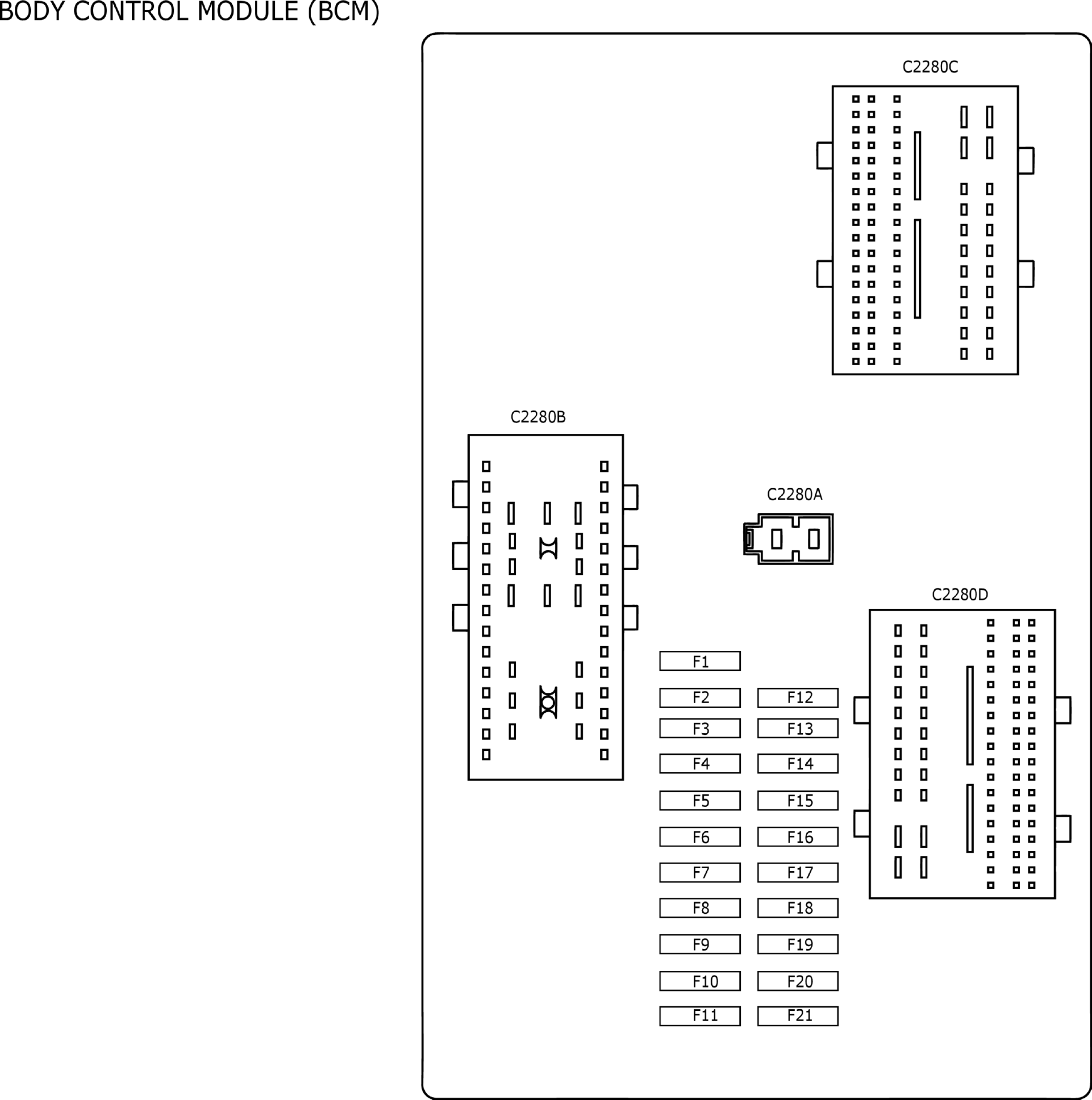

Fig 3: Body Control Module (BCM) Component Location, Fuses
GFDW28884Courtesy of FORD MOTOR COMPANY
BODY CONTROL MODULE (BCM) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F1 15 Passenger door latch
Sliding door contact plate LH - sliding doors
Sliding door contact plate RH - sliding doors
Rear door latch RH - barn doors
Rear door latch - cargo doors
F2 15 Driver door latch
Passenger door latch
Sliding door contact plate LH - sliding doors
F3 15 Ignition switch
Auxiliary battery relay
F4 5 Parking Assist Control Module (PAM)
F5 5 Autolamp and rain sensor
F6 15 Windshield washer pump
F7 7.5 Not used
F8 15 Not used
F9 10 Headlamp assembly RH
F10 10 Headlamp assembly LH
F11 25 Headlamp assembly RH
Front turn signal lamp LH
Front side marker lamp LH
Rear lamp assembly LH
Rear lamp assembly RH
Side marker lamps
Roof marker lamps
Rear marker lamp assembly
License plate lamps
F12 20 Not used
F13 15 Data Link Connector (DLC)
Auxiliary Data Link Connector (ADLC)
Telematics module
Auxiliary Junction Box (AJB) - F25, F32
F14 25 Exterior mirrors
Front turn signal lamps
Modified vehicle wiring
Rear lamp assembly LH
Rear lamp assembly RH
Accessory delay relay
Audio front Control Module (ACM)
Window patch lane departure warning heater
F15 25 Headlamp assembly LH
Front turn signal lamp RH
Front side marker lamp RH
Rear lamp assembly LH
Rear lamp assembly RH
High mounted stoplamp
Auto-dimming interior mirror
F16 20 Audio front Control Module (ACM)
F17 7.5 Instrument Panel Cluster (IPC) HVAC control module
F18 10 Headlamp switch
Brake Pedal Position (BPP) switch
Steering Angle Sensor Module (SASM)
F19 5 Front Control/Display Interface Module (FCDIM) Front Controls Interface Module (FCIM)
F20 5 Passive Anti-theft System (PATS) transceiver
F21 3 Not used

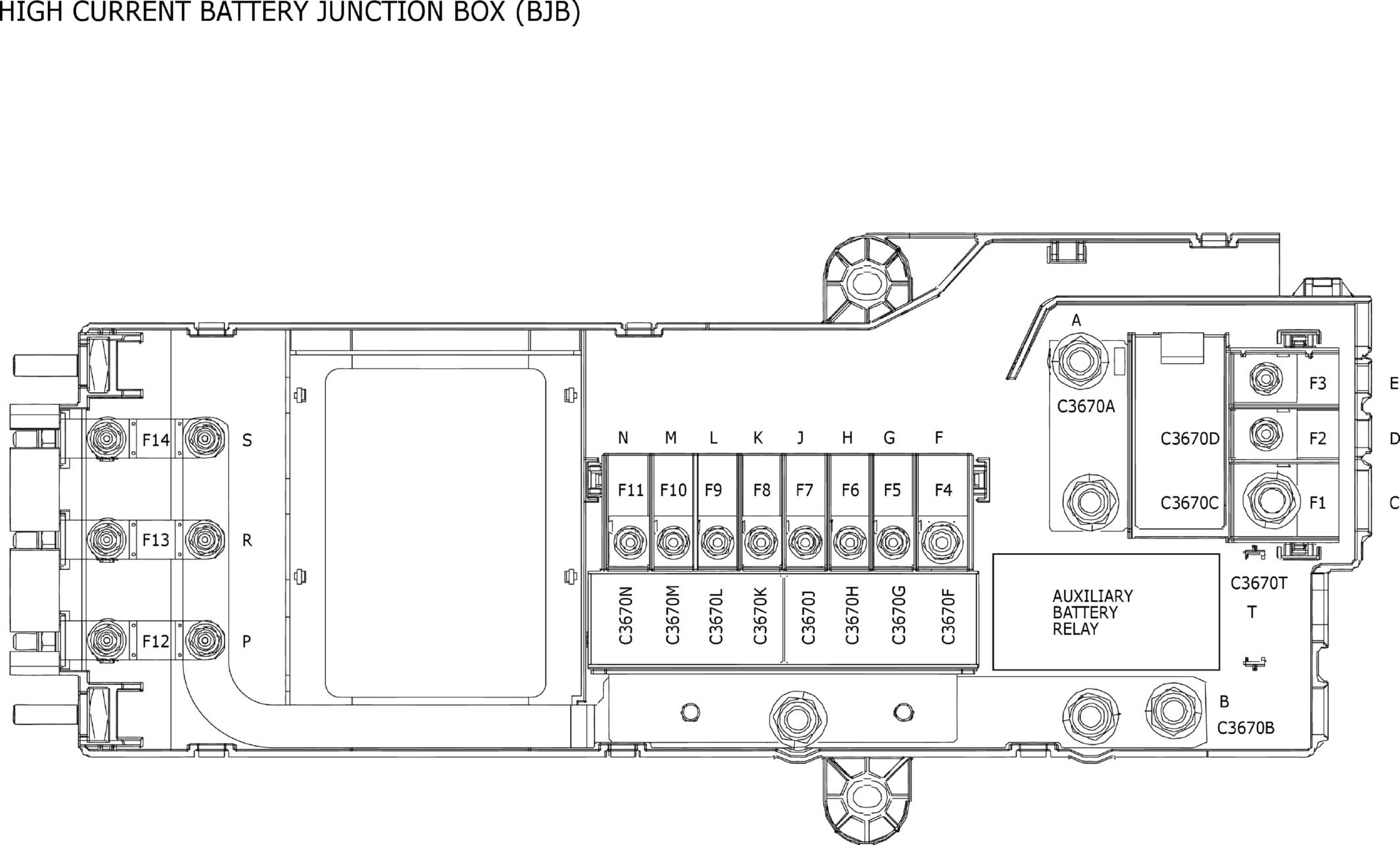

Fig 4: High Current Battery Junction Box (BJB) Component Location, Fuses And Relays
GFDW28886Courtesy of FORD MOTOR COMPANY
HIGH CURRENT BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION

RELAY DESCRIPTION
Auxiliary Battery Relay
HIGH CURRENT BATTERY JUNCTION BOX (BJB) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F1 470 Generator
Starter motor
Battery Junction Box (BJB) - F19, F20, F21, F22, F23, F24, F25
F2 100 Auxiliary Junction Box (AJB) - F13, F14, F15, F16, F18
F3 40 Not used
F4 200 Auxiliary Junction Box (AJB) - F35, F36, F37, F38, F39, F40, F41, F42, F43, F44, F45
F5 100 Auxiliary Junction Box (AJB) - F4, F5, F8, F9, F10, F11, F12
F6 80 Electric booster heater
F7 80 Auxiliary Junction Box (AJB) - F52, F53
F8 100 Battery Junction Box (BJB) - F30, F31, F32
F9 100 Auxiliary Junction Box (AJB) - F46, F50
F10 60 Body Control Module (BCM) - F6, F7, F8, F9, F10, F11
F11 60 Body Control Module (BCM) - F12, F13, F14, F15, F16, F17, F18, F19
F12 60 Not used
F13 60 Not used
F14 60 Not used

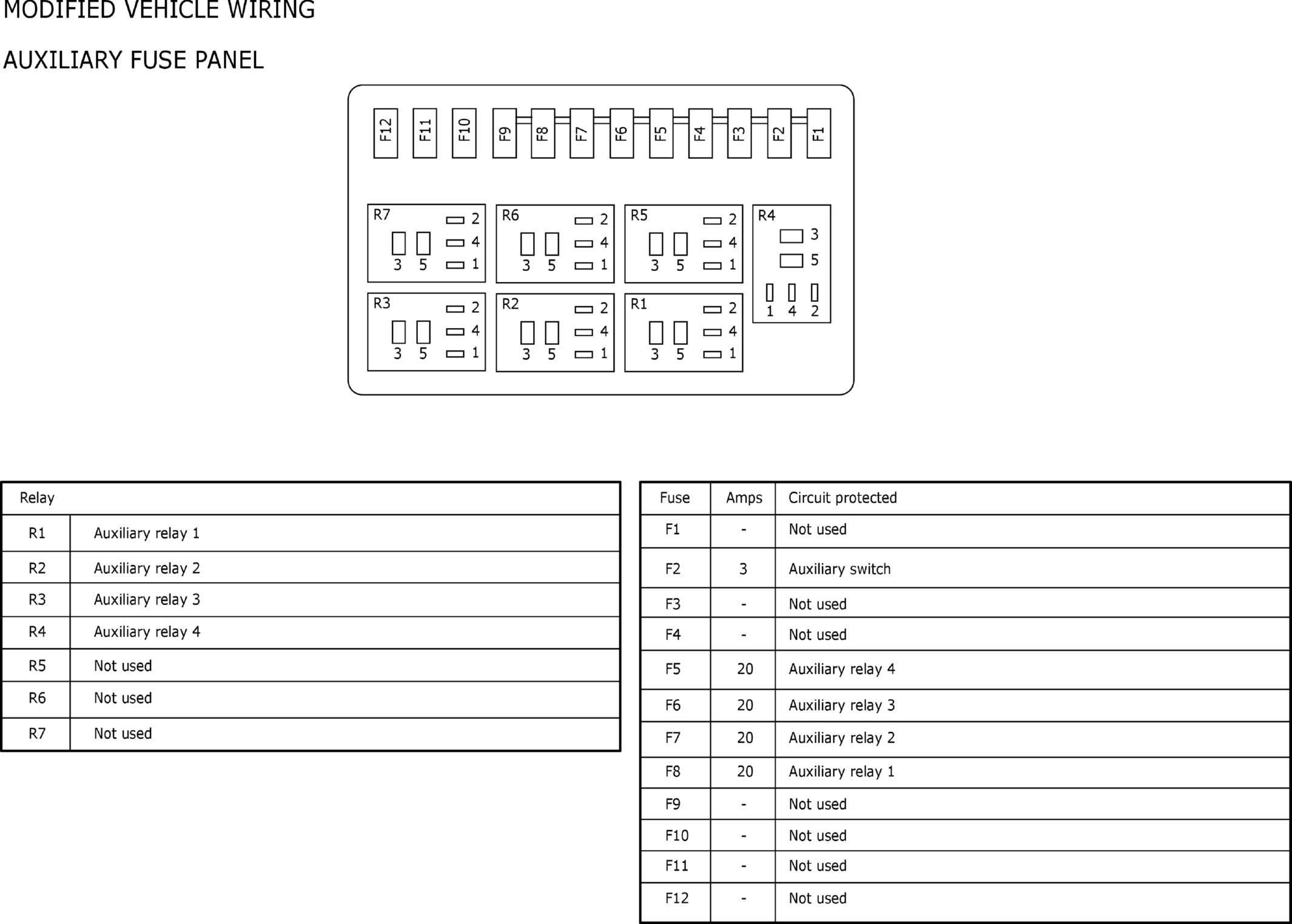

Fig 5: Modified Vehicle Wiring Auxiliary Fuse Panel Component Location & Legend
GFDW28888Courtesy of FORD MOTOR COMPANY
