Instrument Panel Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

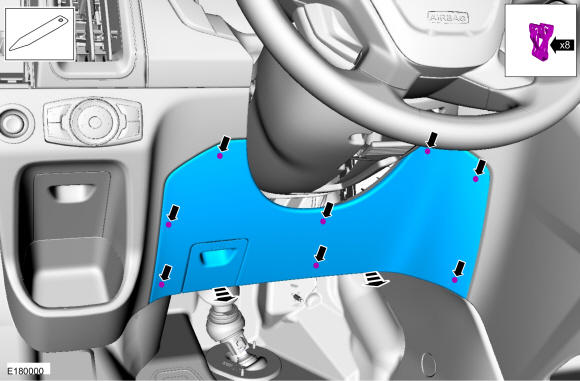

Release the 8 clips and remove the lower steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

3.

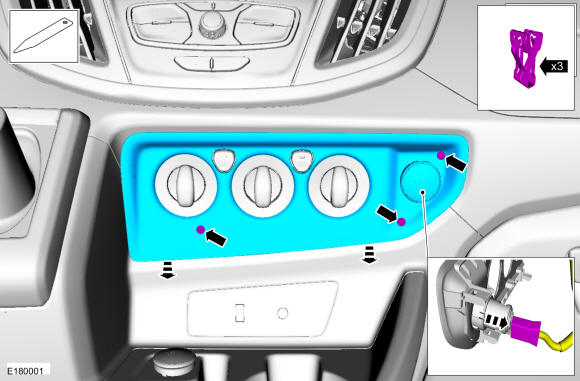

Release the 3 clips, disconnect the electrical connector and remove the HVAC control bezel.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If equipped.

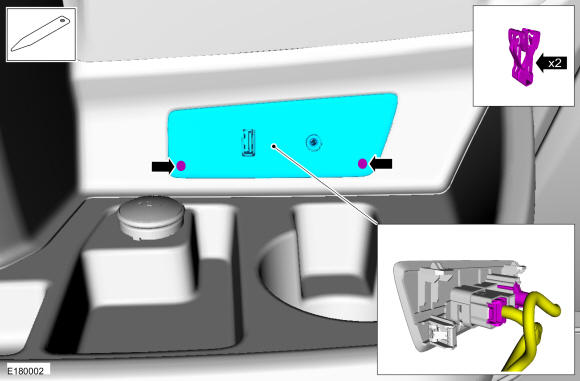

Release the 2 clips, disconnect the 2 electrical connectors and remove the media bezel.

Courtesy of FORD MOTOR COMPANY

5.

NOTE: If equipped.

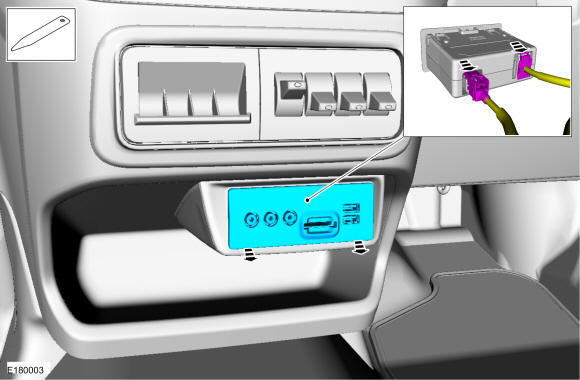

Remove the media hub and disconnect the 2 electrical connectors.

Courtesy of FORD MOTOR COMPANY

6.

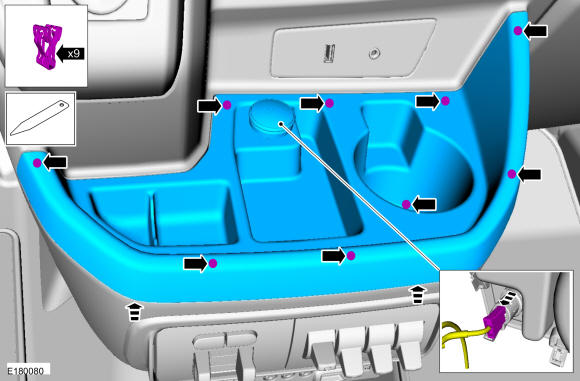

Release the 9 clips, disconnect the electrical connector and remove the instrument panel console cup holder.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If equipped.

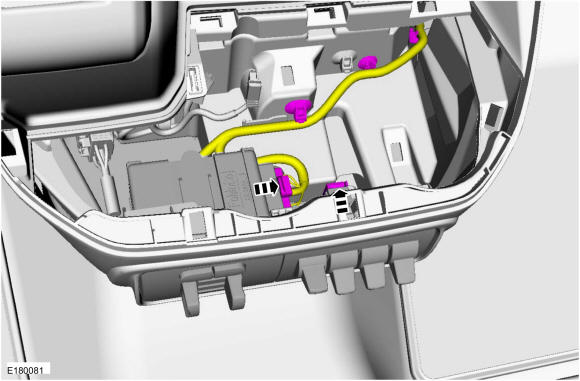

Disconnect the 2 electrical connectors and position the harness aside.

Courtesy of FORD MOTOR COMPANY

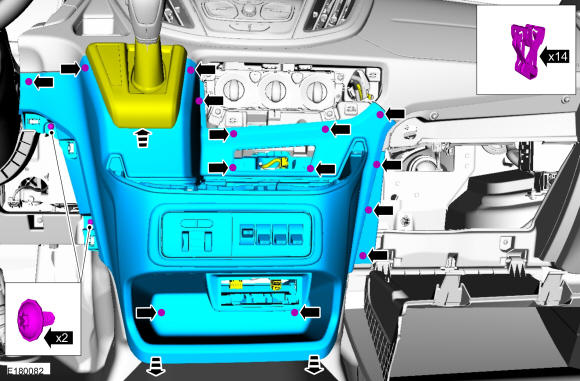

Courtesy of FORD MOTOR COMPANY
