Connector Repair Procedures

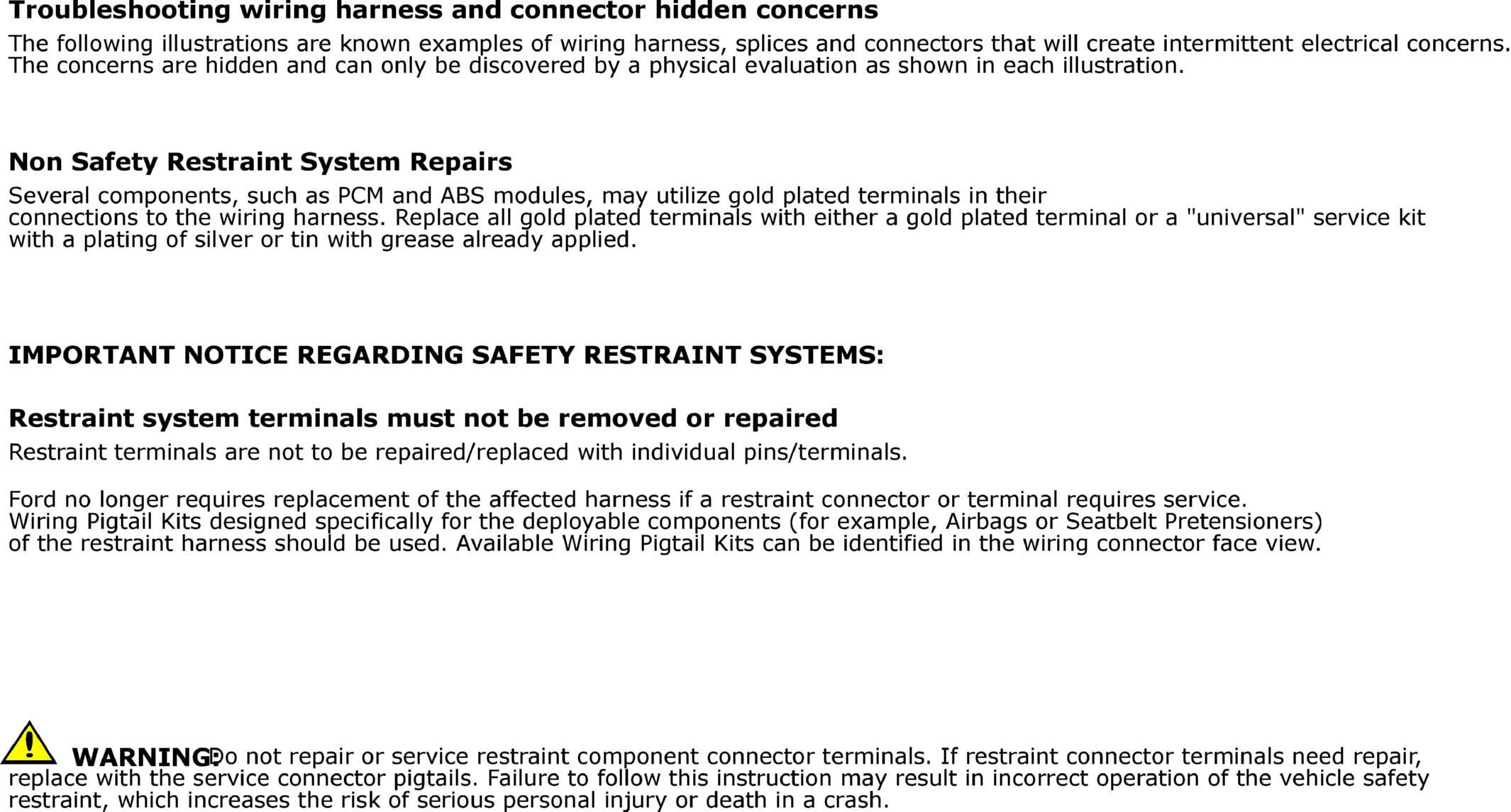

GFDW28866Courtesy of FORD MOTOR COMPANY

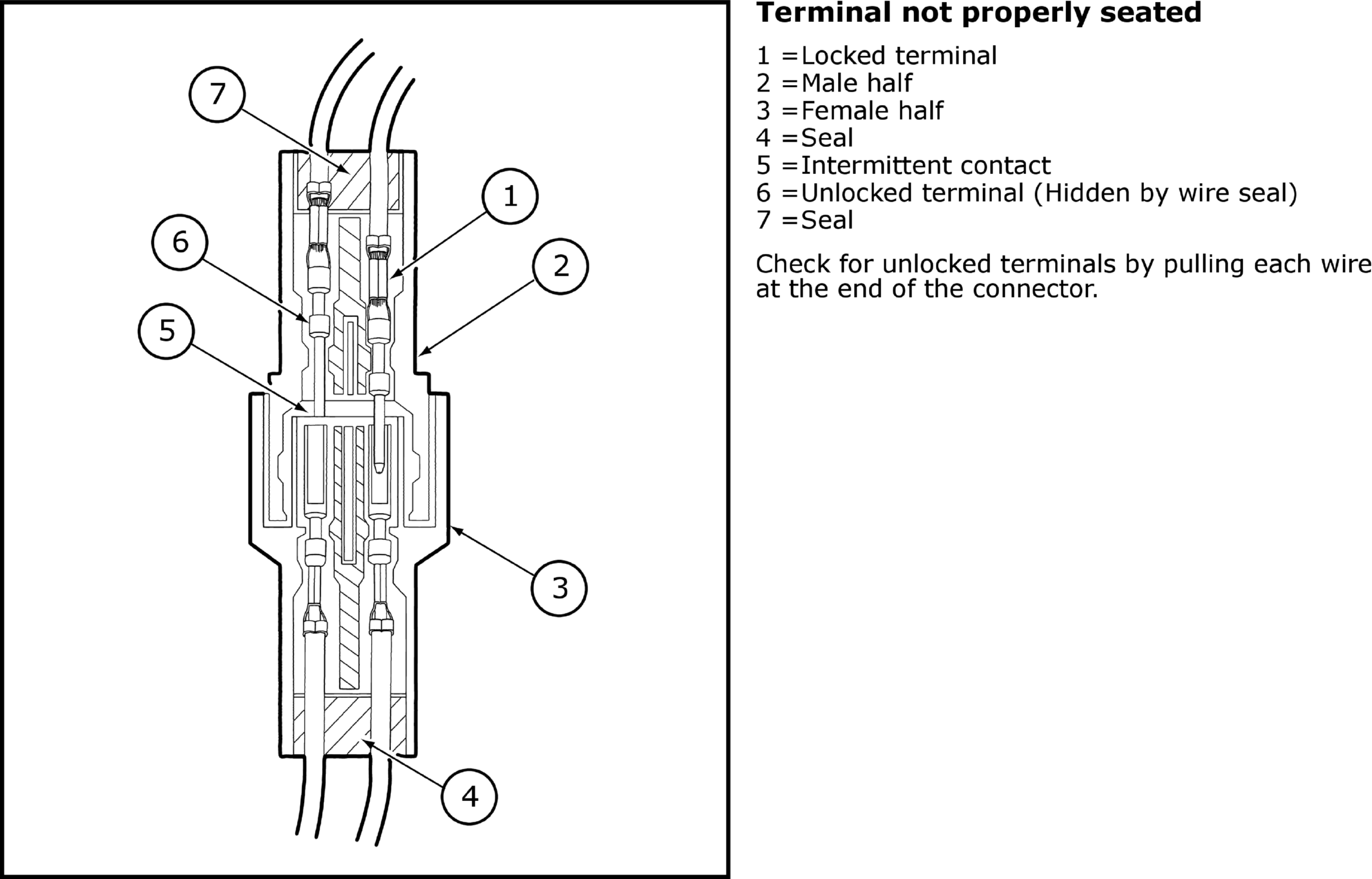

GFDW28867Courtesy of FORD MOTOR COMPANY

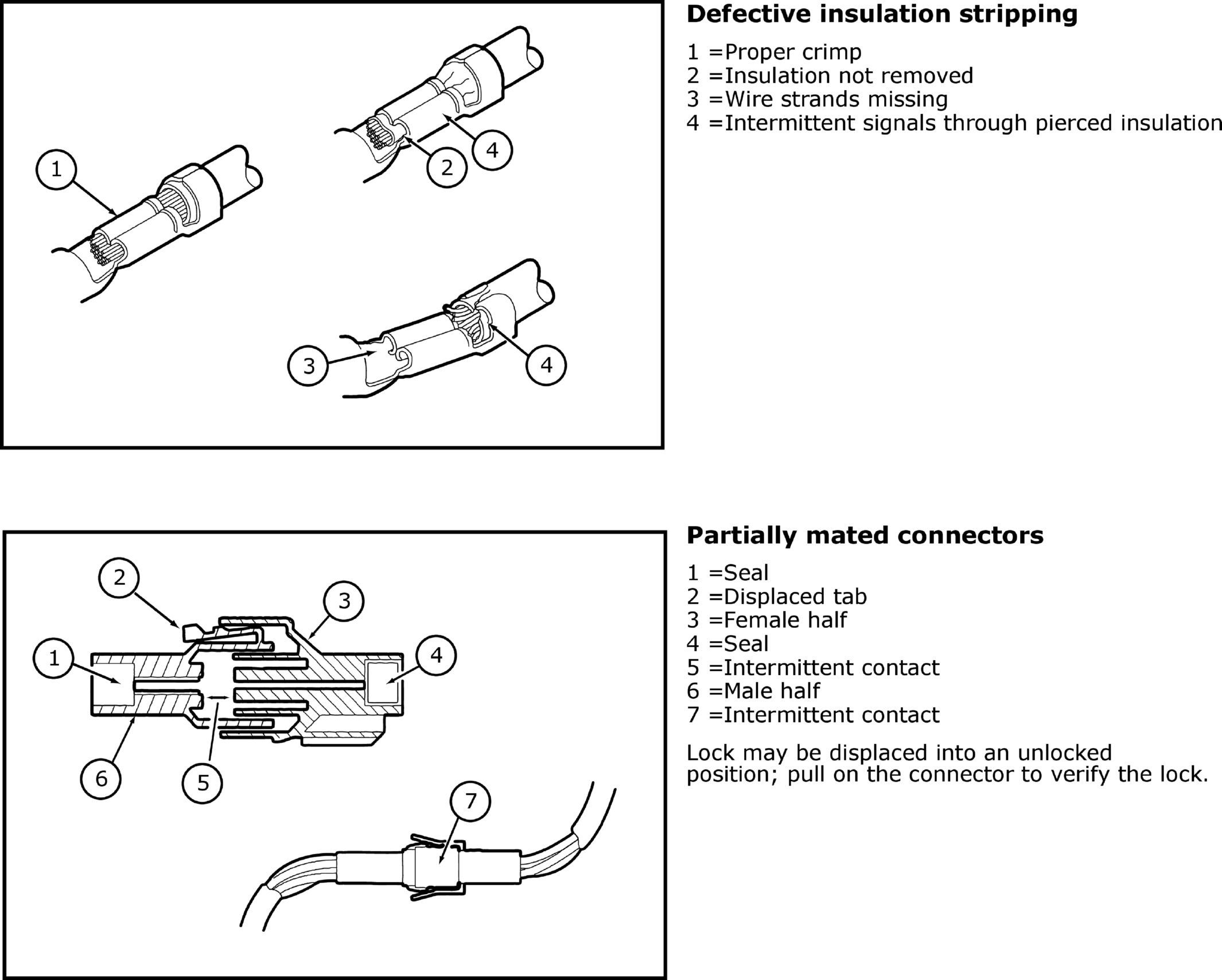

GFDW28868Courtesy of FORD MOTOR COMPANY

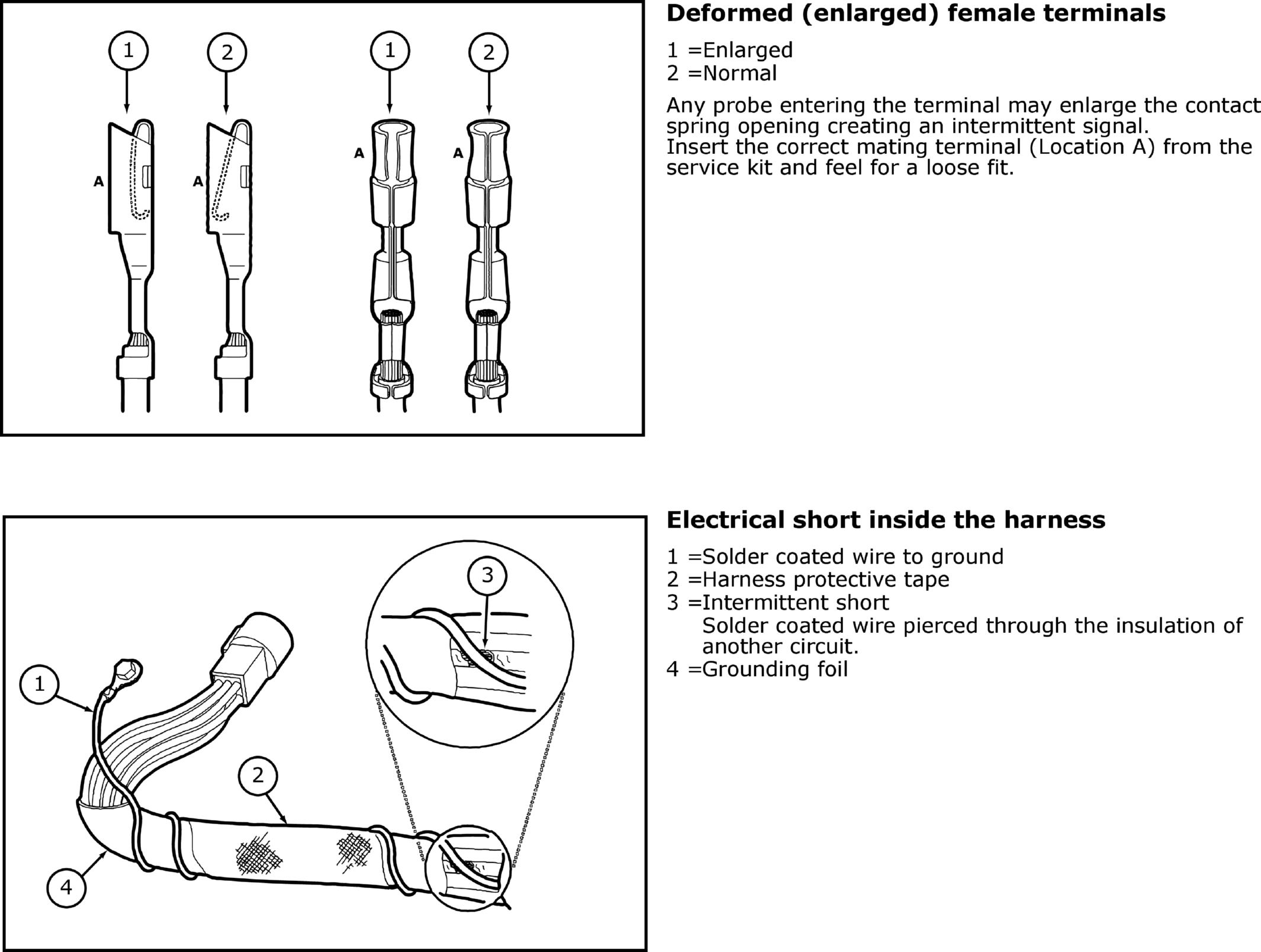

GFDW28869Courtesy of FORD MOTOR COMPANY

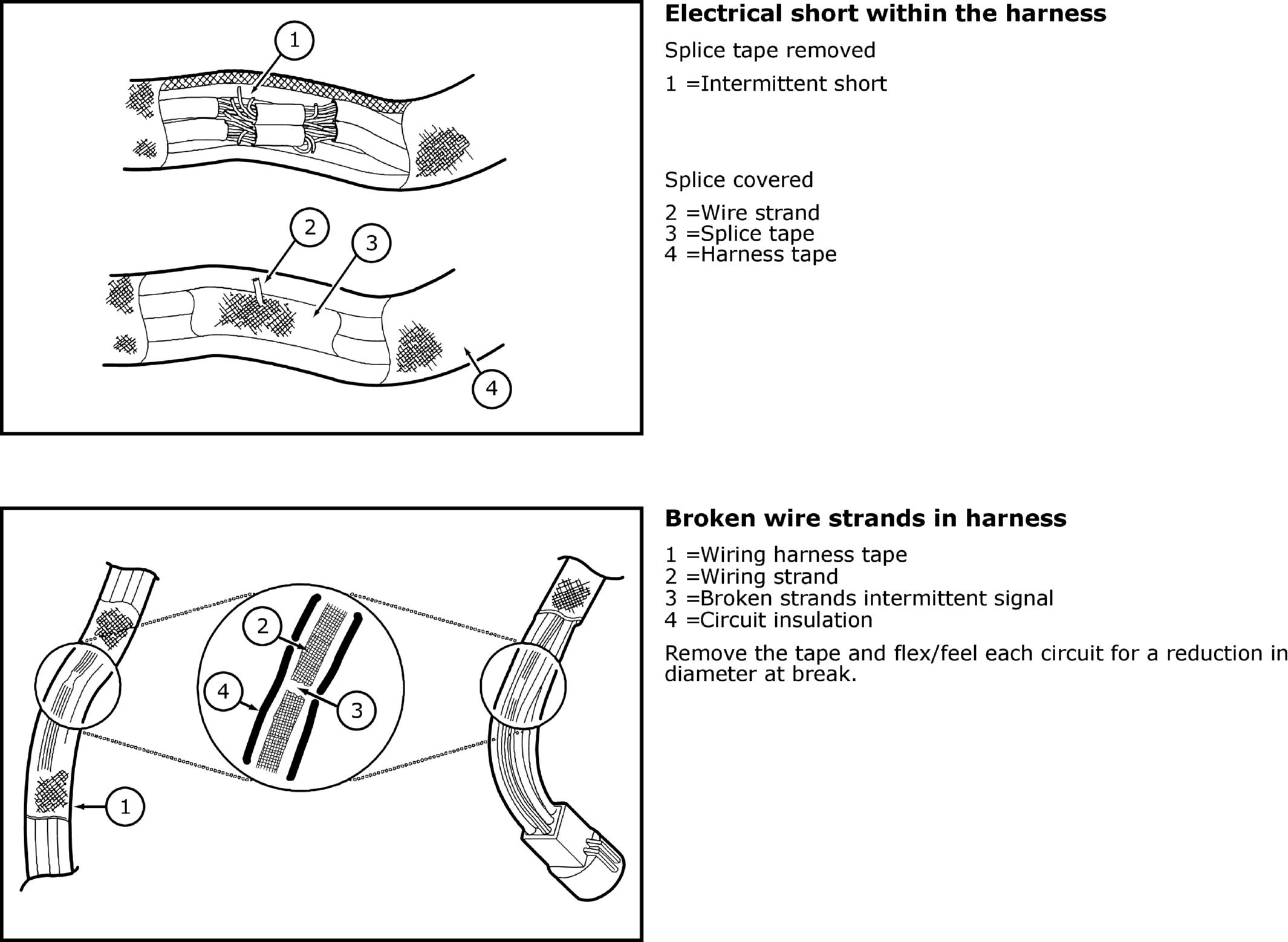

GFDW28870Courtesy of FORD MOTOR COMPANY

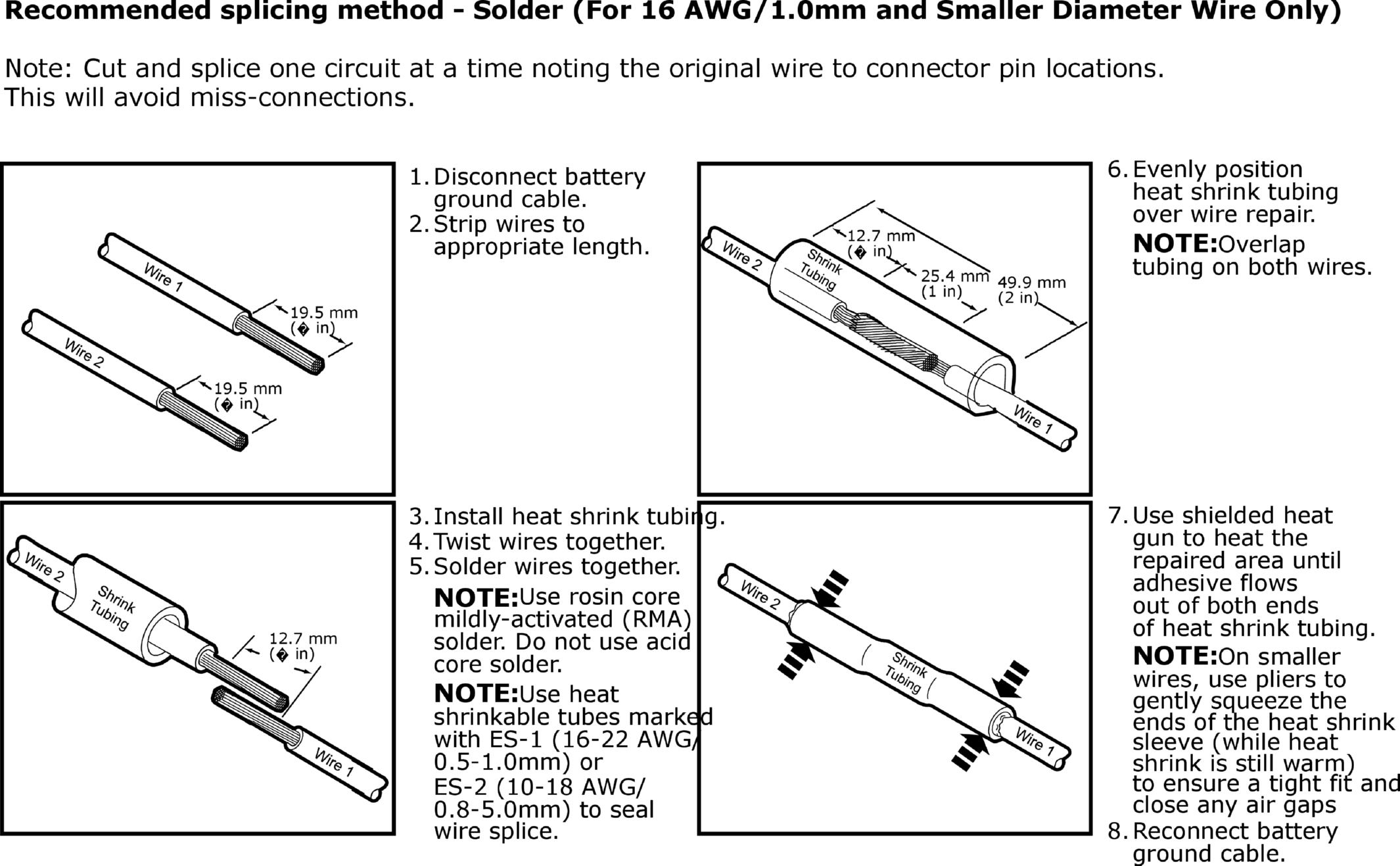

GFDW28871Courtesy of FORD MOTOR COMPANY

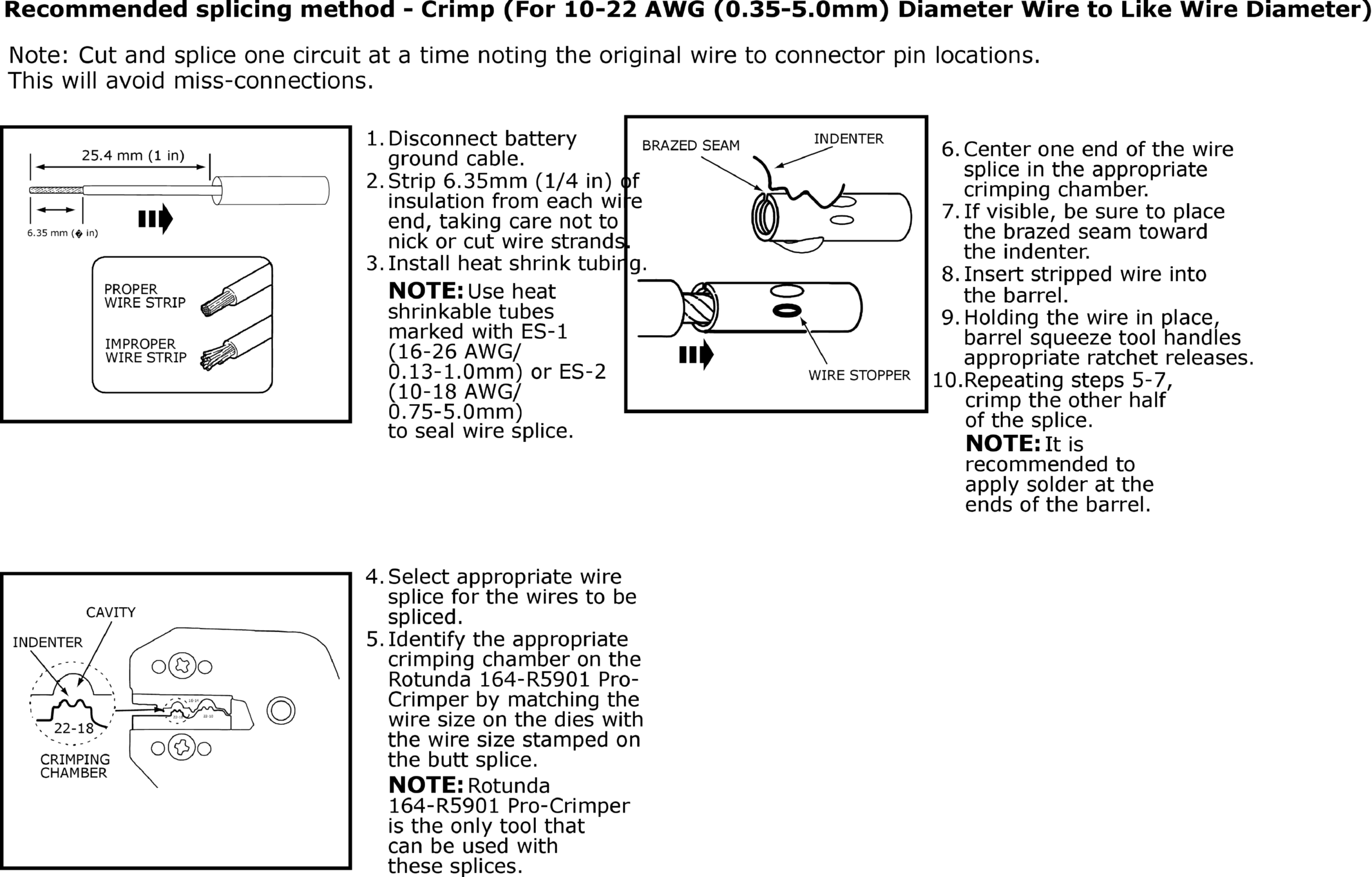

GFDW28872Courtesy of FORD MOTOR COMPANY

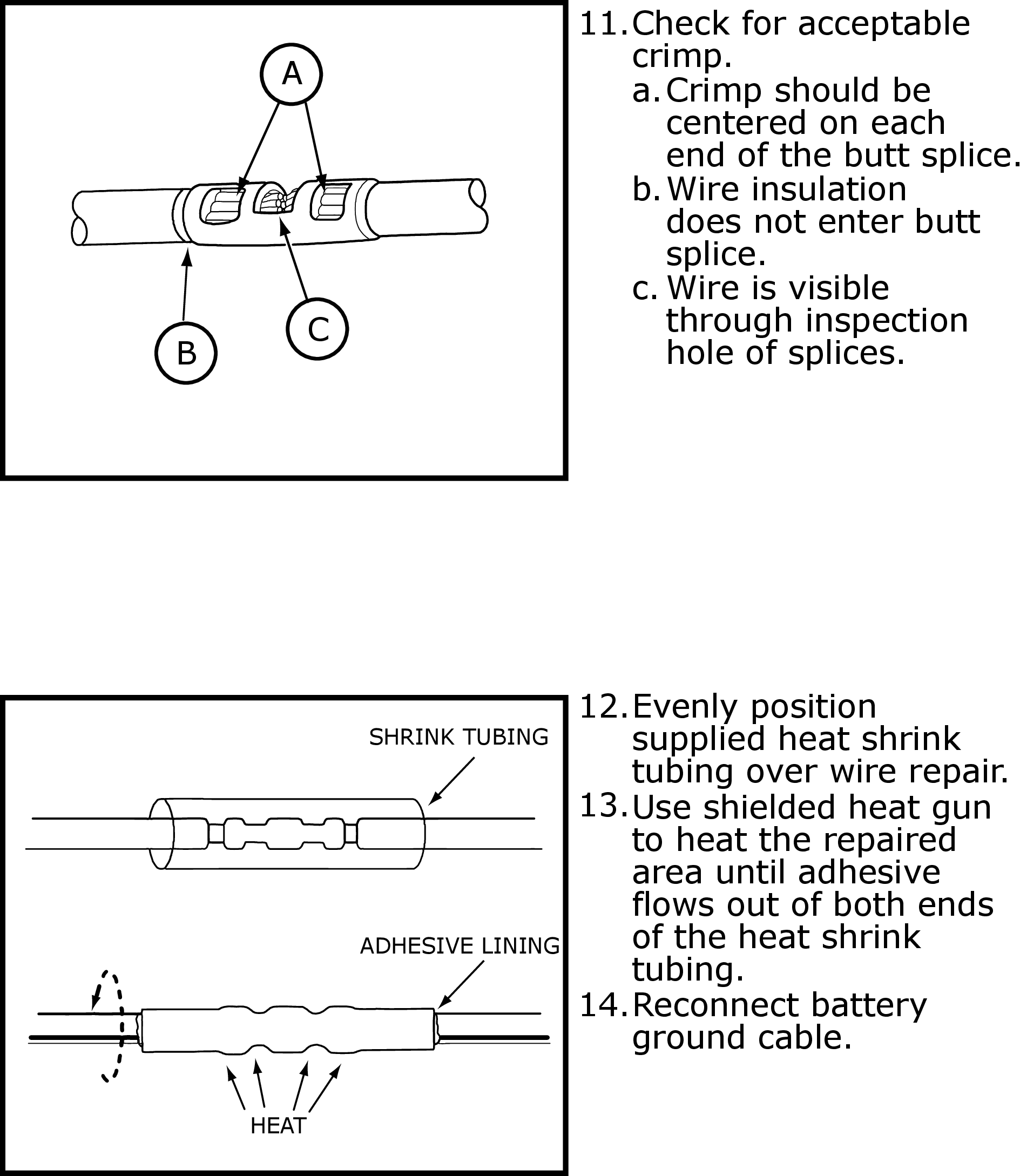

GFDW28873Courtesy of FORD MOTOR COMPANY

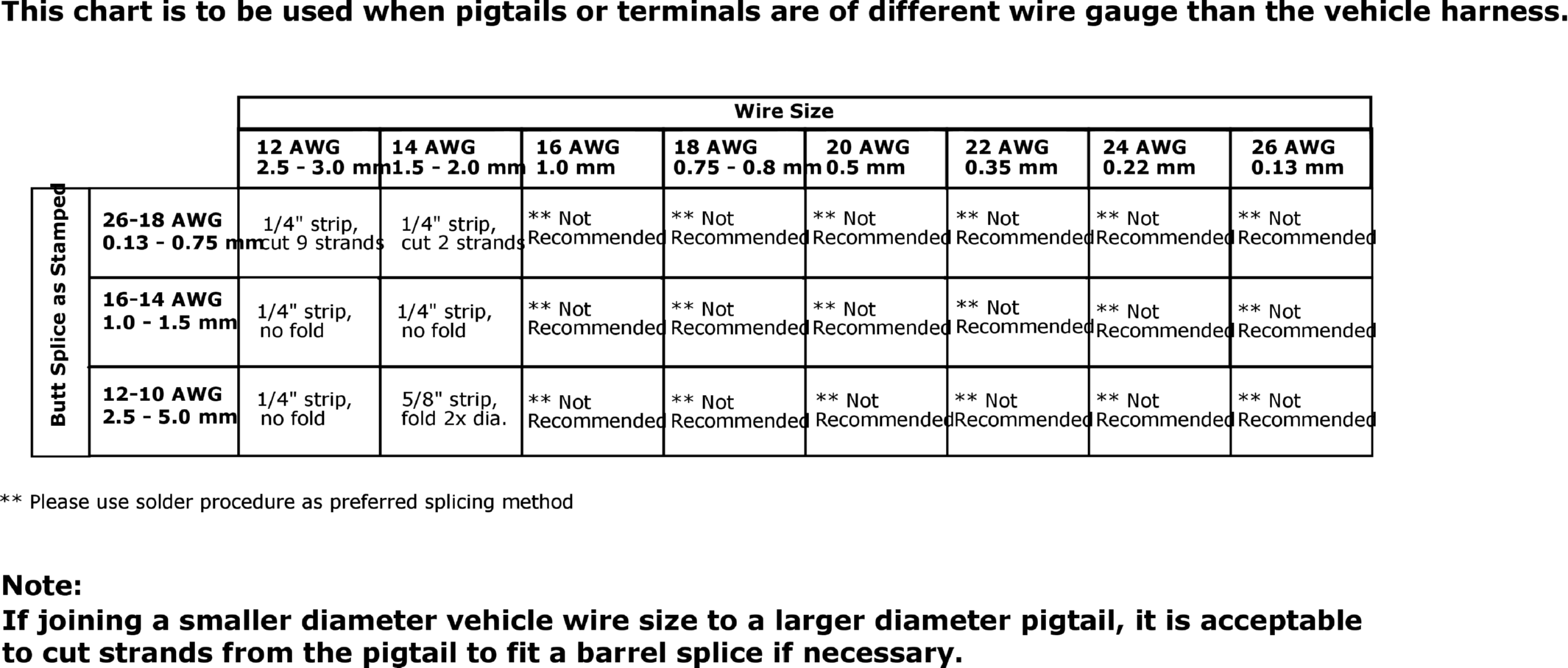

GFDW28874Courtesy of FORD MOTOR COMPANY
