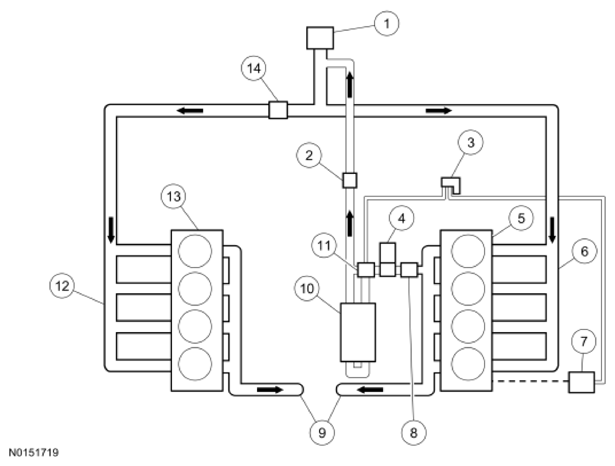

EGR System
| Item | Number | Description |
|---|---|---|
| 1 | - | Intake Throttle Actuator |
| 2 | - | Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT12) |
| 3 | - | EGR Cooler Bypass Solenoid |
| 4 | - | EGR Valve |
| 5 | - | Right Cylinder Bank |
| 6 | - | Right Intake Manifold And Cylinder Head |
| 7 | - | Vacuum Pump |
| 8 | - | Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT11) |
| 9 | - | Exhaust Flow To The Turbocharger |
| 10 | - | EGR Cooler |
| 11 | - | EGR Cooler Bypass Valve |
| 12 | - | Left Intake Manifold And Cylinder Head |
| 13 | - | Left Cylinder Bank |
| 14 | mdash | Manifold Absolute Pressure (MAP) Sensor |
