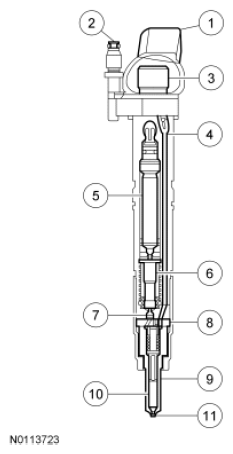

Fuel Injector
| Item | Number | Description |
|---|---|---|
| 1 | - | Wiring Harness Electrical Connector |
| 2 | - | Fuel Return |
| 3 | - | High Pressure Delivery Connection |
| 4 | - | High Pressure Fuel Passage |
| 5 | - | Piezo Actuator |
| 6 | - | Hydraulic Coupler |
| 7 | - | Control Valve |
| 8 | - | Intermediate Plate |
| 9 | - | Nozzle |
| 10 | - | Nozzle Needle (Pintle) |
| 11 | - | Fuel Delivery Orifices (8 Each) |
