Wipers System And Washers System
Wipers System And Washers System
Fig 1: Wipers System And Washers System Wiring Diagrams (1 Of 7)
Courtesy of FORD MOTOR COMPANY

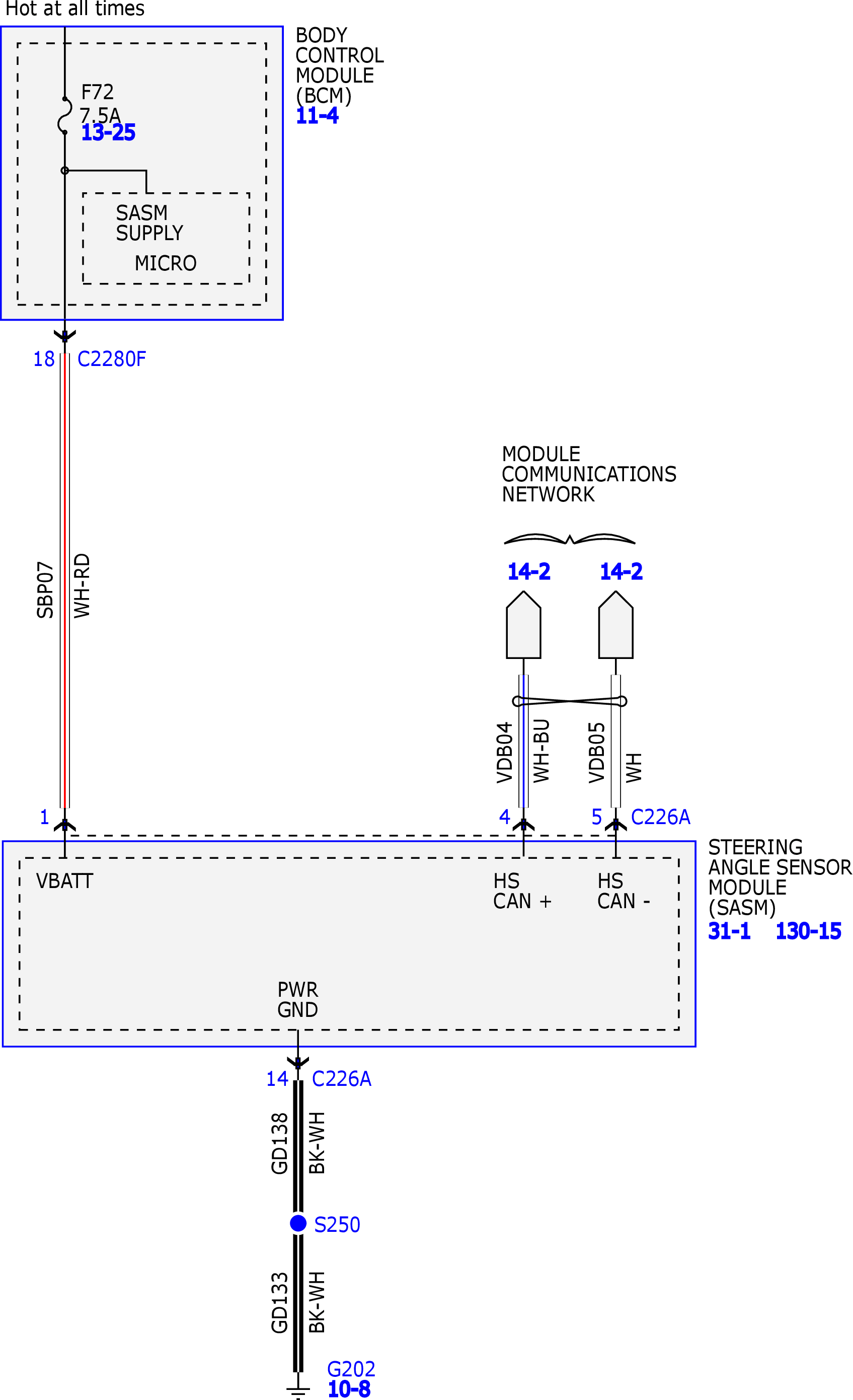

Fig 2: Wipers System And Washers System Wiring Diagrams (2 Of 7)
Courtesy of FORD MOTOR COMPANY

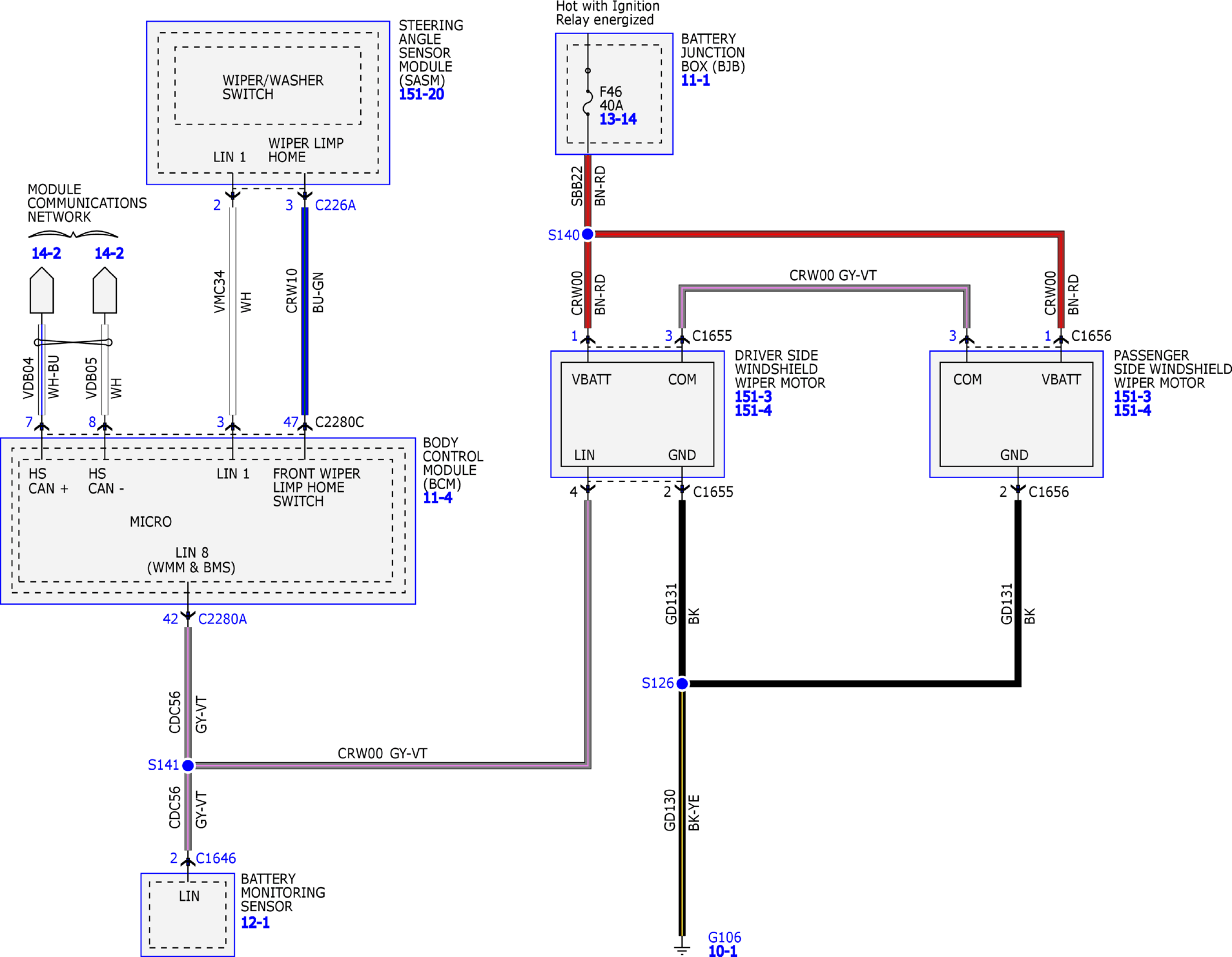

Fig 3: Wipers System And Washers System Wiring Diagrams (3 Of 7)
Courtesy of FORD MOTOR COMPANY

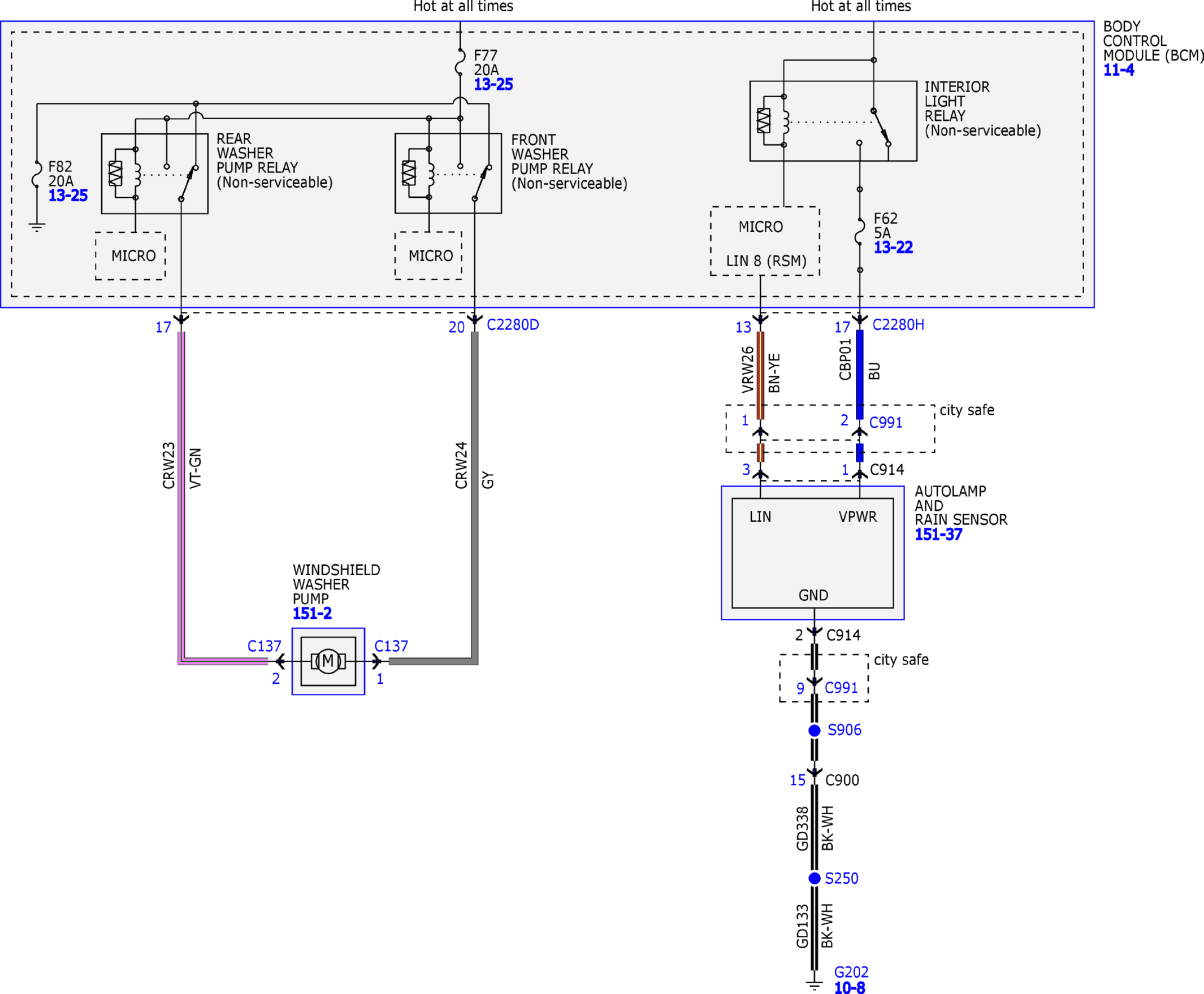

Fig 4: Wipers System And Washers System Wiring Diagrams (4 Of 7)
Courtesy of FORD MOTOR COMPANY

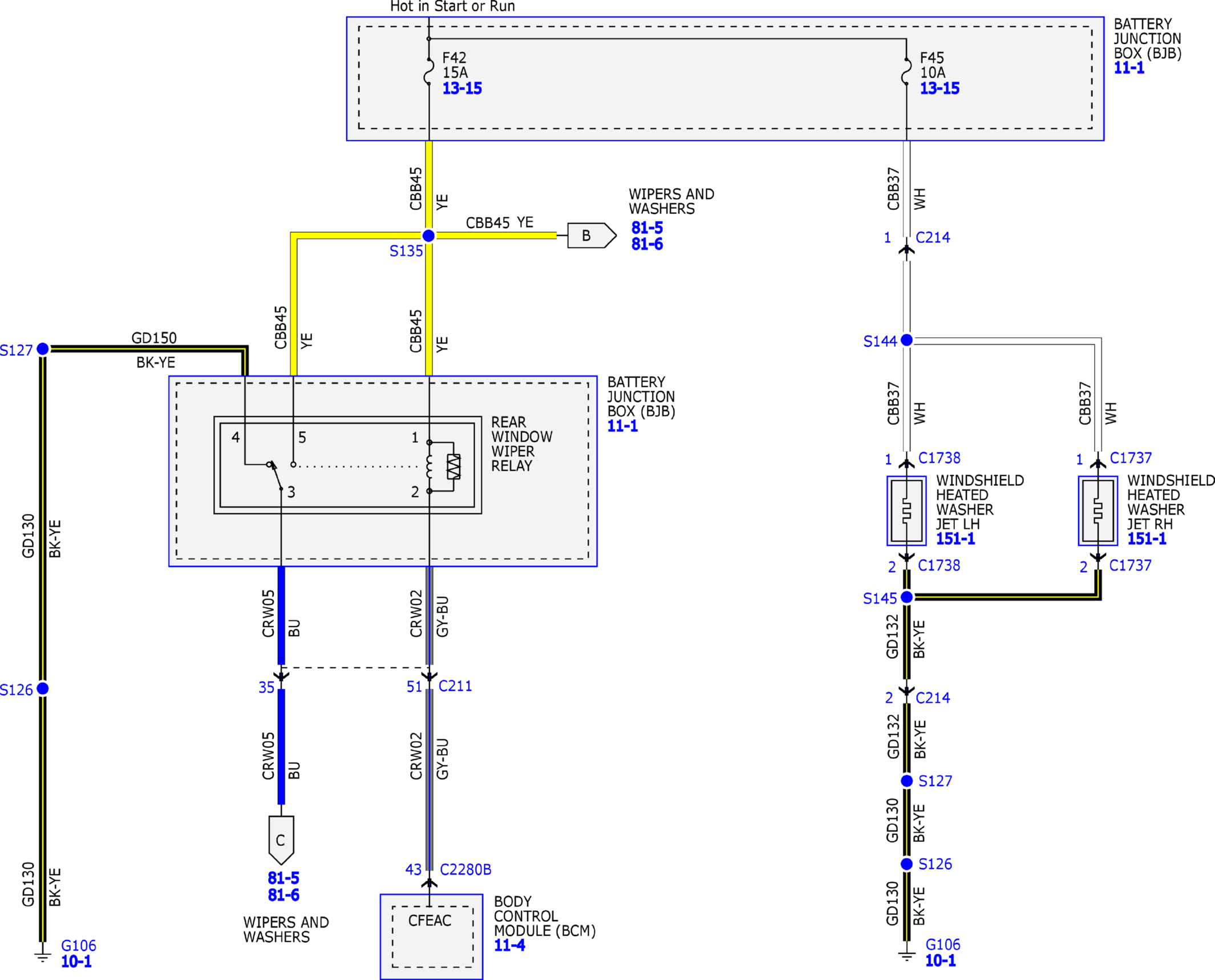

Fig 5: Wipers System And Washers System Wiring Diagrams (5 Of 7)
Courtesy of FORD MOTOR COMPANY

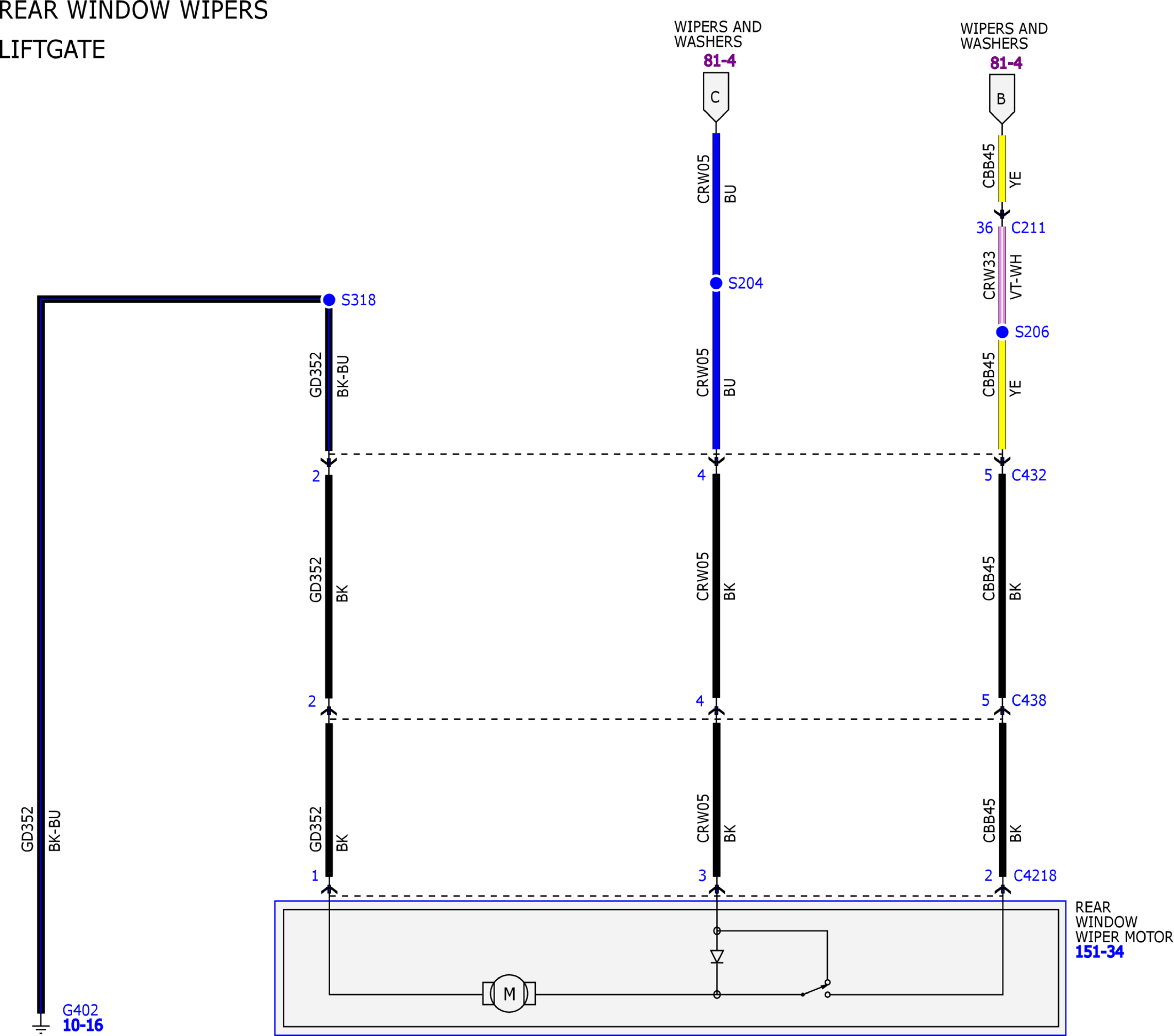

Fig 6: Wipers System And Washers System Wiring Diagrams (6 Of 7)
Courtesy of FORD MOTOR COMPANY

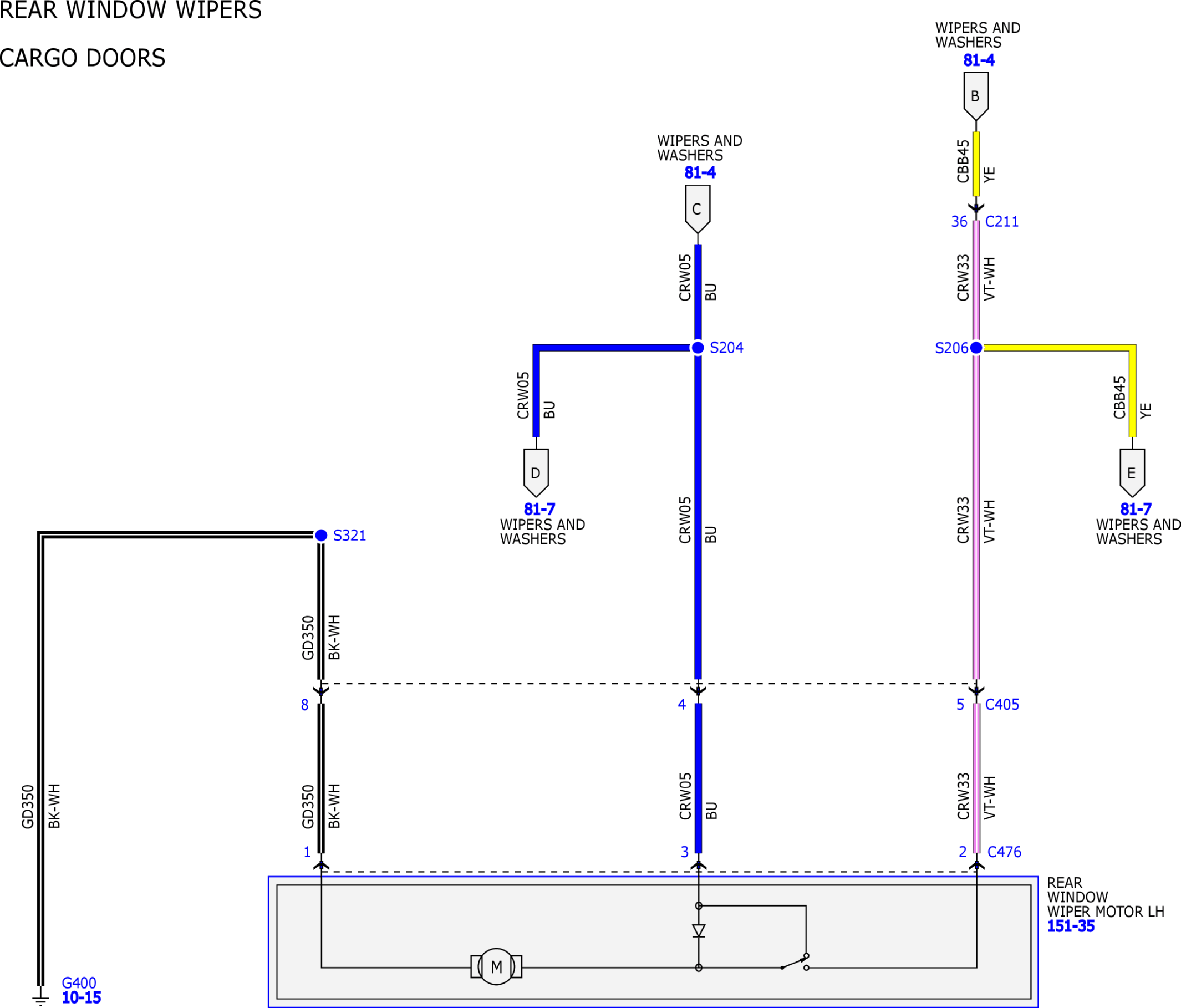

Fig 7: Wipers System And Washers System Wiring Diagrams (7 Of 7)
Courtesy of FORD MOTOR COMPANY
