Starting System
Starting System

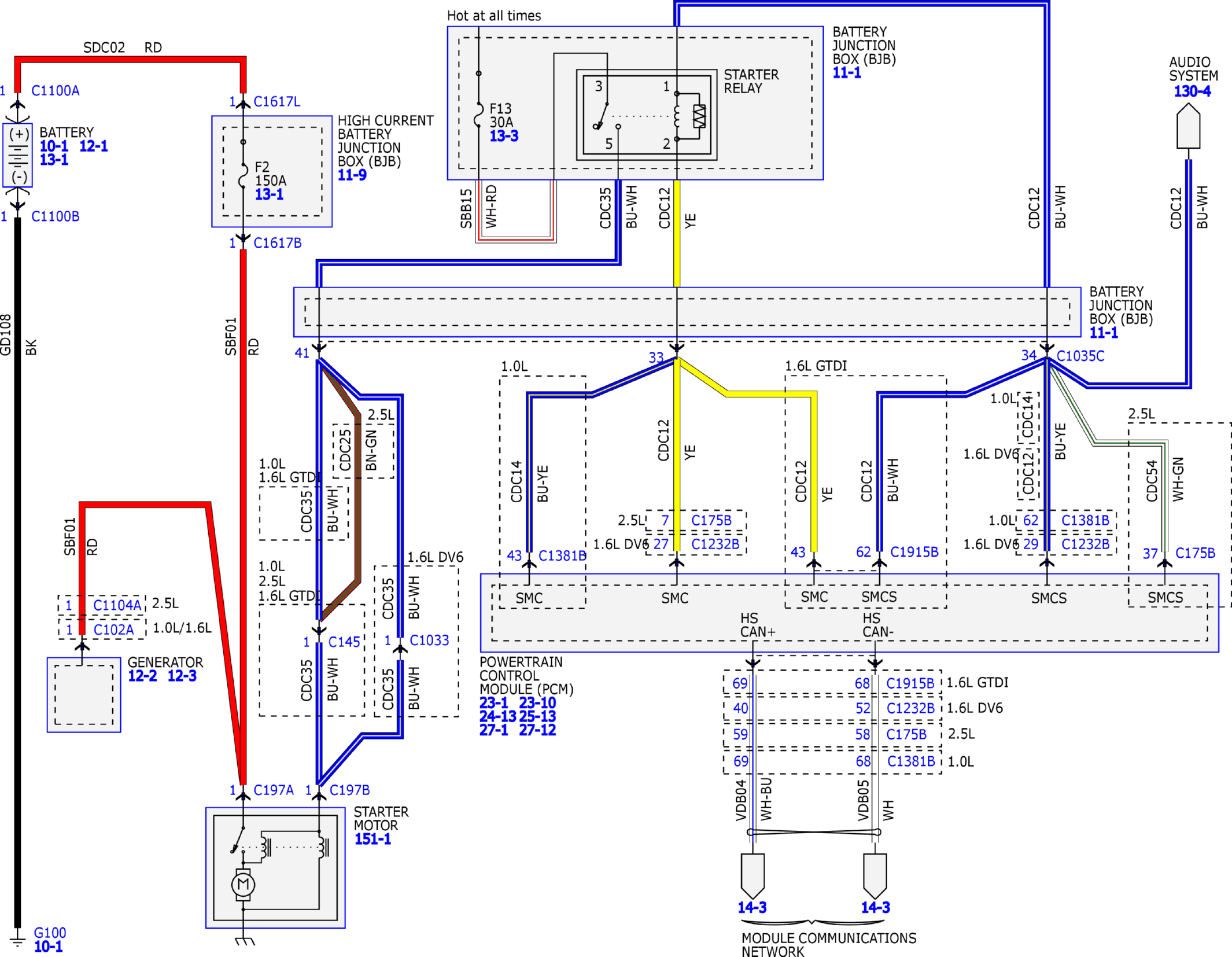

Fig 1: Starting System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

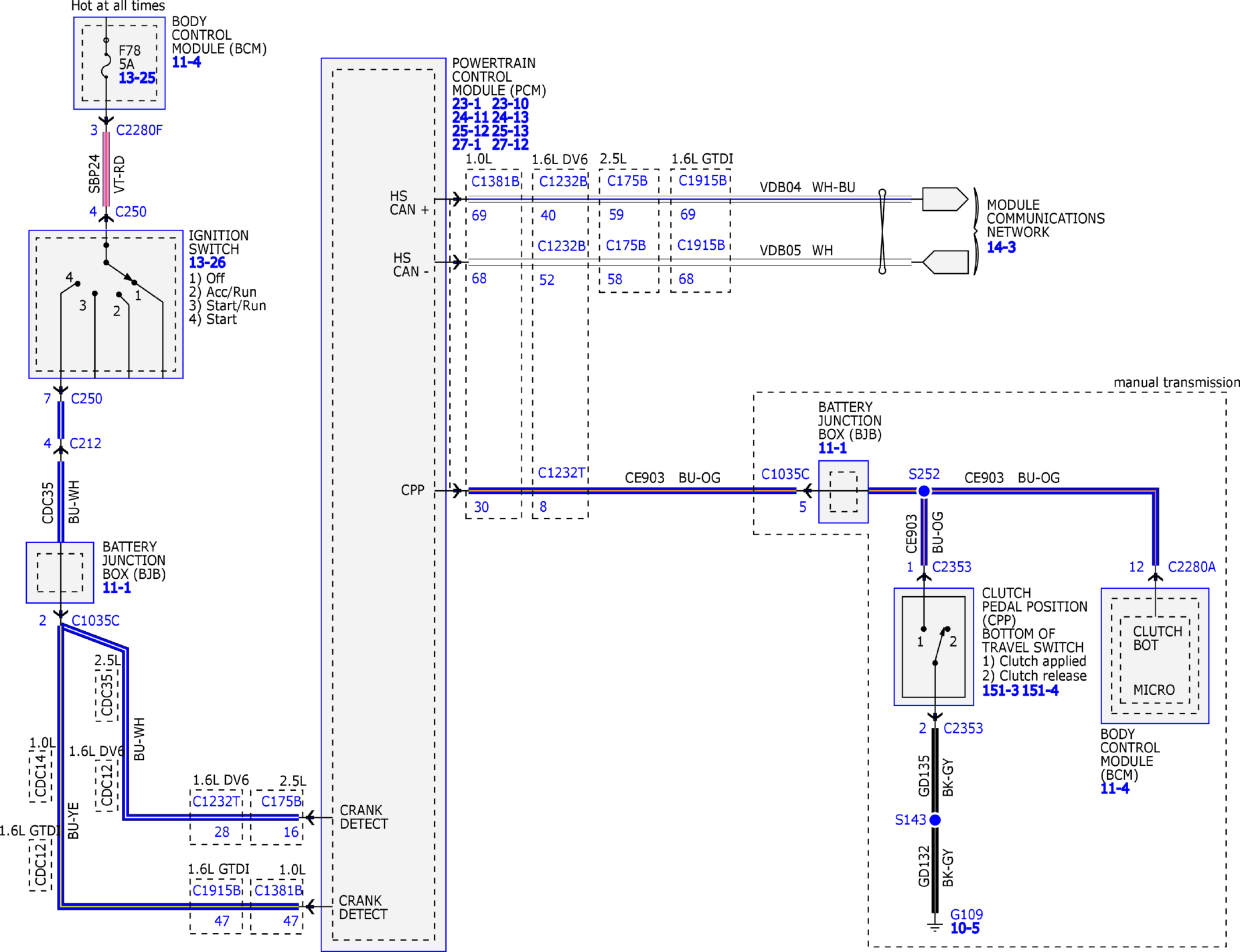

Fig 2: Starting System Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
