Power Seats System
Power Seats System

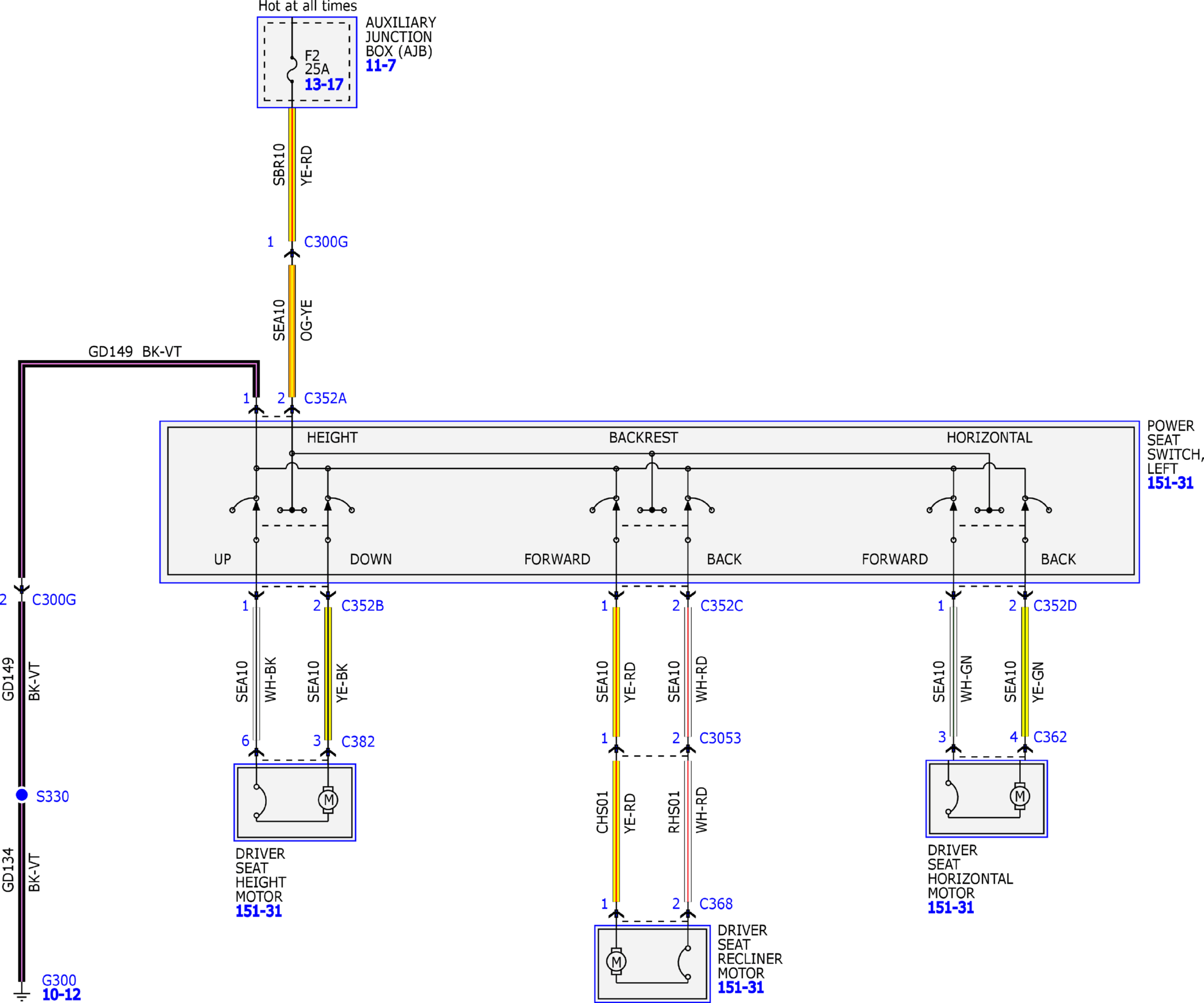

Fig 1: Power Seats System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
