Power Mirrors System
Power Mirrors System

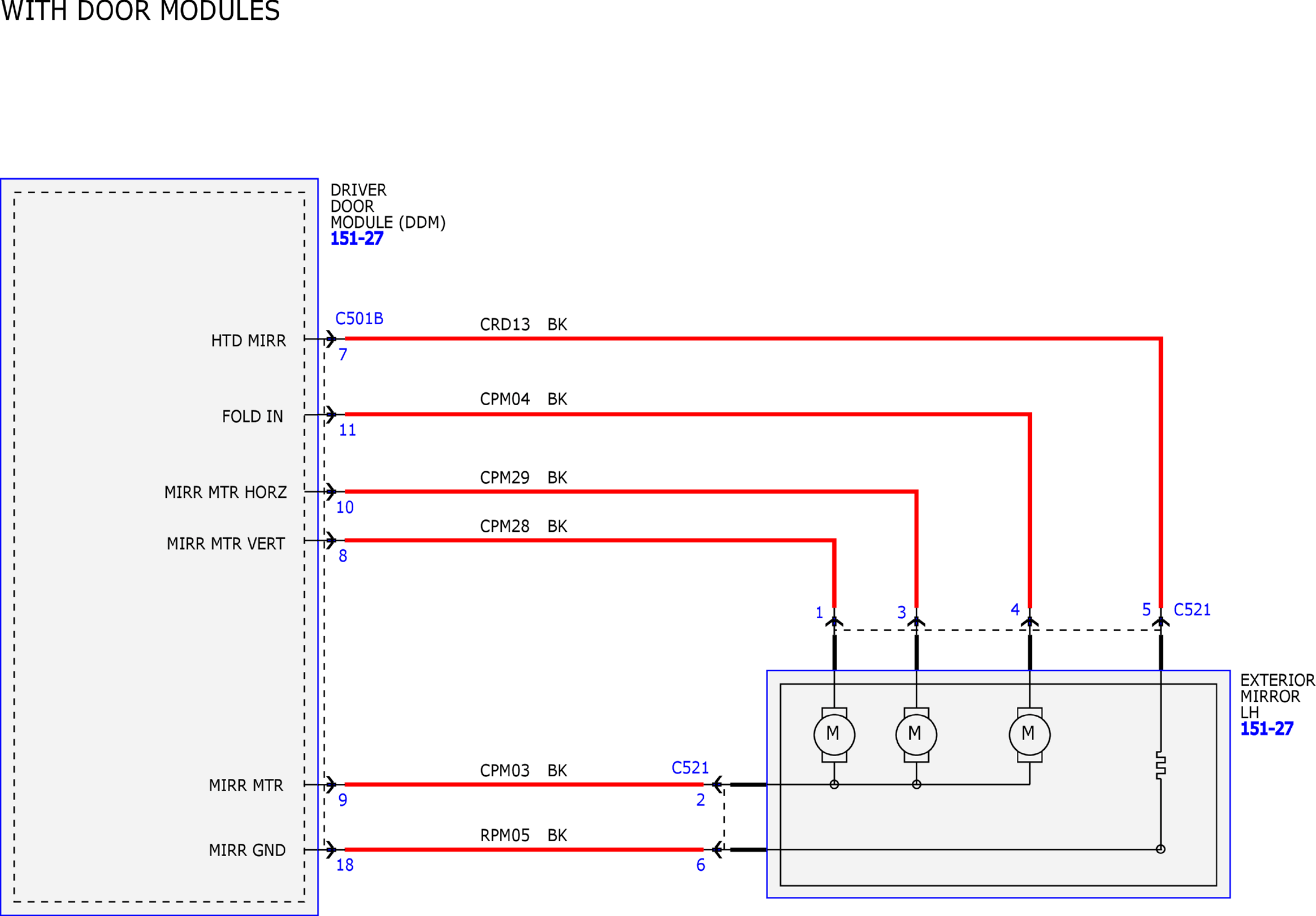

Fig 1: Power Mirrors System Wiring Diagrams (1 Of 6)
Courtesy of FORD MOTOR COMPANY

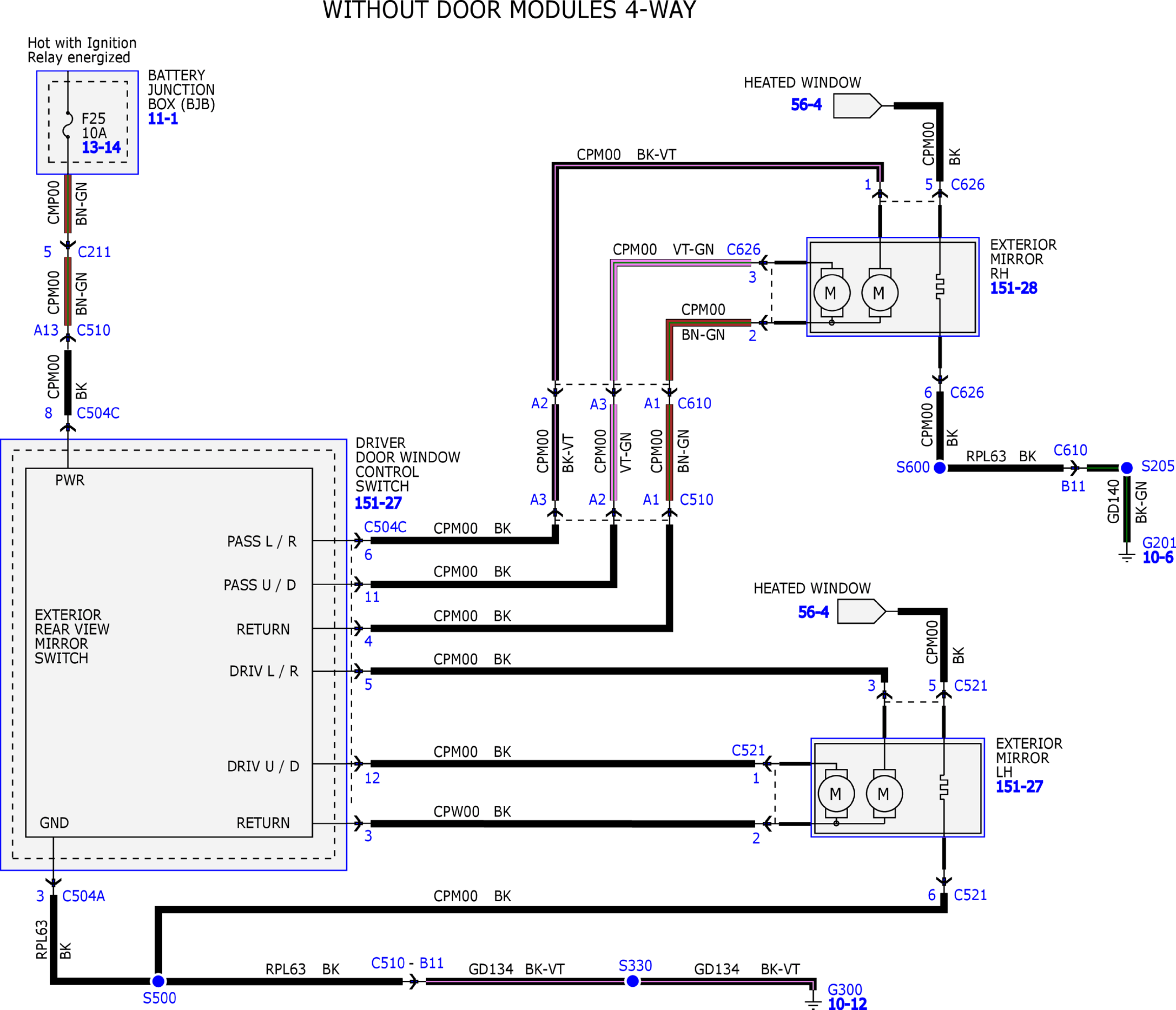

Fig 2: Power Mirrors System Wiring Diagrams (2 Of 6)
Courtesy of FORD MOTOR COMPANY

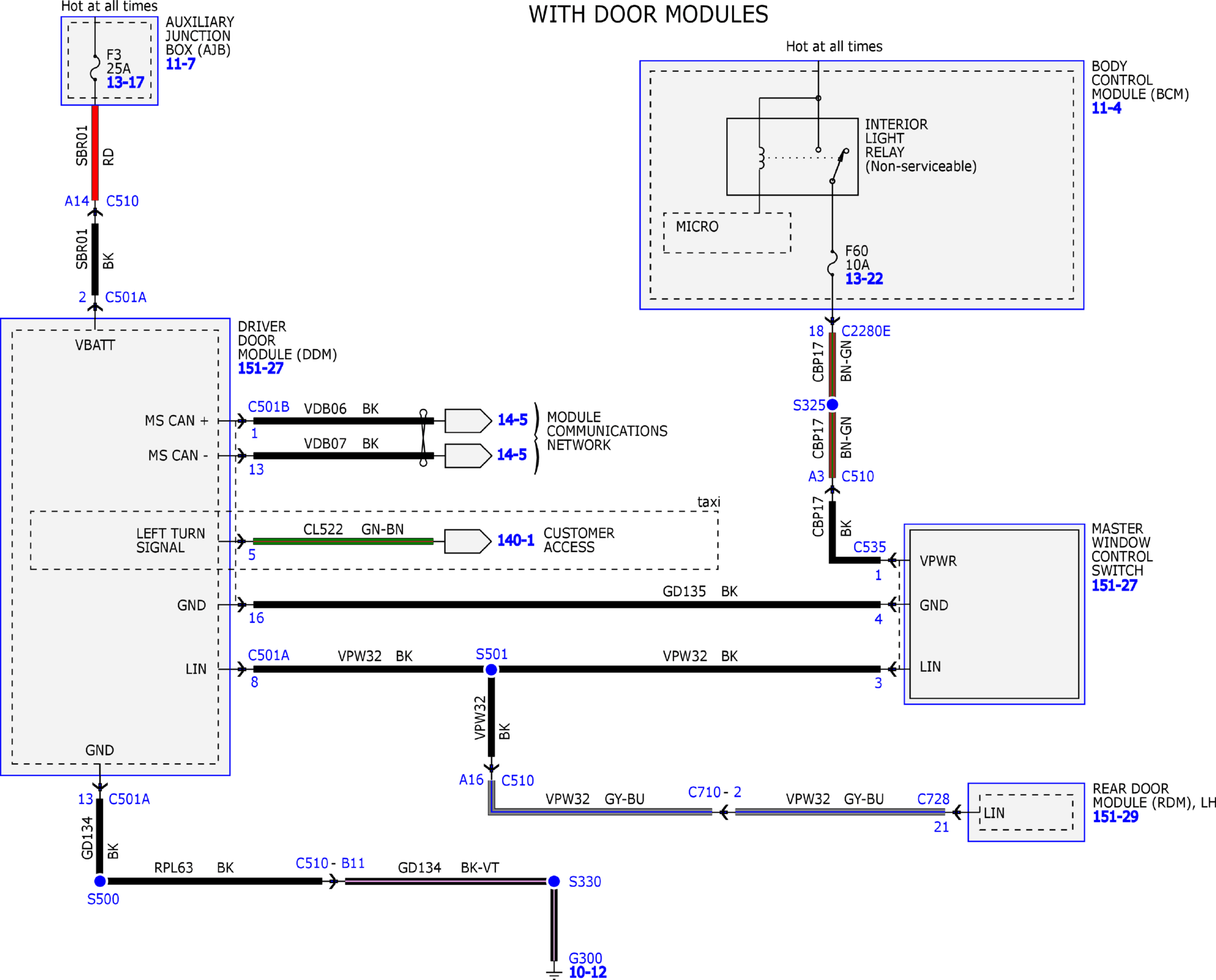

Fig 3: Power Mirrors System Wiring Diagrams (3 Of 6)
Courtesy of FORD MOTOR COMPANY

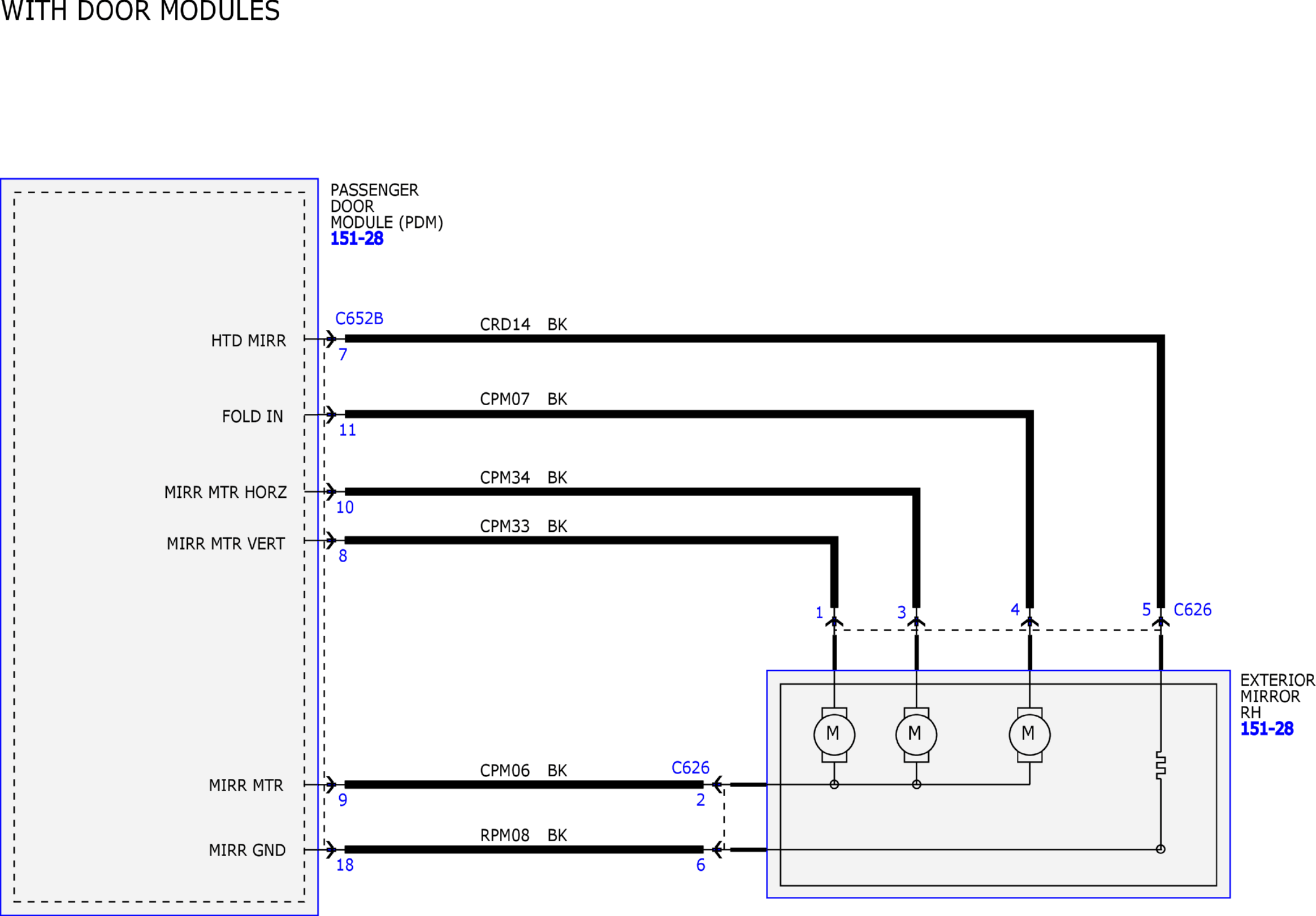

Fig 4: Power Mirrors System Wiring Diagrams (4 Of 6)
Courtesy of FORD MOTOR COMPANY

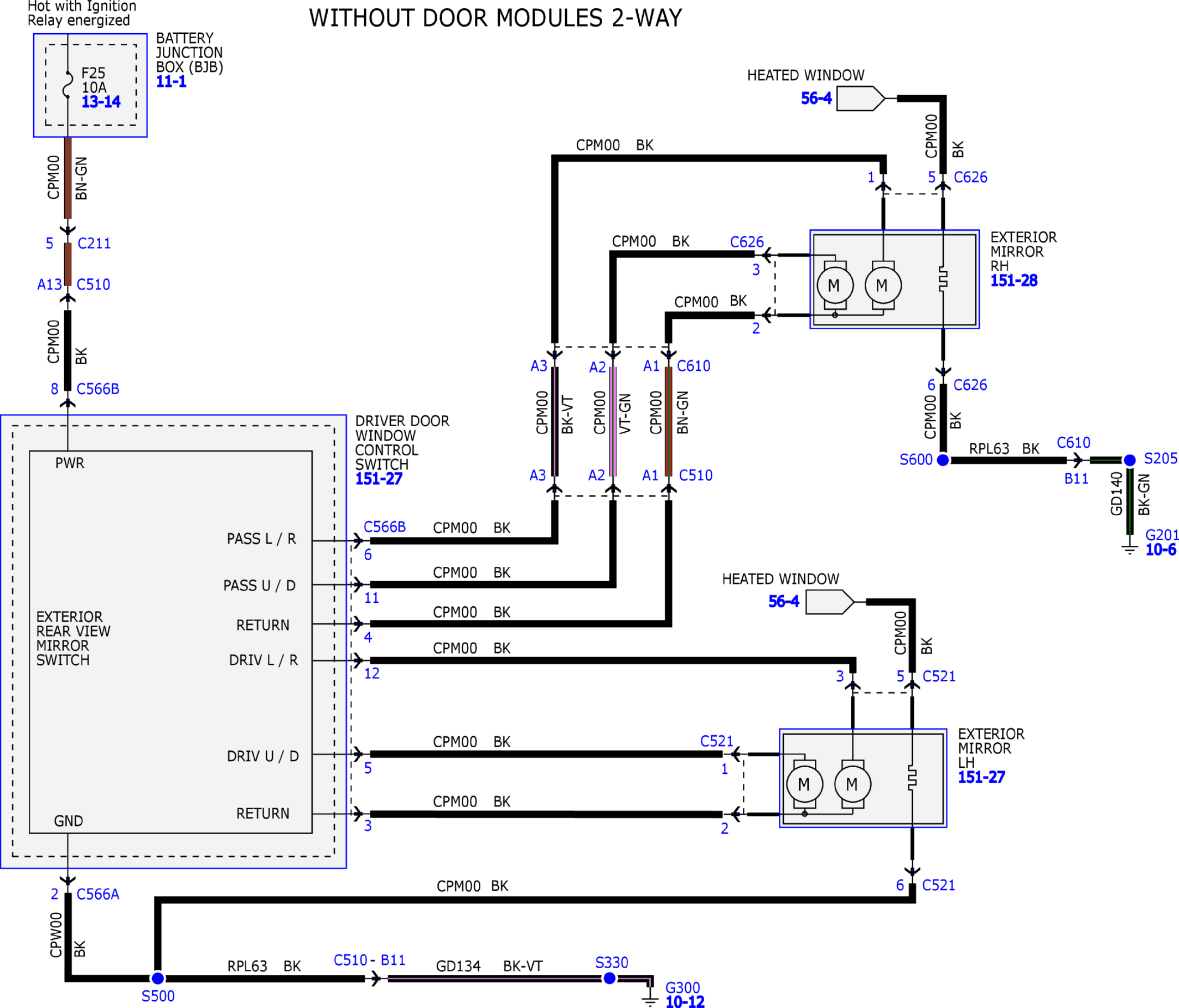

Fig 5: Power Mirrors System Wiring Diagrams (5 Of 6)
Courtesy of FORD MOTOR COMPANY

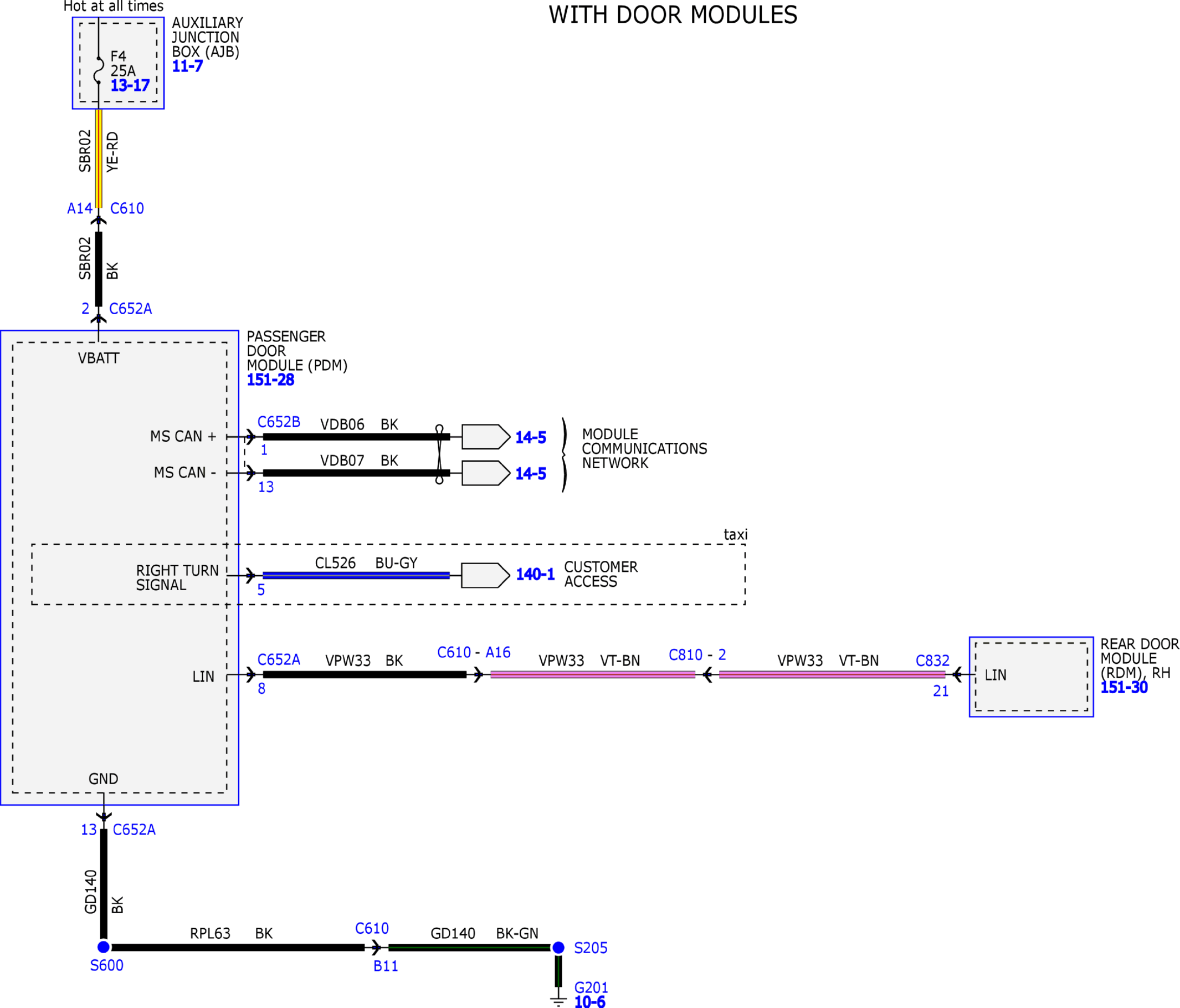

Fig 6: Power Mirrors System Wiring Diagrams (6 Of 6)
Courtesy of FORD MOTOR COMPANY
