Power Liftgate System
Power Liftgate System

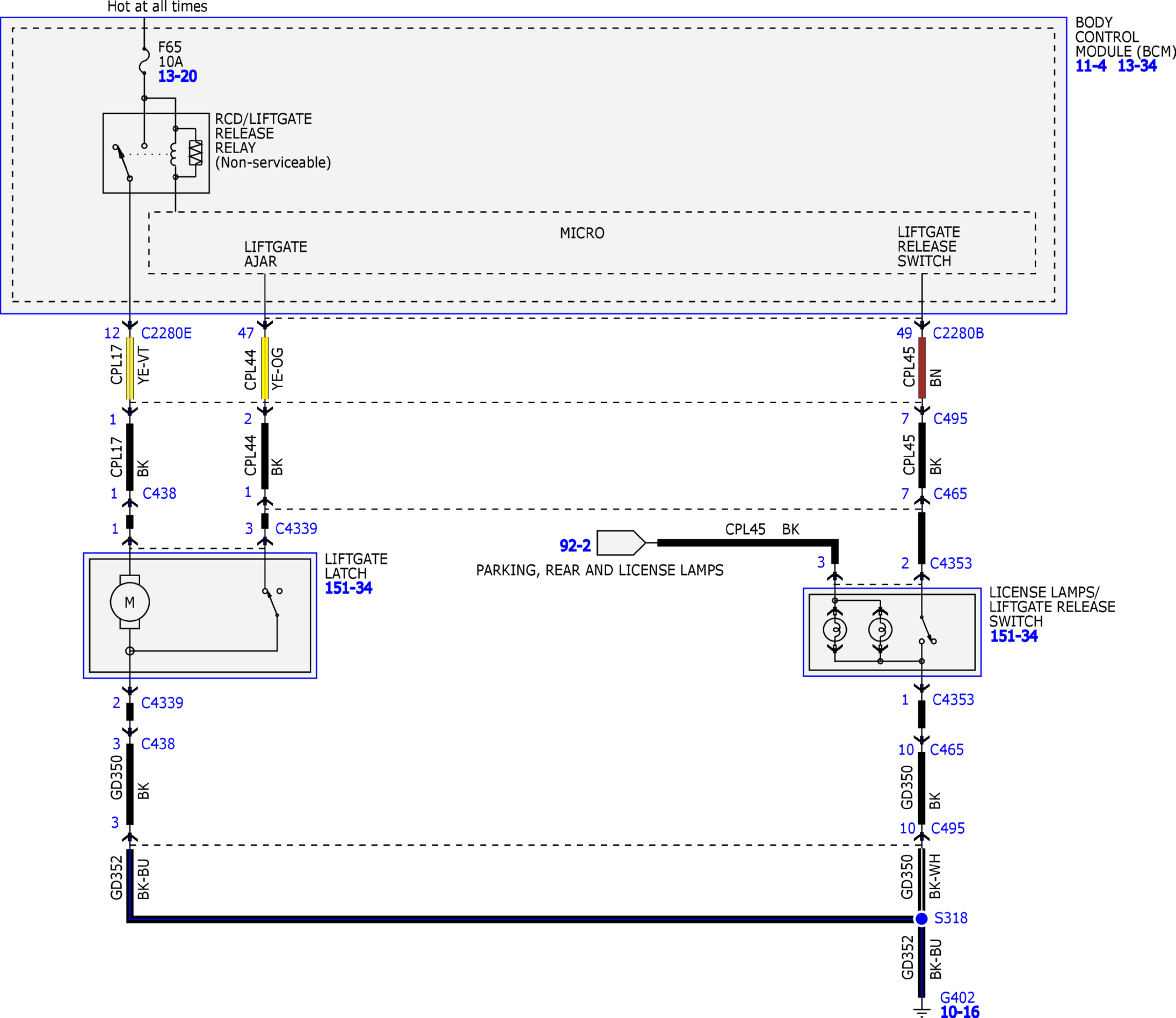

Fig 1: Power Liftgate System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
