Manual Climate Control System
Manual Climate Control System

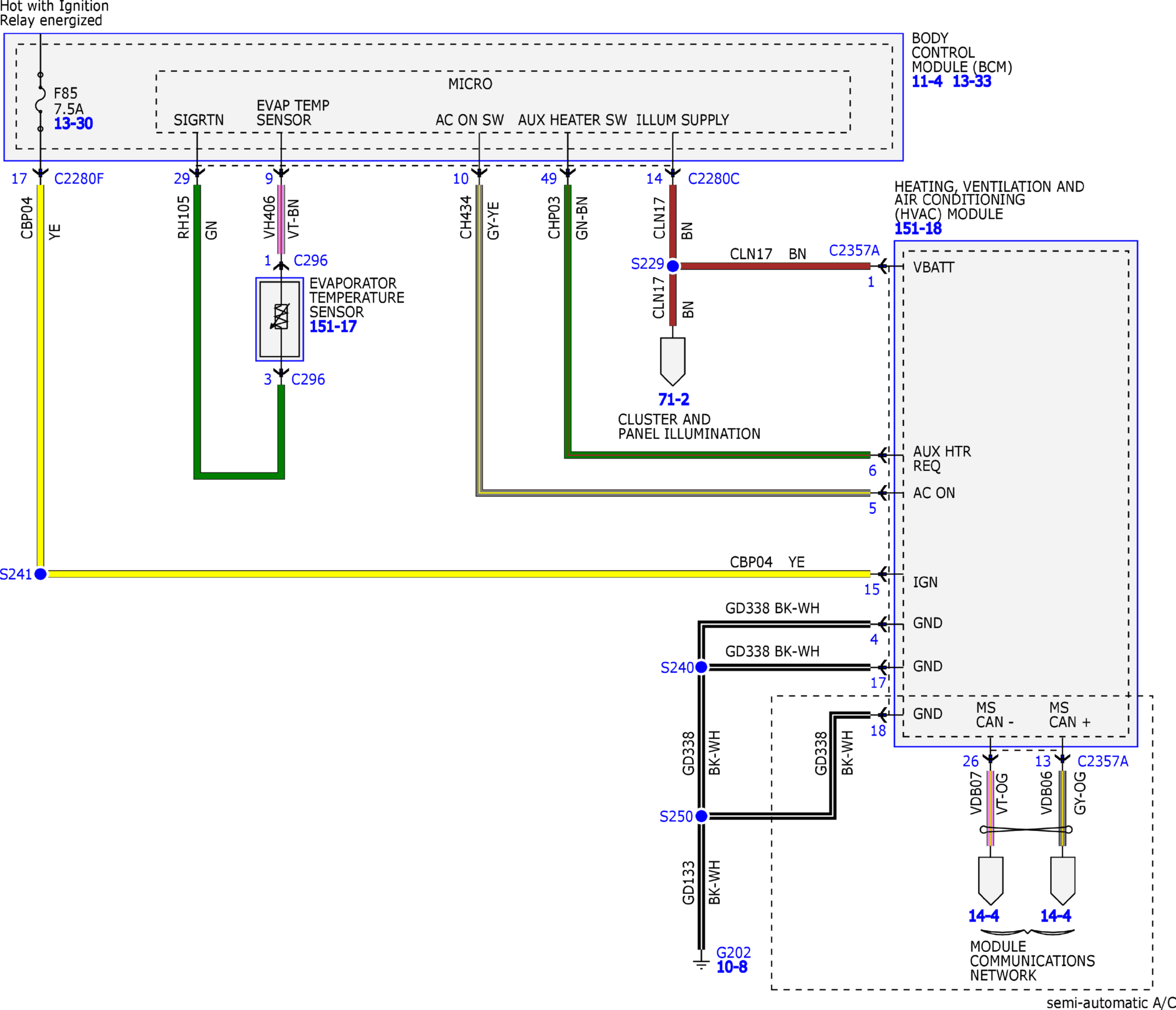

Fig 1: Manual Climate Control System Wiring Diagrams (1 Of 6)
Courtesy of FORD MOTOR COMPANY

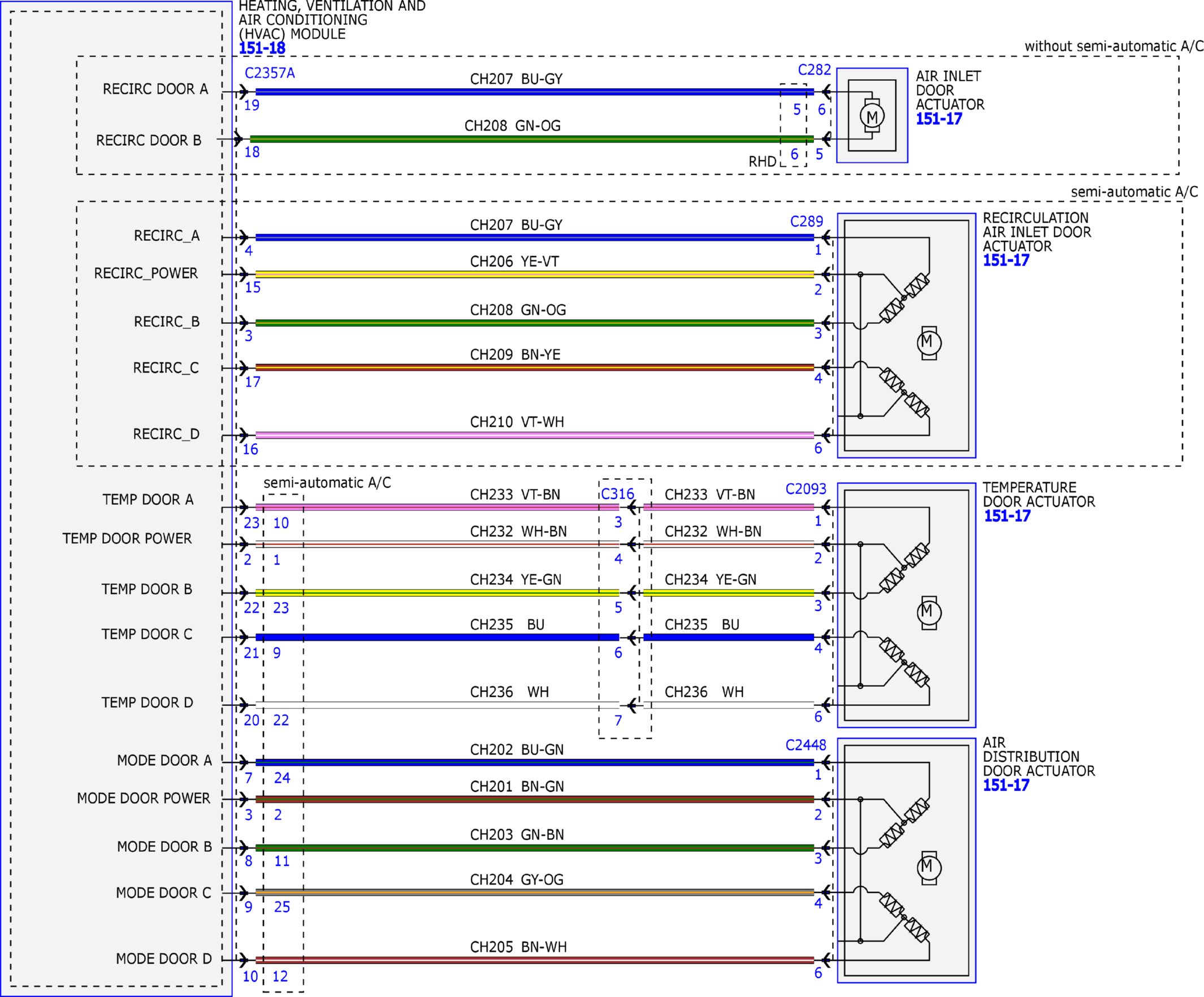

Fig 2: Manual Climate Control System Wiring Diagrams (2 Of 6)
Courtesy of FORD MOTOR COMPANY

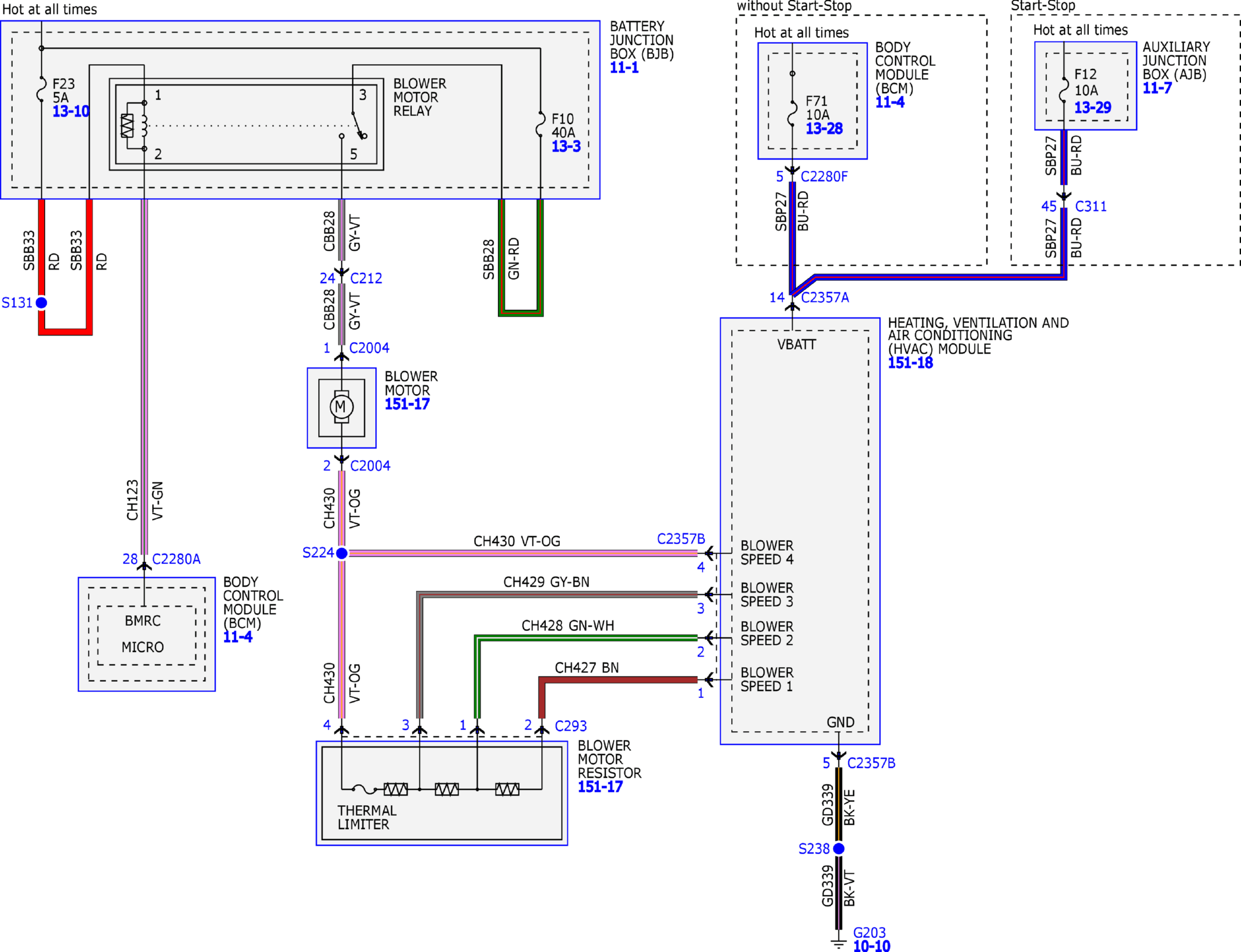

Fig 3: Manual Climate Control System Wiring Diagrams (3 Of 6)
Courtesy of FORD MOTOR COMPANY

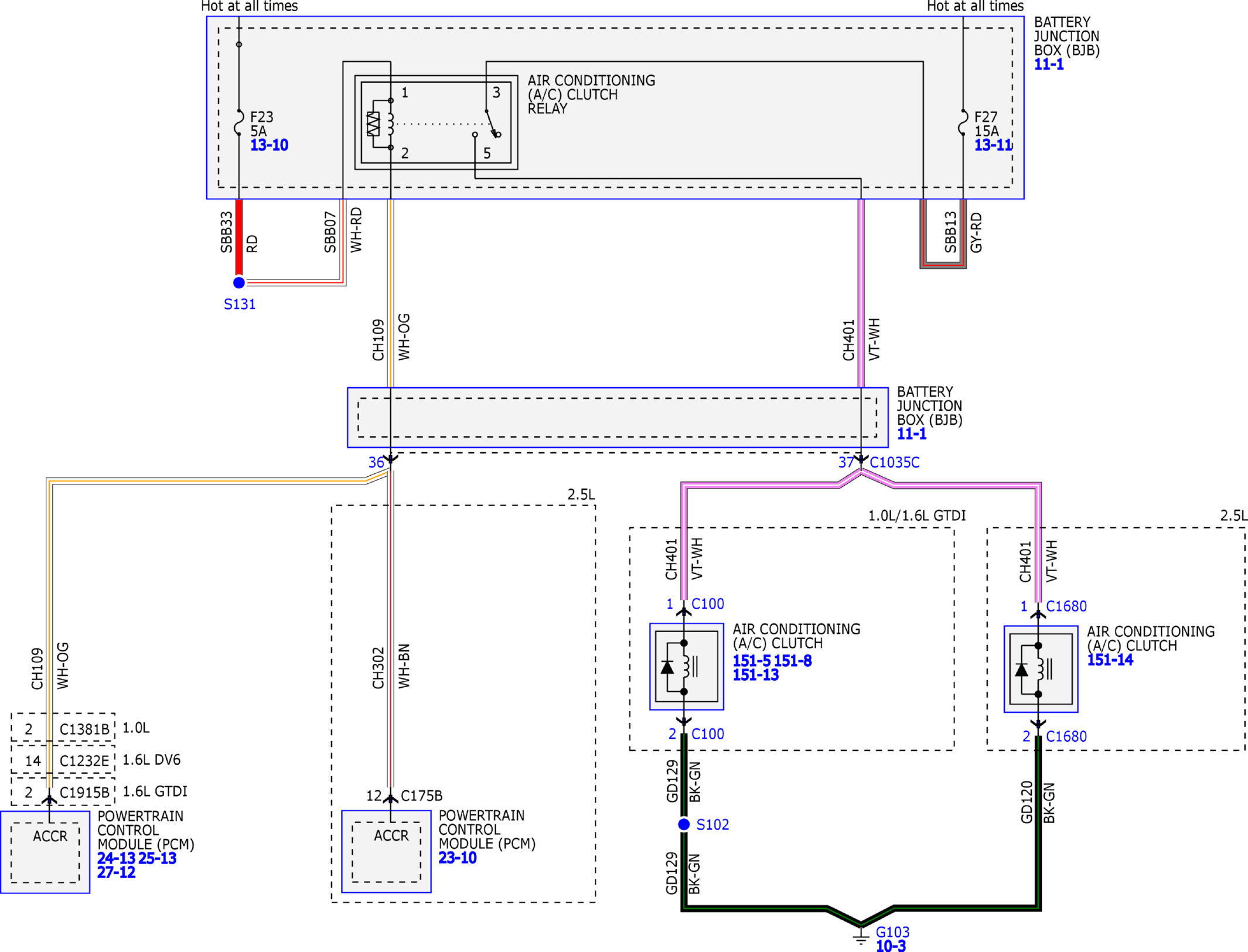

Fig 4: Manual Climate Control System Wiring Diagrams (4 Of 6)
Courtesy of FORD MOTOR COMPANY

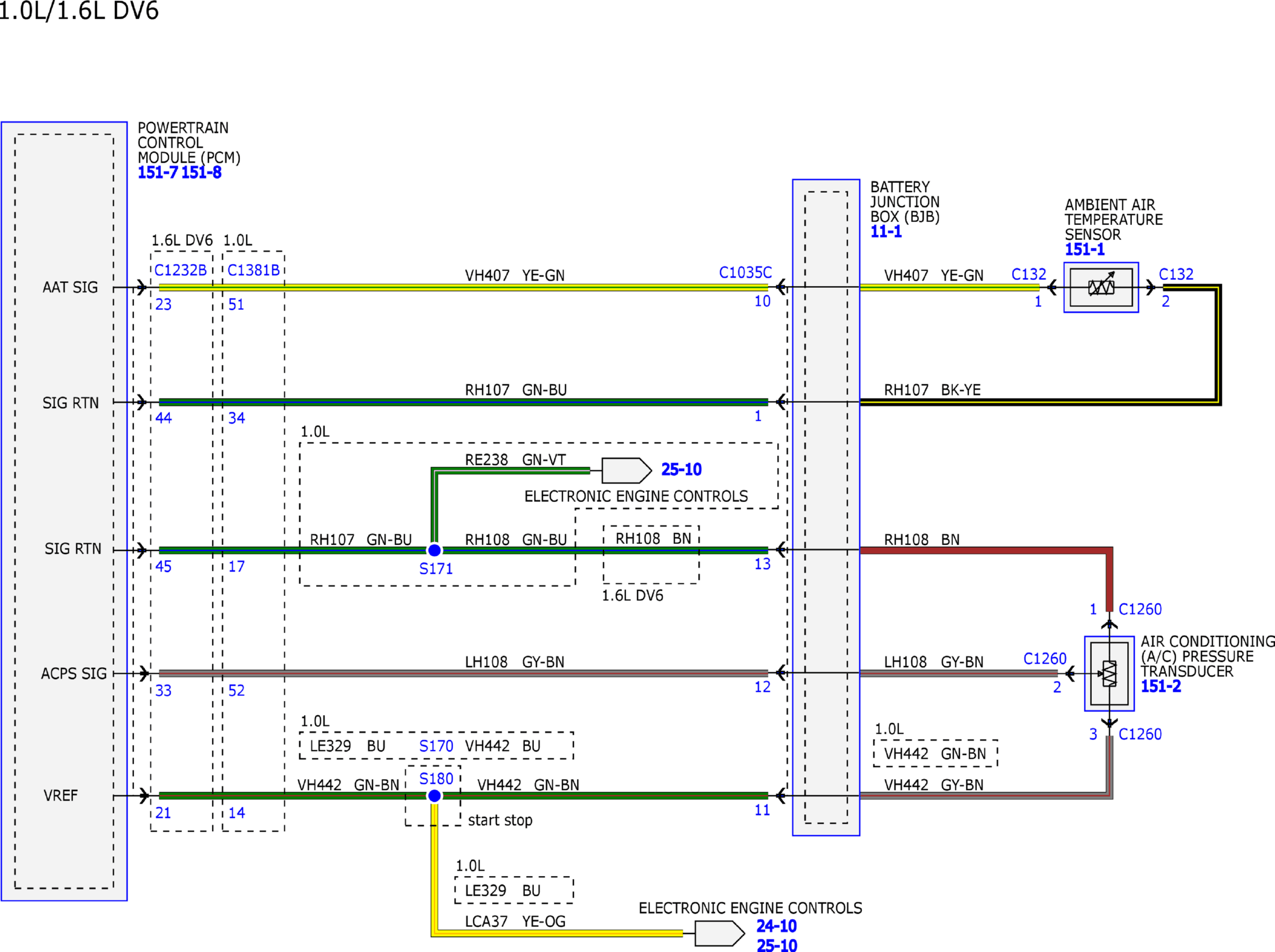

Fig 5: Manual Climate Control System Wiring Diagrams (5 Of 6)
Courtesy of FORD MOTOR COMPANY

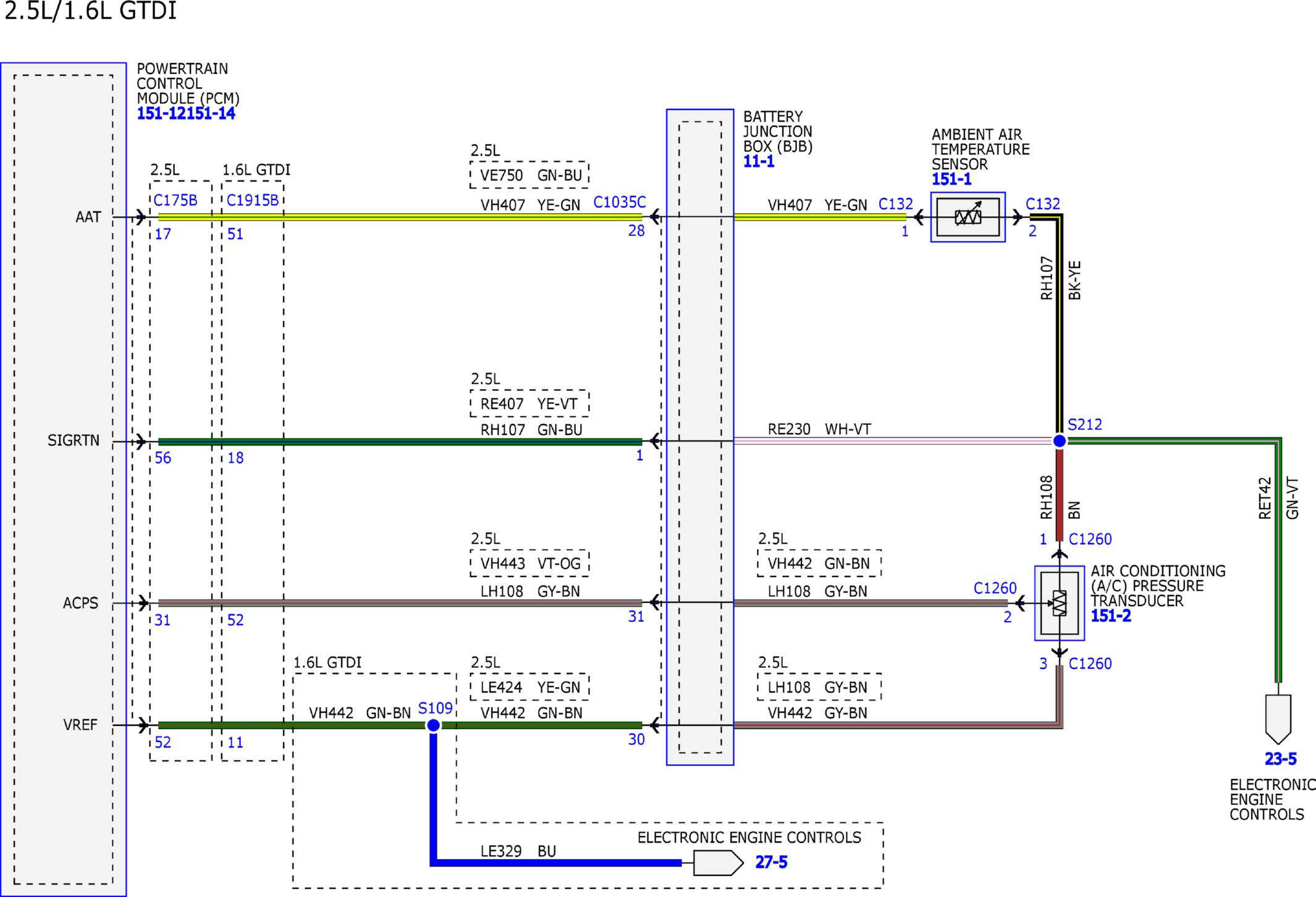

Fig 6: Manual Climate Control System Wiring Diagrams (6 Of 6)
Courtesy of FORD MOTOR COMPANY
