Ford Work Solutions System
Ford Work Solutions System

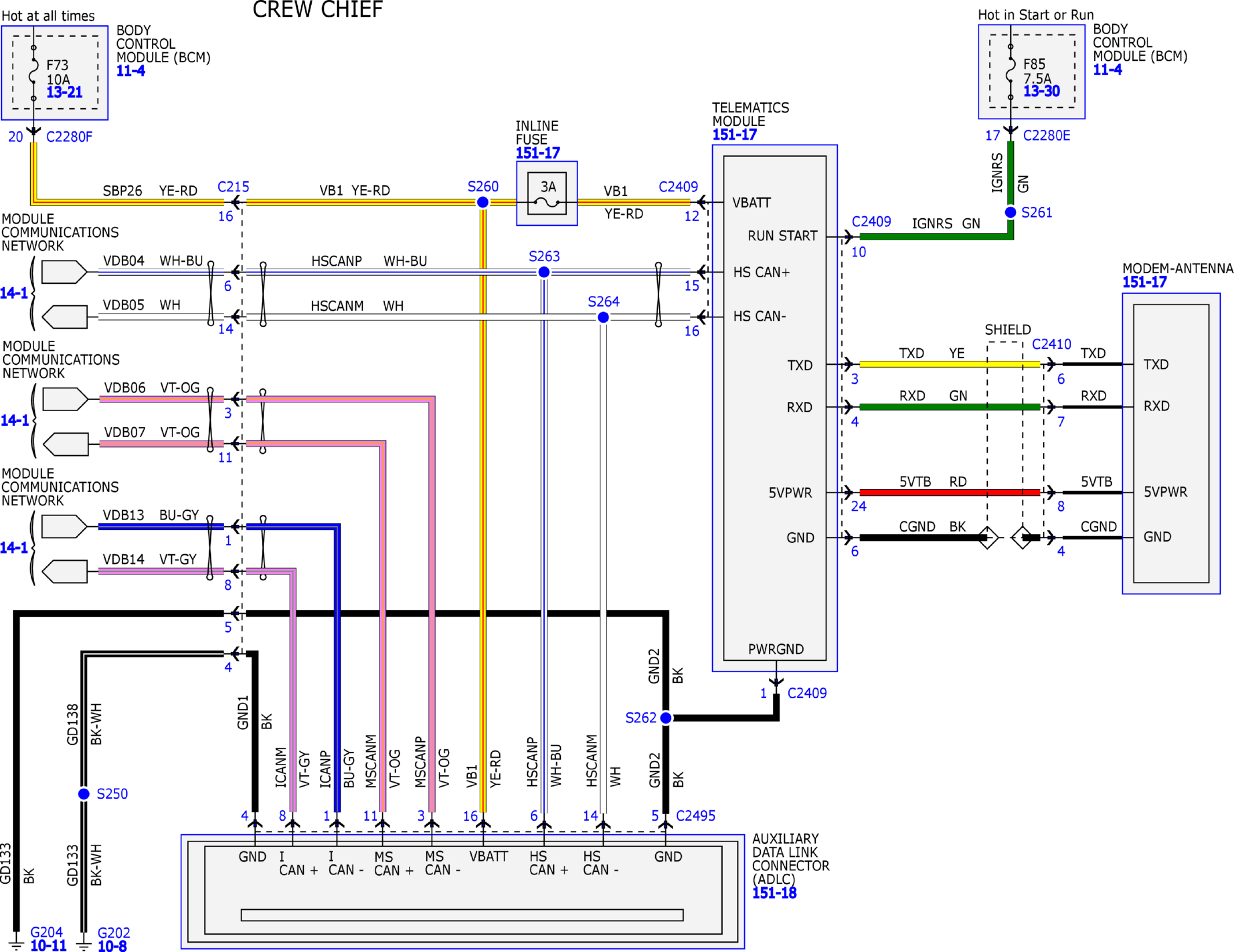

Fig 1: Ford Work Solutions System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
