Climate Controlled Seats System

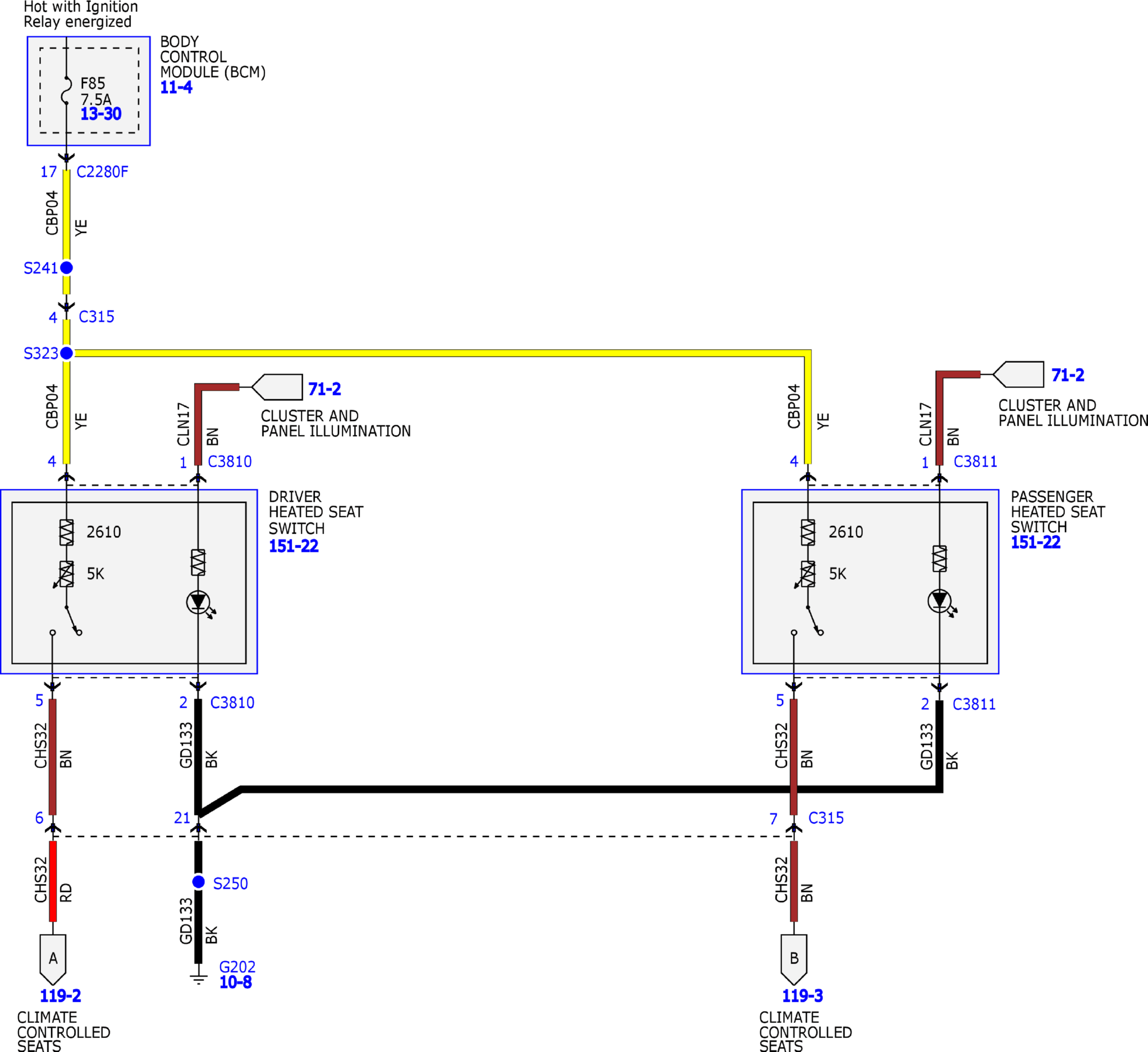

Fig 1: Climate Controlled Seats System Wiring Diagrams (1 Of 3)
GFDW17023Courtesy of FORD MOTOR COMPANY

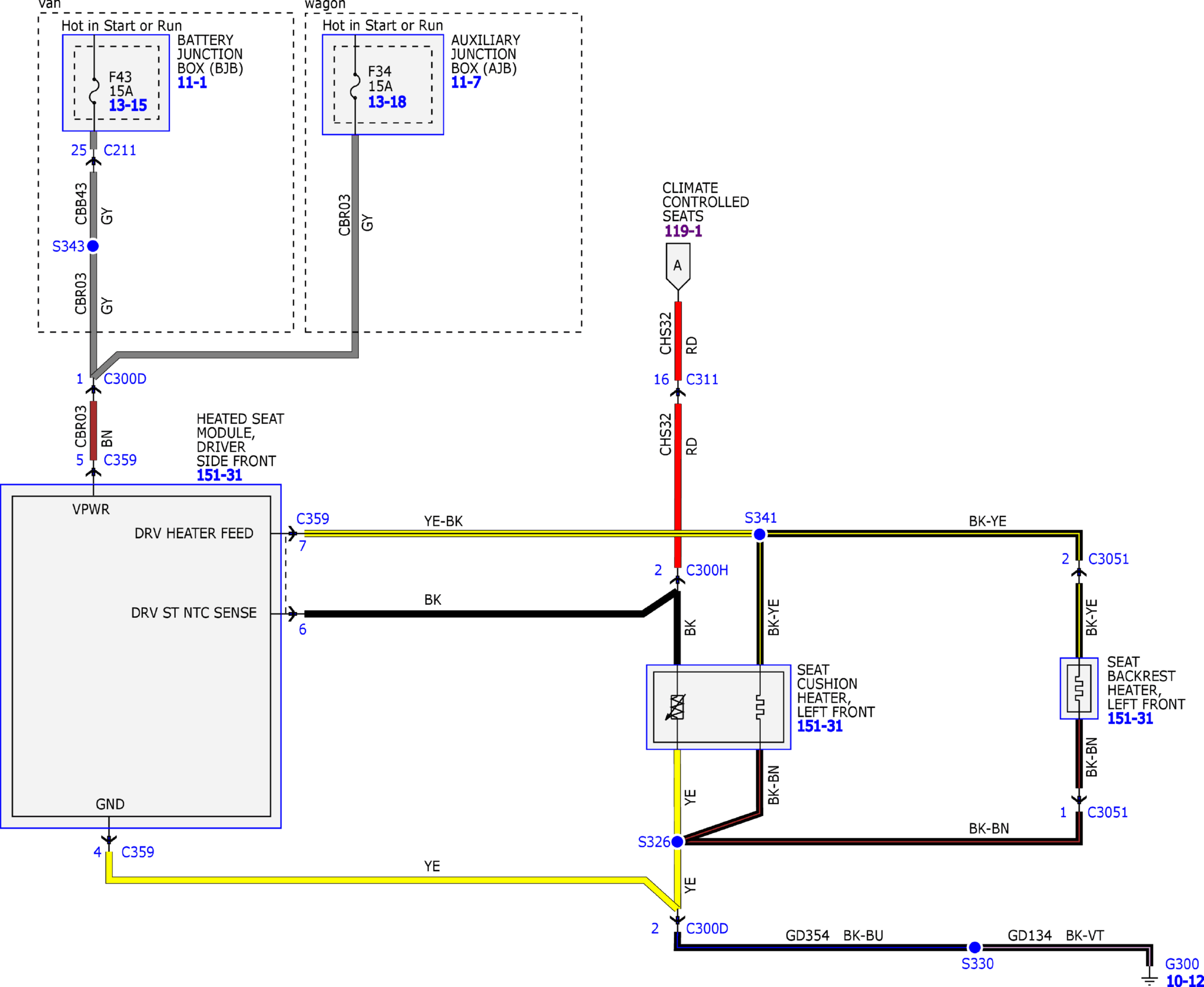

Fig 2: Climate Controlled Seats System Wiring Diagrams (2 Of 3)
GFDW17024Courtesy of FORD MOTOR COMPANY
Fig 3: Climate Controlled Seats System Wiring Diagrams (3 Of 3)
GFDW17025Courtesy of FORD MOTOR COMPANY
