Auxiliary Climate Control System
Auxiliary Climate Control System

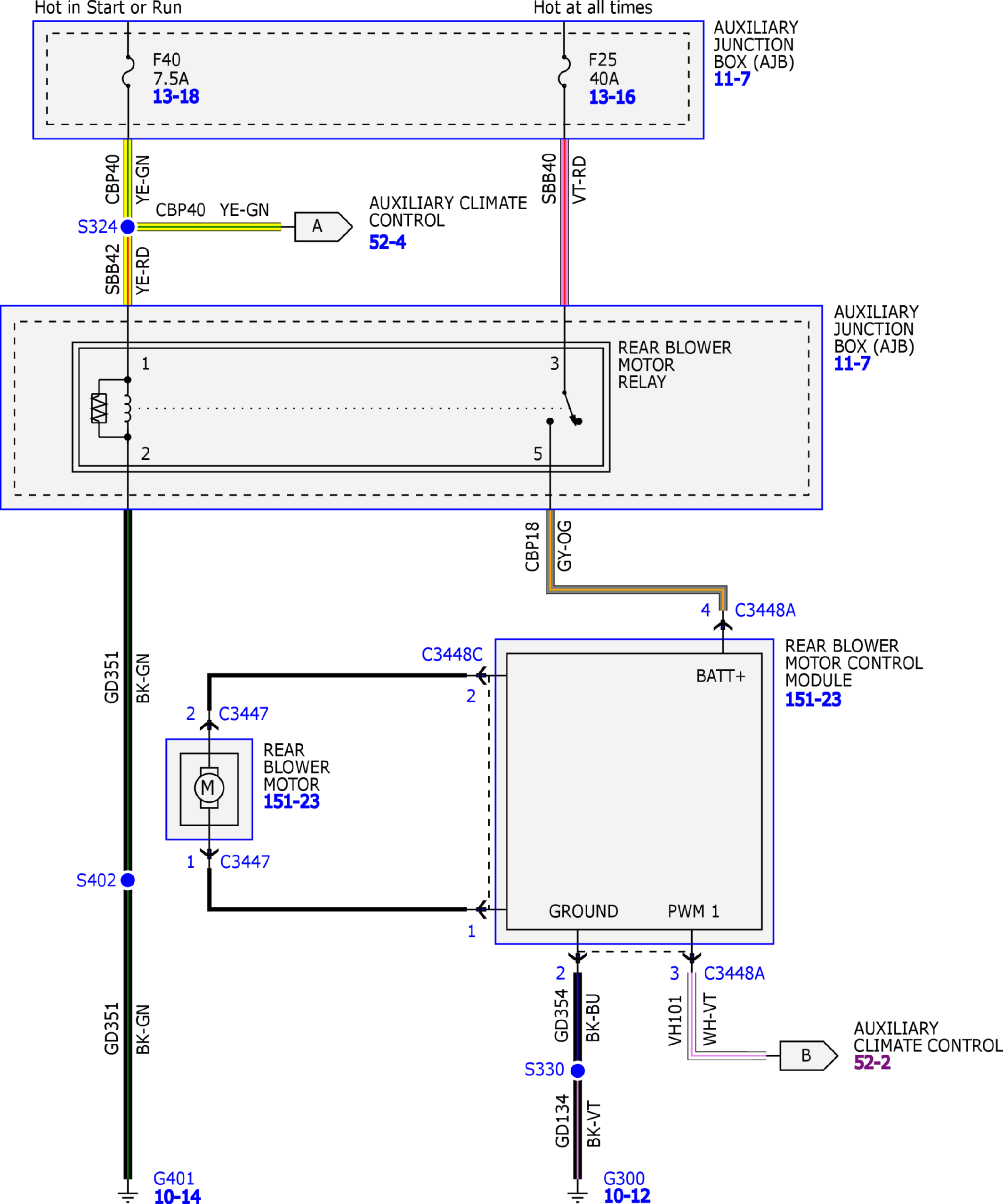

Fig 1: Auxiliary Climate Control System Wiring Diagrams (1 Of 5)
Courtesy of FORD MOTOR COMPANY

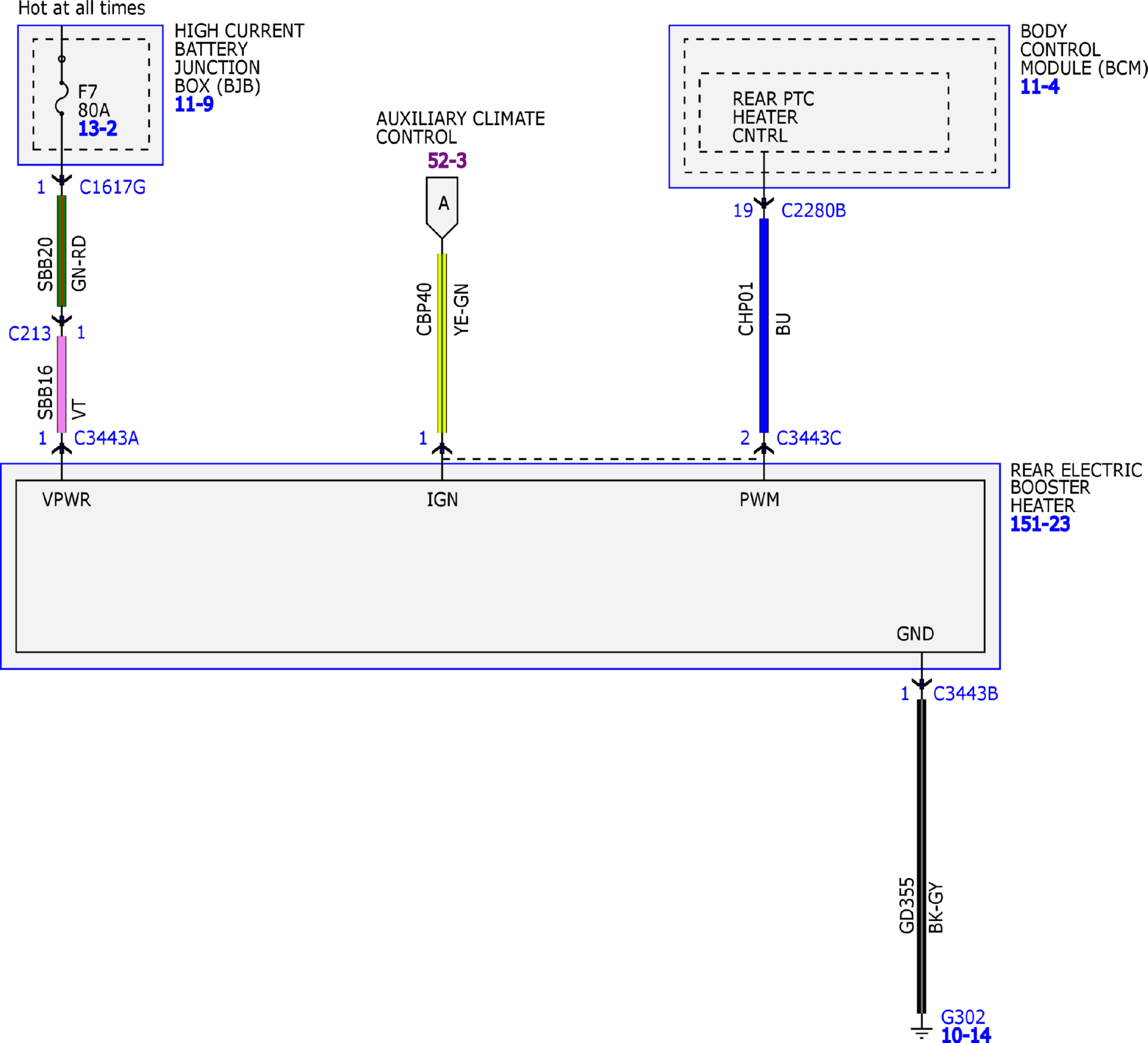

Fig 2: Auxiliary Climate Control System Wiring Diagrams (2 Of 5)
Courtesy of FORD MOTOR COMPANY

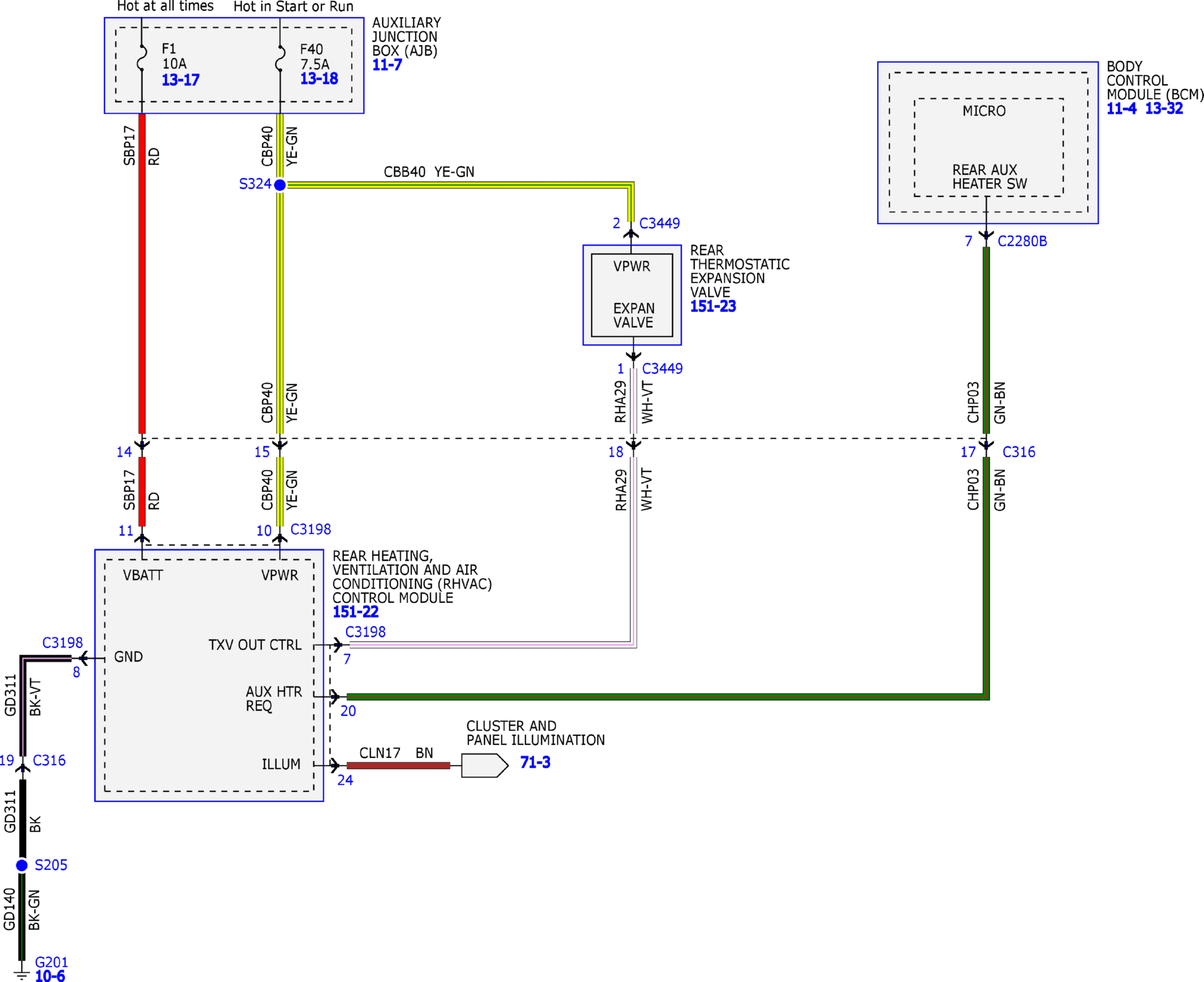

Fig 3: Auxiliary Climate Control System Wiring Diagrams (3 Of 5)
Courtesy of FORD MOTOR COMPANY

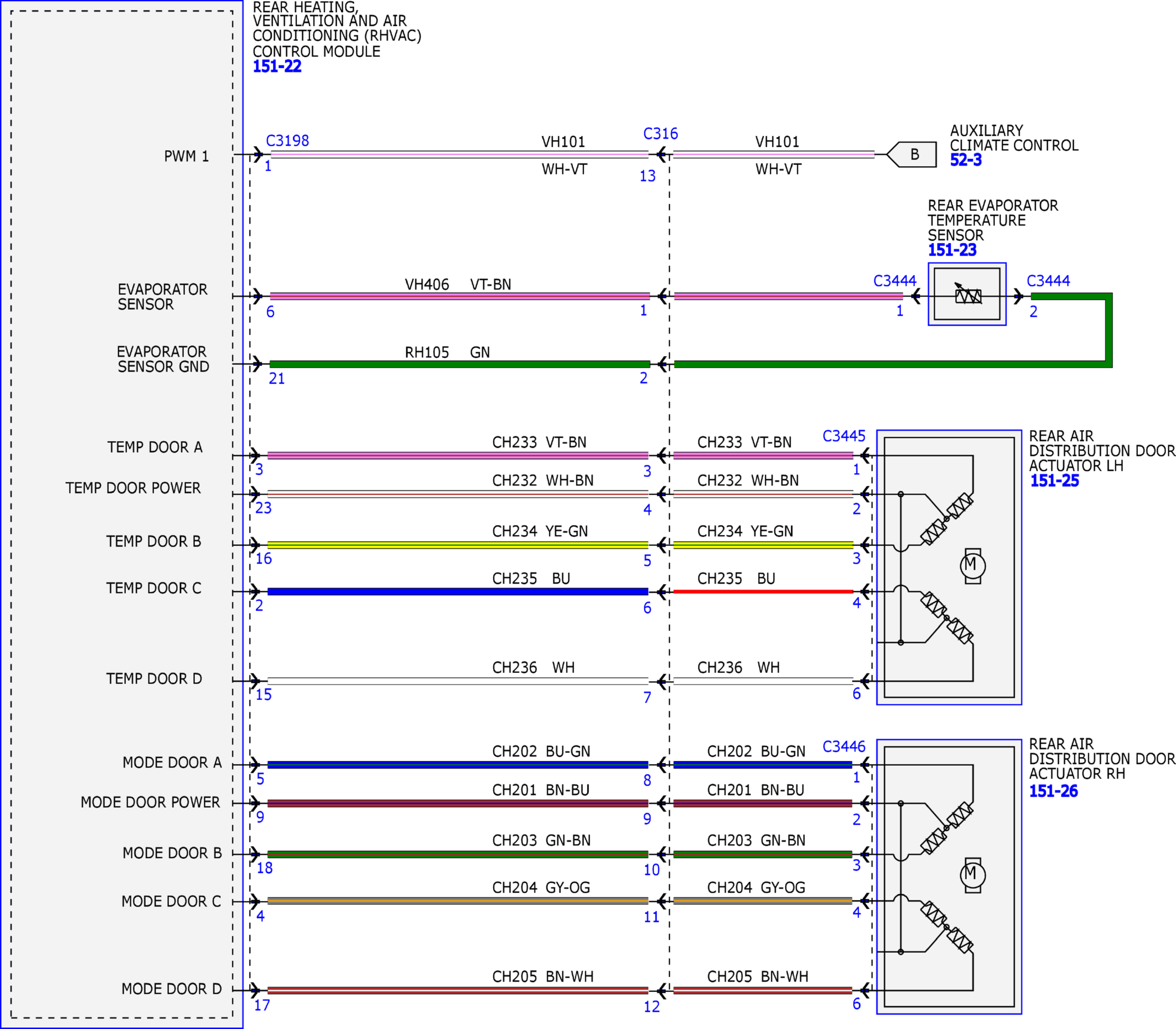

Fig 4: Auxiliary Climate Control System Wiring Diagrams (4 Of 5)
Courtesy of FORD MOTOR COMPANY

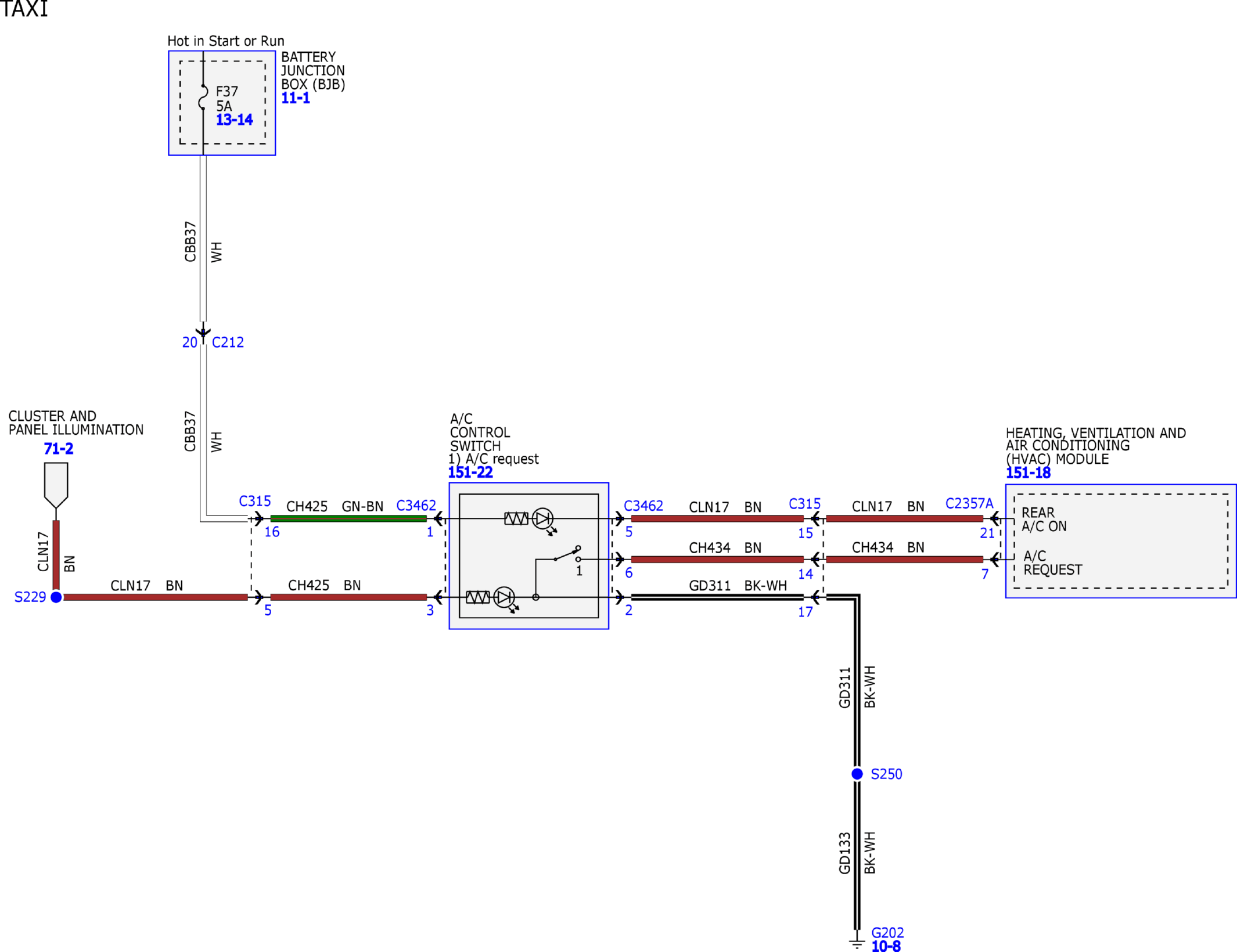

Fig 5: Auxiliary Climate Control System Wiring Diagrams (5 Of 5)
Courtesy of FORD MOTOR COMPANY
