Driver Coor Window Control Switch - Without Door Modules 4 Way

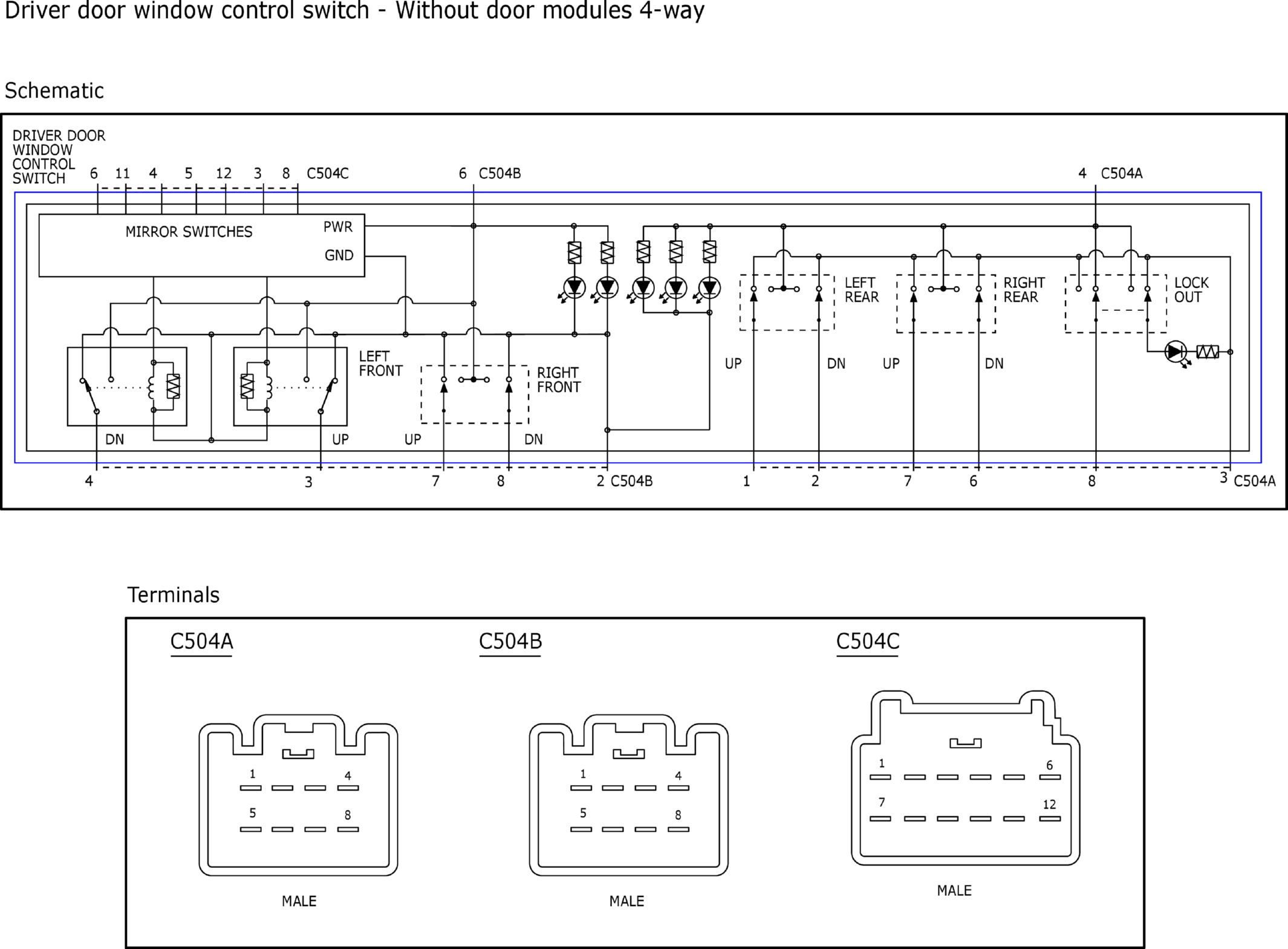

Fig 1: Driver Coor Window Control Switch - Without Door Modules 4 Way (1 Of 2)
GFDW17266Courtesy of FORD MOTOR COMPANY
Fig 2: Driver Coor Window Control Switch - Without Door Modules 4 Way (2 Of 2)
GFDW17267Courtesy of FORD MOTOR COMPANY
