Fuse And Relay Location

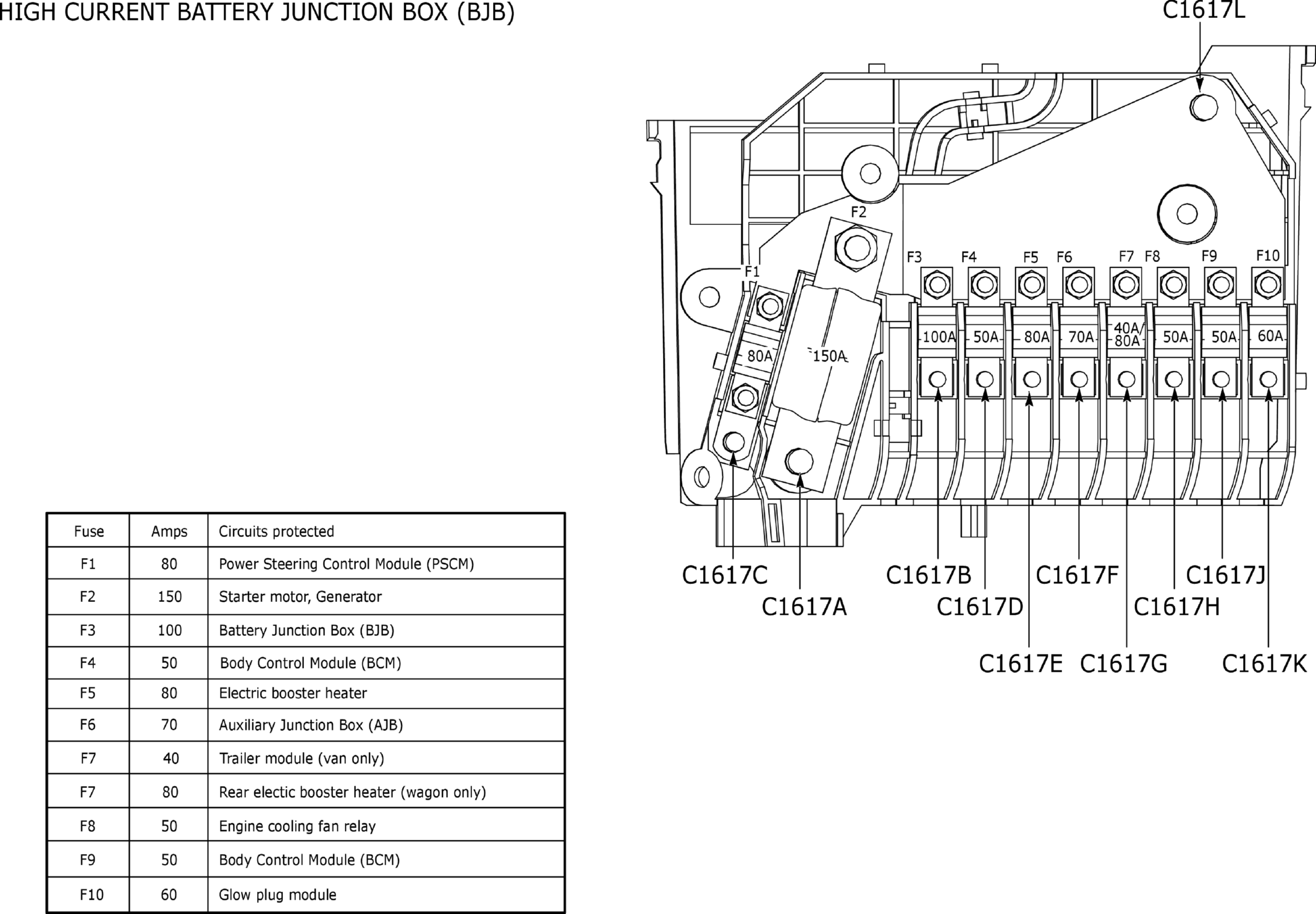

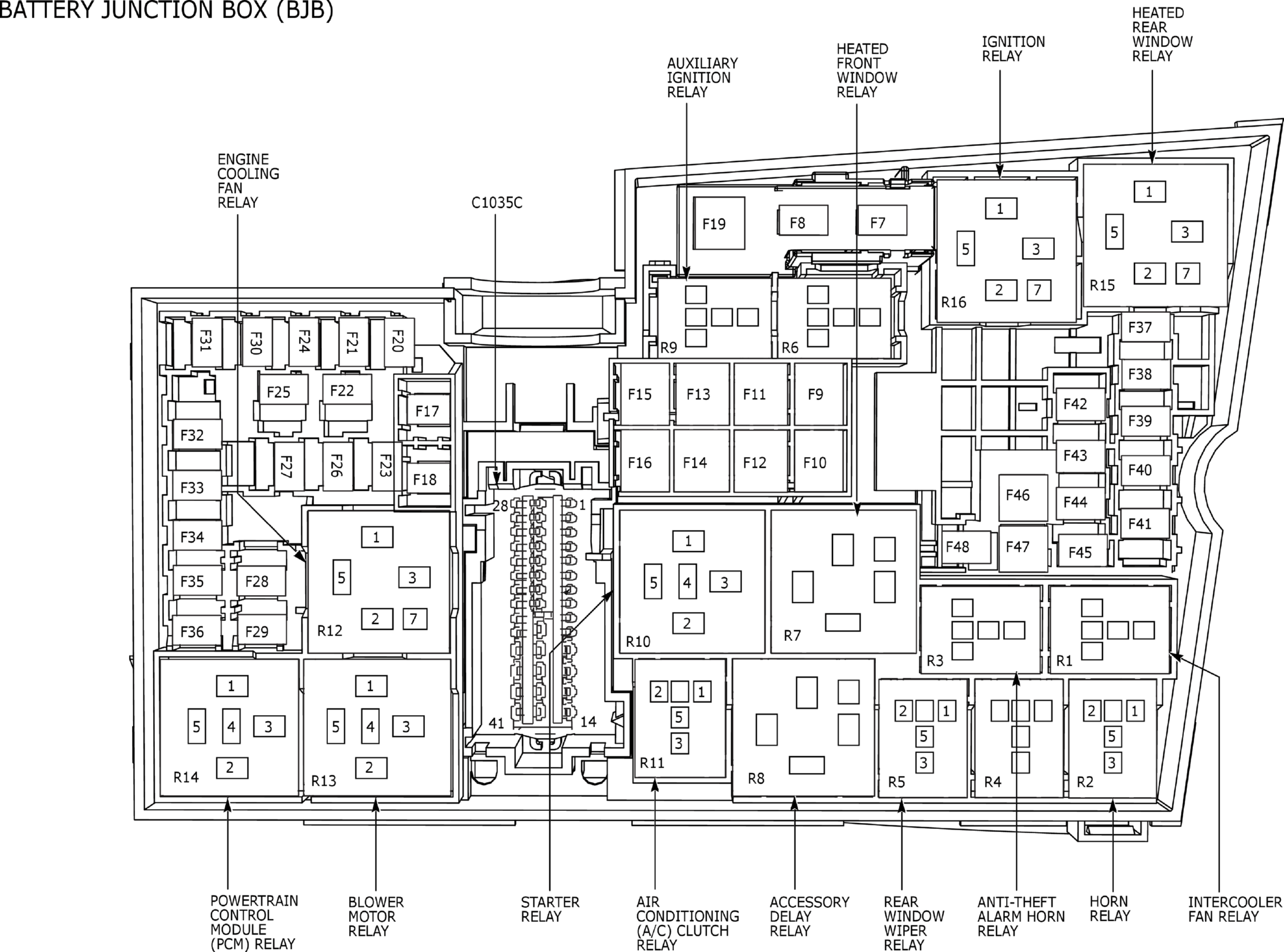

BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| R12 | Engine Cooling Fan Relay |
| R9 | Auxiliary Ignition Relay |
| R7 | Heated Front Window Relay |
| R16 | Ignition Relay |
| R15 | Heated Rear Window Relay |
| R1 | Intercooler Fan Relay |
| R2 | Horn Relay |
| R4 | Anti-Theft Alarm Horn Relay |
| R5 | Rear Window Wiper Relay |
| R8 | Accessory Delay Relay |
| R11 | Air Conditioning (A/C) Clutch Relay |
| R10 | Starter Relay |
| R13 | Blower Motor Relay |
| R14 | Powertrain Control Module (PCM) Relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | - | Not used |
| F4 | - | Not used |
| F5 | - | Not used |
| F6 | - | Not used |
| F7 | 40 | Anti-lock Brake System (ABS) module |
| F8 | 30 | Anti-lock Brake System (ABS) module |
| F9 | 30 | Heated rear window relay |
| F10 | 40 | Blower motor relay |
| F11 | 20 | Rear passenger power outlet socket, Luggage compartment power outlet socket |
| F12 | 30 | Powertrain Control Module (PCM) Relay |
| F13 | 30 | Starter relay |
| F14 | 40 | Heated windshield element RH |
| F15 | 25 | Intercooler fan relay, Luggage compartment power outlet socket |
| F16 | 40 | Heated windshield element LH |
| F17 | 20 | Front power outlet socket |
| F18 | 20 | IP compartment power outlet socket |
| F19 | 5 | Anti-lock Brake System (ABS) module |
| F20 | 15 | Horn relay |
| F21 | 5 | Brake Pedal Position (BPP) switch |
| F22 | 10 | Powertrain Control Module (PCM), Fuel injectors |
| F23 | 5 | Horn relay, Air Conditioning (A/C) clutch relay, Blower motor relay, Powertrain Control Module (PCM) relay, Heated window relays, Anti-theft alarm horn relay, Headlamp switch, Ignition relay, Accessory delay relay |
| F24 | 25 | Fuel fired booster heater module |
| F25 | 10 | Driver door window control switch |
| F26 | 5 | Powertrain Control Module (PCM) |
| F27 | 15 | Air Conditioning (A/C) clutch relay |
| F28 | 5/25 | DC to DC converter control module, Driver door window control switch |
| F29 | 25 | Driver and Passenger door window control switches |
| F30 | 5 | Auxiliary ignition relay |
| F31 | 10 | Anti-theft alarm horn relay |
| F32 | 10/15 | Powertrain Control Module (PCM), Coolant water pump, Manifold Absolute Pressure and Temperature (MAPT) sensor, Evaporative emission canister purge valve, Heated Oxygen Sensor (HO2S), Catalyst monitor sensor, Engine cooling fan relay, Exhaust Gas Recirculation (EGR) cooler bypass valve, Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor |
| F33 | 10/15 | Intake Manifold Tuning Valve (IMTV), Fuel volume control valve, Air Conditioning (A/C) compressor control solenoid, Water-in-fuel sensor, Heated Oxygen Sensors, Evaporative emission canister purge valve, Intake Variable Camshaft Timing (VCT) oil control solenoid, Exhaust Variable Camshaft Timing (VCT) oil control solenoid, Evap canister vent control solenoid, Ignition coils, Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor, EGR stepper motor |
| F34 | 10 | Engine cooling fan relay, Coolant bypass valve, Engine coolant valve, Transmission fluid warmer temperature control valves, Turbocharger (TC) wastegate regulating valve solenoid, Turbocharger Bypass (TCBY) valve, Air Conditioning (A/C) compressor control solenoid, Oil pressure control solenoid, Intake Variable Camshaft Timing {VCT) oil control solenoid, Exhaust Variable Camshaft Timing (VCT) oil control solenoid, Heated Oxygen Sensor (HO2S) |
| F35 | 5/15 | Intercooler fan relay, Active grille shutter, Fuel heater, Ignition coil-on-plugs, Ignition transformer capacitor |
| F36 | 5/10 | Powertrain Control Module (PCM), Active grille shutter |
| F37 | 5 | Parking Assist Control Module (PAM) |
| F38 | 15 | Powertrain Control Module (PCM), Floor shifter |
| F39 | 5 | Headlamp assembly RH, Headlamp assembly LH |
| F40 | 5 | Power Steering Control Module (PSCM) |
| F41 | 20 | Body Control Module (BCM) |
| F42 | 15 | Rear window wiper relay, Rear window wiper motors |
| F43 | 15/25 | Heated seat modules, Taxi roof lamp switch |
| F44 | 15 | Adaptive front lighting module |
| F45 | 10 | Windshield heated washer jets |
| F46 | 40 | Windshield wiper motor, Auxiliary windshield wiper motor |
| F47 | 7.5 | Exterior mirrors |
| F48 | 25 | Body Control Module (BCM) |

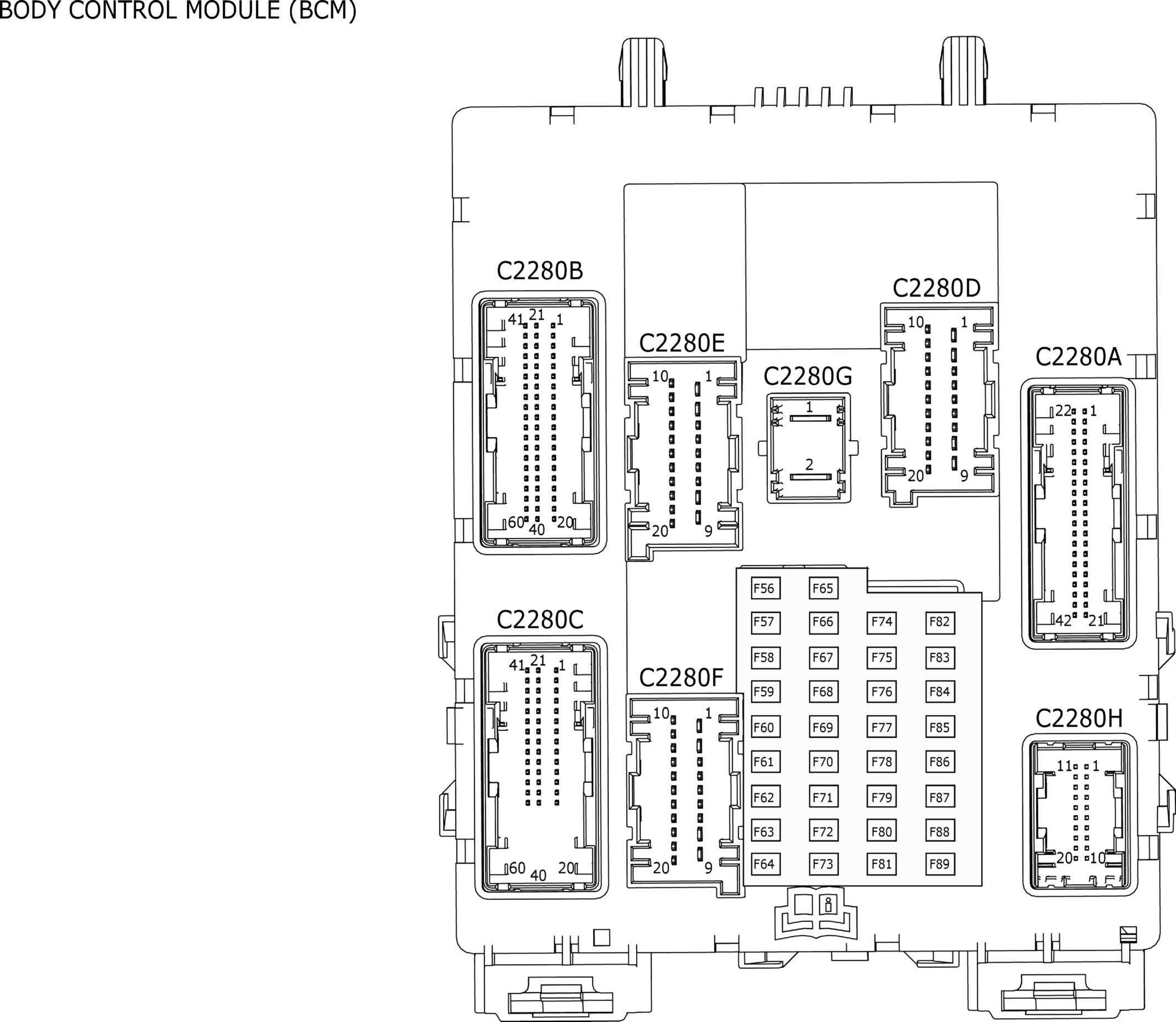

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F56 | 20 | Fuel pump relay |
| F57 | - | Not used |
| F58 | - | Not used |
| F59 | 5 | Passive Anti-Theft System (PATS) transceiver |
| F60 | 10 | Master window control switch, Luggage compartment lamps, Battery saver relay, Front interior lamps, Rear interior lamps, Glove compartment lamp |
| F61 | - | Not used |
| F62 | 5 | Auto-dimming interior mirror, Rear view camera display mirror, Autolamp and rain sensor |
| F63 | 10 | Not used |
| F64 | - | Not used |
| F65 | 10 | RCD/Liftgate release relay |
| F66 | 20 | Lock relays |
| F67 | 7.5 | Front Control/Display Interface Module (FCDIM), Global Positioning System Module (GPSM), SYNC module [APIM] |
| F68 | - | Not used |
| F69 | 5 | Instrument Panel Cluster (IPC) |
| F70 | 20 | Lock relays |
| F71 | 10 | Electronic Automatic Temperature Control (EATC) module, Heating, Ventilation and Air Conditioning (HVAC) control module |
| F72 | 7.5 | Steering Angle Sensor Module (SASM) |
| F73 | 7.5/10 | Data Link Connector (DLC), Auxiliary Data Link Connector (ADLC), Anti-theft alarm horn with integral battery |
| F74 | 15 | High beam relay |
| F75 | 15 | Front fog lamp relay |
| F76 | 10 | Reversing lamp relay |
| F77 | 20 | Front washer pump relay, Rear washer pump relay |
| F78 | 5 | Ignition switch |
| F79 | 15 | Audio Front Control Module (ACM), Front Controls Interface Module (FCIM) |
| F80 | 20 | Spare |
| F81 | 5 | Intrusion sensor, Glass roof panel blind module |
| F82 | 20 | Front washer pump relay, Rear washer pump relay |
| F83 | 20 | Central lock relay |
| F84 | 20 | Lock relays |
| F85 | 7.5 | Audio Front Control Module (ACM), In-vehicle temperature/humidity sensor, Heating, Ventilation and Air Conditioning (HVAC) module, Electric booster heater, DC to DC converter control module, Heated seat switches, Auxiliary Data Link Connector (ADLC) |
| F86 | 10 | Restraints Control Module (RCM), Front Controls Interface Module (FCIM), Passenger Airbag Deactivation (PAD) indicator, Occupant Classification System Module (OCSM) |
| F87 | - | Not used |
| F88 | 25 | F67 (BCM), F69 (BCM), F71 (BCM), F79 (BCM) |
| F89 | - | Not used |

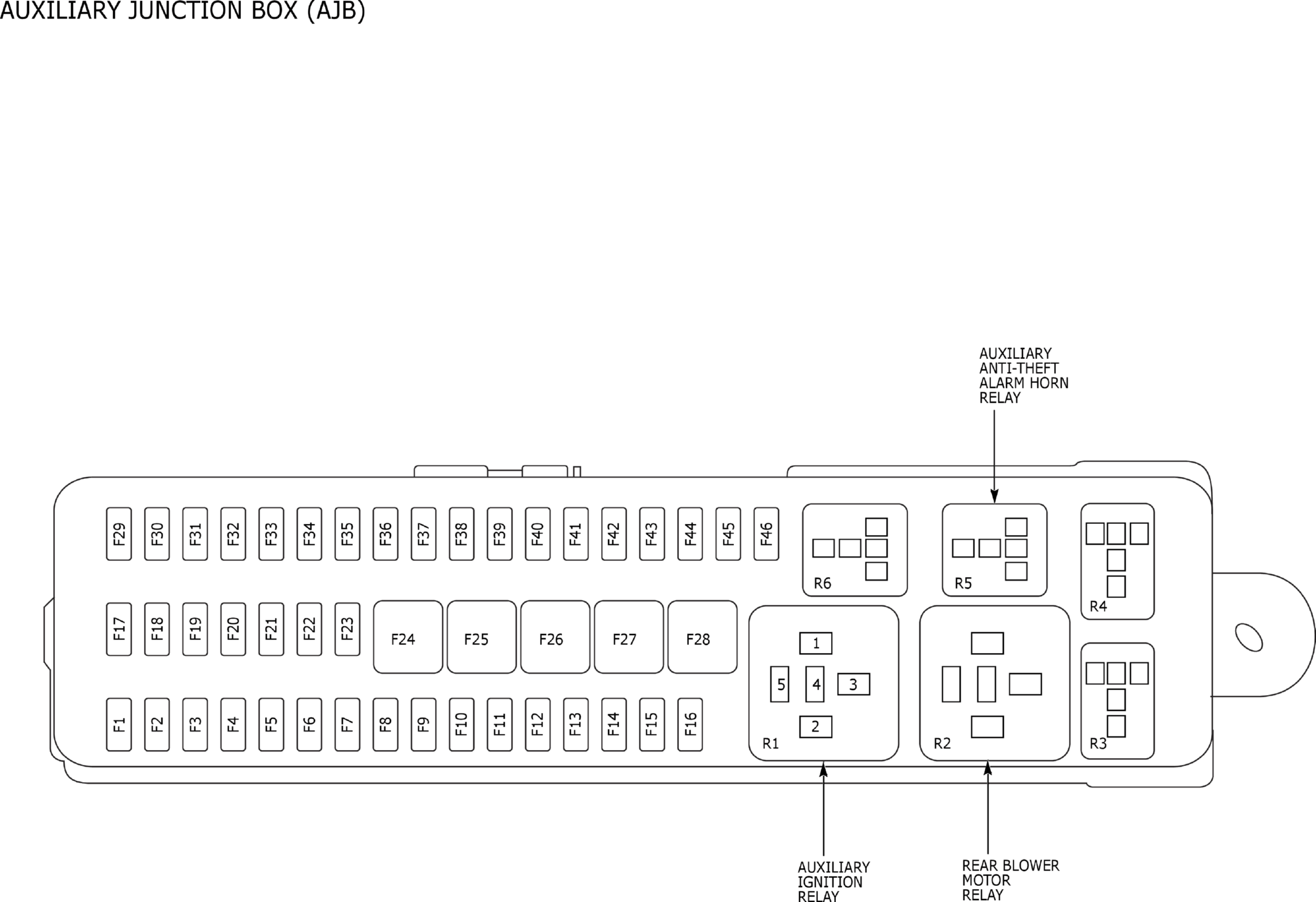

AUXILIARY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| R5 | Auxiliary Anti-Theft Alarm Horn Relay |
| R2 | Rear Blower Motor Relay |
| R1 | Auxiliary Ignition Relay |
AUXILIARY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Rear Heating, Ventilation and Air Conditioning (RHVAC) control module assembly |
| F2 | 25 | Power seat switch, left |
| F3 | 25 | Driver Door Module (DDM) |
| F4 | 25 | Passenger Door Module (PDM) |
| F5 | - | Not used |
| F6 | 25 | Rear Door Module (RDM) LH |
| F7 | 25 | Rear Door Module (RDM) RH |
| F8 | 10 | Auxiliary anti-theft alarm horn relay |
| F9 | - | Not used |
| F10 | - | Not used |
| F11 | - | Not used |
| F12 | 10 | Heating, Ventilation and Air Conditioning (HVAC) control module, Electronic Automatic Temperature Control (EATC) module |
| F13 | 5 | Instrument Panel Cluster (IPC) |
| F14 | 7.5 | Global position system module (GPSM), SYNC module [APIM], Front Control/Display Interface Module (FCDIM) |
| F15 | 15 | Audio Front Control Module (ACM), Front Controls Interface Module (FCIM) |
| F16 | - | Not used |
| F17 | - | Not used |
| F18 | - | Not used |
| F19 | - | Not used |
| F20 | - | Not used |
| F21 | - | Not used |
| F22 | - | Not used |
| F23 | - | Not used |
| F24 | 20 | Luggage compartment power outlet socket |
| F25 | 40 | Rear blower motor relay |
| F26 | 40 | Trailer module |
| F27 | 30/40 | DC to DC converter control module, Block connector, Body Control Module (BCM) |
| F28 | 20 | Fuel fired booster heater module |
| F29 | 5 | DC to DC converter control module, Image Processing Module B (IPMB) |
| F30 | 5 | Parking Assist Control Module (PAM) |
| F31 | - | Not used |
| F32 | - | Not used |
| F33 | - | Not used |
| F34 | 15 | Heated seat module, driver side front |
| F35 | 15 | Heated seat module, passenger side front |
| F36 | - | Not used |
| F37 | 20 | Glass roof panel blind switch, Glass roof panel blind module |
| F38 | 10 | Block connector |
| F39 | - | Not used |
| F40 | 7.5 | Rear blower motor relay, Rear electric booster heater, Rear Heating, Ventilation and Air Conditioning (RHVAC) control module, Rear thermostatic expansion valve |
| F41 | 10 | Block connector |
| F42 | 20 | Block connector |
| F43 | - | Not used |
| F44 | - | Not used |
| F45 | - | Not used |
| F46 | - | Not used |
