Component Location Views

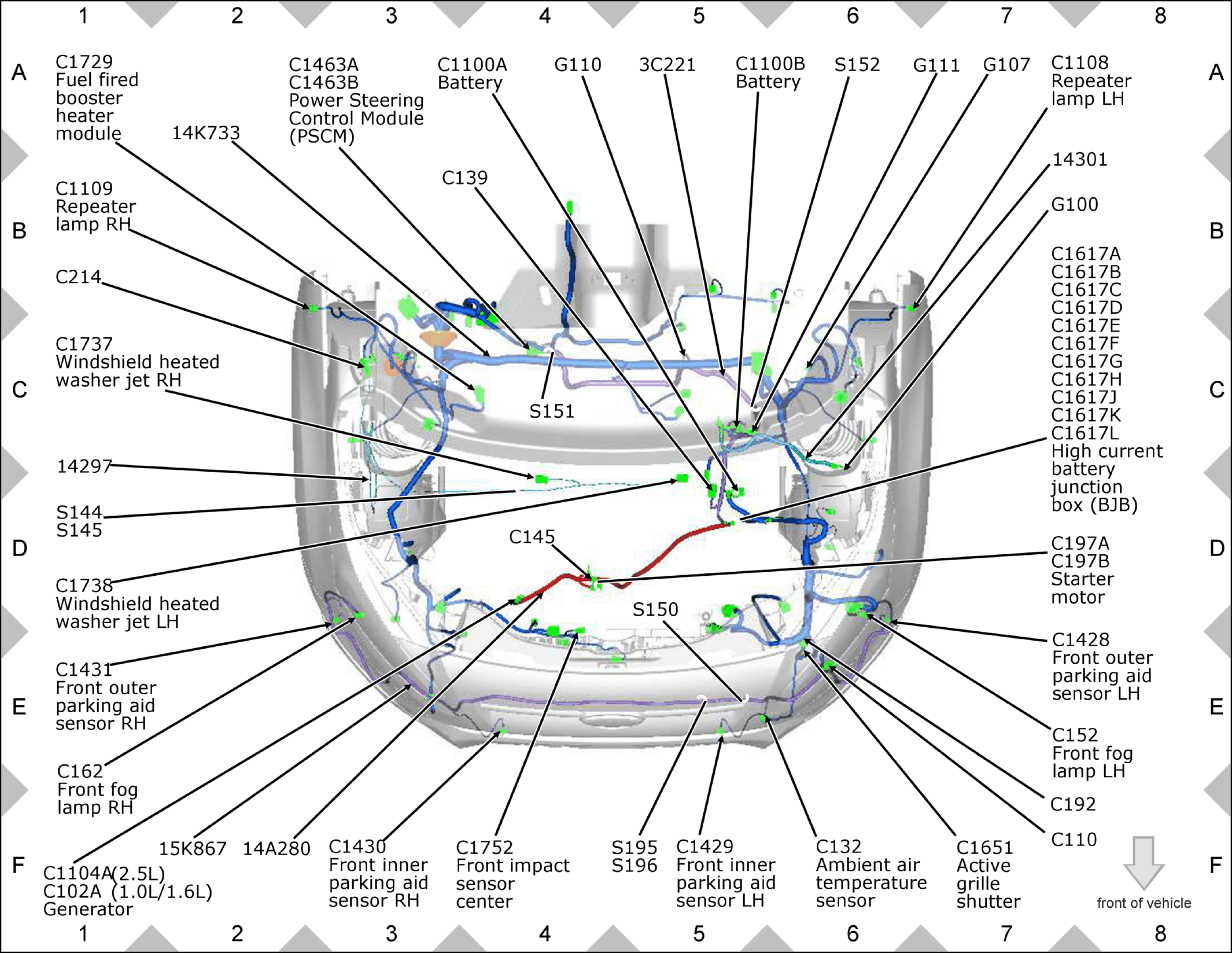

GFDW16233Courtesy of FORD MOTOR COMPANY

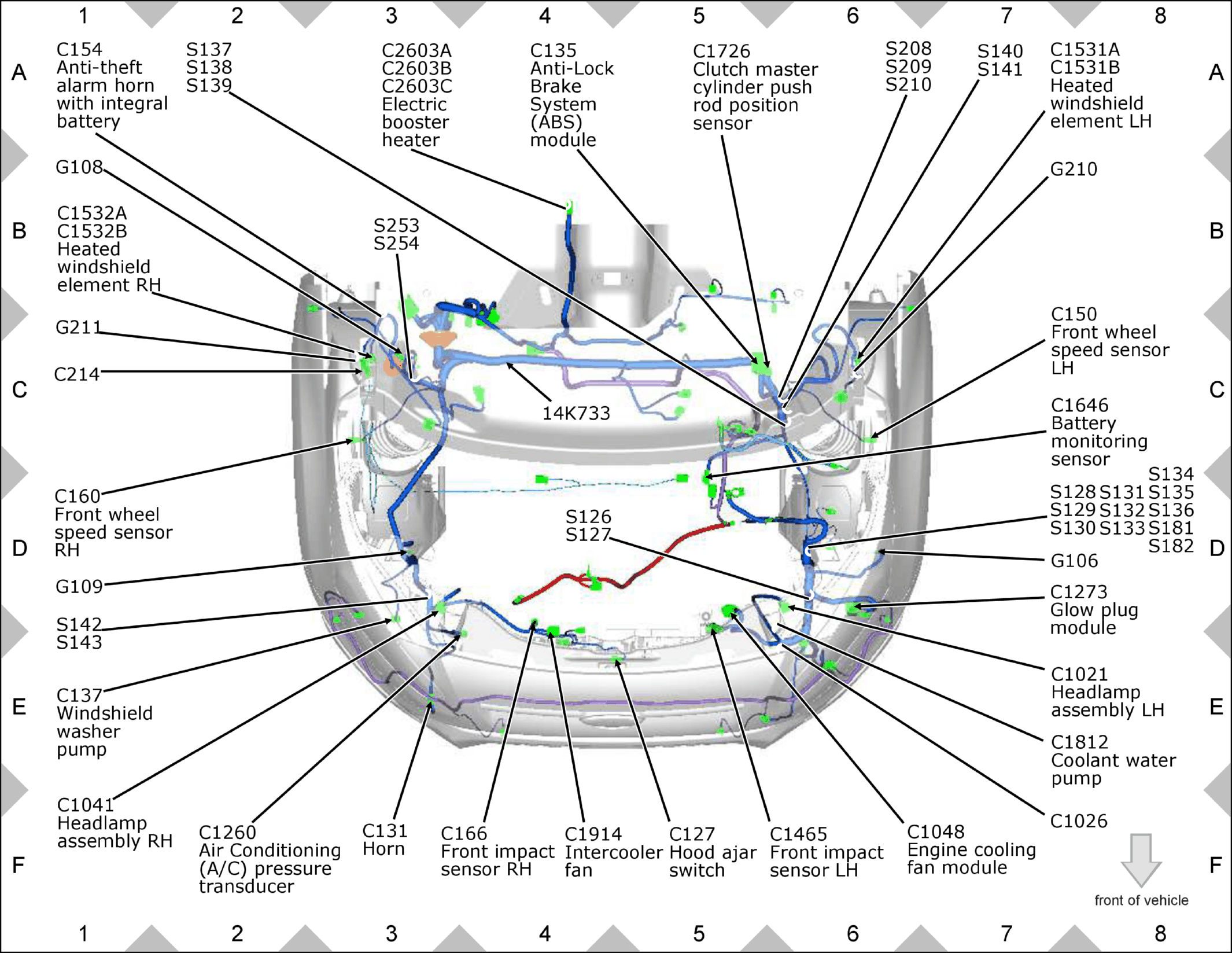

GFDW16234Courtesy of FORD MOTOR COMPANY

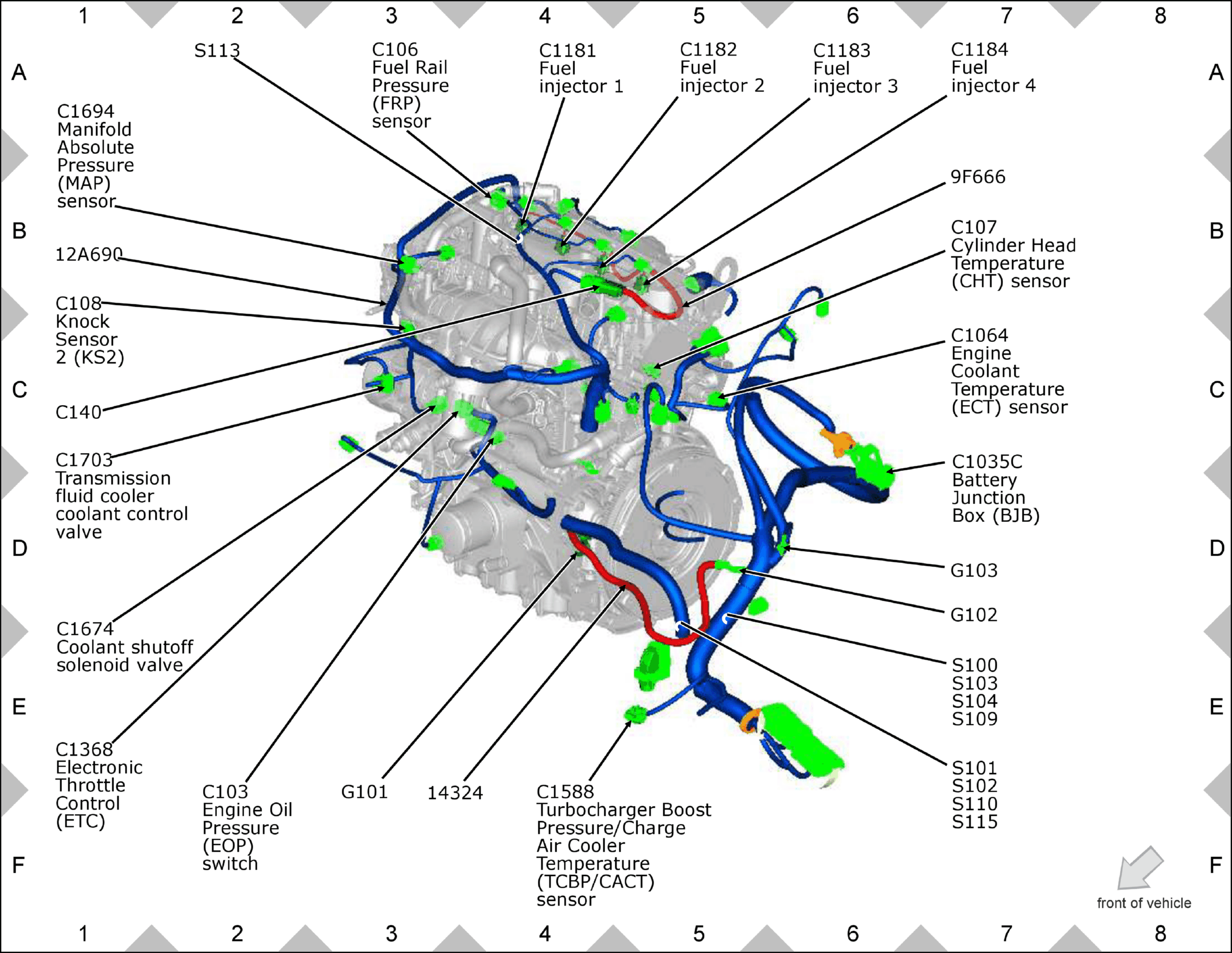

GFDW16235Courtesy of FORD MOTOR COMPANY

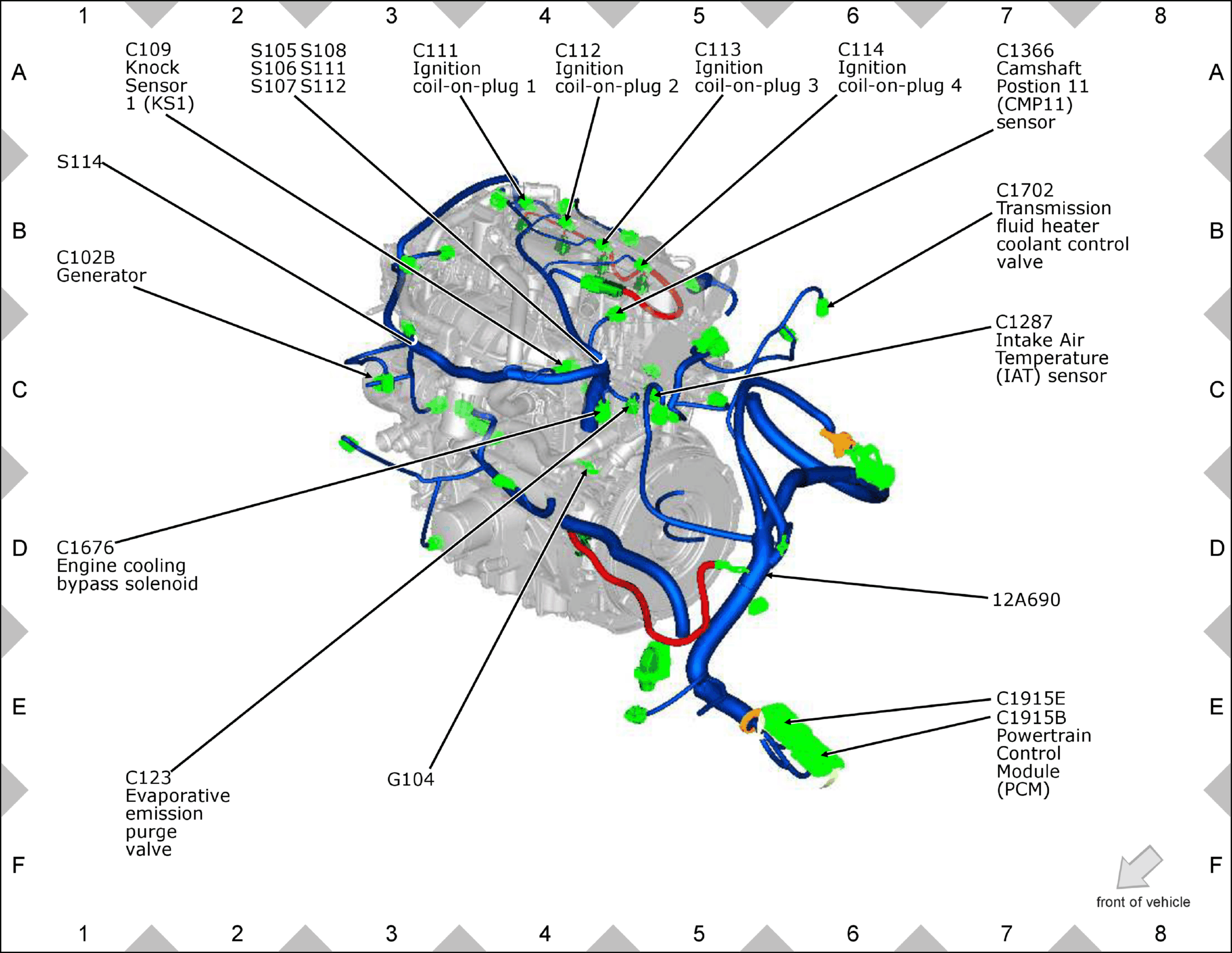

GFDW16236Courtesy of FORD MOTOR COMPANY

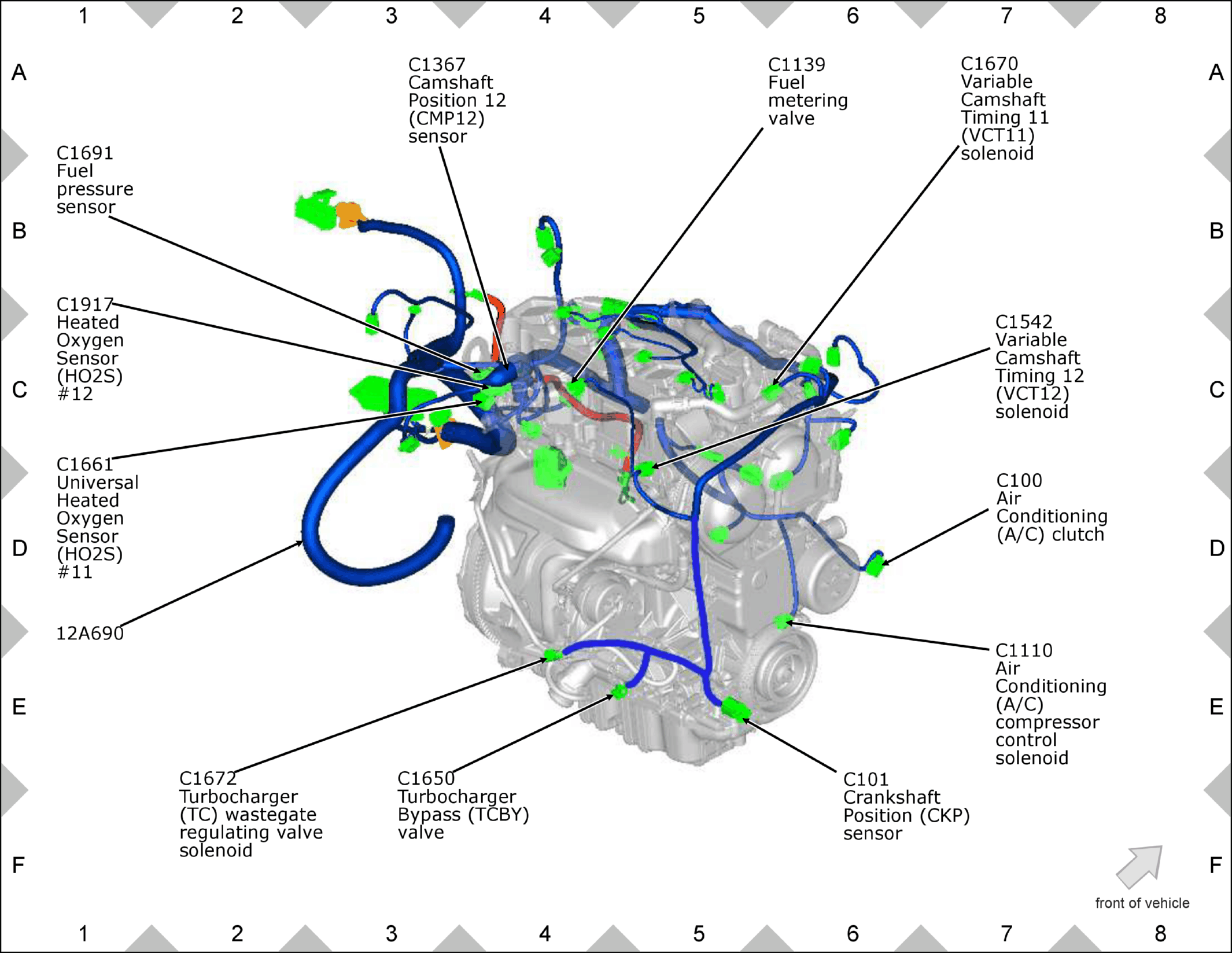

GFDW16237Courtesy of FORD MOTOR COMPANY

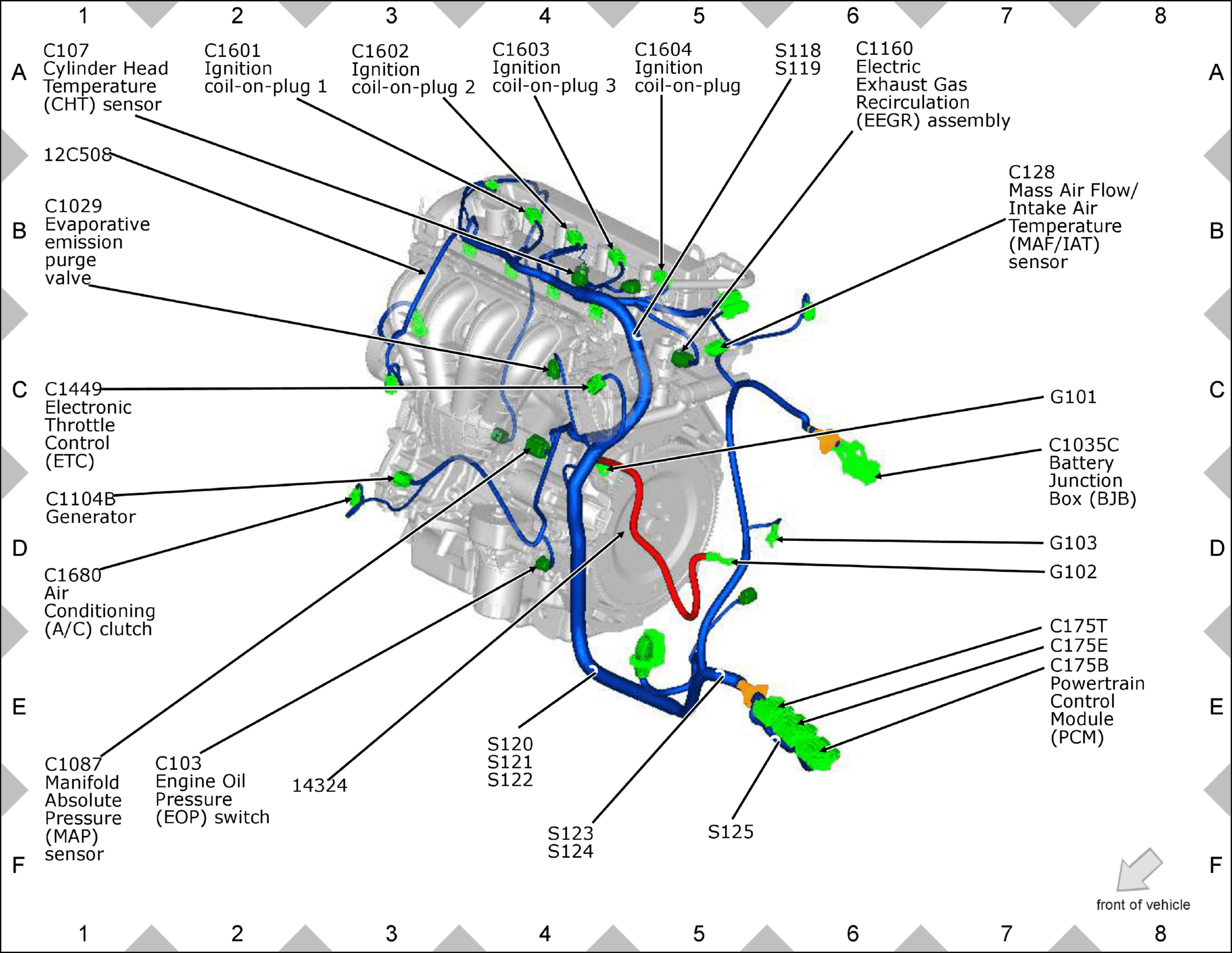

GFDW16238Courtesy of FORD MOTOR COMPANY

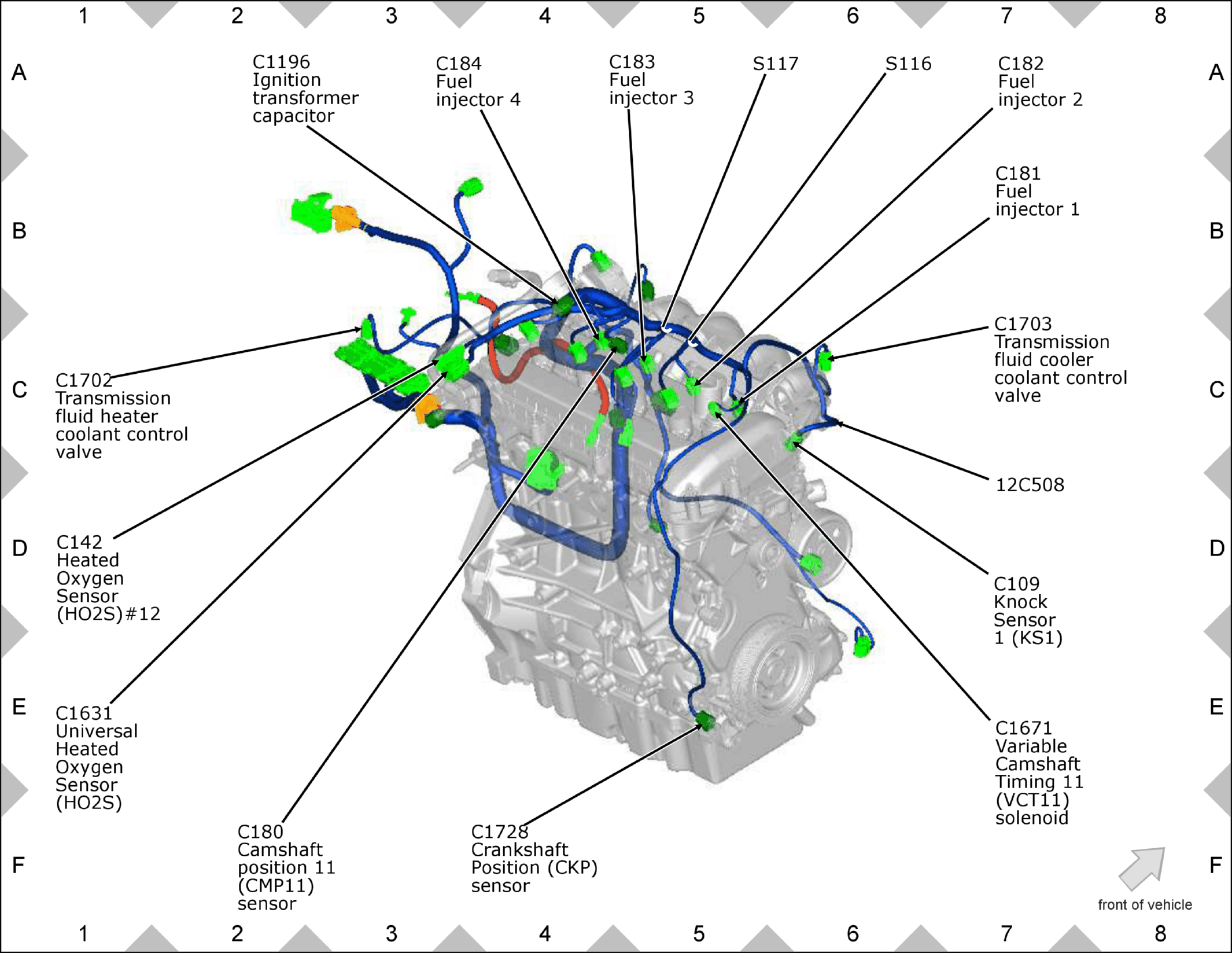

GFDW16239Courtesy of FORD MOTOR COMPANY

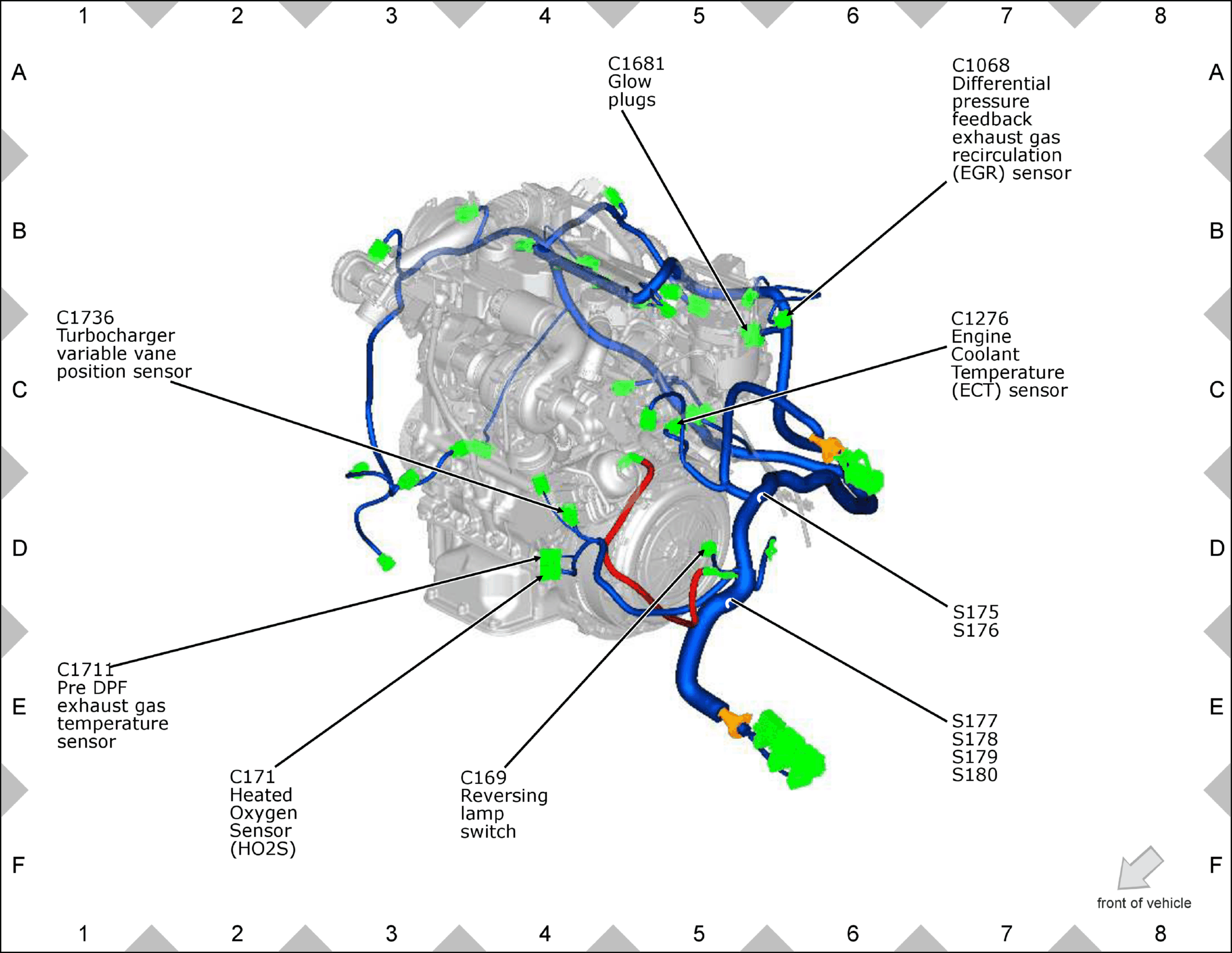

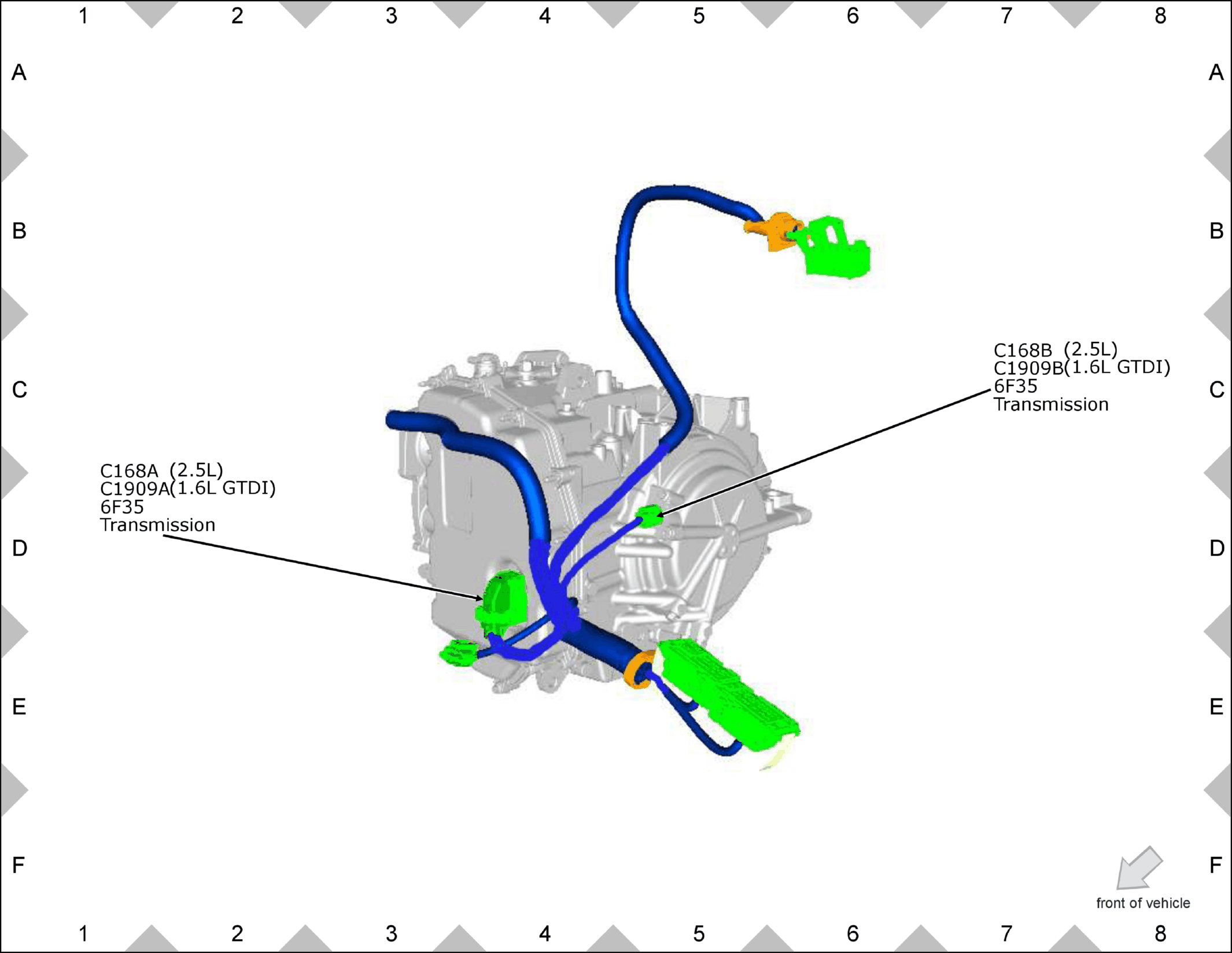

GFDW16240Courtesy of FORD MOTOR COMPANY

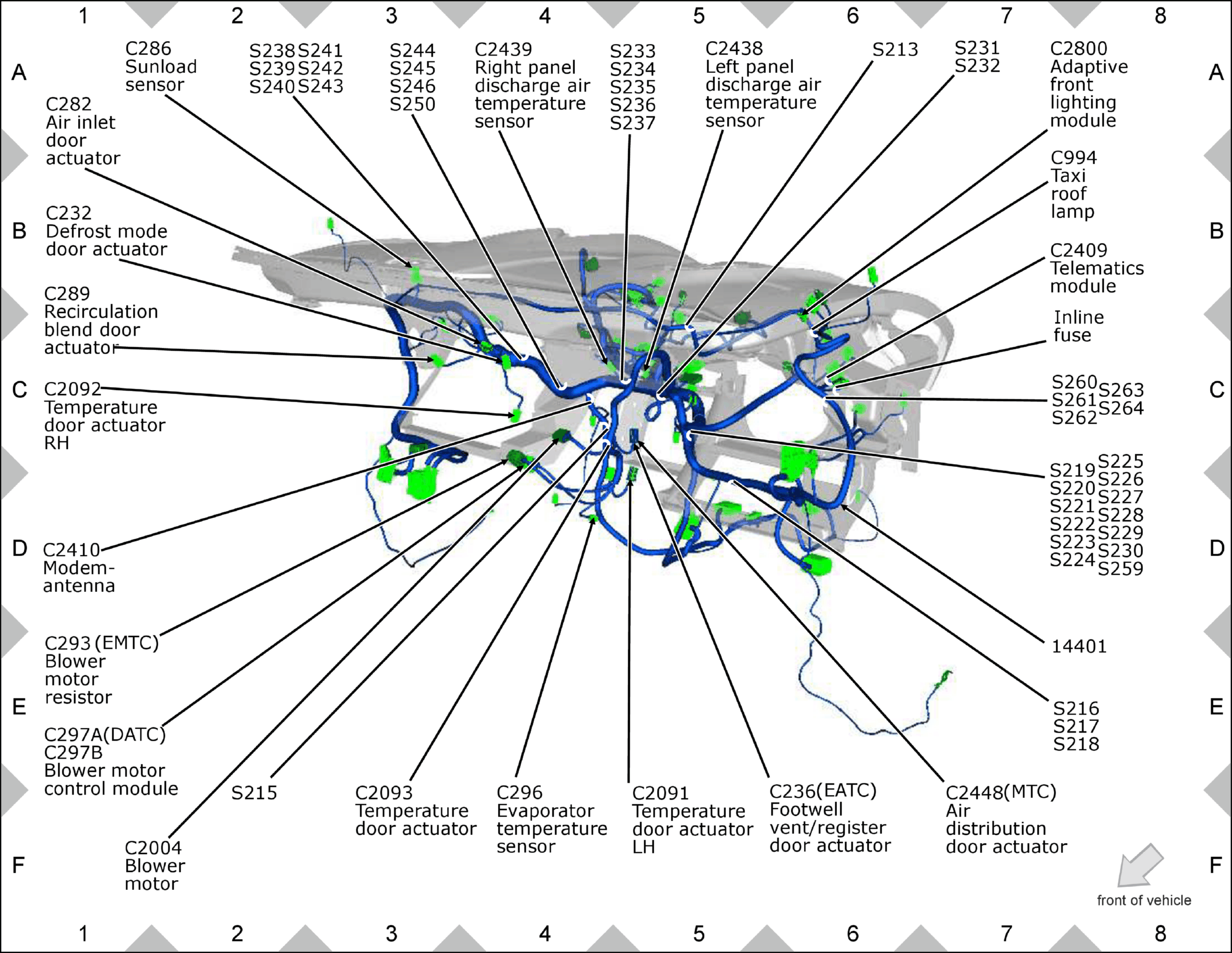

GFDW16241Courtesy of FORD MOTOR COMPANY

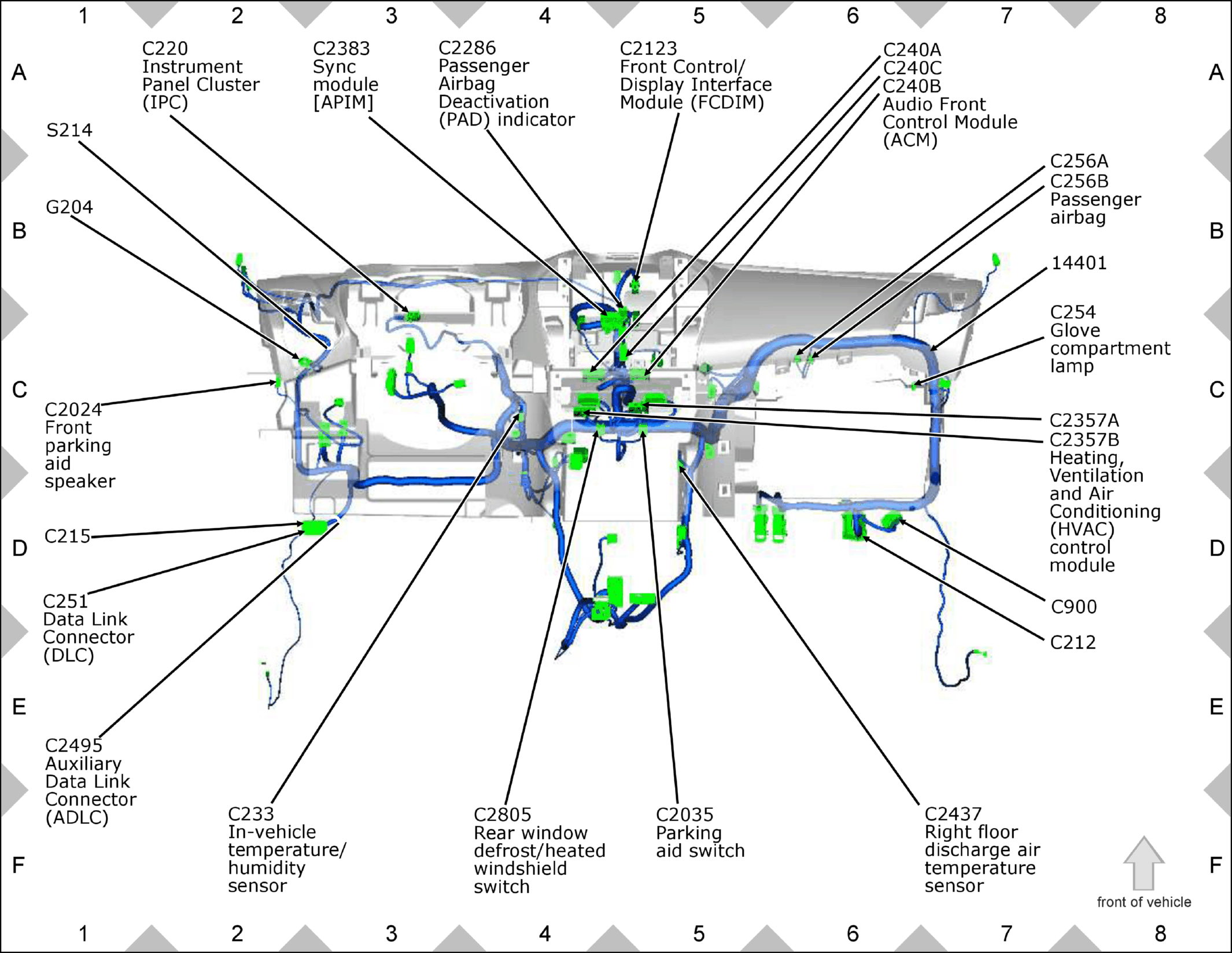

GFDW16242Courtesy of FORD MOTOR COMPANY

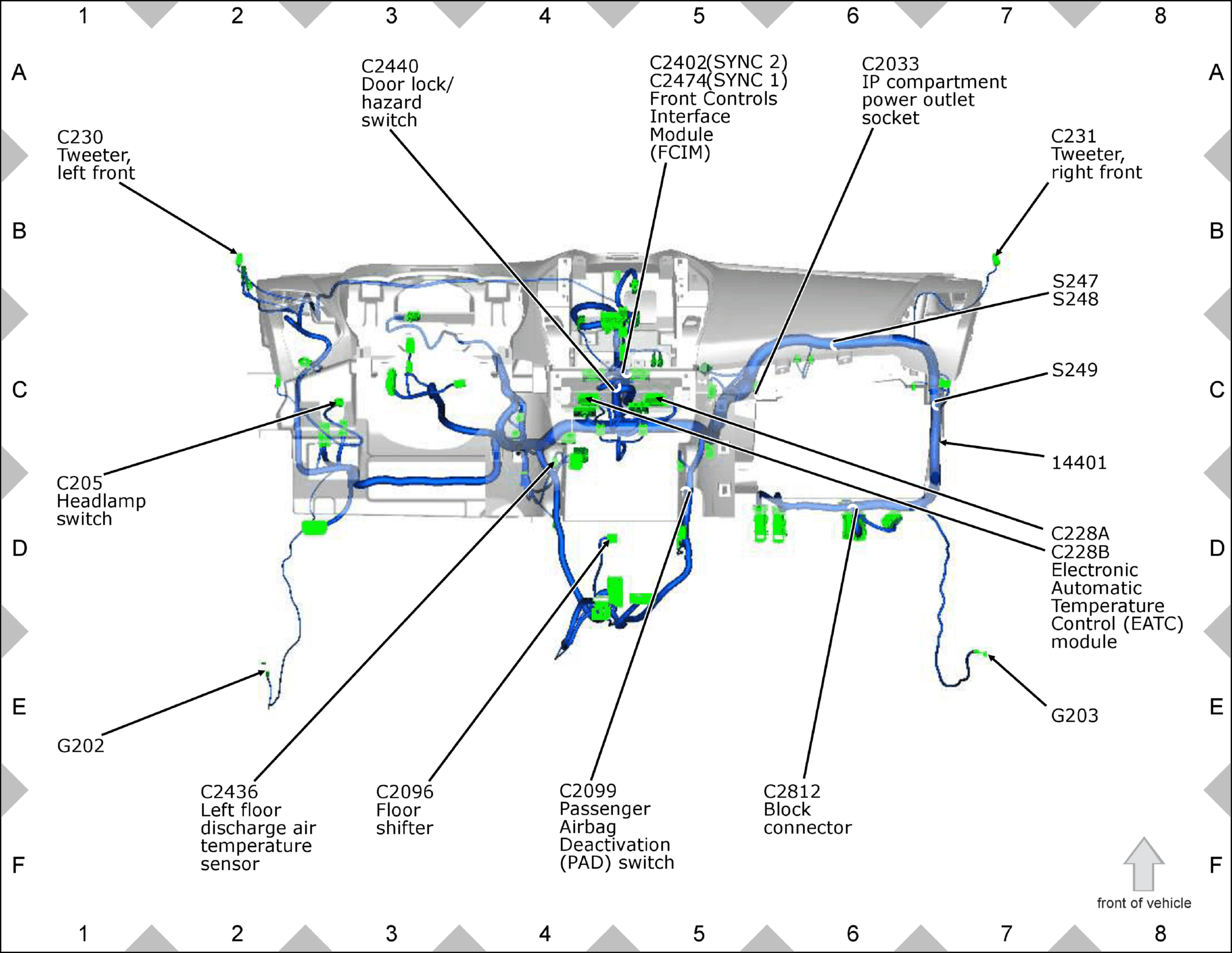

GFDW16243Courtesy of FORD MOTOR COMPANY

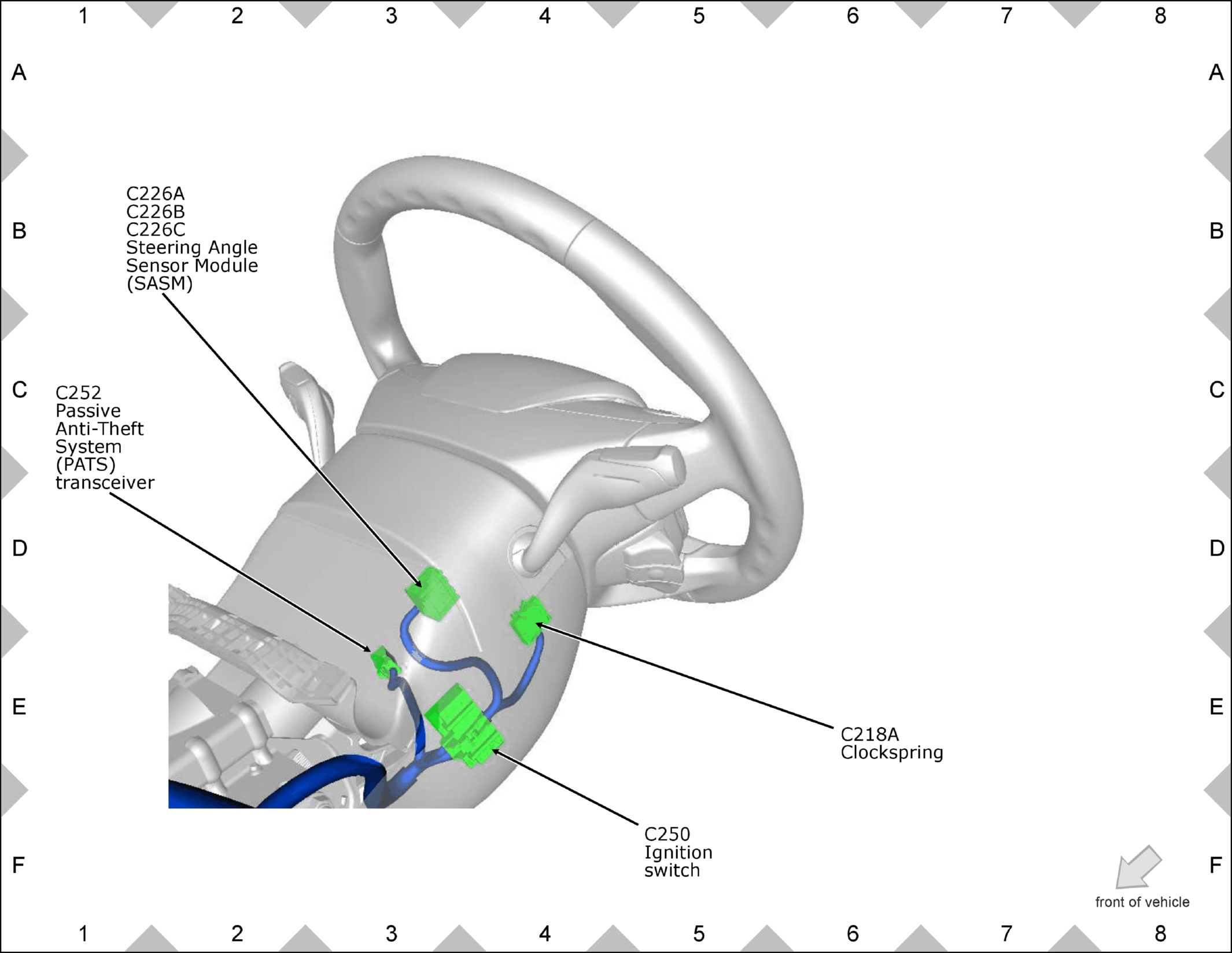

GFDW16244Courtesy of FORD MOTOR COMPANY

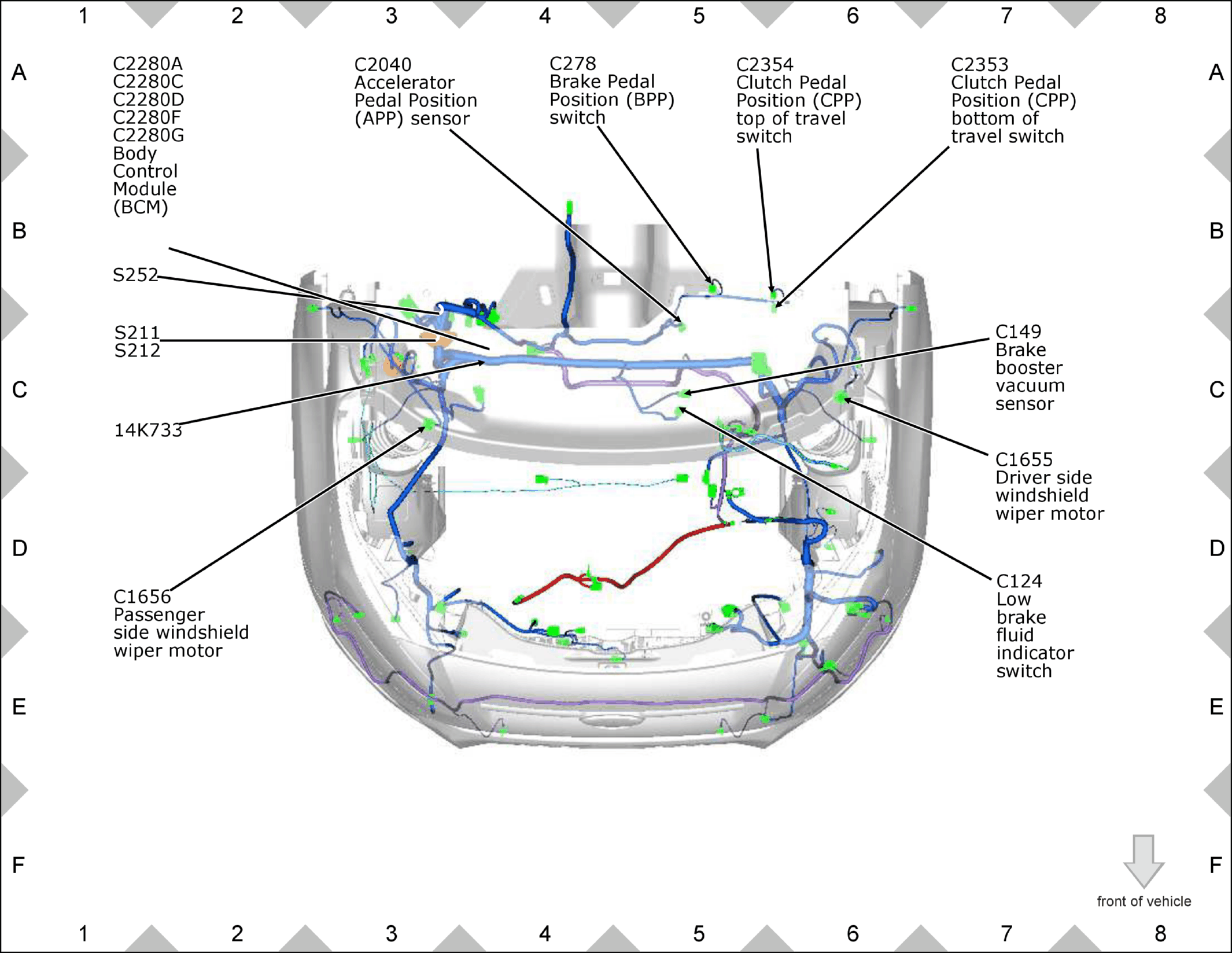

GFDW16245Courtesy of FORD MOTOR COMPANY

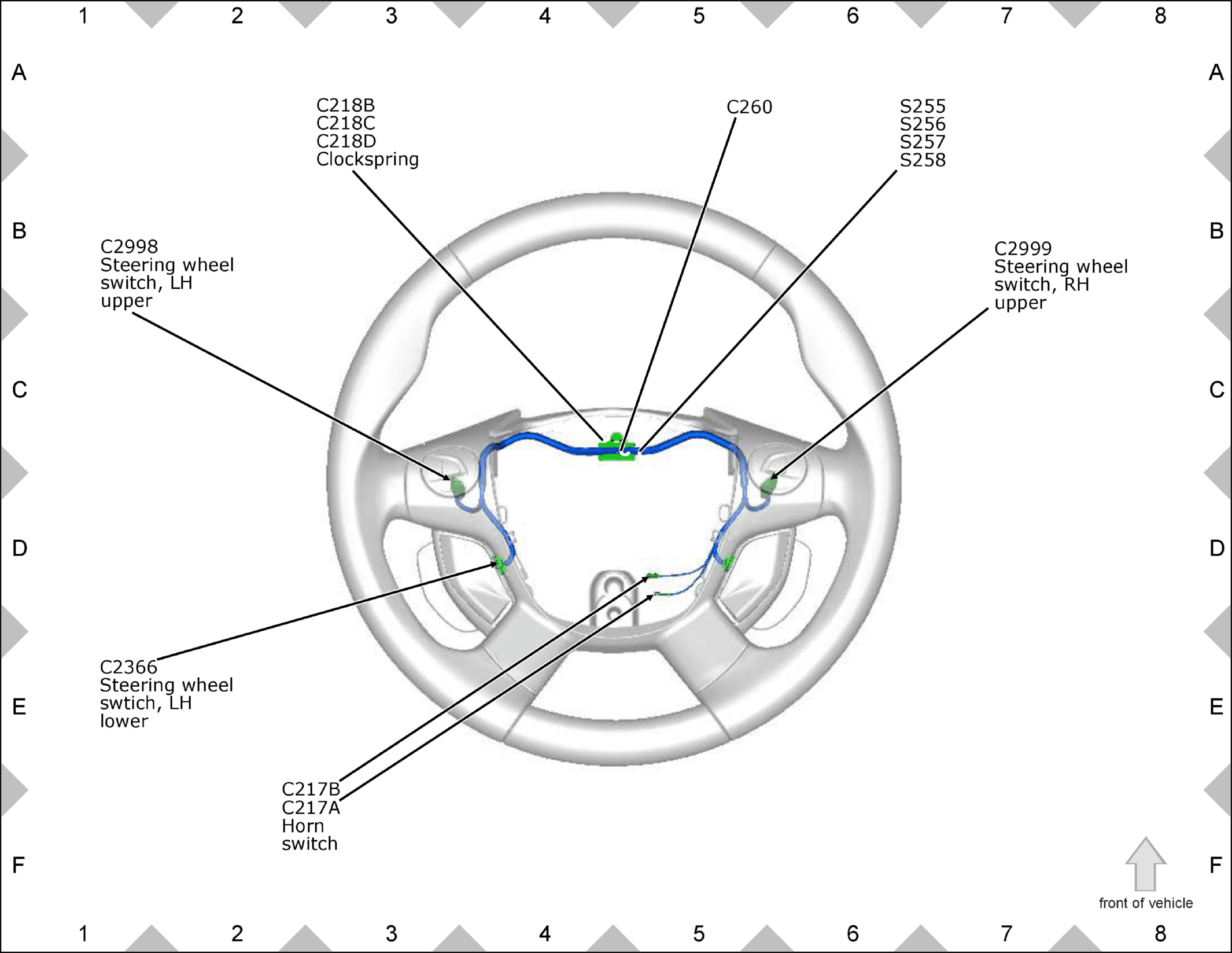

GFDW16246Courtesy of FORD MOTOR COMPANY

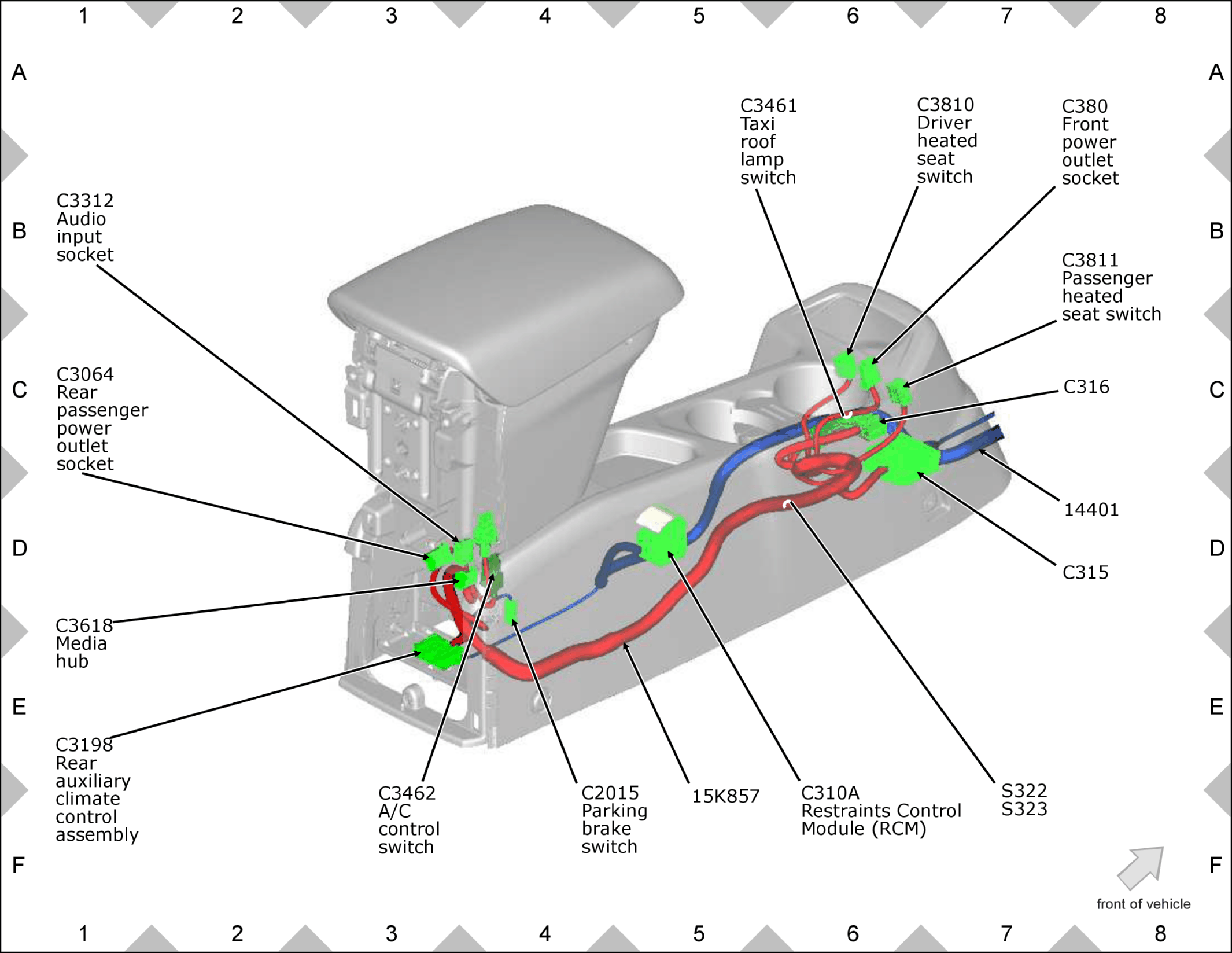

GFDW16247Courtesy of FORD MOTOR COMPANY

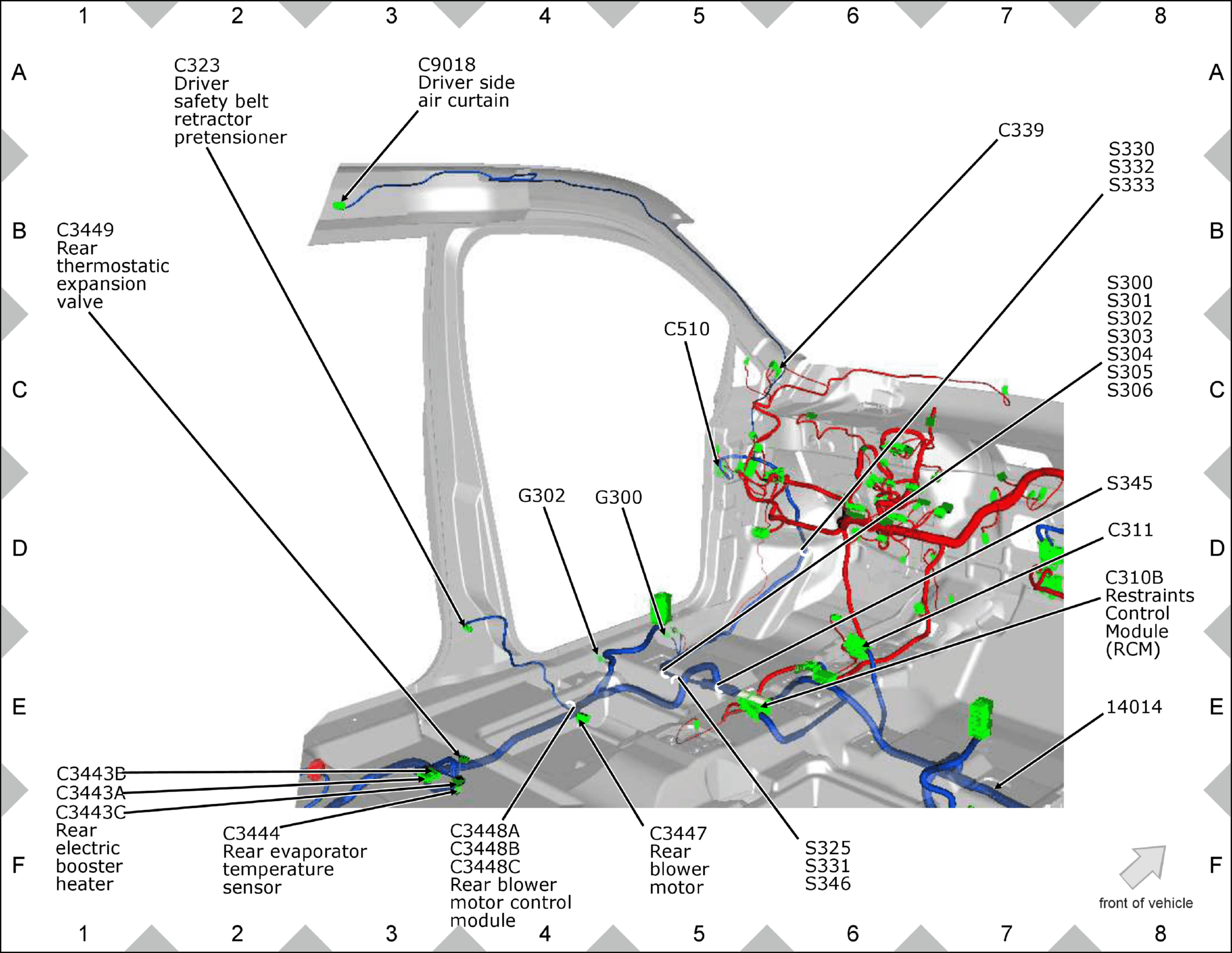

GFDW16248Courtesy of FORD MOTOR COMPANY

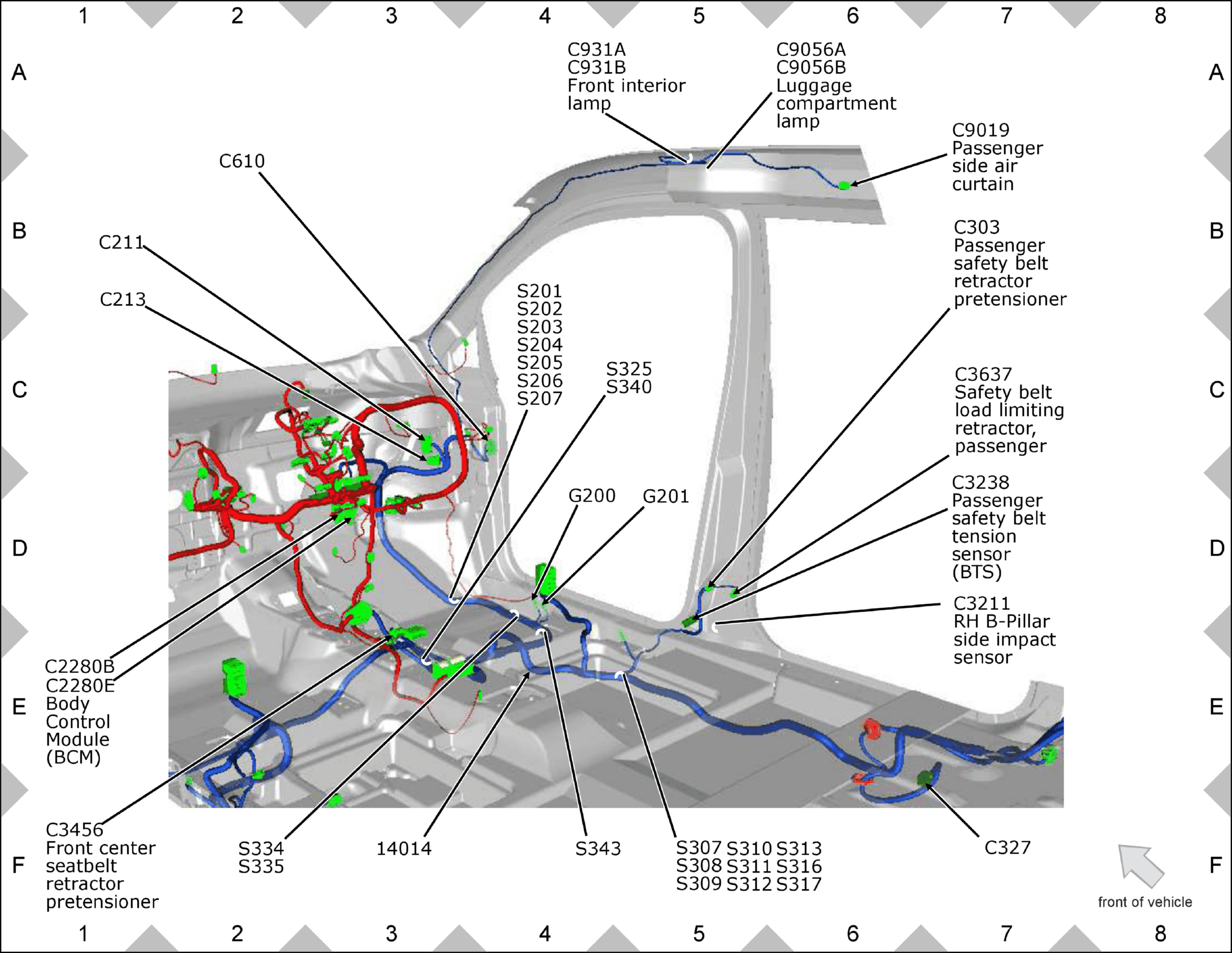

GFDW16249Courtesy of FORD MOTOR COMPANY

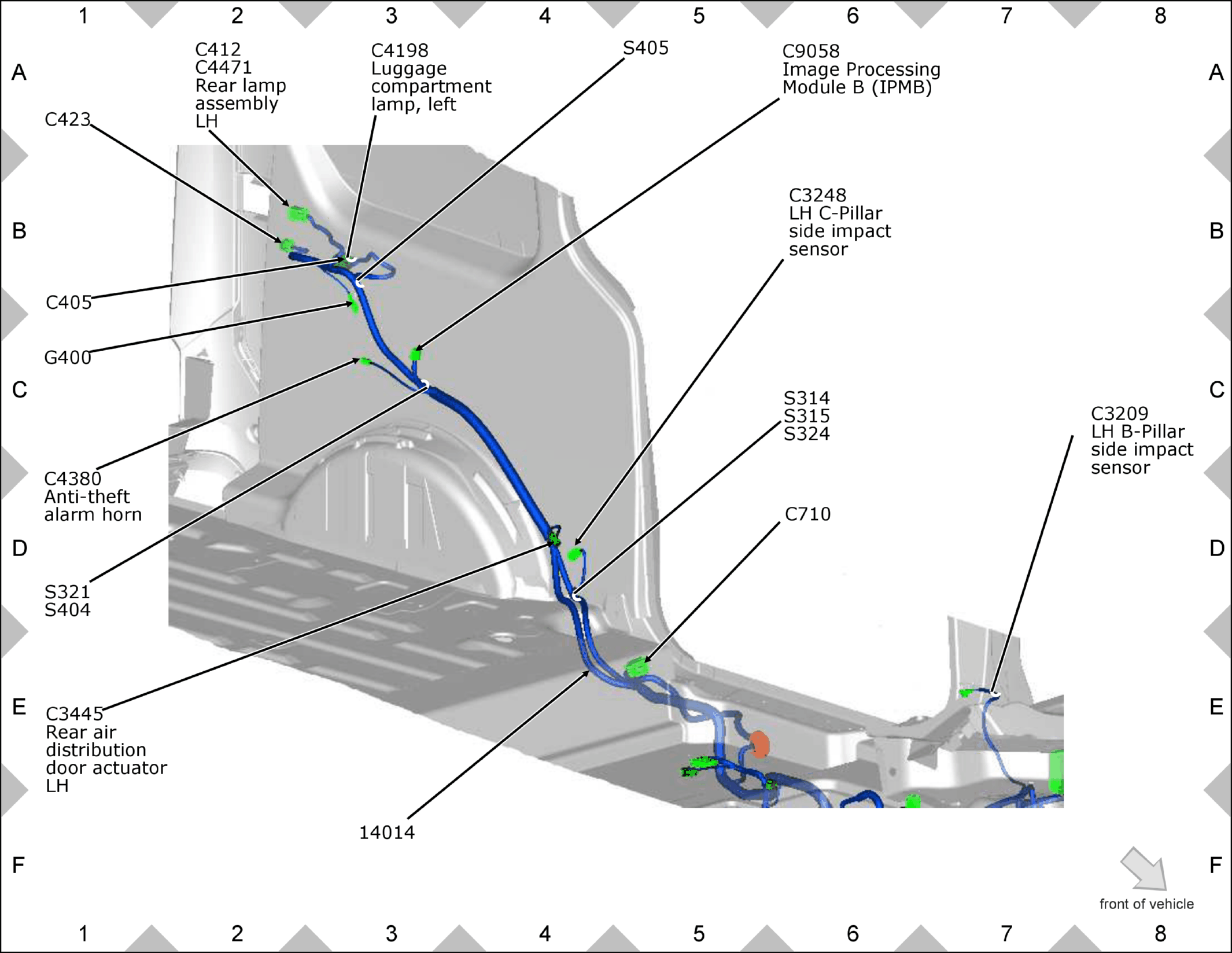

GFDW16250Courtesy of FORD MOTOR COMPANY

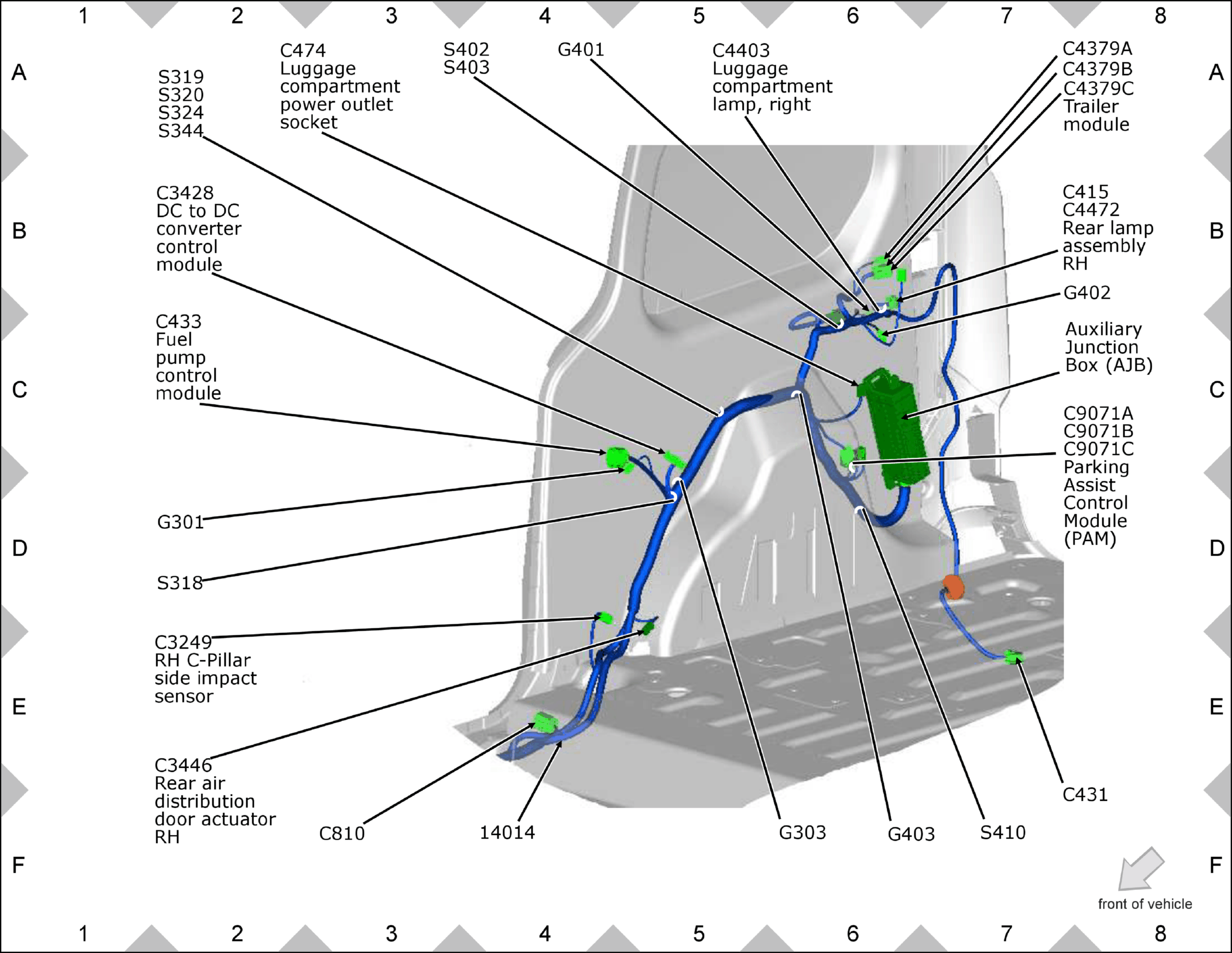

GFDW16251Courtesy of FORD MOTOR COMPANY

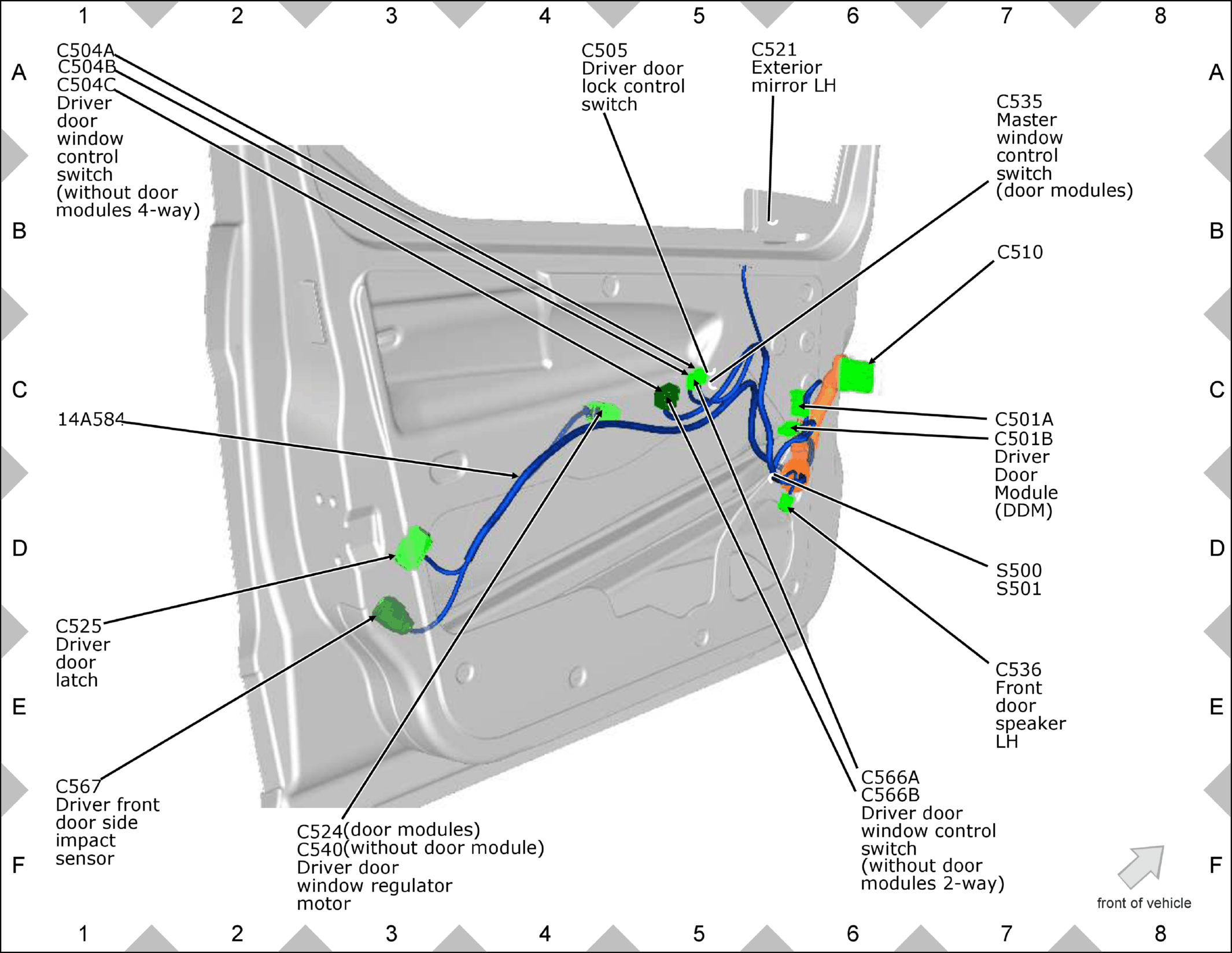

GFDW16252Courtesy of FORD MOTOR COMPANY

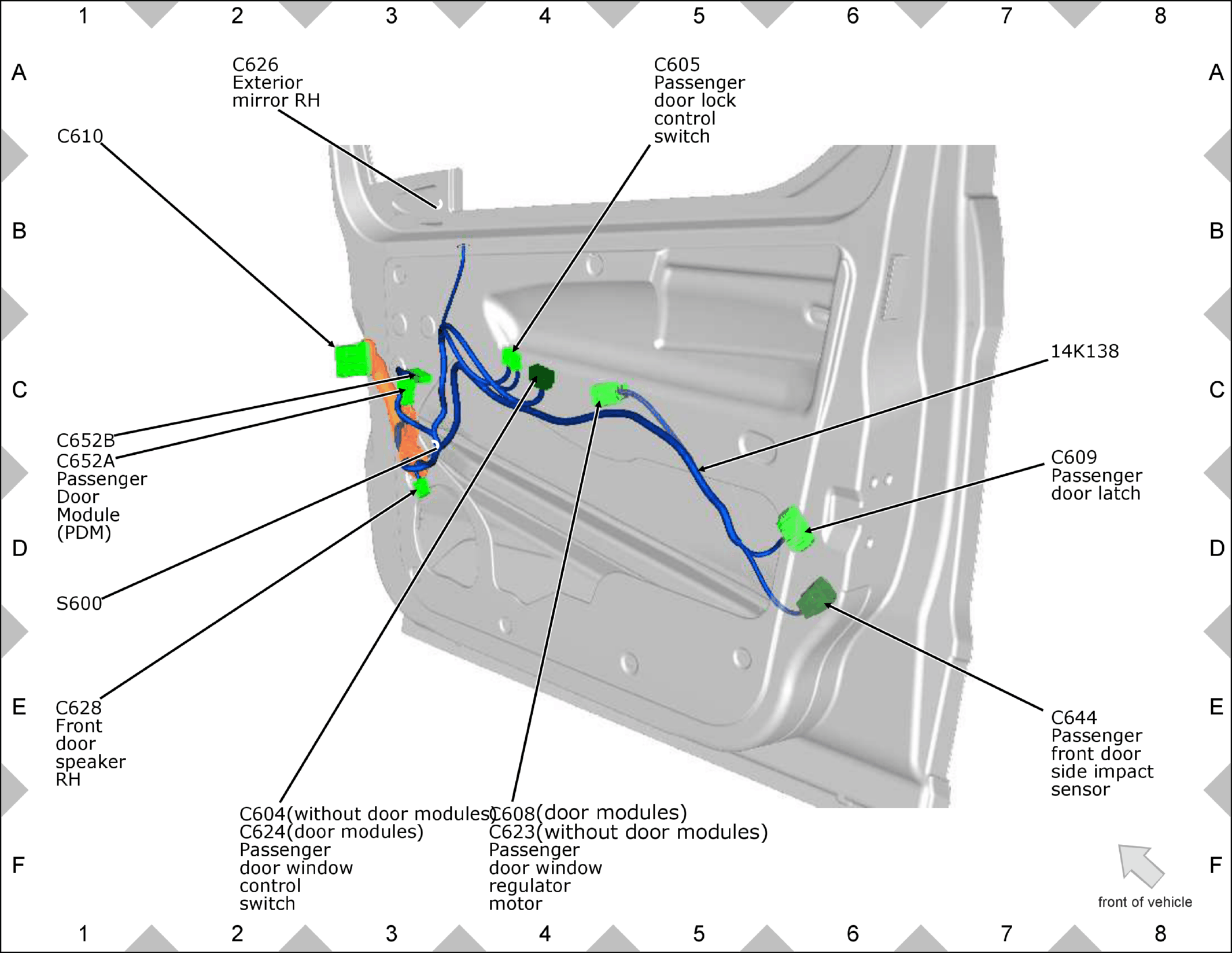

GFDW16253Courtesy of FORD MOTOR COMPANY

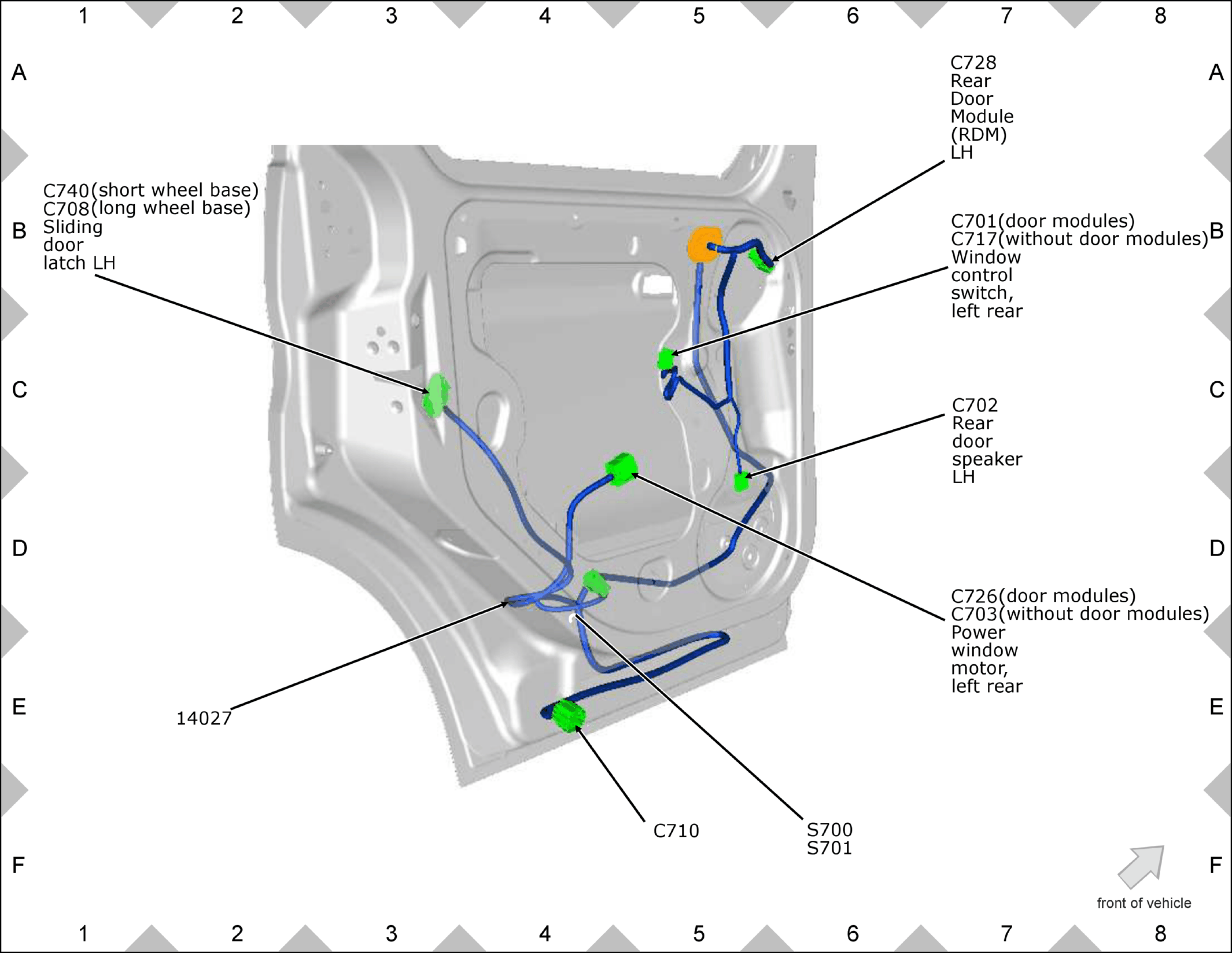

GFDW16254Courtesy of FORD MOTOR COMPANY

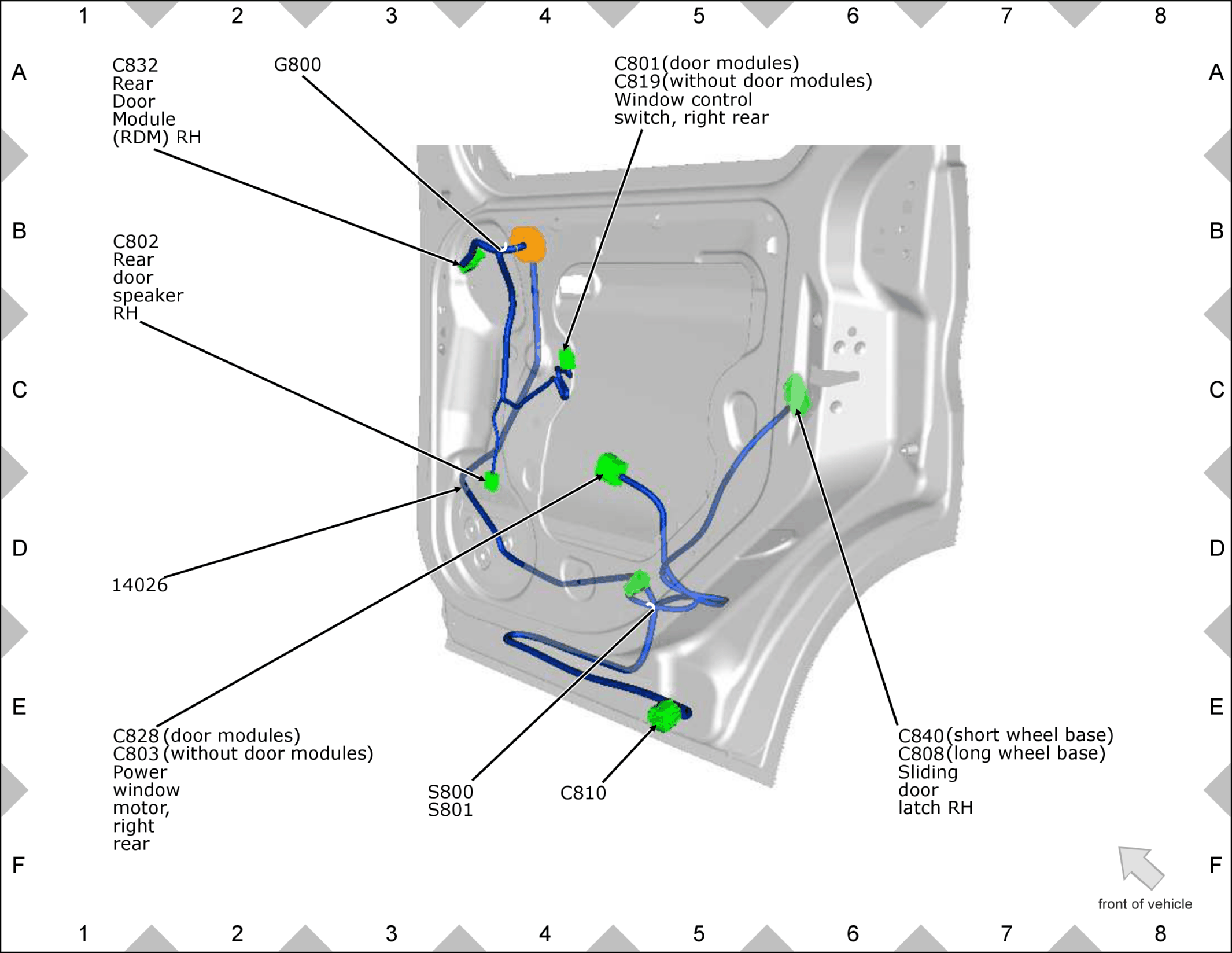

GFDW16255Courtesy of FORD MOTOR COMPANY

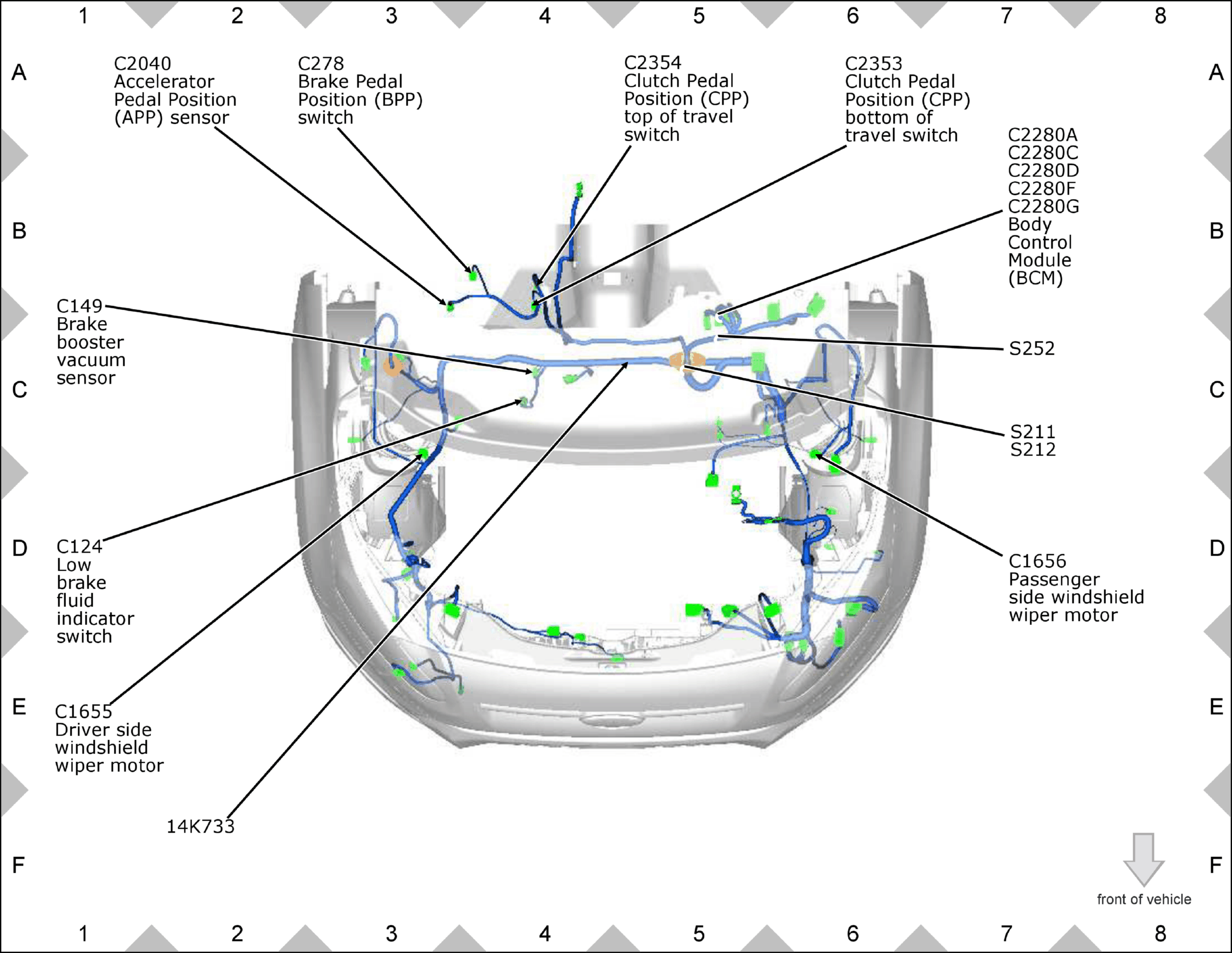

GFDW16256Courtesy of FORD MOTOR COMPANY

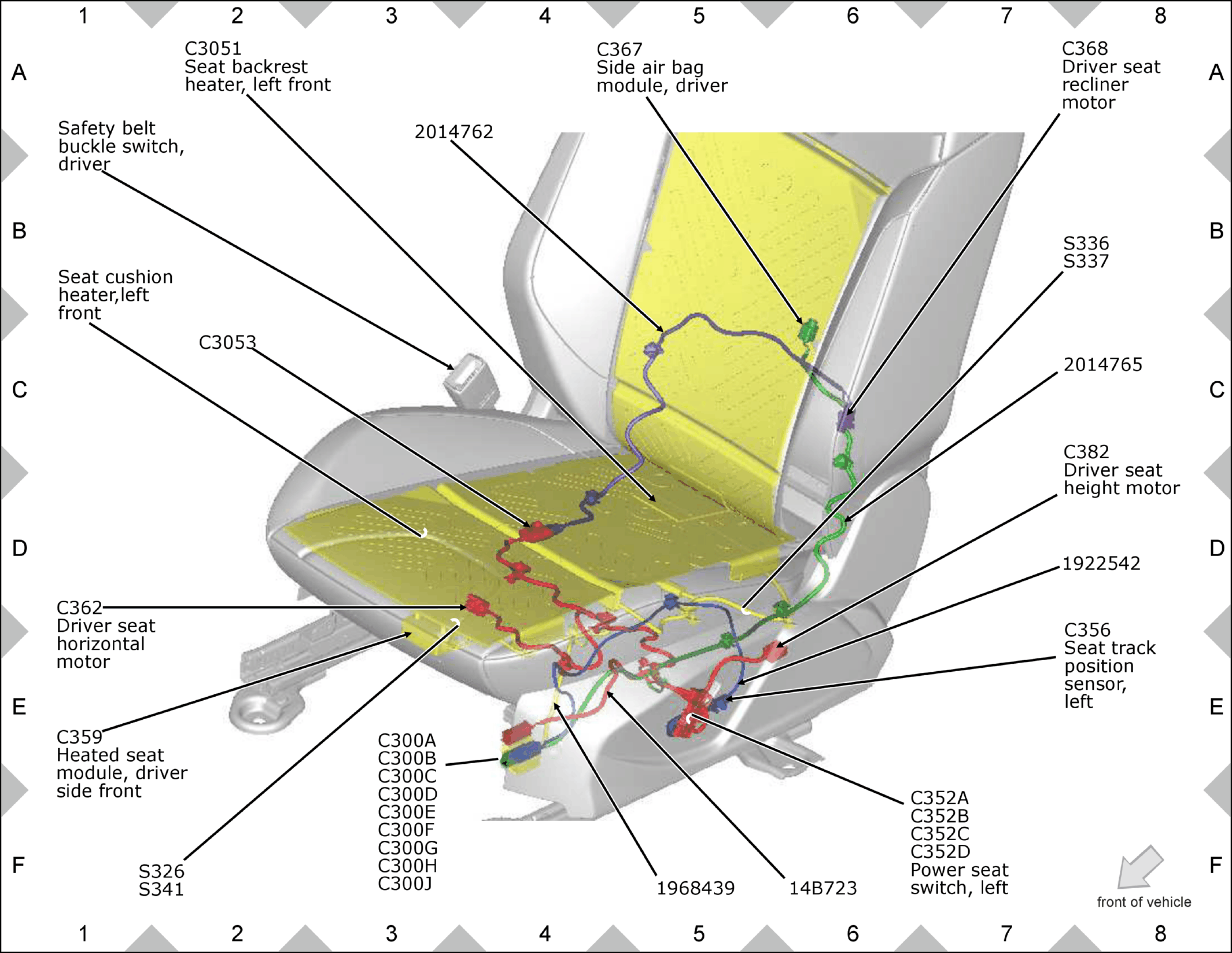

GFDW16257Courtesy of FORD MOTOR COMPANY

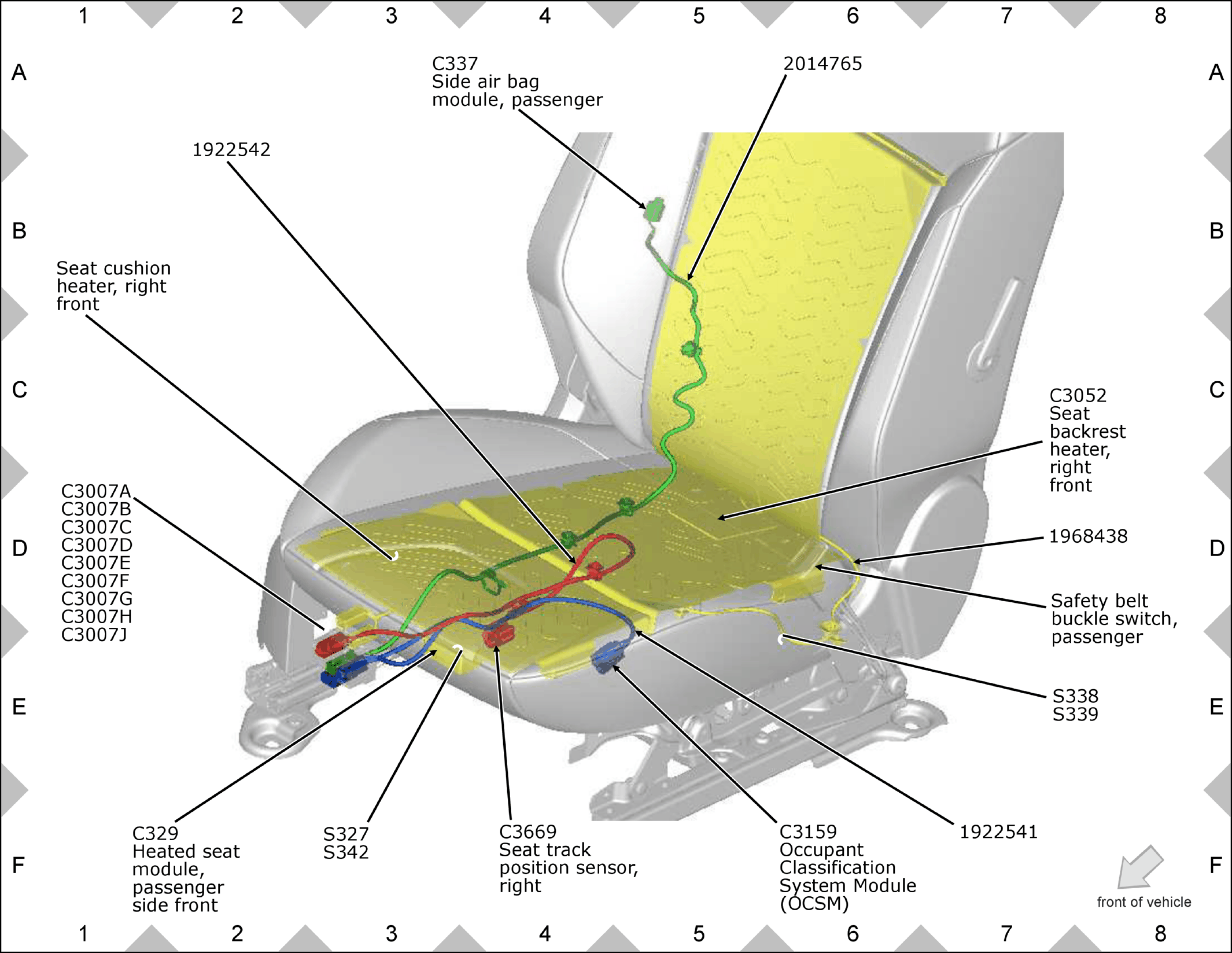

GFDW16258Courtesy of FORD MOTOR COMPANY

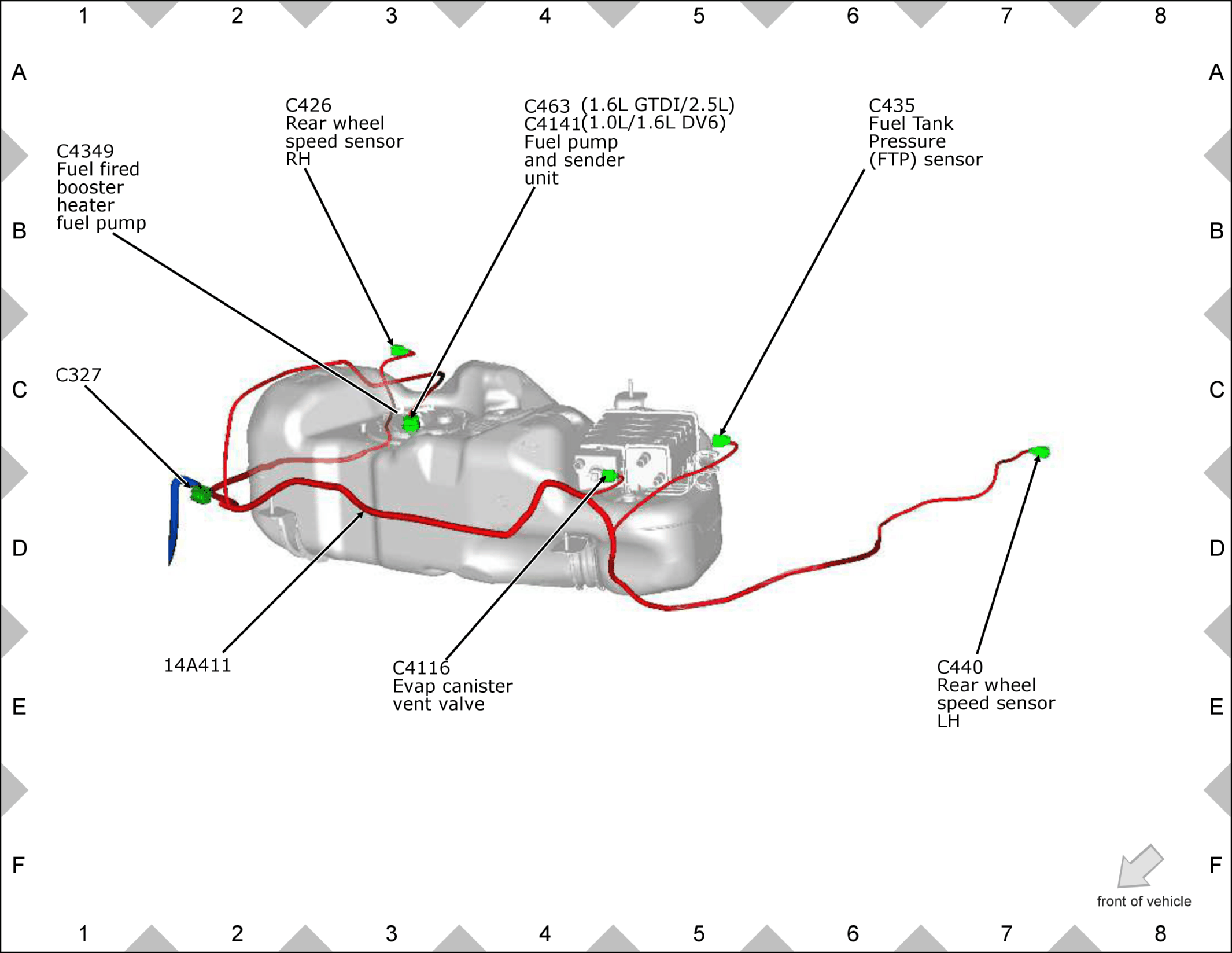

GFDW16259Courtesy of FORD MOTOR COMPANY

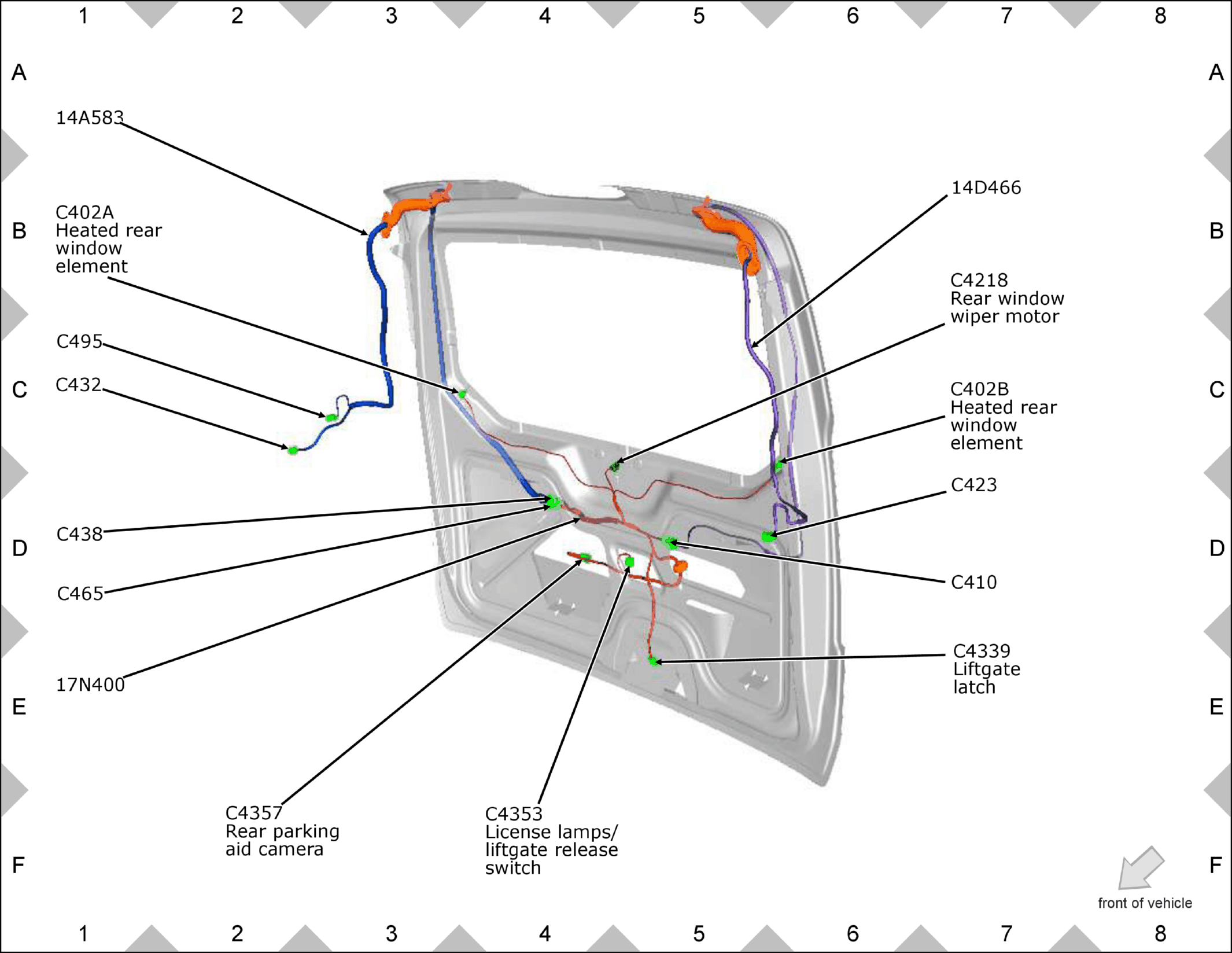

GFDW16260Courtesy of FORD MOTOR COMPANY

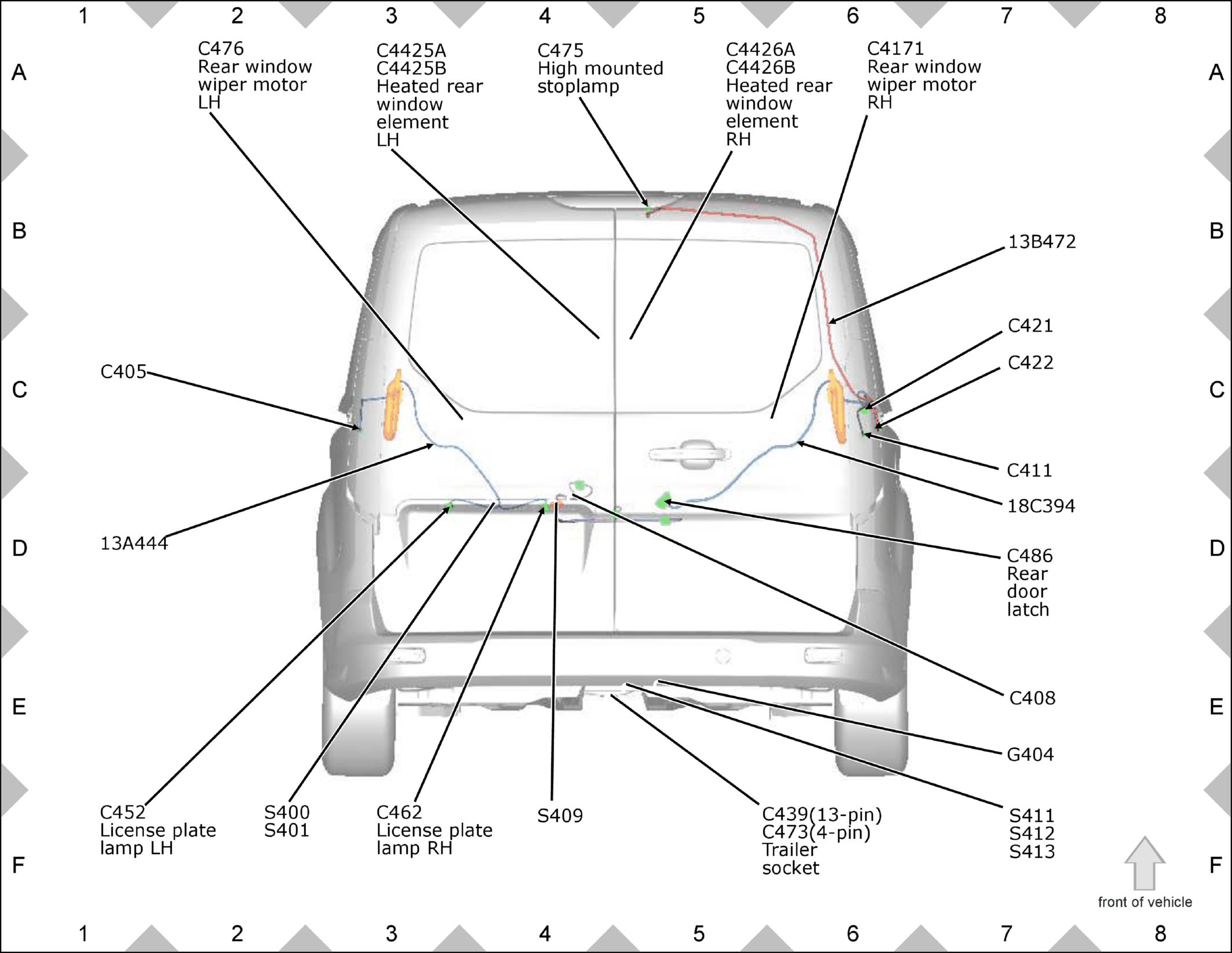

GFDW16261Courtesy of FORD MOTOR COMPANY

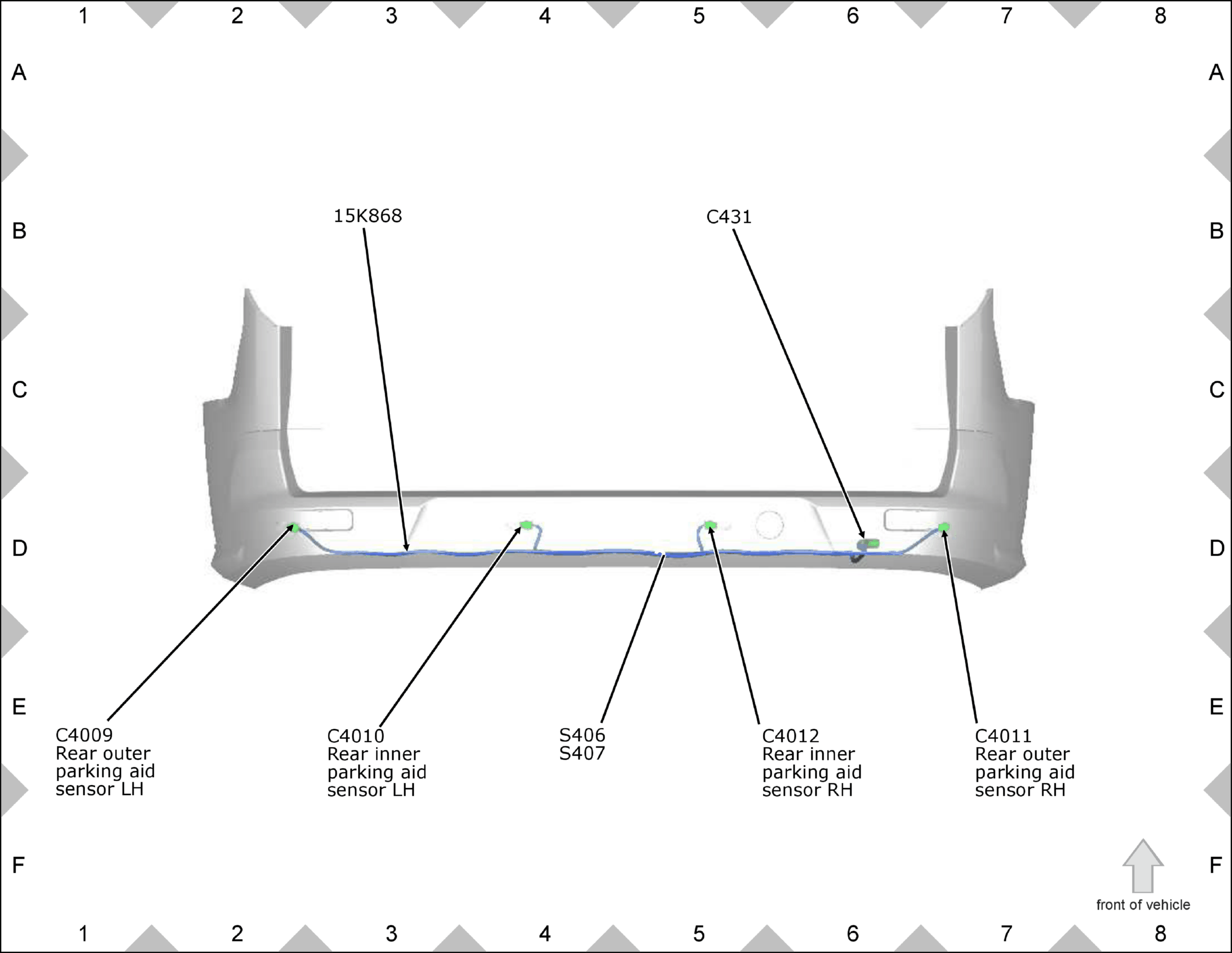

GFDW16262Courtesy of FORD MOTOR COMPANY

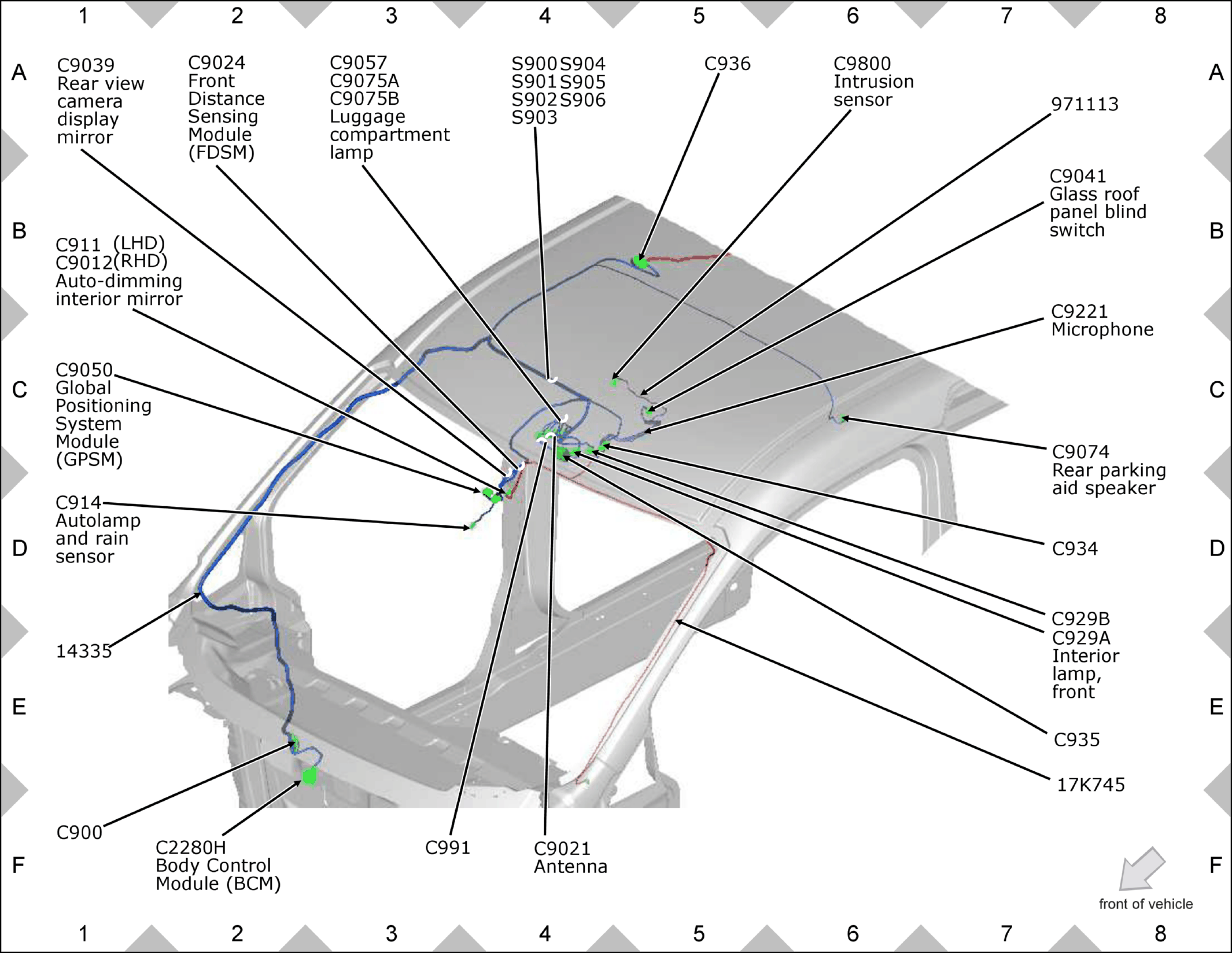

GFDW16263Courtesy of FORD MOTOR COMPANY

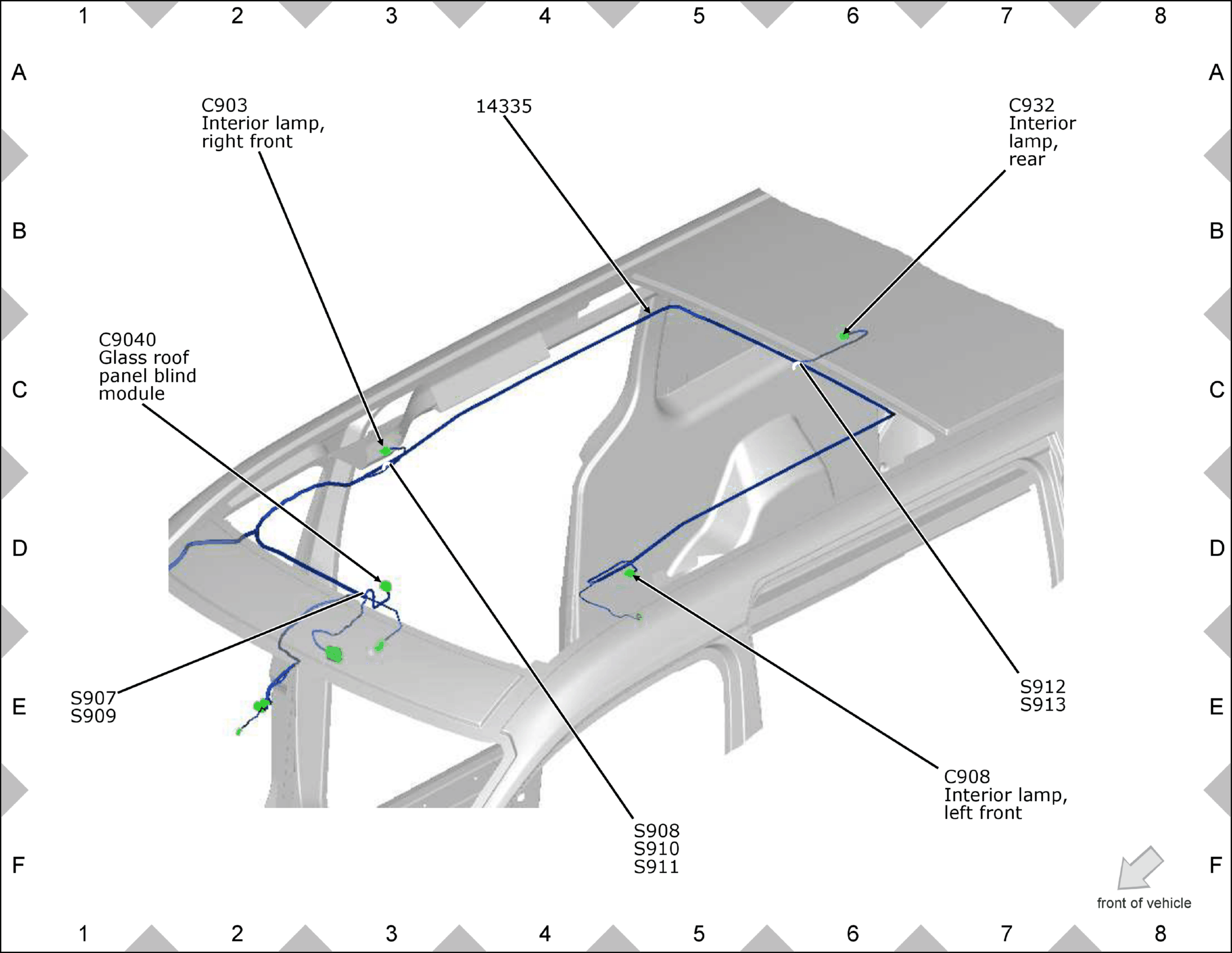

GFDW16264Courtesy of FORD MOTOR COMPANY

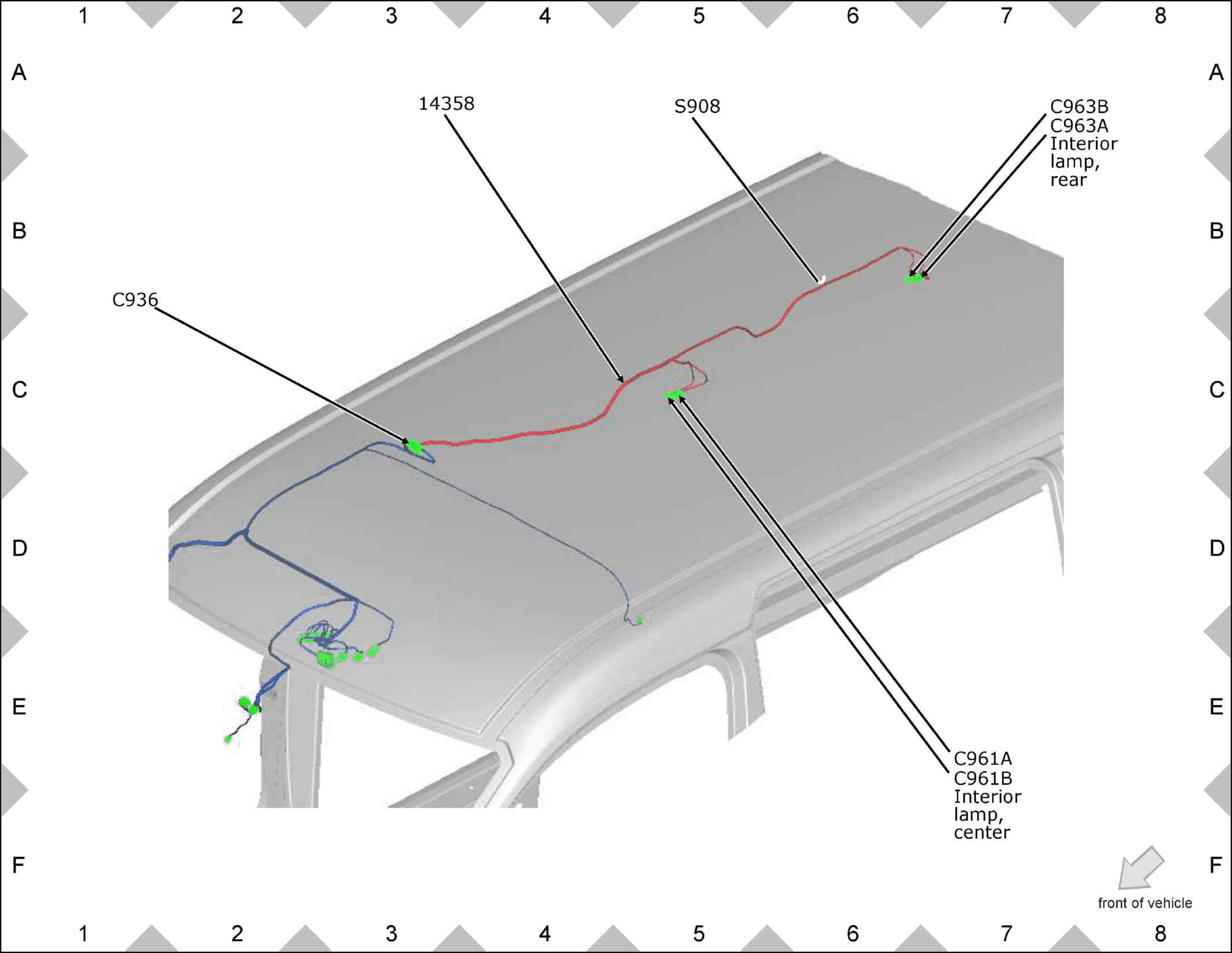

GFDW16265Courtesy of FORD MOTOR COMPANY

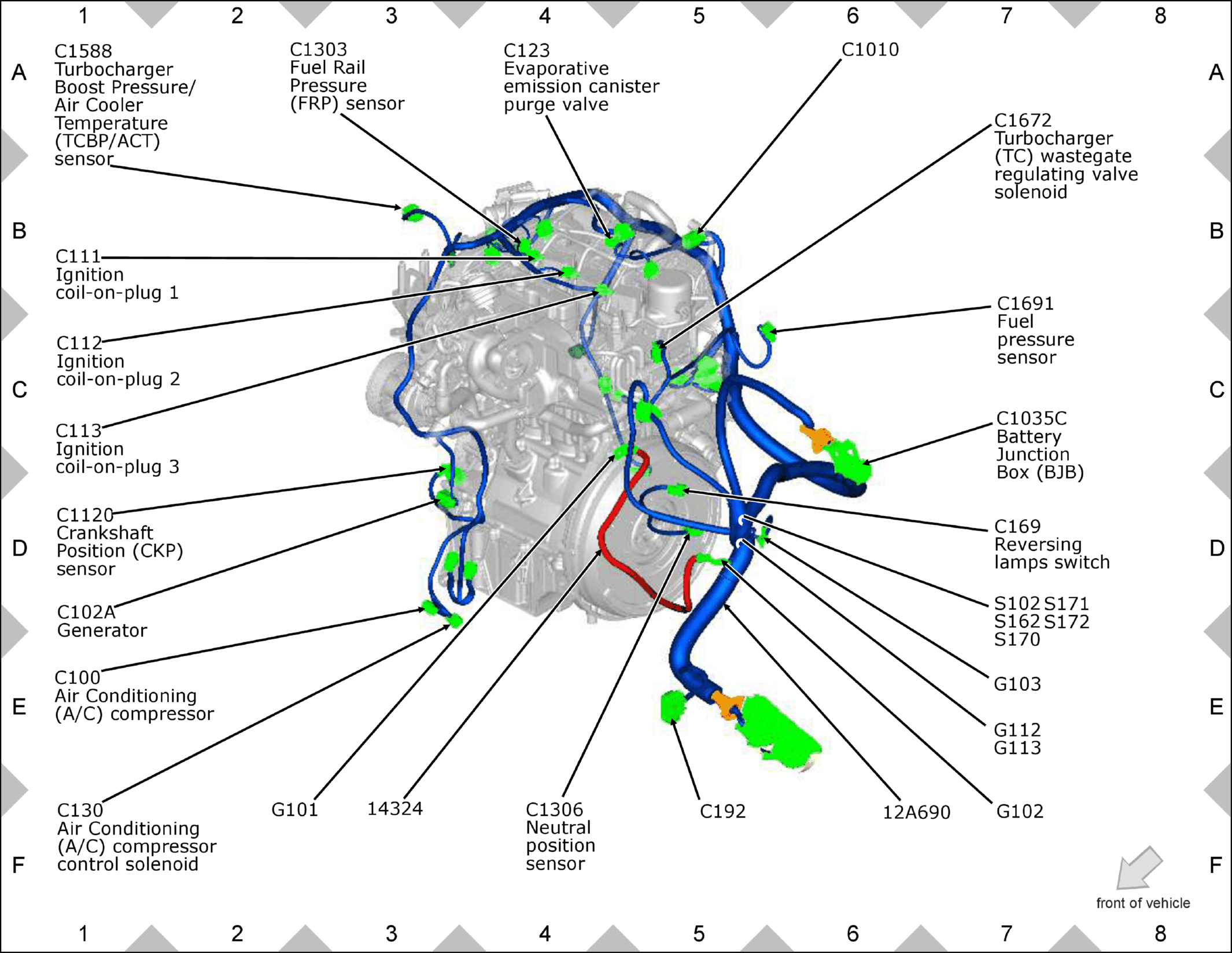

GFDW16266Courtesy of FORD MOTOR COMPANY

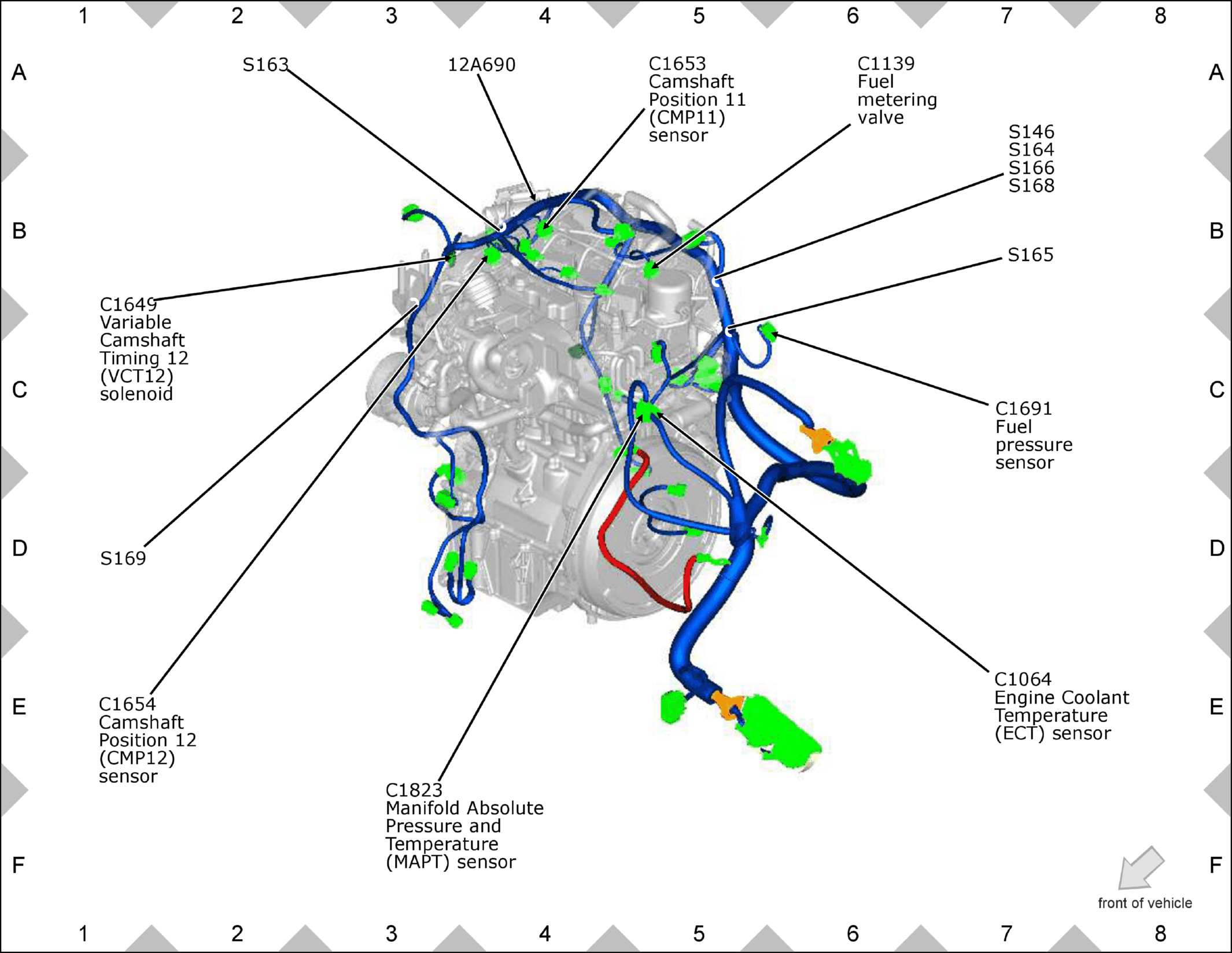

GFDW16267Courtesy of FORD MOTOR COMPANY

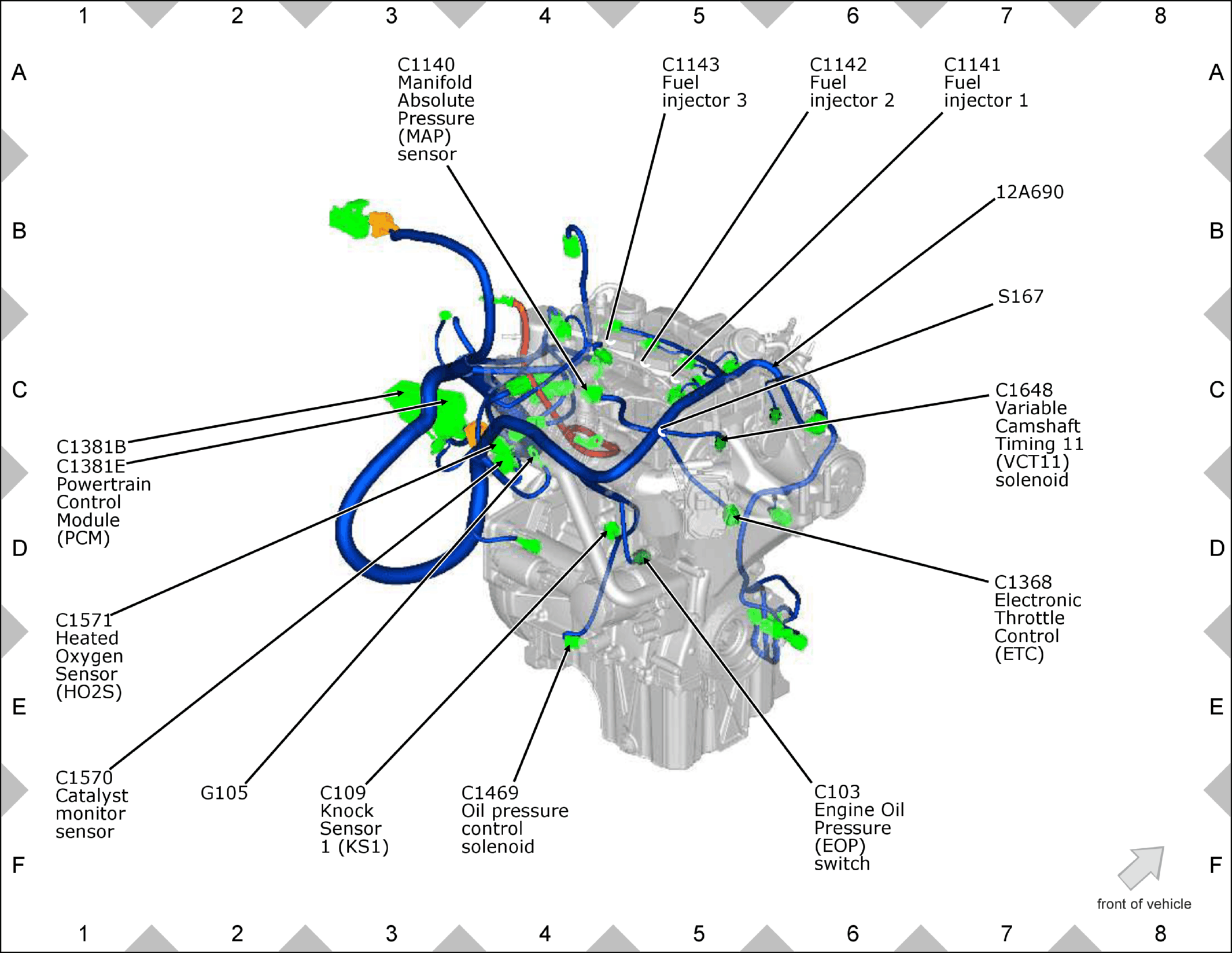

GFDW16268Courtesy of FORD MOTOR COMPANY

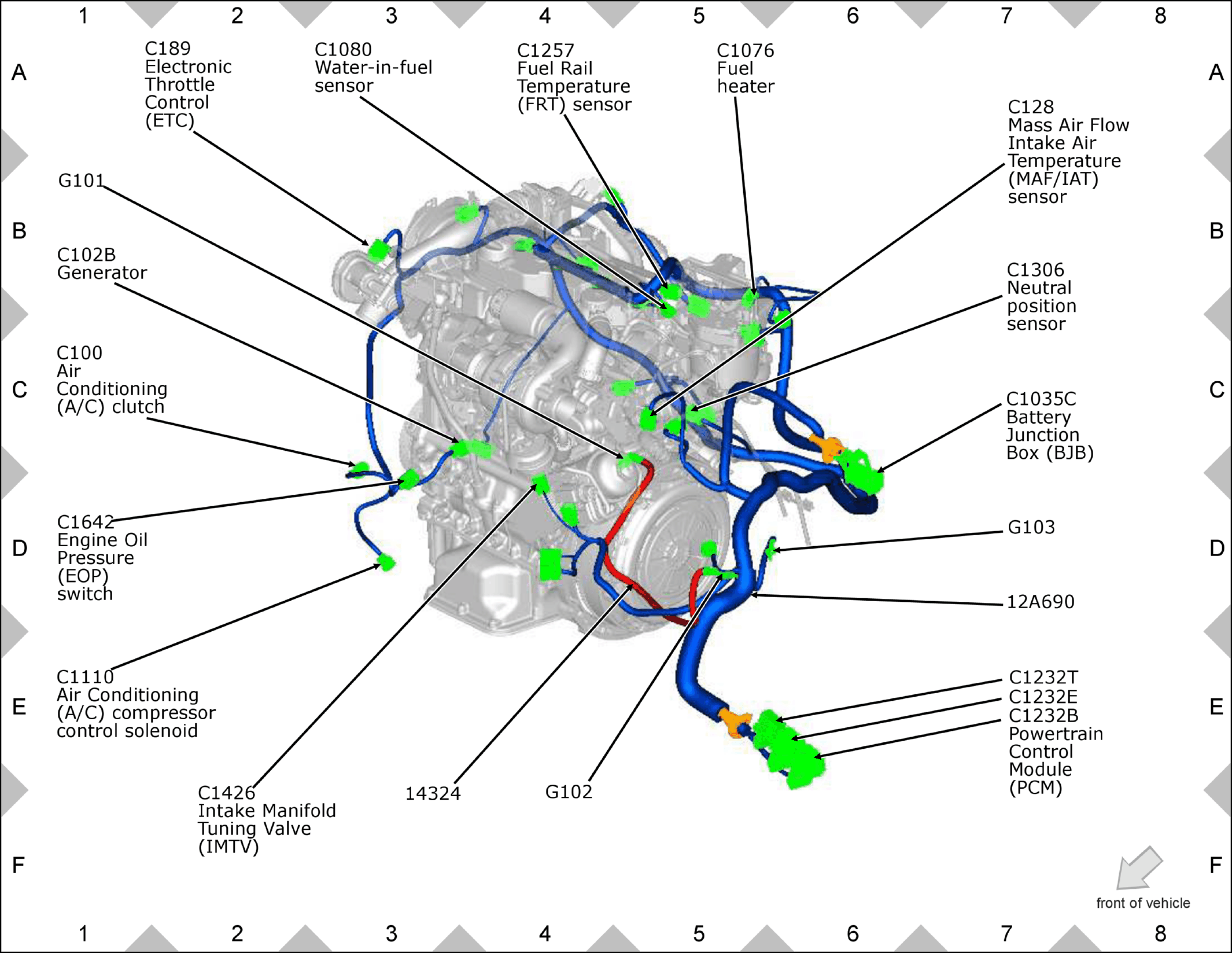

GFDW16269Courtesy of FORD MOTOR COMPANY
GFDW16270Courtesy of FORD MOTOR COMPANY

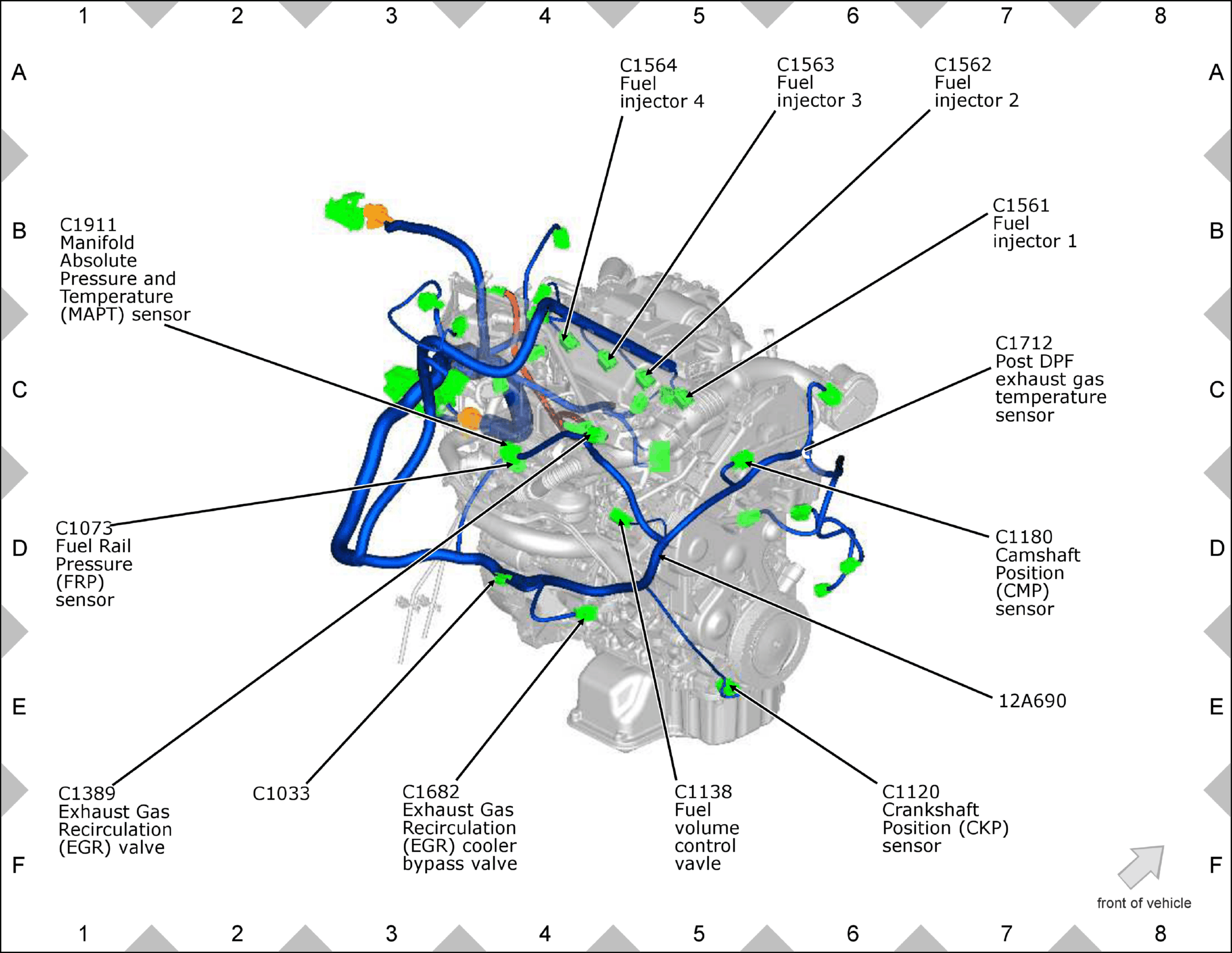

GFDW16271Courtesy of FORD MOTOR COMPANY
