Liftgate Strut: Removal

1.

NOTE: This step requires the aid of another technician.

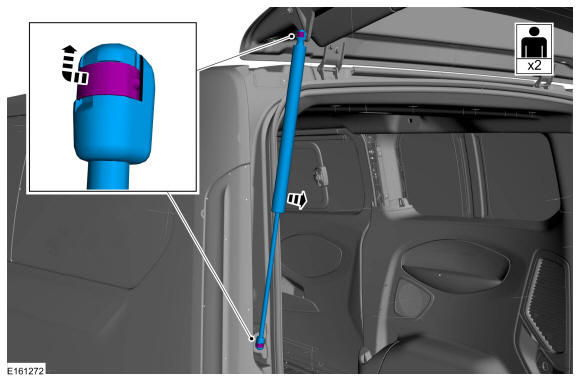

On both sides. Remove the clips and the liftgate strut.

GFD46875

Courtesy of FORD MOTOR COMPANY
