Rear Door Alignment

Check

• 1.

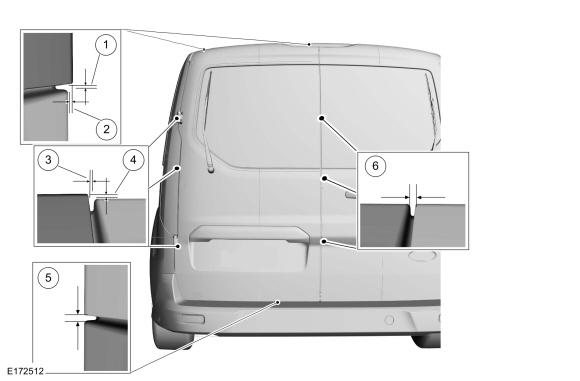

  On both sides, Check the rear door-to-body dimensions.

  • 1.

    Dimension

    : 0.2756±0.0591in (7±1.5mm)

  • 2.

    Dimension

    : 0.0591±0.0551in (1.5±1.4mm)

  • 3.

    Dimension

    : 0.1575±0.0787in (4±2mm)

  • 4.

    Dimension

    : 0.0787±0.0591in (2±1.5mm)

  • 5.

    Dimension

    : 0.2362±0.1575in (6±4mm)

  • 6.

    Dimension

    : 0.2362±0.1575in (6±4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

• 1.

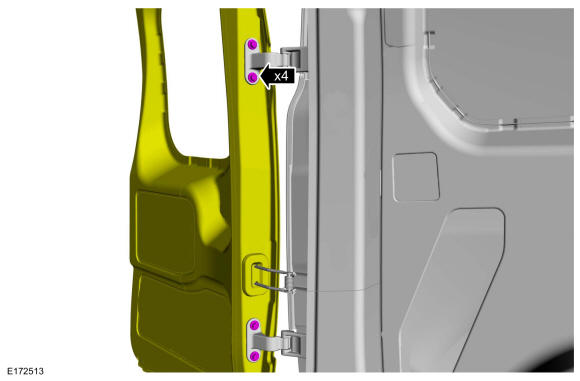

  On both sides. Loosen the bolts enough to permit movement of the door. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 2.

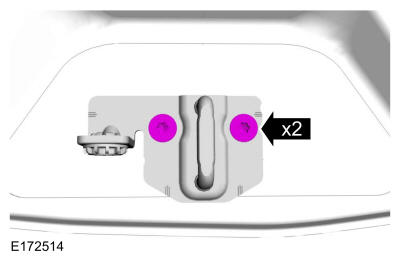

  Loosen the lower striker assembly bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 3.

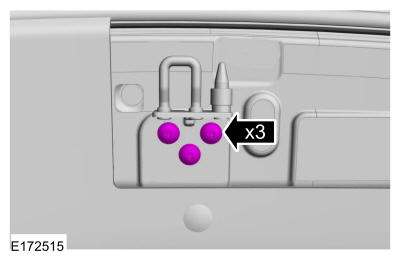

  Loosen the upper striker assembly bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 4.

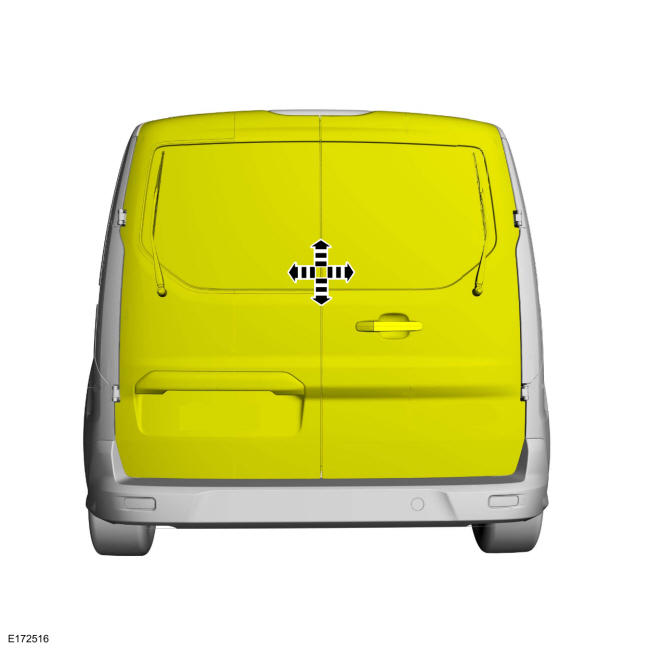

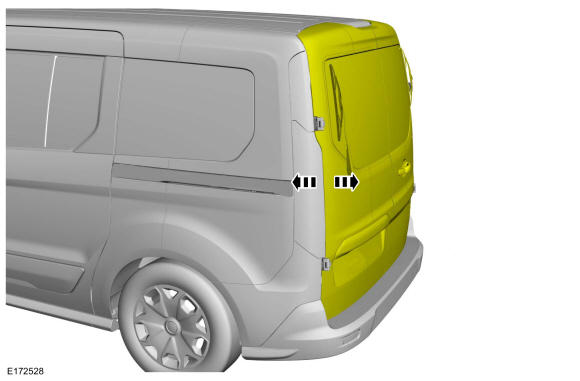

  Adjust the door to specification.

Courtesy of FORD MOTOR COMPANY

• 5.

  Tighten the lower striker assembly bolts.

  Torque

  : 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

  Tighten the upper striker assembly bolts.

  Torque

  : 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  On both sides. Tighten the door bolts.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

  Check the area for paintwork damage and repair if necessary.

Check

• 1.

  On both sides, check the body-to-rear door dimensions.

  • 1.

    Dimension

    : 0.2756±0.0591in (7±1.5mm)

  • 2.

    Dimension

    : 0.0591±0.0551in (1.5±1.4mm)

  • 3.

    Dimension

    : 0.1575±0.0787in (4±2mm)

  • 4.

    Dimension

    : 0.0787±0.0591in (2±1.5mm)

  • 5.

    Dimension

    : 0.2362±0.1575in (6±4mm)

  • 6.

    Dimension

    : 0.2362±0.1575in (6±4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

• 1.

  Loosen the lower striker assembly bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 2.

  Loosen the upper striker assembly bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 3.

  Adjust the door to specification.

Courtesy of FORD MOTOR COMPANY

• 4.

  Tighten the lower striker assembly bolts.

  Torque

  : 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

  Tighten the upper striker assembly bolts.

  Torque

  : 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
