Liftgate Alignment

Check

• 1.

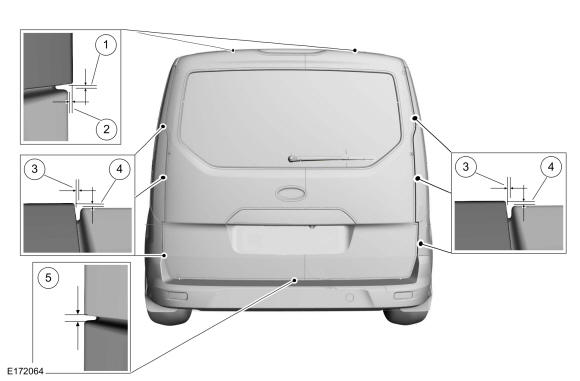

  Check the liftgate-to-body dimensions.

  • 1.

    Dimension

    : 0.2756±0.0591in (7±1.5mm)

  • 2.

    Dimension

    : 0.0591±0.0551in (1.5±1.4mm)

  • 3.

    Dimension

    : 0.1575±0.0787in (4±2mm)

  • 4.

    Dimension

    : 0.0787±0.0591in (2±1.5mm)

  • 5.

    Dimension

    : 0.2362±0.1575in (6±4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

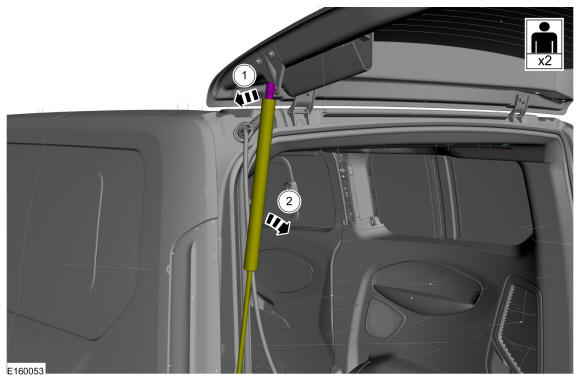

• 1.


  NOTE: This step requires the aid of another technician.

  On both sides.

  • 1.

    Remove the clip.

  • 2.

    Position aside the liftgate strut.

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: This step requires the aid of another technician.

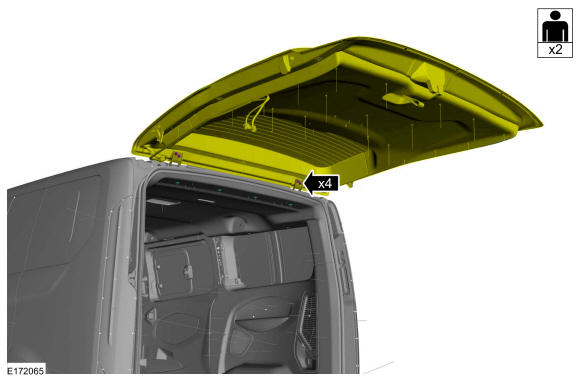

  Loosen the bolts enough to permit movement of the liftgate. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 3.

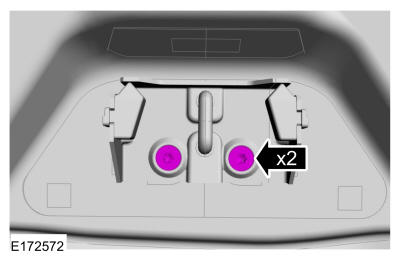

  Loosen the liftgate striker bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 4.

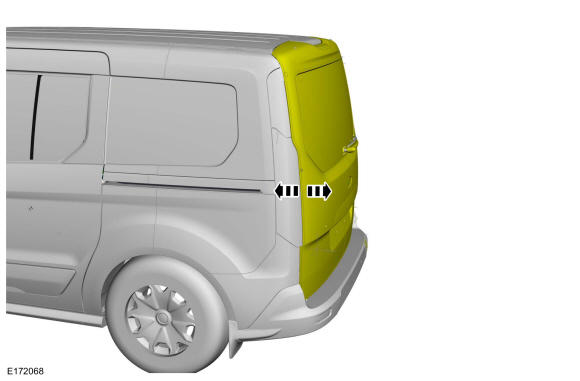

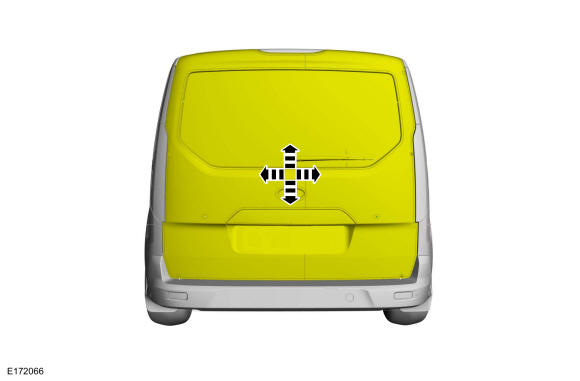

  Adjust the liftgate to specification.

Courtesy of FORD MOTOR COMPANY

• 5.

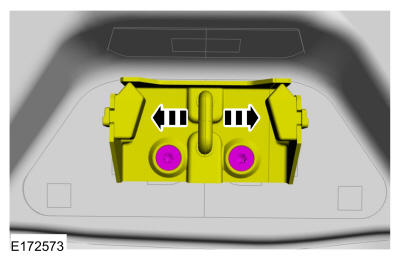

  Adjust the liftgate striker.

Courtesy of FORD MOTOR COMPANY

• 6.

  Tighten the liftgate striker bolts.

  Torque

  : 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.


  NOTE: This step requires the aid of another technician.

  Tighten the bolts.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

  Check the area for paintwork damage and repair if necessary.

• 9.


  NOTE: This step requires the aid of another technician.

  On both sides.

  • 1.

    Install the strut.

  • 2.

    Install the clip.

Courtesy of FORD MOTOR COMPANY

Check

• 1.

  Check the body-to-liftgate dimensions.

  • 1.

    Dimension

    : 0.2756±0.0591in (7±1.5mm)

  • 2.

    Dimension

    : 0.0591±0.0551in (1.5±1.4mm)

  • 3.

    Dimension

    : 0.1575±0.0787in (4±2mm)

  • 4.

    Dimension

    : 0.0787±0.0591in (2±1.5mm)

  • 5.

    Dimension

    : 0.2362±0.1575in (6±4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

• 1.

  Remove the liftgate trim panel. Refer to: LIFTGATE TRIM PANEL

• 2.

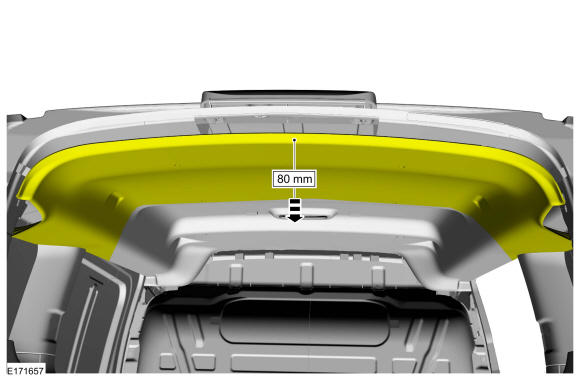

  Lower the headliner.

Courtesy of FORD MOTOR COMPANY

• 3.

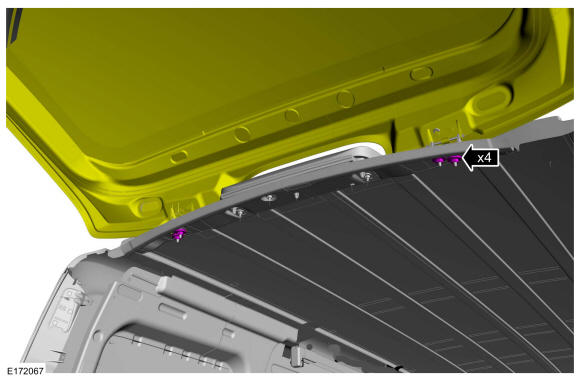

  Loosen the nuts enough to permit movement of the liftgate. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 4.

  Loosen the liftgate striker bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

• 5.

  Adjust the liftgate to specification.

Courtesy of FORD MOTOR COMPANY

• 6.

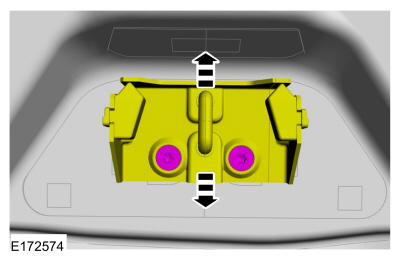

  Adjust the liftgate striker.

Courtesy of FORD MOTOR COMPANY

• 7.

  Tighten the nuts.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

  Tighten the liftgate striker bolts.

  Torque

  : 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.

  To install, reverse the removal procedure.

• 10.

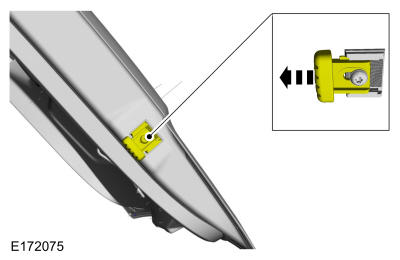

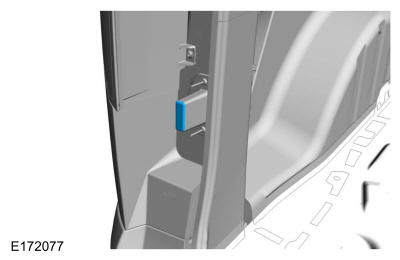

  On both sides. Remove the spacer.

Courtesy of FORD MOTOR COMPANY

• 11.

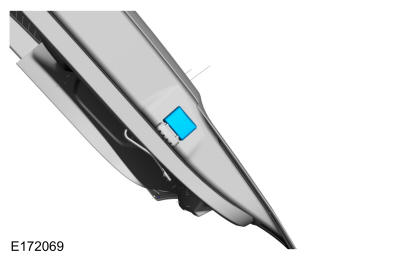

  On both sides. Remove the bump stop cover.

Courtesy of FORD MOTOR COMPANY

• 12.

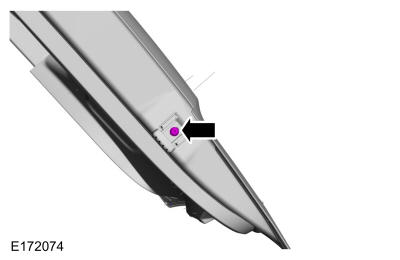

  On both sides. Loosen the screw. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

• 13.

  On both sides. Adjust the bump stop.

Courtesy of FORD MOTOR COMPANY

• 14.

  Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY

• 15.

  On both sides. Tighten the screw.

  Torque

  : 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

• 16.

  On both sides. Install the bump stop cover.

Courtesy of FORD MOTOR COMPANY

• 17.

  On both sides. Install the spacer.

Courtesy of FORD MOTOR COMPANY
