Hood Alignment

Check

1.

Check the hood-to-body dimensions.
- 1.

  Dimension
  : 0.1378±0.0591in (3.5±1.5mm)
- 2.

  Dimension
  : 0.0236-0.0787/+0.0394in (.6-2/+1mm)
- 3.

  Dimension
  : 0.1969±0.0591in (5±1.5mm)
- 4.

  Dimension
  : 0.0945±0.0591in (2.4±1.5mm)
- 5.

  Dimension
  : 0.1496±0.0591in (3.8±1.5mm)
- 6.

  Dimension
  : 0.1378±0.0591in (3.5±1.5mm)
- 7.

  Dimension
  : 0.0394±0.0787in (1±2mm)

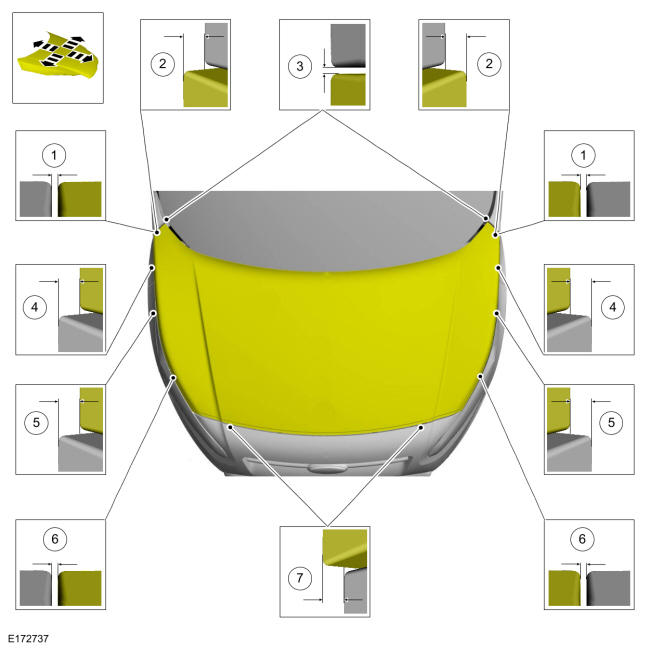

GFD46824

Courtesy of FORD MOTOR COMPANY

Adjustment

1.

Loosen the nuts enough to permit movement of the hood. Loosen: 2 turn(s)

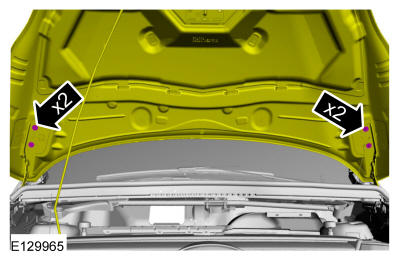

GFD46825

Courtesy of FORD MOTOR COMPANY

2.

Adjust the hood to specification.

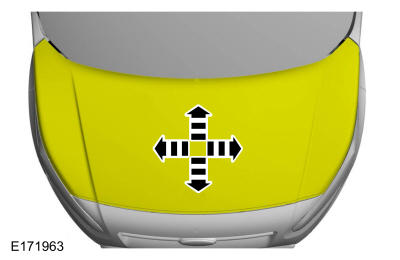

GFD46826

Courtesy of FORD MOTOR COMPANY

3.

Tighten the nuts.
Torque

: 89 lb.in (10 Nm)

GFD46825

Courtesy of FORD MOTOR COMPANY

Check

1.

Check the body-to-hood dimensions.
- 1.

  Dimension
  : 0.0394-0.0787/+0.0394in (1-2/+1mm)
- 2.

  Dimension
  : 0.1260±0.0591in (3.2±1.5mm)
- 3.

  Dimension
  : 0.1260±0.0591in (3.2±1.5mm)
- 4.

  Dimension
  : 0.0512±0.0591in (1.3±1.5mm)
- 5.

  Dimension
  : 0.2362±0.0866in (6±2.2mm)

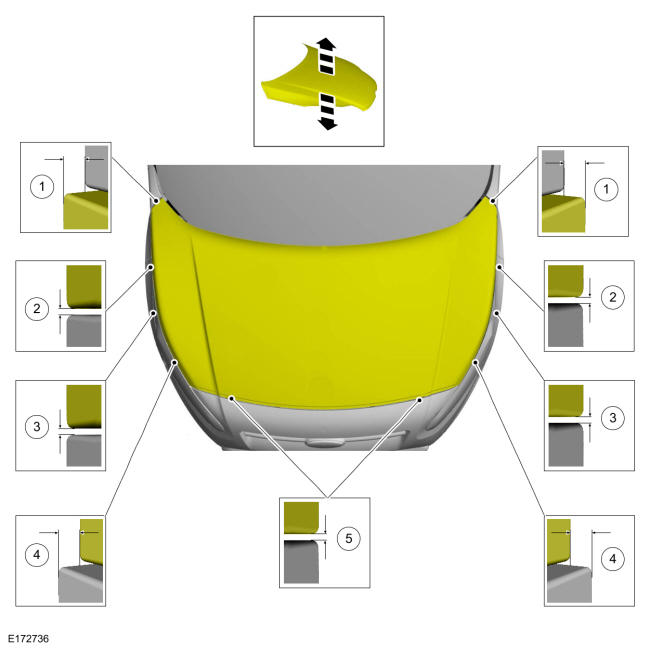

GFD46827

Courtesy of FORD MOTOR COMPANY

Adjustment

1.

On both sides. Loosen the bolts enough to permit movement of the hood. Loosen: 2 turn(s)

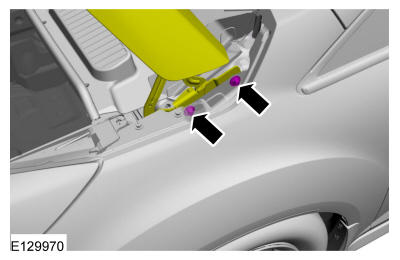

GFD46828

Courtesy of FORD MOTOR COMPANY

2.

Adjust the hood to specification.

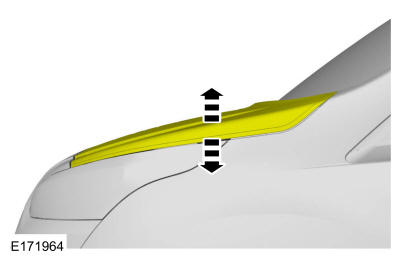

GFD46829

Courtesy of FORD MOTOR COMPANY

3.

Adjust the bump stop rubbers.

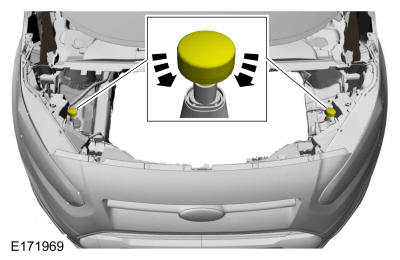

GFD46830

Courtesy of FORD MOTOR COMPANY

4.

On both sides. Tighten the bolts.
Torque

: 18 lb.ft (25 Nm)

GFD46828
