Front Door Alignment

Inspection

• 1.

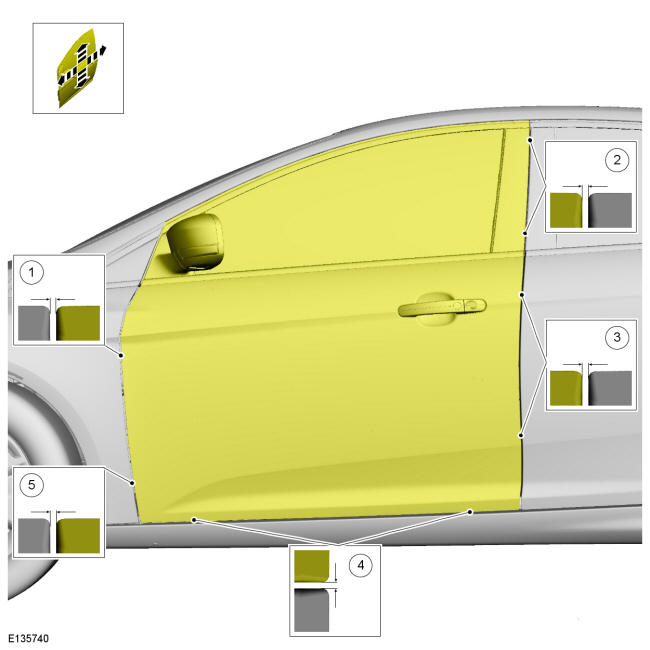

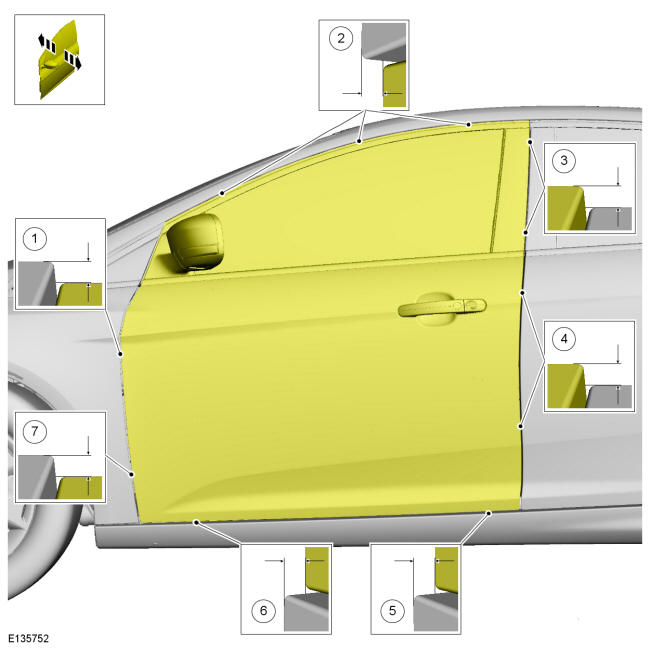

  Check body to the front door dimensions.

  • 1.

    Dimension

    : 0.1575 ±0.0591in (4 ±1.5mm)

  • 2.

    Dimension

    : 0.1772 ±0.0591in (4.5±1.5mm)

  • 3.

    Dimension

    : 0.1575±0.0591in (4±1.5mm)

  • 4.

    Dimension

    : 0.2087±0.0591in (5.3±1.5mm)

  • 5.

    Dimension

    : 0.1575±0.0591in (4±1.5mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

Drivers door

• 1.

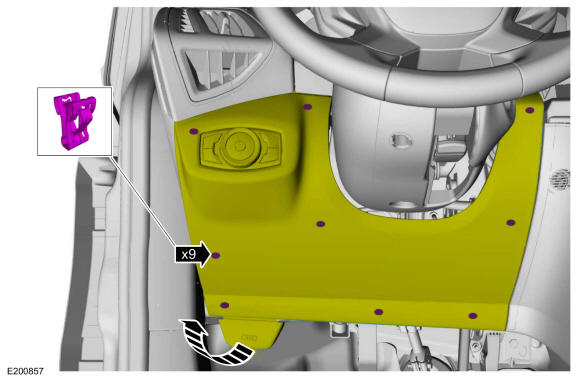

  Release the clips and position aside the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

• 2.

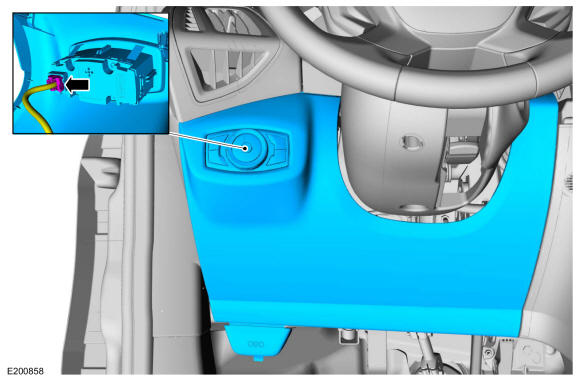

  Disconnect the electrical connector and remove the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

• 3.

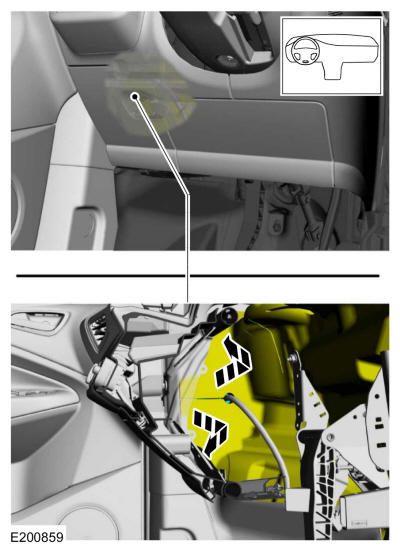

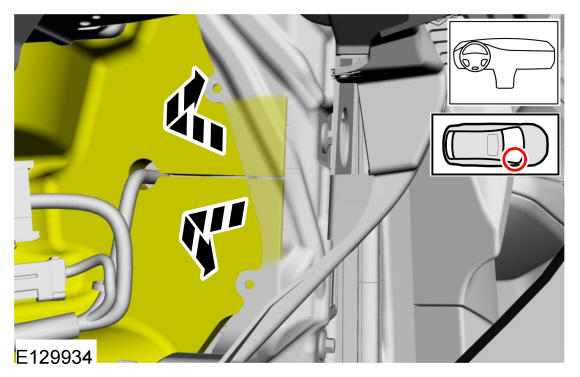

  Position aside the LH side inner insulator dash panel.

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove the LH side lower cowl pad.

Courtesy of FORD MOTOR COMPANY

• 5.

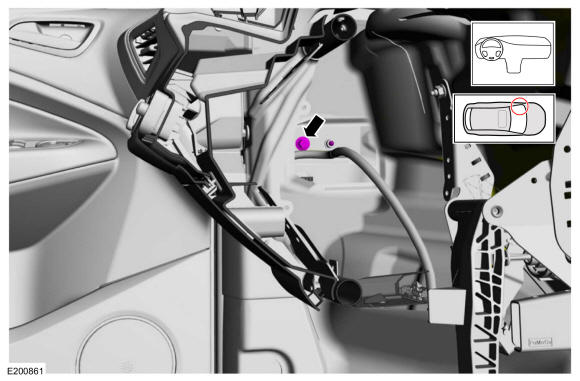

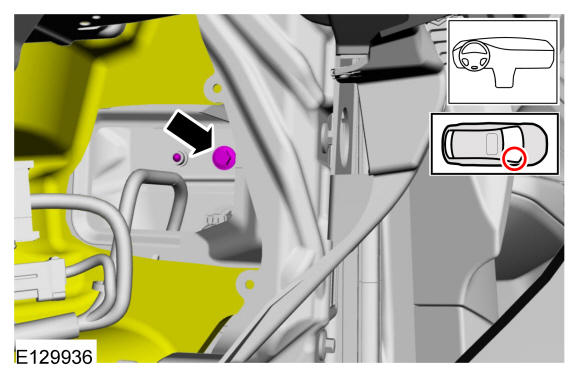

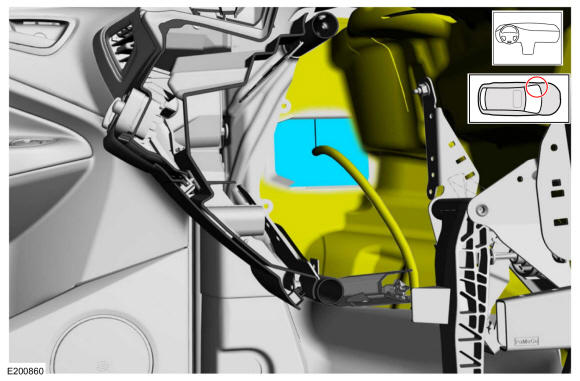

  Loosen the bolt.

  Torque

  : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Passenger Door

• 6.

  Remove the 2 hinge pins and remove the glove compartment.

Courtesy of FORD MOTOR COMPANY

• 7.

  Position aside the inner insulator dash panel.

Courtesy of FORD MOTOR COMPANY

• 8.

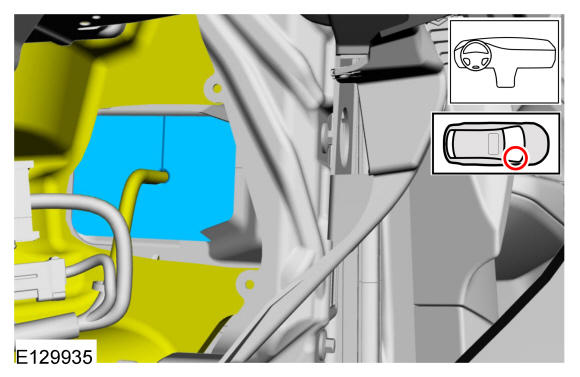

  Remove the lower cowl pad.

Courtesy of FORD MOTOR COMPANY

• 9.

  Loosen the bolt.

  Torque

  : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

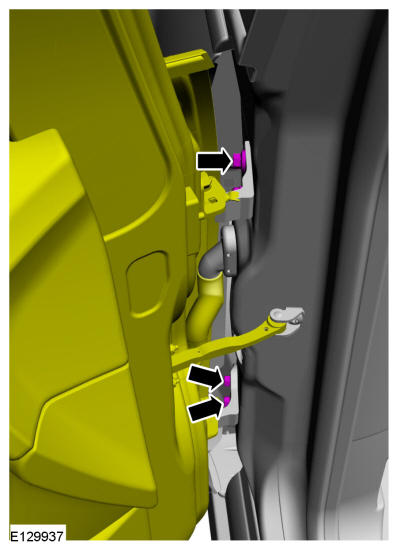

• 10.

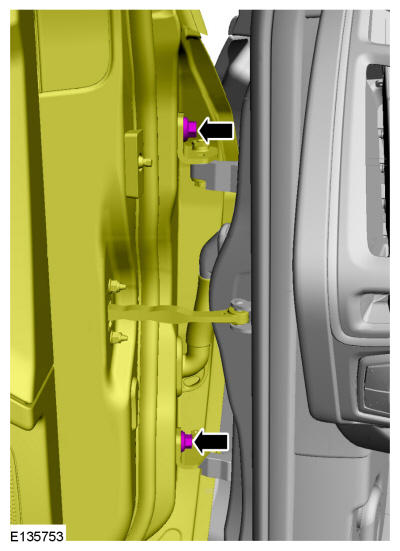

  Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

• 11.

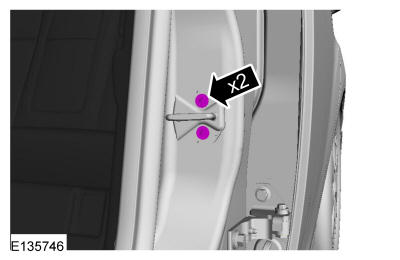

  Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

• 12.

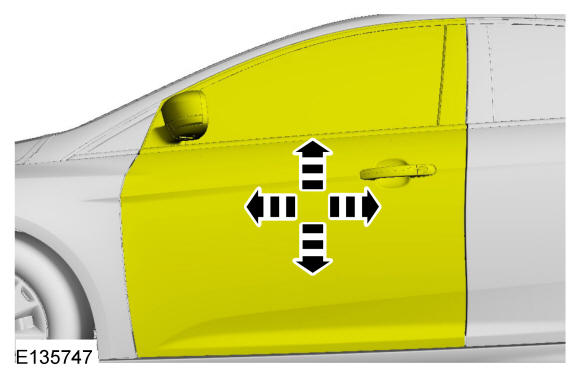

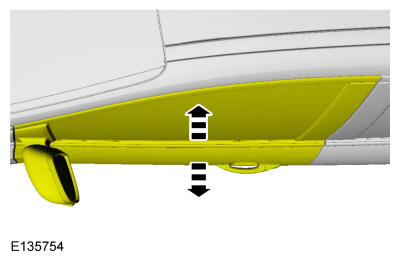

  Adjust the front door as shown below.

Courtesy of FORD MOTOR COMPANY

• 13.

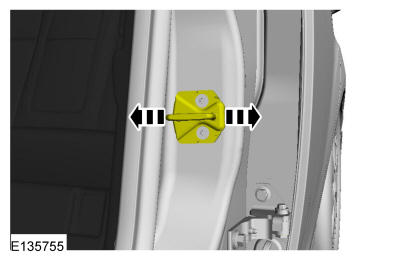

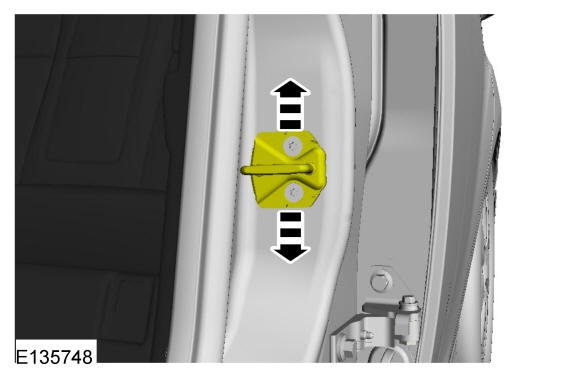

  Adjust the striker assembly as shown below.

Courtesy of FORD MOTOR COMPANY

• 14.

  Tighten the bolts.

  Torque

  : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

• 15.

  Tighten the bolts.

  Torque

  : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Inspection

• 1.

  Check body to the front door dimensions.

  • 1.

    Dimension

    : 0.0394-0.0394/+0.0551in (1-1/+1.4mm)

  • 2.

    Dimension

    : 0.0984±0.0591in (2.5±1.5mm)

  • 3.

    Dimension

    : 0.0000±0.0591in (±1.5mm)

  • 4.

    Dimension

    : 0.0000-0.0630/+0.0394in (-1.6/+1mm)

  • 5.

    Dimension

    : 0.2520±0.0591in (6.4±1.5mm)

  • 6.

    Dimension

    : 0.3228±0.0591in (8.2±1.5mm)

  • 7.

    Dimension

    : 0.0394-0.0394/+0.0551in (1-1/+1.4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

• 1.

  Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

• 2.

  Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

• 3.

  Adjust the front door as shown below.

Courtesy of FORD MOTOR COMPANY

• 4.

  Adjust the striker assembly as shown below.

Courtesy of FORD MOTOR COMPANY

• 5.

  Tighten the bolts.

  Torque

  : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

  Tighten the bolts.

  Torque

  : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
