Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location: Notes

Courtesy of FORD MOTOR COMPANY

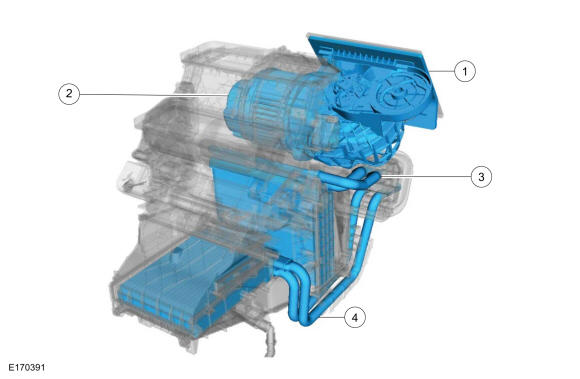

Item	Description
1	Air inlet duct
2	Blower motor
3	Evaporator
4	Heater core

Courtesy of FORD MOTOR COMPANY

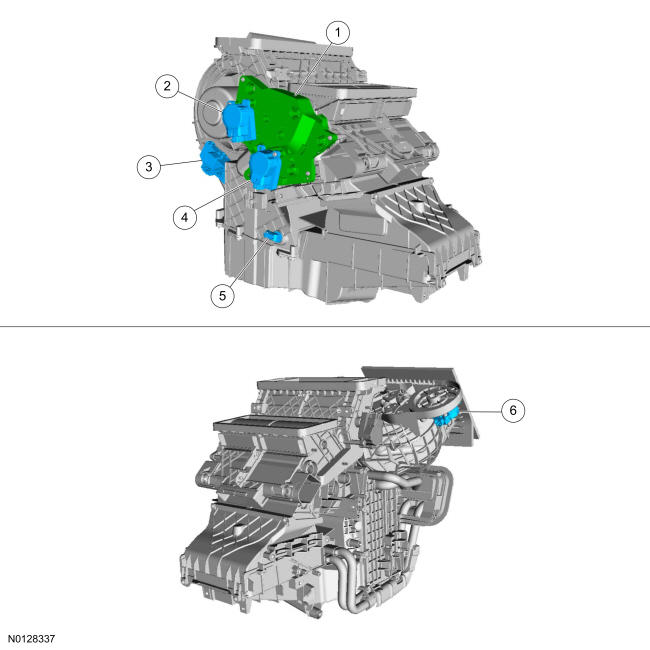

Item	Description
1	Actuating assembly
2	Air distribution door actuator
3	Blower motor control module
4	Temperature door actuator
5	Evaporator temperature sensor
6	Air inlet actuator
